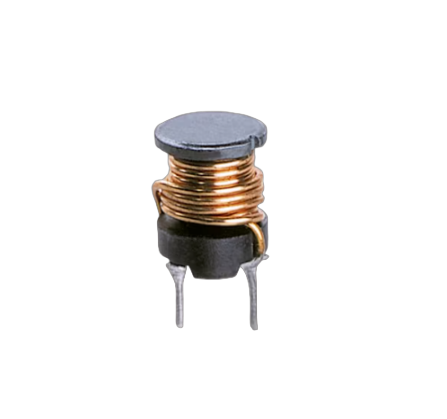

The 1014 High Voltage Radial Leaded Wire Wound Inductor is designed for demanding high-voltage electronic applications where insulation strength, stability, and reliable energy handling are critical. Compared with standard low-voltage inductors, this HV series is engineered with enhanced insulation systems and reinforced winding structures to ensure safe and stable operation under high electrical stress.
Its precision wire-wound construction combined with a high-voltage ferrite core provides excellent performance in energy storage, filtering, and current smoothing applications within high-voltage power circuits.
The radial leaded through-hole design ensures strong mechanical anchoring on PCB boards, making it suitable for industrial and high-reliability electronic systems.
Custom inductance values, insulation requirements, and structural designs can be developed for specific high-voltage applications.
Designed for high-voltage electronic circuits
Enhanced insulation structure for safety and reliability
Stable inductance under high electrical stress
Precision wire-wound construction
High dielectric strength design
Reliable radial lead mounting
Suitable for industrial-grade systems
Custom high-voltage specifications available
Non-isolated buck or Buck-Boost Converter like PI LinkSwitch-TN
constant current LED Driver
Utility metering
Filter for power supply
High Voltage Power Supplies
Industrial Power Conversion Systems
Inverter Circuits
Medical High-Voltage Equipment
Test and Measurement Systems
Energy Storage Systems
Specialized Power Electronics

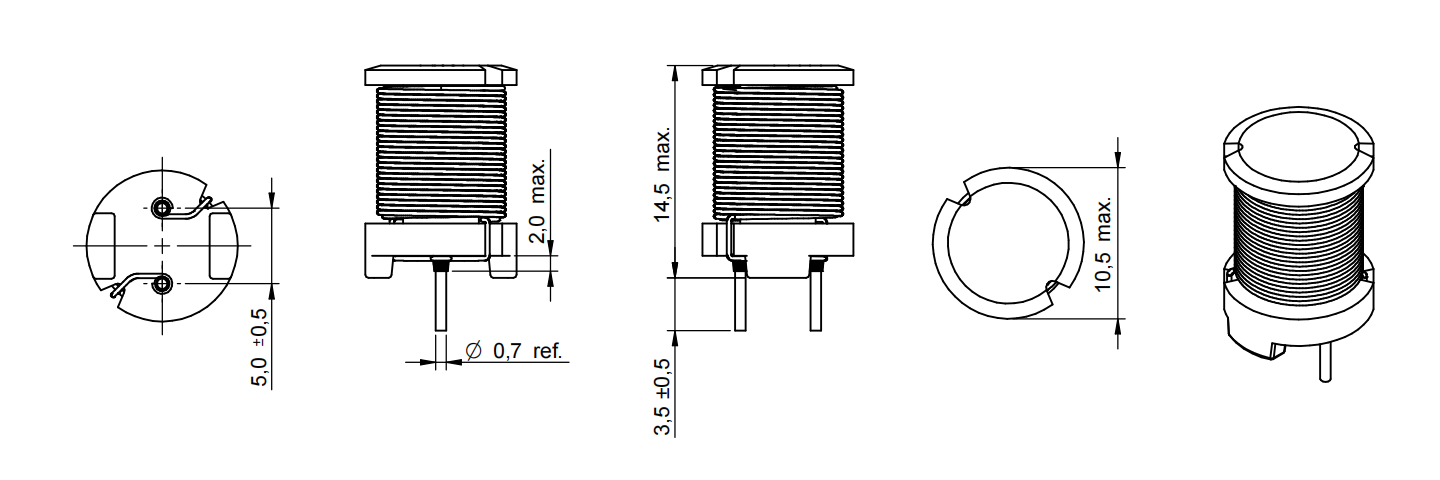

Physical Properties
| Order Code | L(μH) | lR(A) | ISAT(A) | RDC max.(Ω) | fres(MHz) |
| INF-1014-120μH | 120 | 2 | 2 | 0.18 | 3.9 |
| INF-1014-470μH | 470 | 1 | 1.3 | 0.54 | 2 |
| INF-1014-680μH | 680 | 0.8 | 1.1 | 0.79 | 1.7 |
| INF-1014-1000μH | 1000 | 0.8 | 0.8 | 1.2 | 1.3 |
| INF-1014-1200μH | 1200 | 0.62 | 0.84 | 1.4 | 1.3 |
| INF-1014-1500μH | 1500 | 0.55 | 0.75 | 1.8 | 1.1 |
| INF-1014-1800μH | 1800 | 0.5 | 0.68 | 2.1 | 1.1 |
| INF-1014-2200μH | 2200 | 0.5 | 0.58 | 2.5 | 0.82 |
| INF-1014-3300μH | 3300 | 0.35 | 0.5 | 4 | 0.75 |
| INF-1014-4700μH | 4700 | 0.3 | 0.42 | 5.8 | 0.63 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
