PFC chokes are energy‑storage inductors used in active power factor correction to shape input current and lower harmonics. They improve efficiency, reduce THD, and help meet grid standards while limiting differential‑mode EMI. As a China‑based high‑tech manufacturer, we design and build standard and custom choke coils for SMPS from 100 W up to multi‑kilowatt systems.
Advantages of Our PFC Chokes
Engineered with high‑performance ferrites and optimized geometries, these chokes minimize core loss across CCM, CRM, and interleaved topologies. Low DCR and high saturation current support compact layouts, stable operation, and controlled temperature rise. Automated winding ensures tight tolerances and repeatable performance.
Specifications and Customization for PFC Chokes
We match inductance, current rating, Isat, and DCR to your controller mode, switching frequency, and ripple targets. Mechanical options include toroidal, EE/EI, ETD, and PQ cores with bobbin‑wound or encapsulated designs, custom terminations, and insulation systems. OEM/ODM services, free samples, and fast validation keep projects on schedule.
PFC Choke Types and Core Options

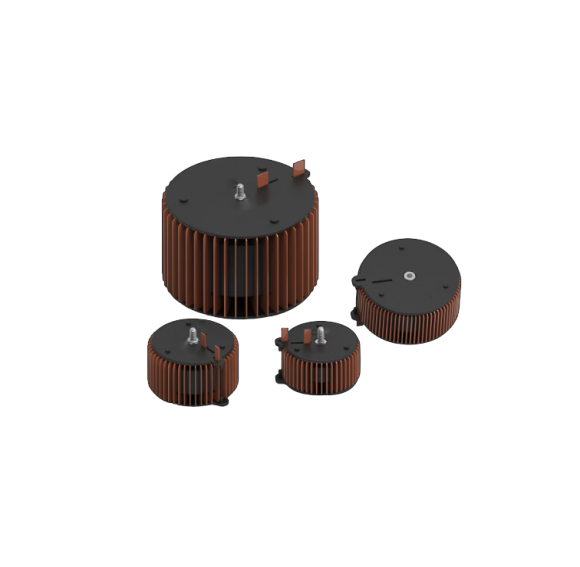

Toroidal designs offer low stray fields and compact footprints. Powdered iron handles heavy DC bias with a distributed gap, while ferrite minimizes core loss at higher frequencies. Bobbin‑wound EE, ETD, and PQ cores enable automated production, reliable creepage and clearance, and consistent electrical results.
Applications for PFC Chokes
These components are used in server and telecom supplies, LED drivers, PV inverters, EV chargers, medical equipment, and industrial automation. We supply single‑phase boost inductors, interleaved arrangements for higher power density, and three‑phase variants for drives, UPS, and large rectifiers.
Selecting PFC Chokes
Start with power level, input range, and efficiency goals. Choose an inductance window that meets ripple targets and keeps the controller stable. Confirm Isat against worst‑case low‑line and transients. Minimize DCR with appropriate wire and winding techniques, and verify thermal performance under real airflow and mounting conditions. Select core material to balance loss, bias tolerance, and size. Maintain creepage, clearance, and documentation to support UL, CE, and RoHS evaluations.
Quality, Standards, and Reliability for PFC Chokes
Our lifecycle quality control follows the principle of Excellence Through Professionalism and operates to ISO9001. We support product compliance with UL, CE, and RoHS and provide traceable documentation. Reliability validation can include temperature cycling, vibration, and endurance testing for harsh environments.
Get Started with PFC Chokes: Samples, Quotes, Engineering Support
Share your load profile, topology, target inductance and current, footprint, and compliance needs. Our engineering team will recommend a tailored design and provide free samples for quick verification. As a PFC chokes manufacturer, we offer agile OEM/ODM support and efficient delivery. Contact us for a quote or to schedule a technical review.
