Filter chokes are magnetic components that raise impedance to unwanted noise while preserving desired signals. They help AC and DC systems meet conducted emissions limits and maintain power integrity. Our team identifies the dominant noise mode and tailors designs to your frequency band, current profile, and mechanical constraints.
We engineer custom solutions based on target inductance, current rating, DCR, temperature rise, form factor, and mounting style. Our OEM/ODM workflow enables rapid prototyping and iterative refinement. Operating under ISO9001 quality systems, we supply materials and documentation aligned with UL, CE, and RoHS expectations to support compliance-driven projects.
Choose the choke style that matches your noise profile, current range, and assembly needs.
| Type | Typical role | Key cues |
|---|---|---|
| Common mode filter chokes | Line input and data-line noise suppression | Inductance per winding, leakage inductance, balanced DCR |
| Differential mode / line chokes | Ripple and harmonics attenuation in SMPS and drives | Inductance, saturation current, DCR, thermal rise |
| SMT/rod-core options | Space-constrained boards and control electronics | SRF, DC bias effects, size vs. performance |

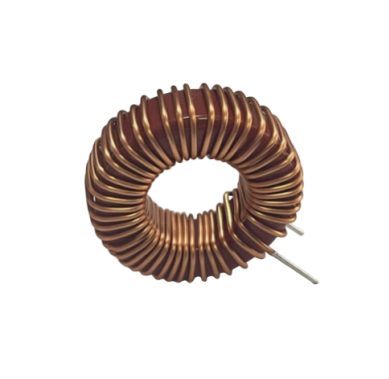

These chokes block noise present equally on multiple conductors relative to ground. Ferrite toroidal cores deliver high impedance over wide bands, helping designs achieve EMC limits with minimal impact on differential signals.
Line chokes reduce ripple and harmonic content between conductors. Ferrite suits high-frequency attenuation, while iron powder handles DC bias without early saturation.
Chokes support power electronics, industrial automation, automotive systems, telecommunications, medical equipment, and computing. Typical placements include AC/DC inputs, PFC stages, DC/DC converters, motor drives, server power rails, and base stations. We also offer encapsulated options for harsh environments with dust, moisture, or vibration.
Define EMI targets and frequency bands, then select:
Inductance and impedance for the dominant noise spectrum
Current rating, saturation current, and allowable temperature rise
Core material (ferrite or iron powder) based on frequency and DC bias
Form factor, isolation, creepage/clearance, and mounting style
Share schematics, target emissions, and mechanical limits, and we will recommend an optimized solution. As a China-based manufacturer and supplier of Filter Chokes and custom magnetic components, we provide engineering support and sample units to validate performance before production. Contact us to start your design and accelerate EMC compliance.
