The 1322 Air Coil Inductor is designed for high-frequency and RF (radio frequency) applications where low loss, high linearity, and precise signal behavior are required. Unlike ferrite-core inductors, this air-core structure eliminates core saturation and magnetic hysteresis effects, making it ideal for high-frequency signal processing.
With its precision air-wound structure, the 1322 coil provides excellent Q factor performance, stable inductance at high frequencies, and minimal energy loss. It is widely used in RF circuits, communication modules, sensing systems, and precision electronic equipment.
Its open structure ensures superior thermal performance and high-frequency stability, especially in applications where signal integrity is more important than power handling.
Custom inductance values, coil spacing, and wire diameters can be designed for specific RF requirements.
Key Features
Air-core structure with no magnetic saturation
Excellent high-frequency and RF performance
High Q factor for signal integrity
Low loss and minimal distortion
Stable inductance at high frequencies
Superior thermal performance due to open structure
Suitable for precision signal circuits
Custom RF design options available
RF Communication Circuits
Wireless Modules (WiFi / Bluetooth / IoT RF Front-End)
Antenna Matching Networks
Signal Filtering and Tuning Circuits
High-Frequency Oscillators
Precision Sensor Systems
Test and Measurement Equipment

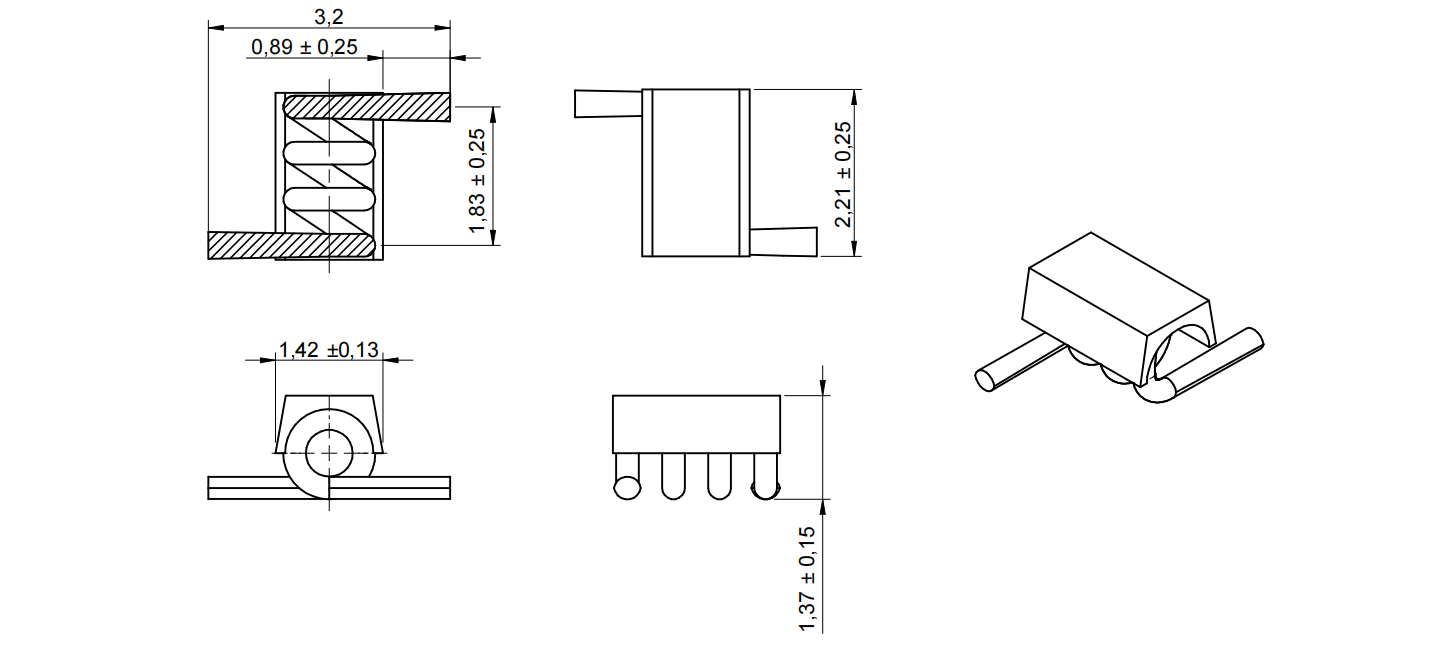

Physical Propertie
| Order Code | L (nH) | Tol.L | Test Condition L | Qmin (%) | Test Condition Q | RDc max. (mΩ) | lR (A) | fres (GHz) |
| INF-1322-1.65nH | 1.65 | ±10% | 800 MHz | 100 | 800 MHz | 4 | 1.6 | 10 |
| INF-1322-2.55nH | 2.55 | ±5% | 800 MHz | 100 | 800 MHz | 5 | 1.6 | 8.2 |
| INF-1322-3.85nH | 3.85 | ±5% | 800 MHz | 100 | 800 MHz | 6 | 1.6 | 7.5 |
| INF-1322-5.45nH | 5.45 | ±5% | 800 MHz | 100 | 800 MHz | 8 | 1.6 | 7 |
