The 3635 THT High Current Inductor is designed for high-power electronic systems that require strong current handling capability and stable energy storage performance. Unlike small signal or compact filter inductors, this model is optimized for power-level applications where efficiency, thermal stability, and durability are critical.
Built with a robust through-hole (THT) structure and a large-volume winding design, the 3635 inductor ensures low DC resistance, high saturation current capability, and stable inductance under heavy load conditions.
It is widely used in industrial-grade power conversion systems, including DC-DC converters, inverters, motor drive circuits, and renewable energy equipment.
Custom inductance values, current ratings, and core configurations can be tailored to meet different high-power design requirements.
Designed for high current power applications
Low DC resistance for improved efficiency
High saturation current capability
Stable inductance under heavy load conditions
Robust through-hole (THT) mechanical structure
Excellent thermal performance for continuous operation
Suitable for industrial and energy systems
Customizable power design parameters
High Power DC-DC Converters
Industrial Switching Power Supplies
Motor Drive Control Systems
Inverter Systems (Solar / Energy Storage)
Automotive Power Electronics
Industrial Automation Equipment
Renewable Energy Conversion Systems

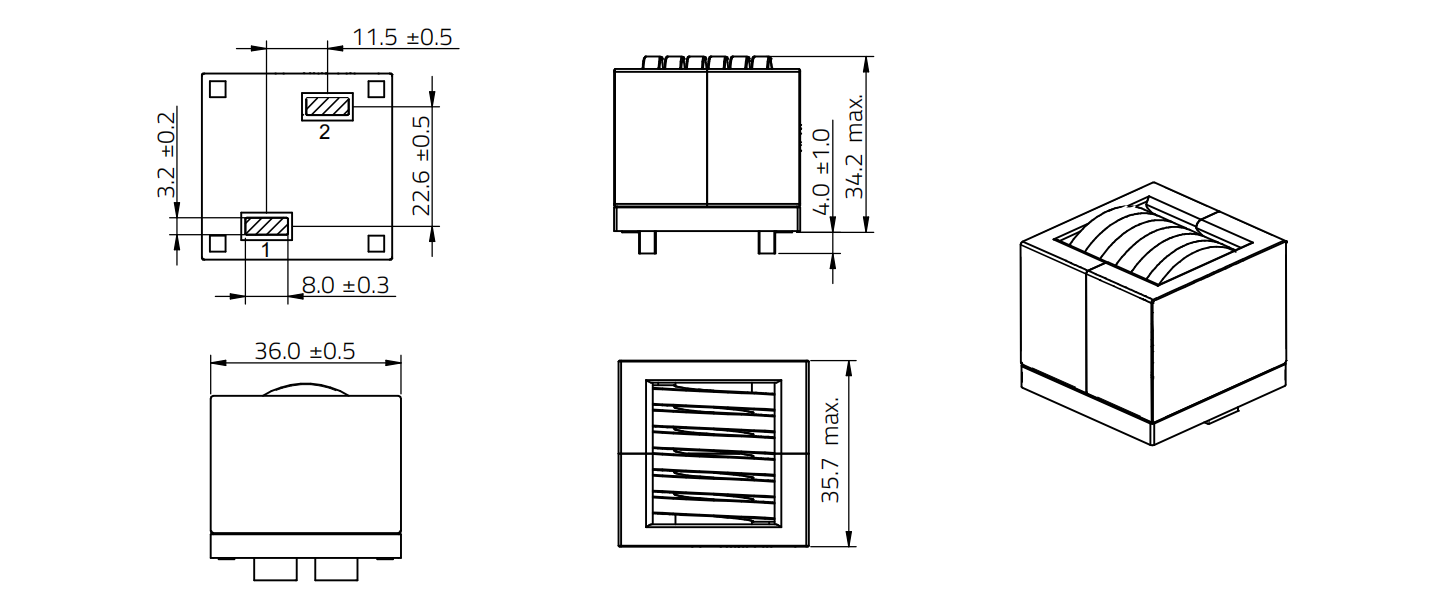

Physical Properties
Order Code | L(μH) | lR(A) | lRP,40K(A) | lSAT,10%(A) | lSAT,30%(A) | fres(MHz) |
| INF-3635-3.3μH | 3.3 | - | 98.1 | - | 189.1 | 30.55 |
| INF-3635-4.3μH | 4.3 | - | 82.4 | - | 161.3 | 23.66 |
| INF-3635-4.7μH | 4.7 | - | 98.1 | - | 120.4 | 27.36 |
| INF-3635-6.5μH | 6.5 | - | 82.4 | - | 104.8 | 19.64 |
| INF-3635-7.5μH | 7.5 | - | 63.8 | - | 126.3 | 19.77 |
| INF-3635-10μH | 10 | - | 63.8 | - | 90.7 | 16.76 |
| INF-3635-11μH | 11 | - | 59.6 | - | 102.6 | 16.64 |
| INF-3635-18μH | 18 | - | 49.3 | - | 80.3 | 12.37 |
| INF-3635-27μH | 27 | - | 49.3 | - | 52.1 | 10.33 |
| INF-3635-37μH | 37 | - | 32.8 | - | 56.3 | 8.87 |
| INF-3635-56μH | 56 | - | 32.8 | - | 36.9 | 7.41 |
| INF-3635-62μH | 62 | - | 26.3 | - | 43.1 | 6.19 |
| INF-3635-110μH | 110 | - | 23.7 | - | 27.2 | 5.11 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
