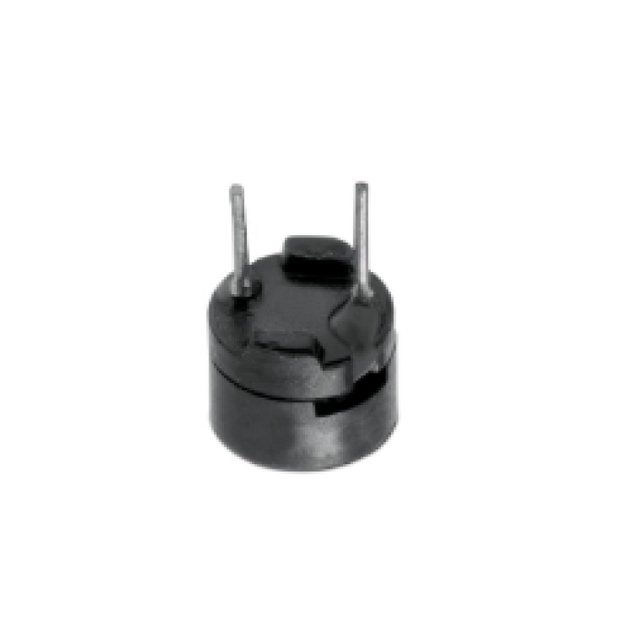

The 8075 Radial Leaded Wire Wound Inductor is designed for power filtering, energy storage, and EMI suppression in electronic circuits and power conversion systems. Featuring a precision wire-wound structure and high-quality magnetic core materials, it provides stable inductance characteristics, efficient current handling, and reliable long-term performance.
Its radial leaded through-hole design allows secure PCB mounting and easy integration into various industrial and consumer electronic applications. The inductor is widely used in DC-DC converters, switching power supplies, filtering circuits, and communication equipment.
Customized inductance values, wire specifications, and mounting configurations are available according to application requirements.
Precision wire-wound structure for stable inductance
High current handling capability
Low core loss and efficient energy transfer
Excellent EMI filtering and noise suppression performance
Radial leaded design for secure PCB mounting
Reliable thermal and electrical stability
Suitable for industrial and consumer electronic applications
Flexible customization options available
DC-DC Converters
Switching Power Supplies (SMPS)
EMI Filtering Circuits
Industrial Control Systems
Communication Equipment
Consumer Electronics
Power Management Modules

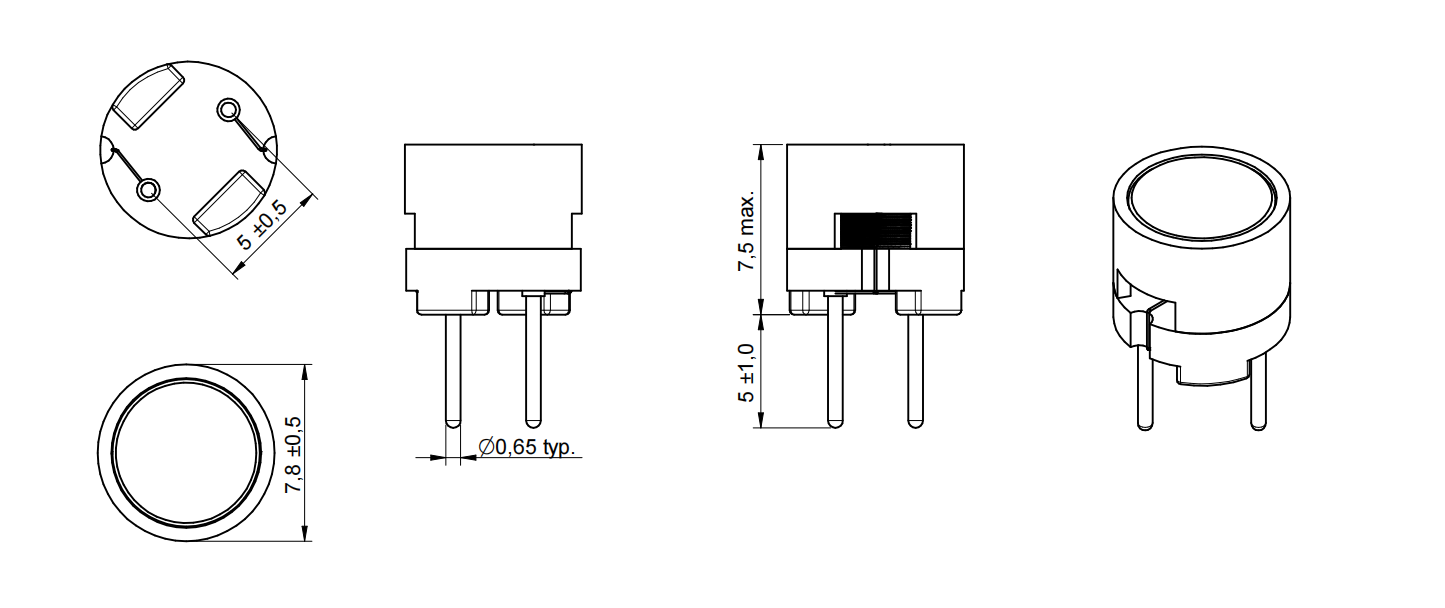

Physical Propertie
| Order Code | L (μH) | lR (A) | ISAT (A) | RDC max. (mΩ) | fres (MHz) |
| INF-8075-68μH | 68 | 1.5 | 1 | 200 | 6.3 |
| INF-8075-330μH | 330 | 0.65 | 0.45 | 830 | 3.1 |
| INF-8075-470μH | 470 | 0.6 | 0.4 | 1300 | 2.3 |
| INF-8075-680μH | 680 | 0.52 | - | 1820 | 2.1 |
| INF-8075-1000μH | 1000 | 0.35 | 0.25 | 2300 | 1.7 |
| INF-8075-1500μH | 1500 | 0.4 | 0.2 | 2820 | 1.3 |
| INF-8075-2200μH | 2200 | 0.2 | 0.18 | 4600 | 2200 |
| INF-8075-3300μH | 3300 | 0.18 | 0.15 | 8000 | 1 |
| INF-8075-4700μH | 4700 | 0.16 | 0.14 | 11400 | 0.8 |
| INF-8075-5600μH | 5600 | 0.13 | 0.07 | 15700 | 0.7 |
| INF-8075-8200μH | 8200 | 0.1 | 0.05 | 16000 | 0.6 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
