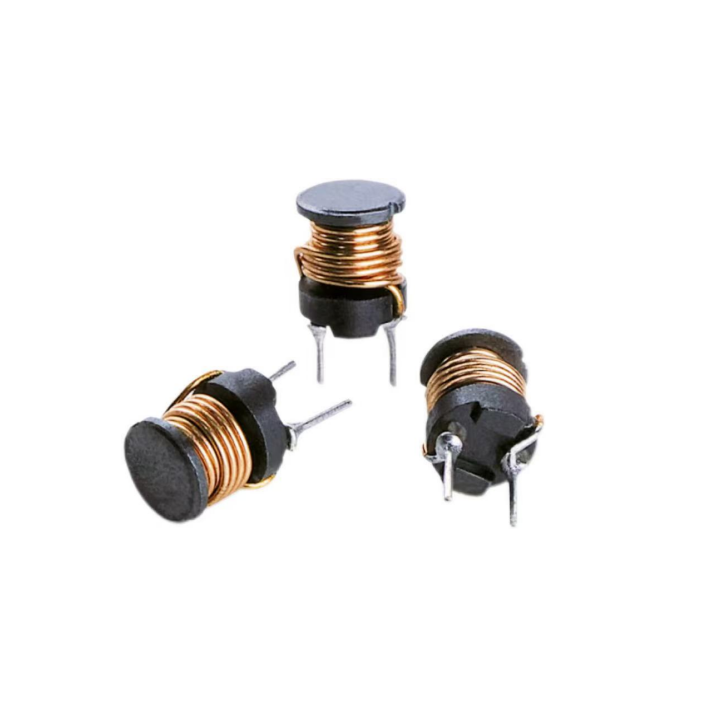

The 8095 HV Radial Leaded Wire Wound Inductor is designed for high-voltage electronic systems requiring stable inductance performance, reliable insulation capability, and strong electrical endurance. Its radial lead through-hole structure ensures secure mechanical mounting and stable operation in industrial environments.
Built with high-quality magnetic core materials and precision winding technology, this inductor provides efficient energy storage and stable filtering performance in high-voltage circuits, helping improve overall system reliability and safety.
Compared with standard inductors, the 8095 HV series is optimized specifically for high-voltage operation scenarios, where insulation strength and long-term electrical stability are critical design factors.
Customized inductance values, voltage ratings, and structural configurations are available based on application requirements.
Designed for high-voltage applications
Radial lead through-hole structure
High insulation reliability
Stable inductance performance
Efficient energy storage capability
Suitable for industrial power systems
Strong electrical endurance
Flexible customization support
High-Voltage Power Supplies
Industrial Power Systems
Energy Storage Equipment
Inverter Circuits
LED High-Voltage Drivers
Industrial Control Systems
Electrical Protection Circuits

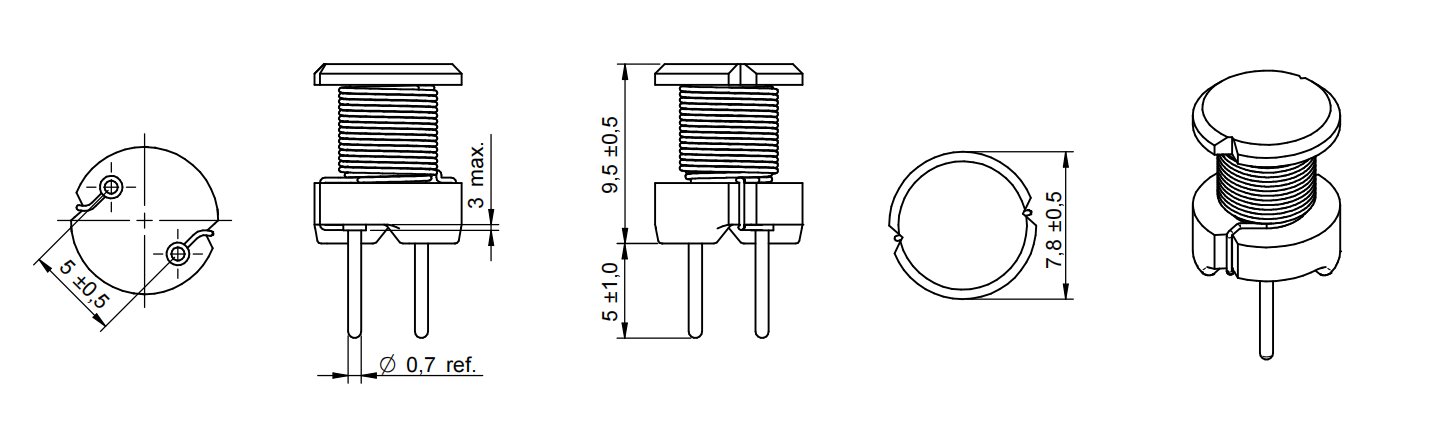

Physical Properties
| Order Code | L(μH) | lR(A) | ISAT(A) | RDC max.(Ω) | fres(MHz) |
| INF-8095-220μH | 220 | 0.9 | 1.3 | 0.6 | 3.7 |
| INF-8095-330μH | 330 | 0.75 | 0.95 | 0.7 | 3.3 |
| INF-8095-470μH | 470 | 0.6 | 0.9 | 1.32 | 3 |
| INF-8095-680μH | 680 | 0.52 | 0.76 | 1.68 | 2.5 |
| INF-8095-820μH | 820 | 0.5 | 0.72 | 1.92 | 2 |
| INF-8095-1000μH | 1000 | 0.5 | 0.55 | 2.08 | 1.8 |
| INF-8095-1200μH | 1200 | 0.4 | 0.45 | 264 | 1.65 |
| INF-8095-1500μH | 1500 | 0.38 | 0.4 | 3 | 1.5 |
| INF-8095-1800μH | 1800 | 0.35 | 0.38 | 3.5 | 1.4 |
| INF-8095-2200μH | 2200 | 0.32 | 0.32 | 4.73 | 1.2 |
| INF-8095-3300μH | 3300 | 0.25 | 0.27 | 7.08 | 0.85 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
