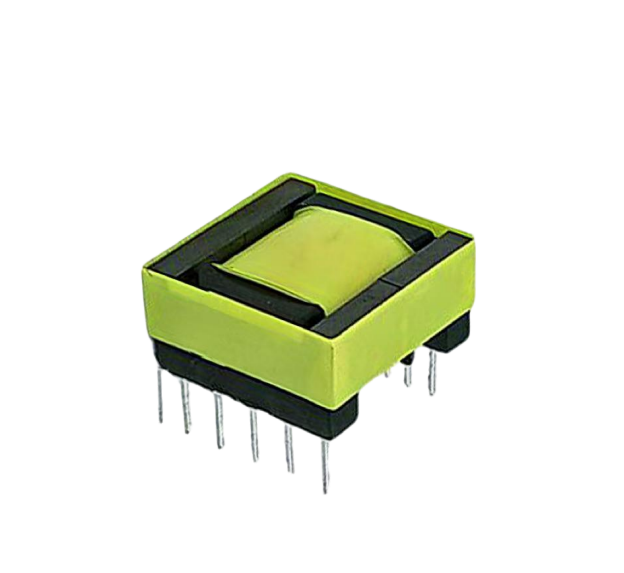

The EPC25 High Frequency DC Transformer is a compact horizontal high-frequency power component engineered for industrial-grade ToB applications, belonging to the mainstream EPC-type transformer series with ultra-wide frequency and power adaptability. Designed for high-efficiency power conversion scenarios, this transformer operates at a frequency range of 10kHz~1MHz+ and supports a power rating from <5W up to 500W-1000W, perfectly matching the power demands of small and medium-sized electronic equipment. Beyond serving as a standard flyback/drive/control/inverter transformer, it can also be used as a high-current inductor for switching mode power supplies (SMPS), making it a multi-functional core component for industrial, medical, and consumer electronic systems. The EPC25 features optimized structural design with low energy loss and stable operating temperature, ensuring reliable performance in continuous 24/7 industrial working conditions, and its compact horizontal structure saves valuable PCB space for equipment manufacturers.
The EPC25 High Frequency DC Transformer covers a segmented frequency band from 10kHz to over 10MHz, adapting to the technical requirements of different SMPS and power conversion equipment. Its power range of <5W to 1000W includes all mainstream power grades, eliminating the need for multiple model replacements for customers’ different product lines.
With a low energy loss design, the transformer maximizes output power while minimizing energy consumption, reducing the overall power loss of the host equipment. Its low operating temperature characteristic avoids thermal aging of surrounding components, and stable performance under long-term load ensures a longer service life of the whole machine, reducing the after-sales maintenance cost of ToB customers.
The EPC25 is not only a dedicated high-frequency DC transformer but also a replaceable high-current inductor, realizing the integration of multiple functions in one component. This design helps customers simplify circuit design, reduce the number of components, and lower the production and assembly costs of equipment.

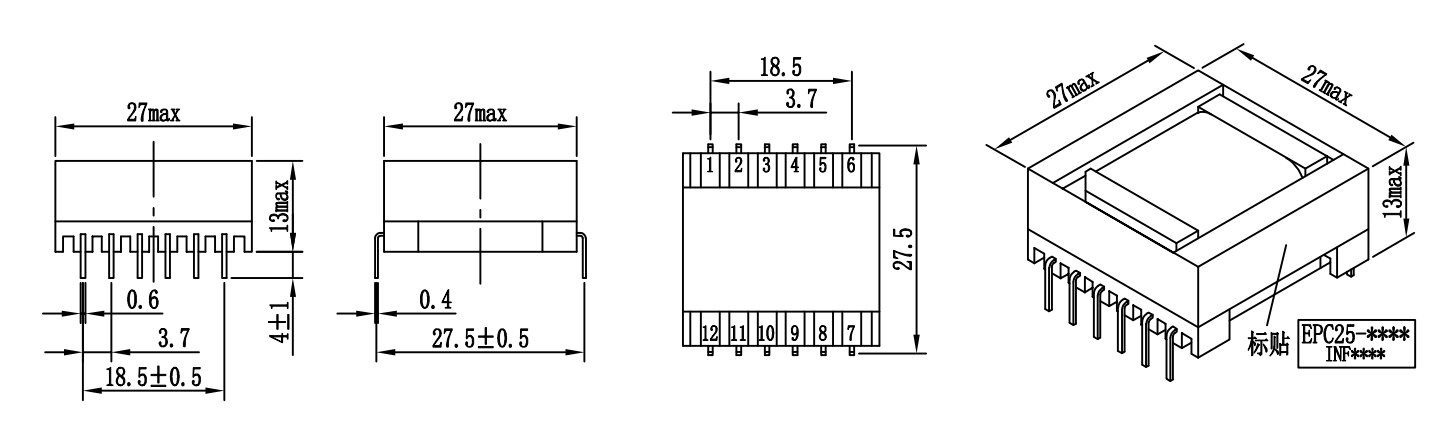

Order Code | Structure | Dimension(mm) | Pin Row | OD Pin | ||
A | B | C | ||||
INF-EPC25 | Horizontal | 27.0 | 27.0 | 13.0 | 6+6 | Ø0.8 |
The EPC25 High Frequency DC Transformer is widely used in various ToB power conversion and electronic control scenarios. It serves switching mode power supplies and chargers for industrial control equipment, commercial fast chargers and office device power adapters. It supports control power supplies for server peripherals, low-power medical diagnostic devices and industrial alarm system power modules. It fits small solar energy converters, low-voltage power modules for electric vehicle accessories and inverter components for portable energy storage. It also enables LED outdoor lighting drivers, audio-visual equipment power supplies and stage lighting control transformers.
The EPC25 High Frequency DC Transformer complies with global mainstream industrial component standards to meet the market access requirements of different countries and regions. It complies with UL 5085 and EN 61558-1, ensuring electrical safety and insulation performance. It meets EU CE certification requirements covering LVD and EMC directives, delivering stable electromagnetic compatibility performance. It conforms to RoHS 2011/65/EU directive, free of restricted hazardous substances, meeting global environmental standards for electronic component procurement.
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
For global ODM/OEM cooperation, we provide a full set of customized services and strict technical confidentiality for the EPC25 High Frequency DC Transformer. Exclusive Non-Disclosure Agreement is signed with customers, with independent production lines and storage to protect intellectual property. Pin specifications, winding parameters and label printing can be customized according to equipment design requirements, with support for joint patent applications. Flexible procurement terms are available, supporting small-batch trial orders and free specification documents for technical verification, alongside global logistics and adaptable payment solutions for long-term partners.
