DRWW
INF

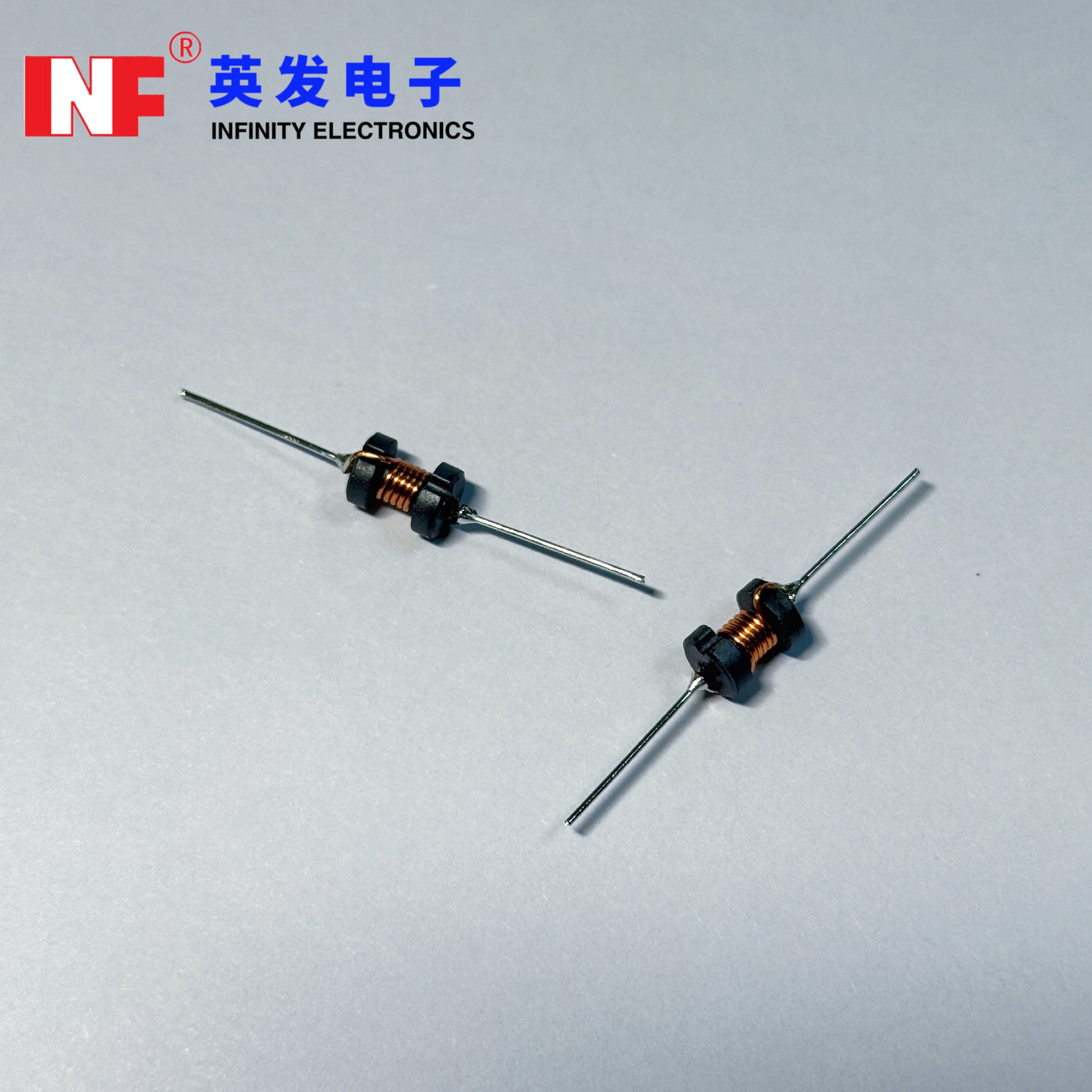

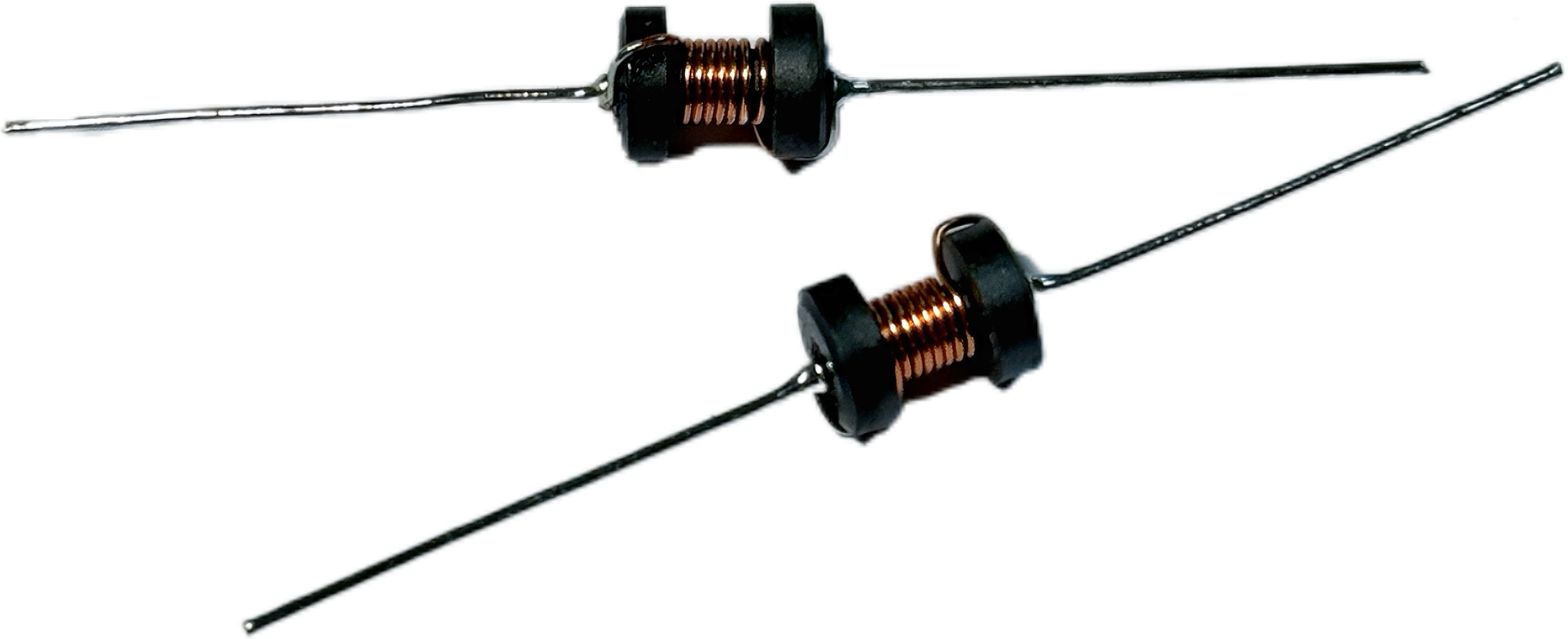

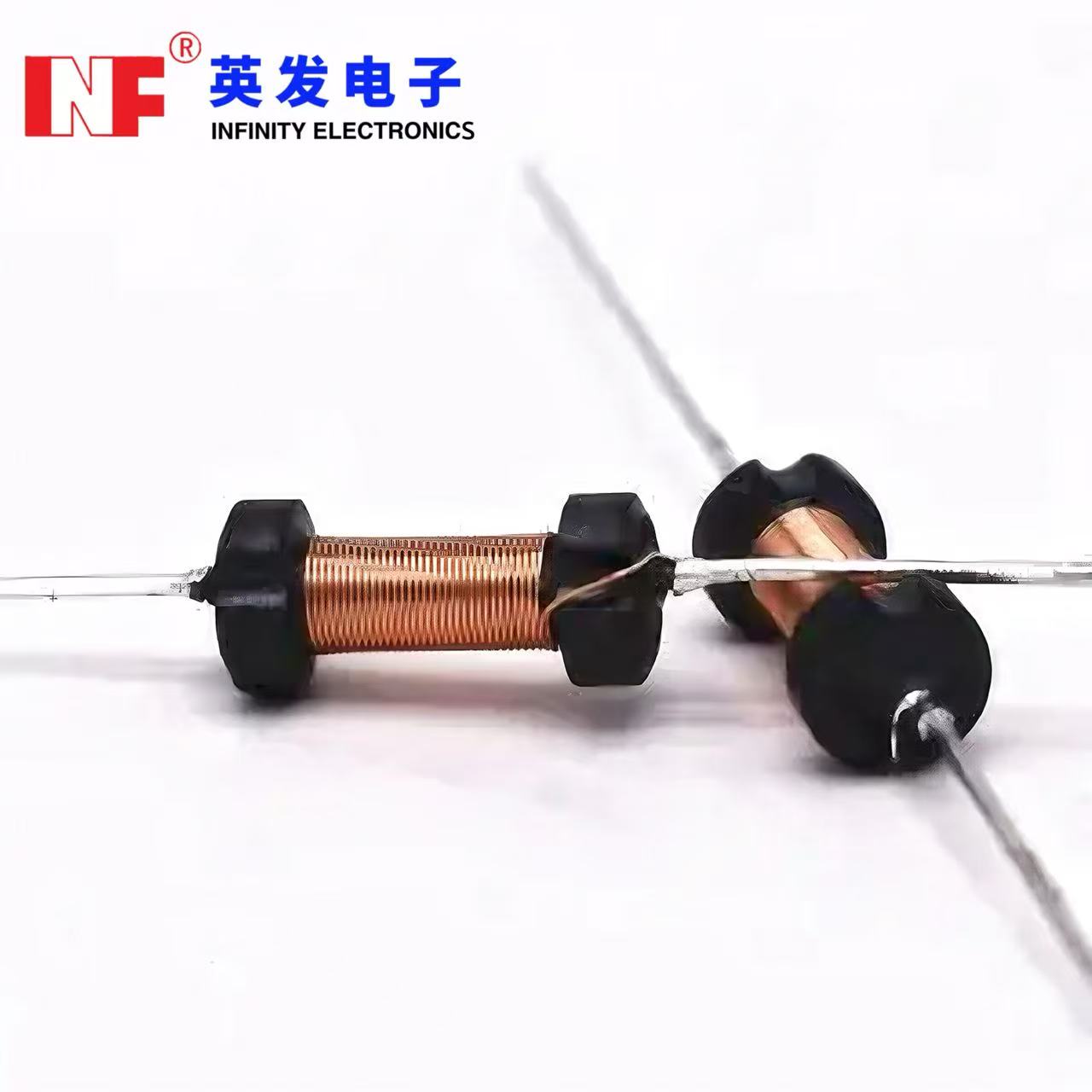

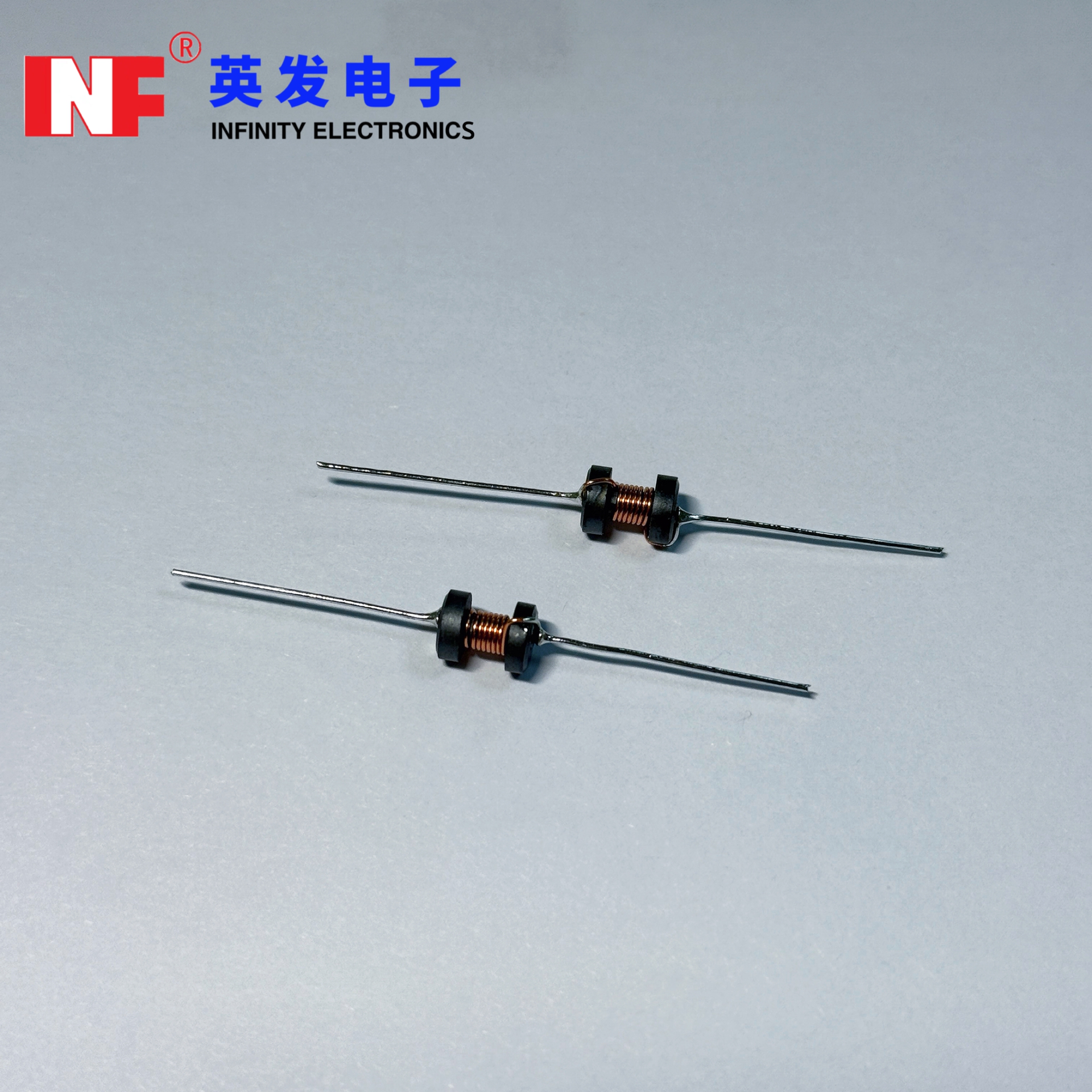

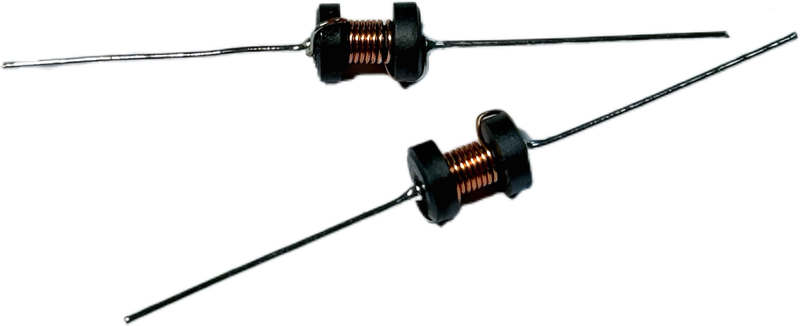

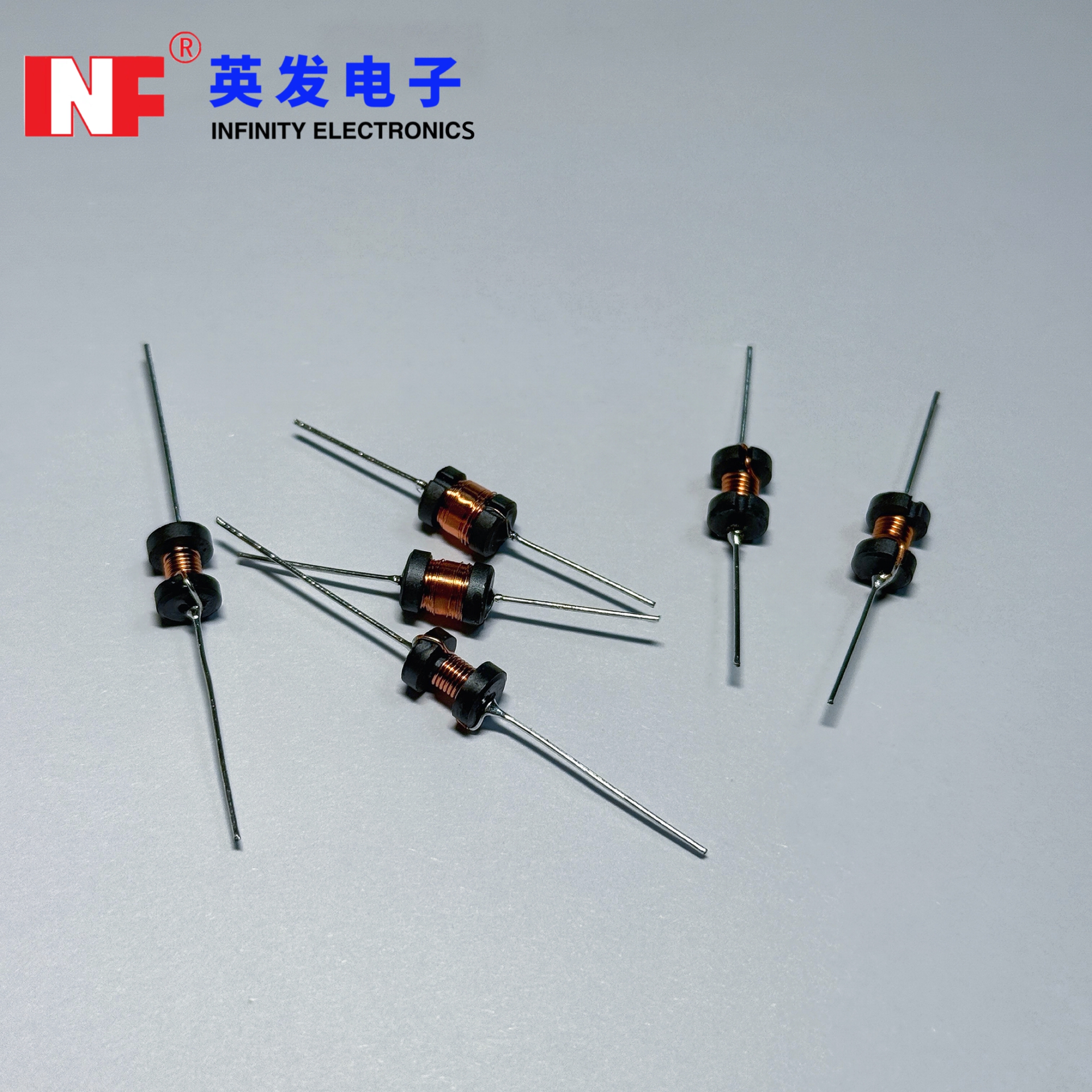

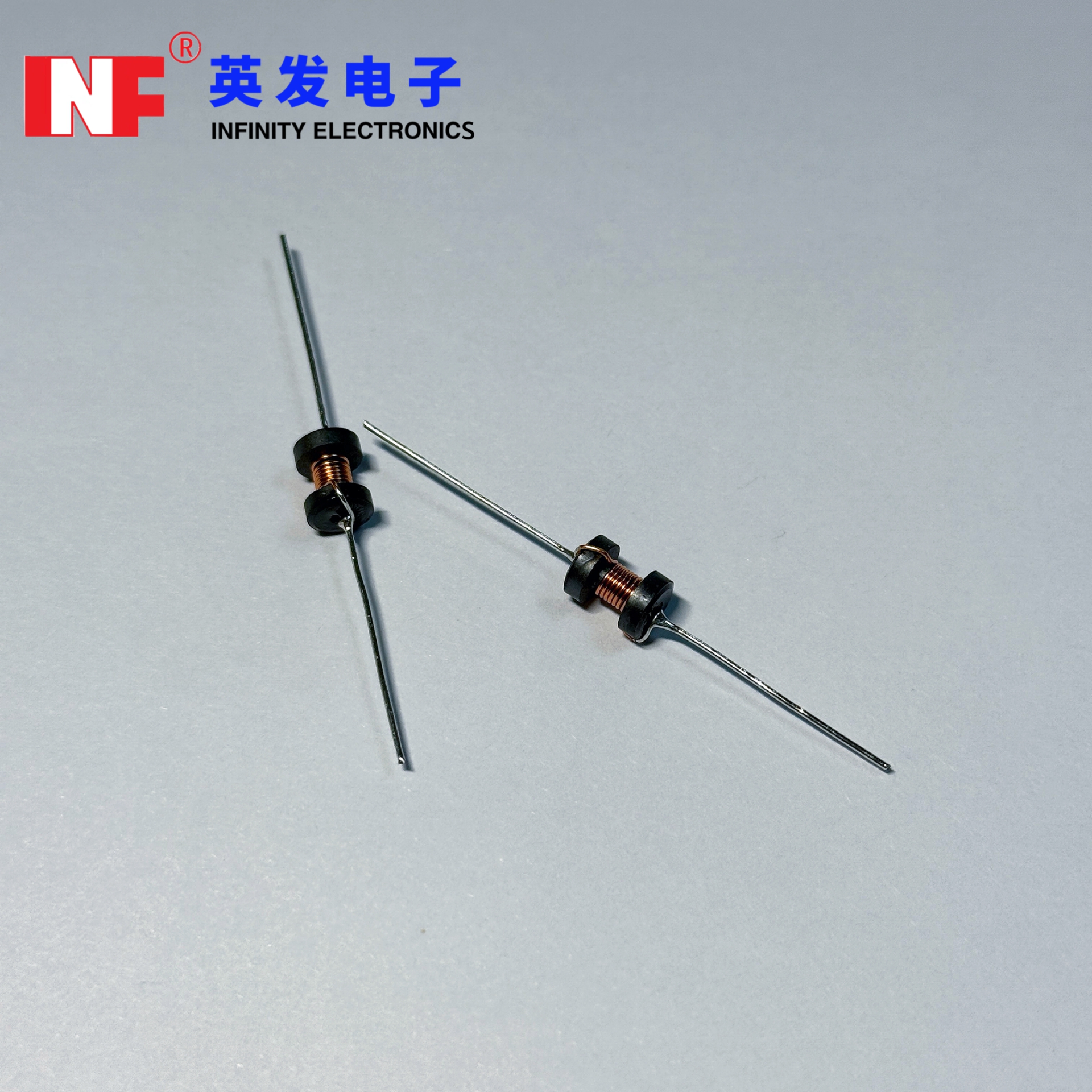

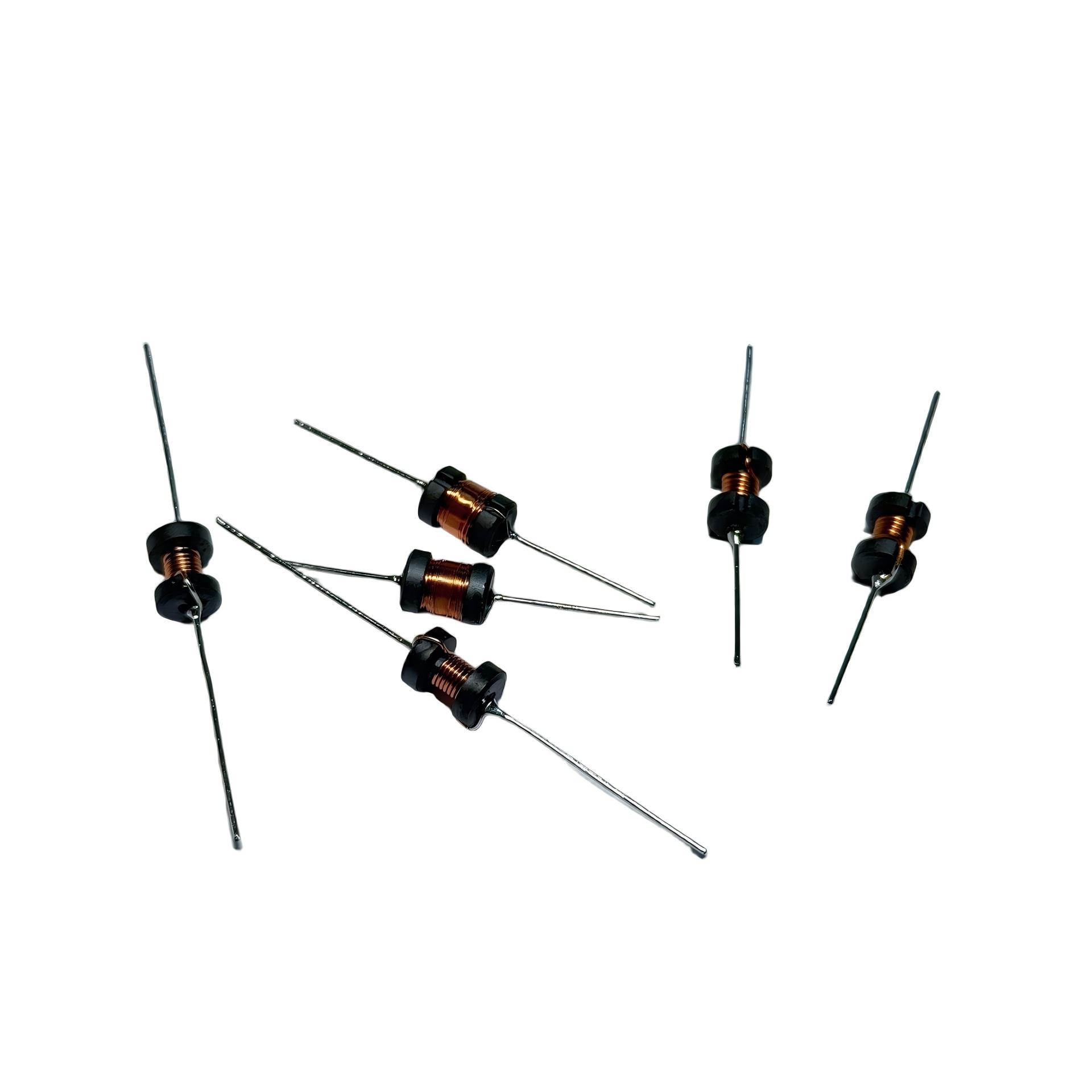

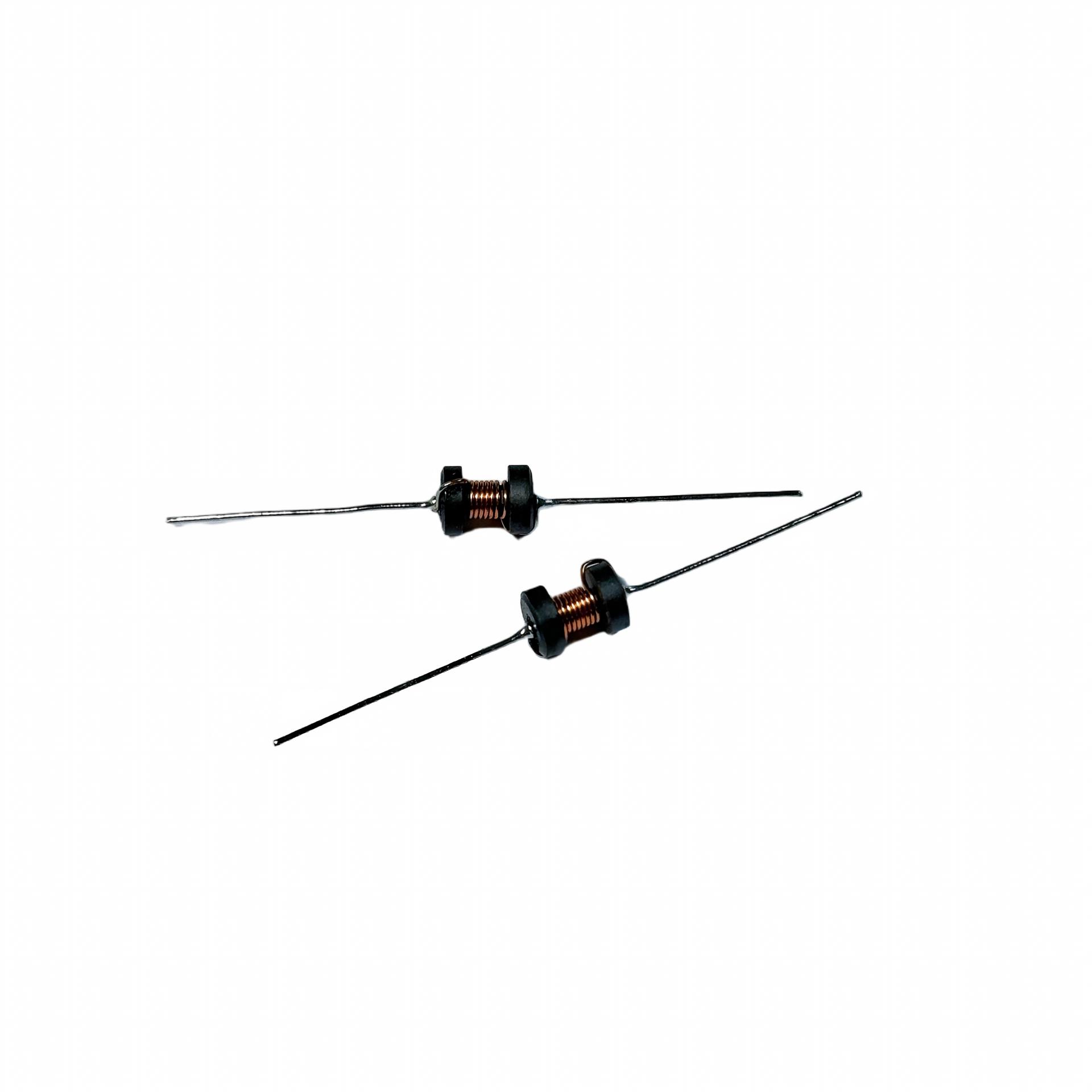

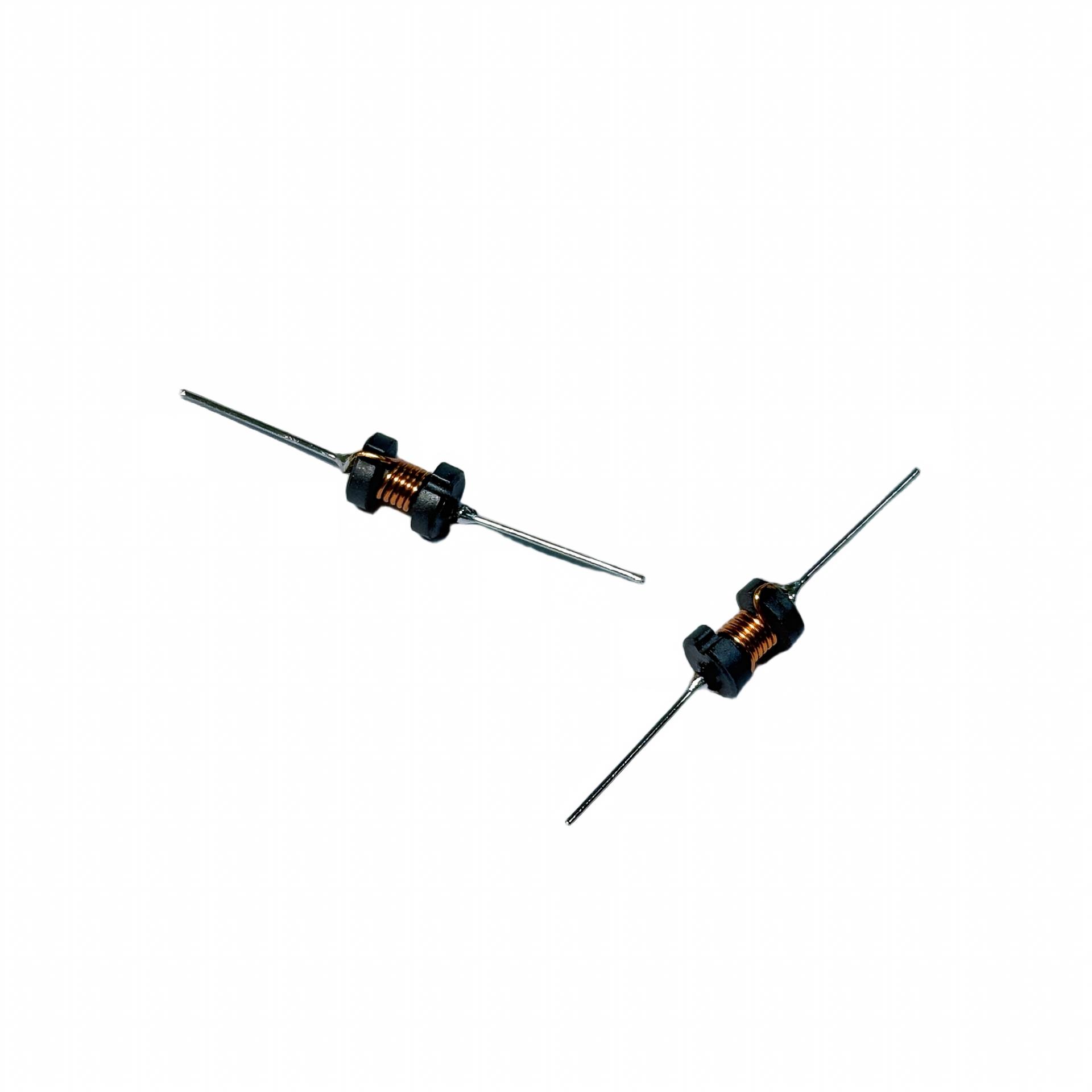

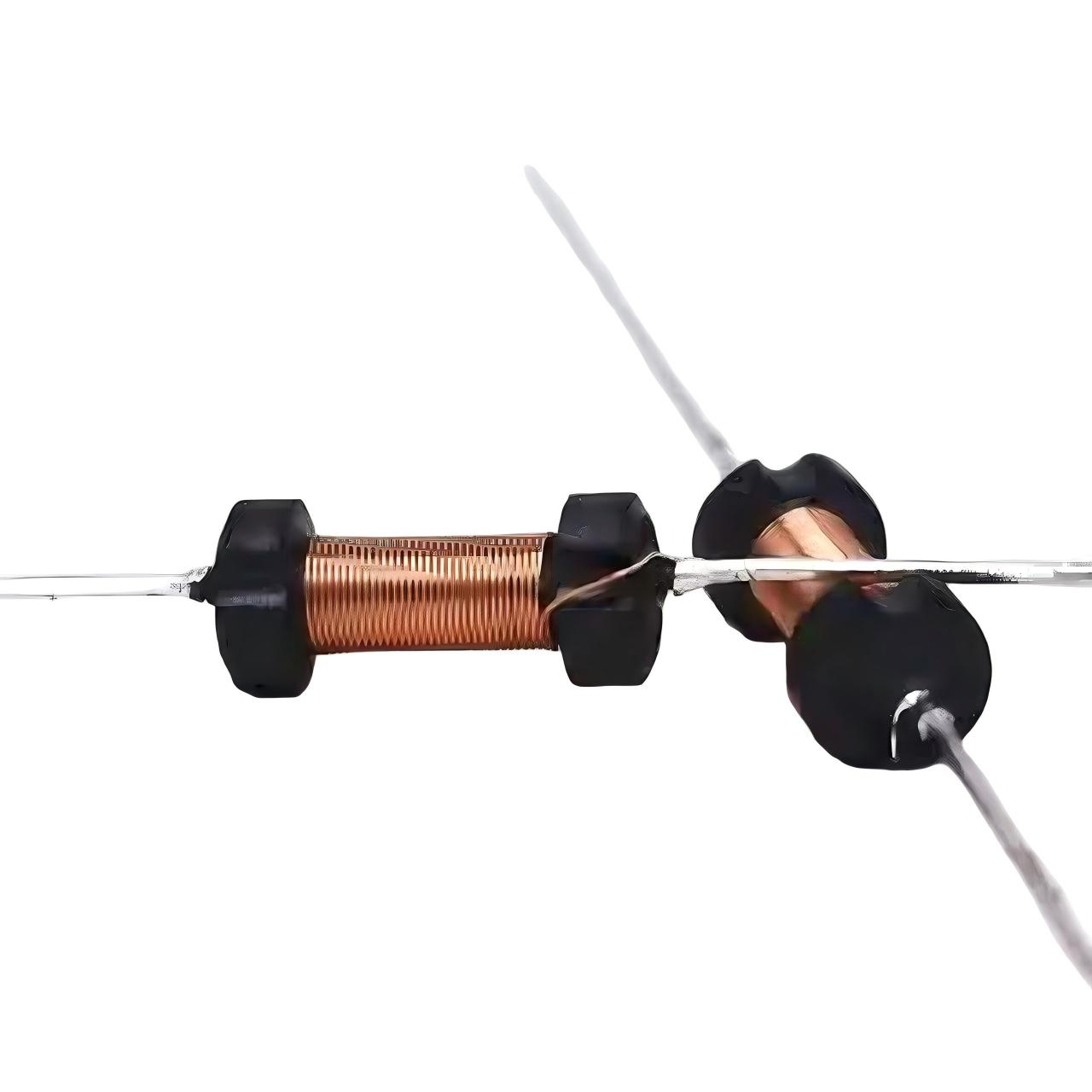

The DRWW Coil Cores Fixed Axial Power Inductor is designed for power electronic circuits requiring stable inductance performance, reliable current handling capability, and effective noise filtering characteristics. Its axial leaded wire-wound structure provides strong mechanical stability and excellent suitability for through-hole PCB assembly.
Optimized for filtering and energy storage applications, this inductor ensures smooth current flow, reduced ripple noise, and stable operation in switching power supply environments.
The DRWW series is widely used in industrial and electronic systems where durability, electrical reliability, and consistent performance are required under continuous operating conditions.
Customized inductance values, current ratings, wire types, and core materials are available based on application requirements.

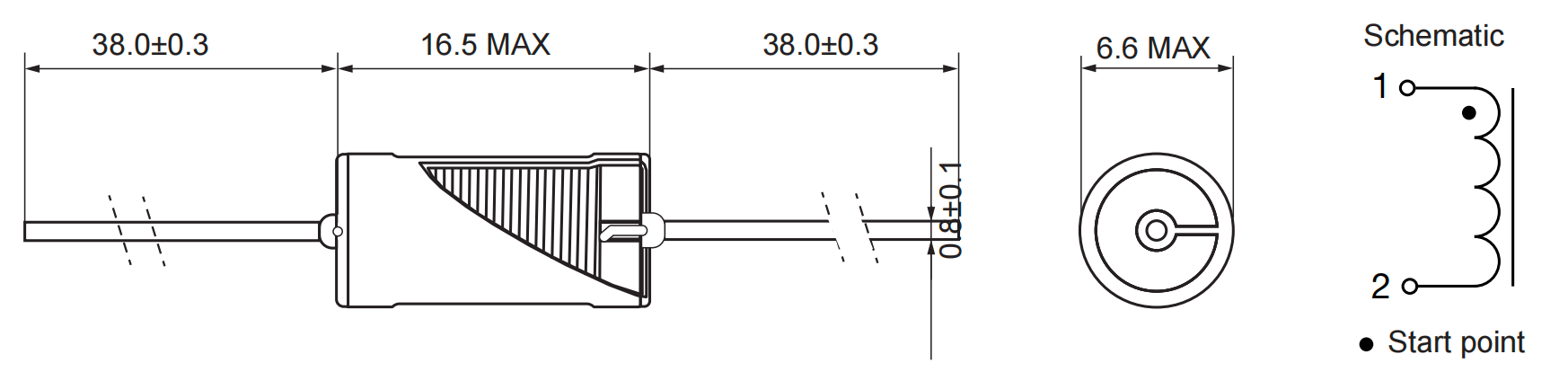

Physical Properties
| Order Code | Inductance @1kHz(μH) | DCR Max(Ω) | Temperature Rise Current Max. (A) |
| INF-DRWW-270K | 27 | 0.058 | 1.280 |
| INF-DRWW-330K | 33 | 0.075 | 1.008 |
| INF-DRWW-470K | 47 | 0.109 | 0.804 |
| INF-DRWW-101K | 100 | 0.208 | 0.632 |
| INF-DRWW-471K | 470 | 1.150 | 0.315 |
| INF-DRWW-681K | 680 | 1.610 | 0.250 |
| INF-DRWW-102K | 1000 | 2.300 | 0.200 |
| INF-DRWW-122K | 1200 | 2.650 | 0.200 |
| INF-DRWW-182K | 1800 | 4.030 | 0.158 |
| INF-DRWW-222K | 2200 | 4.480 | 0.158 |
| INF-DRWW-332K | 3300 | 6.560 | 0.125 |
| INF-DRWW-472K | 4700 | 10.50 | 0.100 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
