EE55 High Frequency Transformer Offline Flyback Transformers（Horizontal）

Product Overview

The EE55 horizontal high-frequency flyback transformer is engineered for offline switching power supplies and medium-to-high power conversion systems. Featuring a low-profile mounting structure, it is particularly suitable for applications where vertical space is limited. Built on a ferrite EE55 core platform, the transformer enables efficient energy conversion under high-frequency switching conditions while maintaining reinforced isolation between primary and secondary circuits.

Through refined winding arrangement and insulation layering, the transformer minimizes leakage inductance and parasitic effects, contributing to enhanced system efficiency and reduced electromagnetic interference (EMI). It also supports flexible multi-winding configurations, enabling designers to tailor output voltages and auxiliary windings based on specific application requirements.

Key Features

• Horizontal low-profile design for space-constrained layouts

• Suitable for medium-to-high power applications

• Wide frequency adaptability for switching power systems

• Enhanced thermal performance for continuous operation

• Flexible winding configuration for multiple outputs

• Reliable insulation structure for safety compliance

Typical Applications

• Offline switching power supplies (SMPS)

• Industrial power conversion systems

• Battery chargers and power adapters

• LED lighting drivers

• Telecom and networking equipment

• Renewable energy and inverter systems

Physical Properties

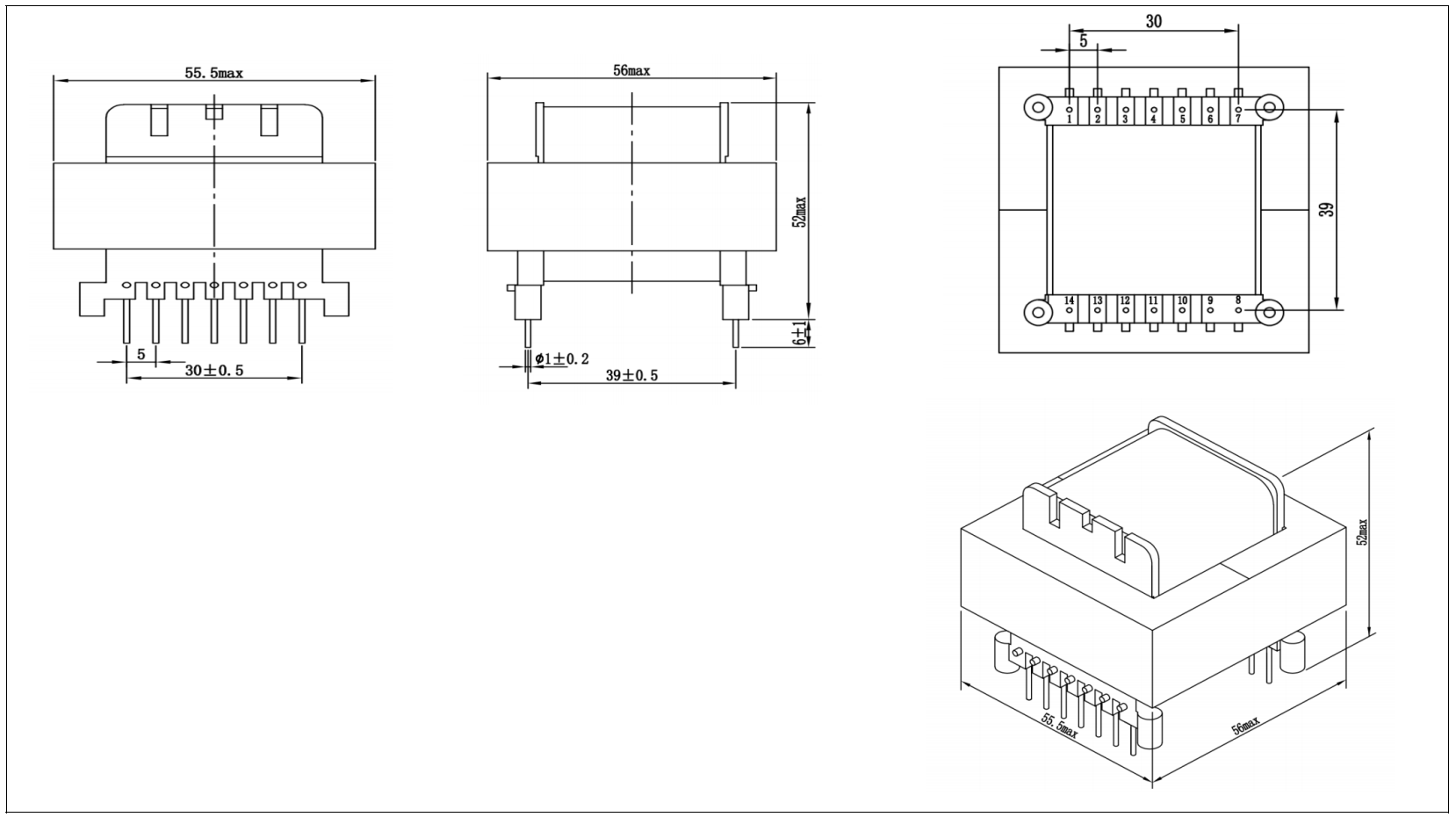

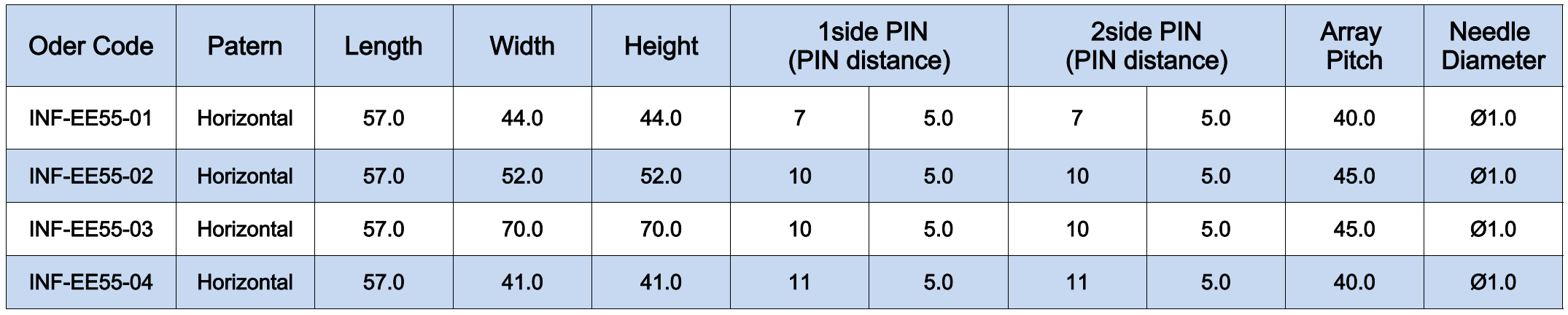

Technical Specifications

Customization & Procurement
