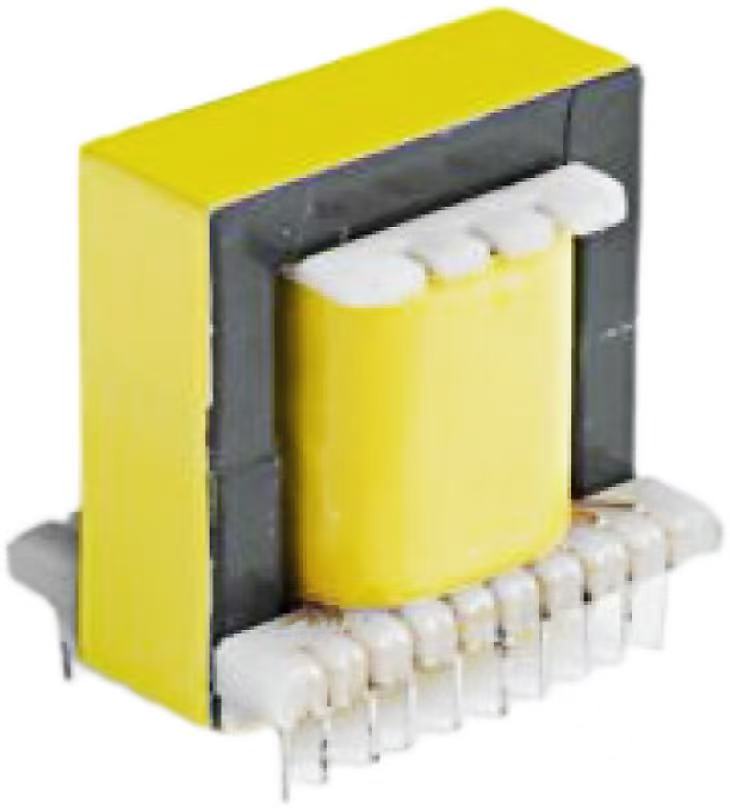

EE55 High Frequency Transformer Offline Flyback Transformers（Vertical）

Product Overview

The EE55 high-frequency flyback transformer is a robust magnetic component designed for medium-power switching power supply applications. Built with a ferrite EE55 core structure, it enables efficient energy transfer under high-frequency operation and provides reliable electrical isolation between primary and secondary circuits. It is widely used in AC/DC and DC/DC conversion systems, industrial power supplies, and inverter-based equipment.

Operating typically in the tens to hundreds of kilohertz range, high-frequency transformers like the EE55 are optimized for switching power topologies, where compact size, efficiency, and thermal performance are critical.
Compared to smaller core sizes, the EE55 structure supports higher power levels and improved thermal dissipation, making it suitable for applications requiring stable output and continuous operation.

Design Advantages

• Medium Power Capability
  EE55 core supports higher power levels (typically tens of watts and above), suitable for industrial and power conversion systems

• High-Frequency Efficiency
  Ferrite core material minimizes core losses and improves efficiency under high-frequency switching conditions

• Optimized Thermal Performance
  Larger core size enables better heat dissipation for continuous operation

• Flexible Electrical Design
  Customizable winding structure supports multiple output voltages and power requirements

• Reliable Isolation
  Designed to provide reinforced insulation between primary and secondary circuits for safety-critical applications

Typical Applications

• Switching power supplies (SMPS)

• AC/DC and DC/DC converters

• Industrial control power systems

• Inverters and power drivers

• Telecom and networking equipment

• Charging systems and embedded power modules

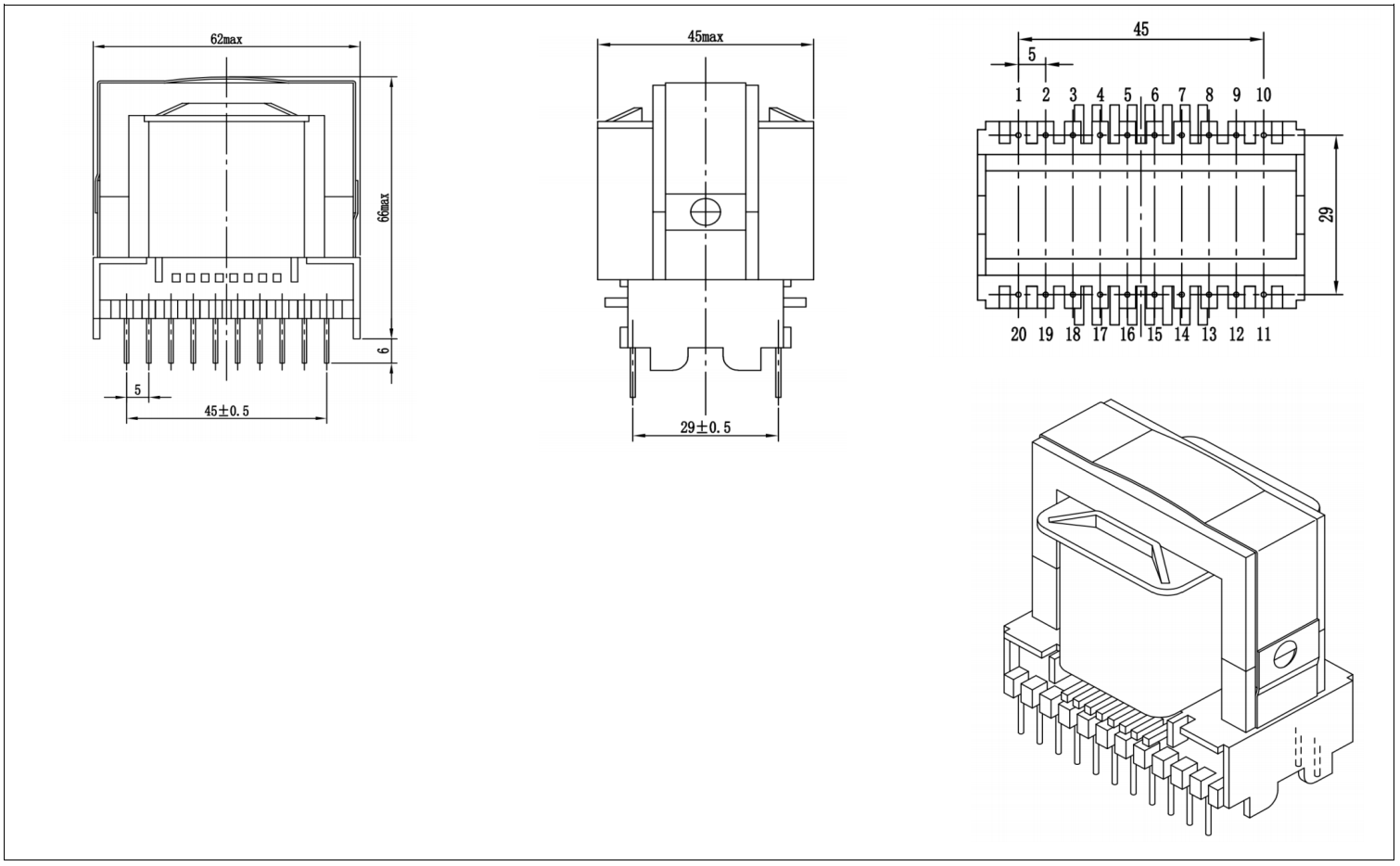

Physical Properties

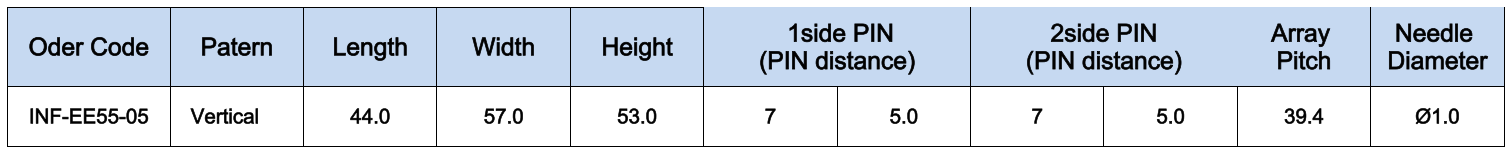

Technical Specifications

Customization & Procurement
