EER35 (6+6) High Frequency Transformer for SMPS, Flyback & DC-DC Power Conversion Applications

High-Frequency Operation
Optimized for a typical operating frequency spanning 20 kHz to 500 kHz, this transformer achieves a more compact and lightweight form factor while sustaining high energy conversion efficiency.

Core & Bobbin Materials
The magnetic core is predominantly manufactured from high-frequency, low-loss MnZn (Manganese Zinc) ferrite materials like N87 and PC40, ensuring minimal power loss under high-frequency working conditions. For the bobbin, phenolic resin or PET is adopted as the base material, which meets the UL 94V-0 flame-retardant grade for enhanced safety.

Quantity:
Availability:





Inquiry Add to Basket

EER35(6+6) High Frequency Transformers

Product Description

Download

Product Definition

The EER35 (6+6) high frequency transformer is a ferrite-core magnetic component designed for high-frequency power conversion applications. It provides galvanic isolation, voltage transformation, and energy transfer within switching power systems. The transformer is suitable for a wide range of circuit topologies including flyback, forward, and resonant converters.

Mechanical Design & Integration

Standard DIP mounting structure for PCB integration
6+6 pin layout ensures stable electrical connection
Compatible with automated production and soldering processes
Available in horizontal configurations for compact layouts

Application Fields

The EER35 high frequency transformer is widely used in:

Switching Mode Power Supplies (SMPS)
Flyback and forward converters
DC-DC power modules
LED drivers and adapters
Industrial control systems
Communication and networking equipment

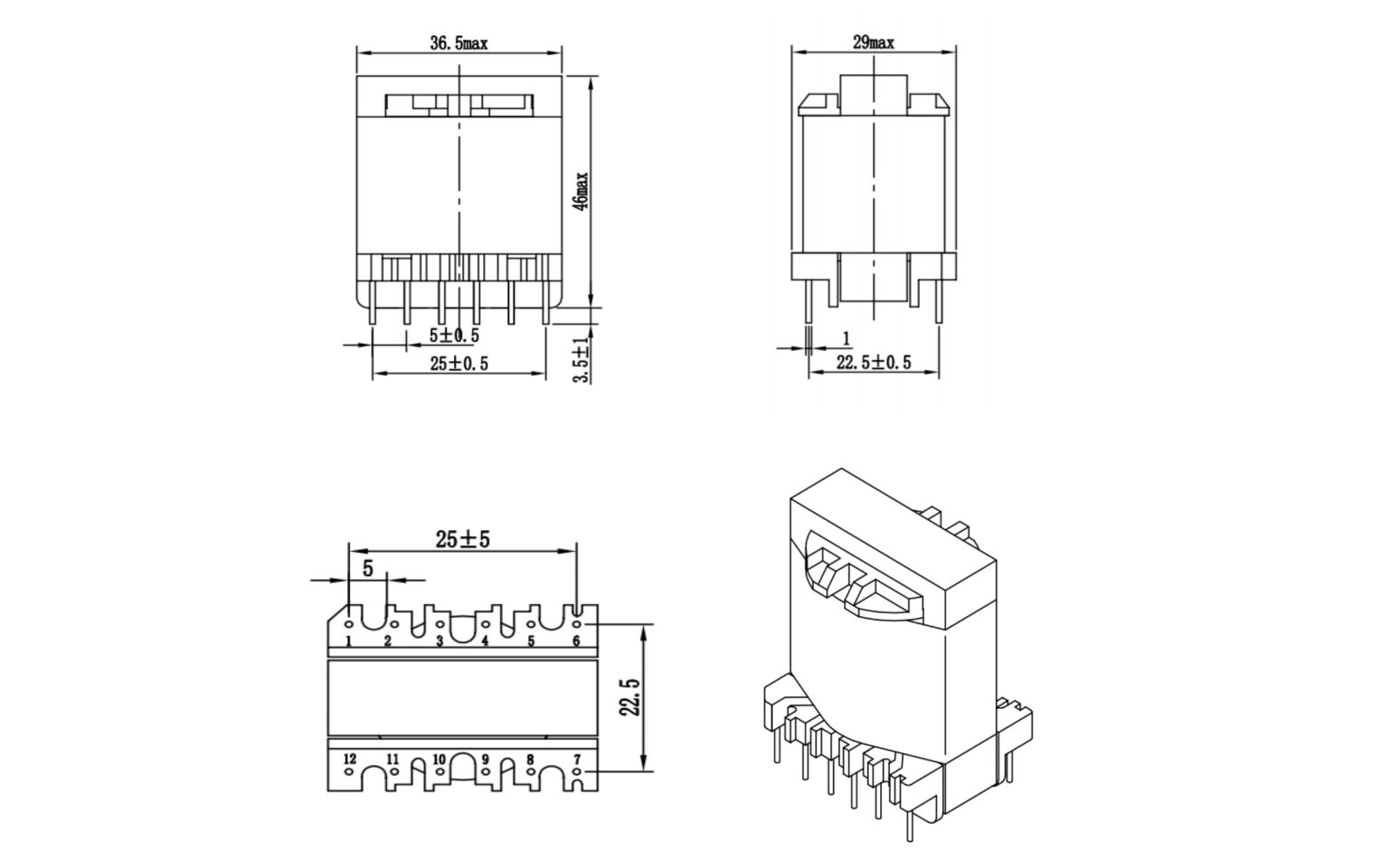

Technical Specifications 屏幕截图 2025-10-23 165449

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
