EPC13 High Frequency Transformer for Small Power SMPS & Compact Electronic Applications

Characteristics:

· Multiple EPC-type sizes available, working frequency: 10kHz~1MHz+ (10kHz-50kHz, 50kHz-100kHz, 100kHz-500kHz , 500kHz-1MHz, over 10MHz)
·Power rate range: <5W to 500W-1000W (covers 5W-10W, 10W-20W, 20W-50W, 50W-100W, 100W-200W, 200W-500W)
·Usable as flyback/drive/control/inverter/SMPS transformer, high -current inductor

Options:
·Low energy loss, high output power
·Low operating temperature, stable performance

Common Applications:

·Switching mode power supplies, chargers, inverters, servers, medical equipment
·LED light, outdoor lighting, audio & visual equipment, alarm systems
·Solar energy converters, electric cars

FAQ：

Q：Can your high-frequency transformers (e.g., SMD series) meet the high-frequency requirements of 5G base stations?
A：Absolutely. Our SMD series high-frequency transformers are specially designed for high-frequency scenarios, with a maximum operating frequency of up to 500kHz. They also support customized coil winding methods and core materials according to the specific parameters of 5G base station power modules (such as power loss and signal stability requirements), ensuring compatibility with the "high-density and low-interference" operation needs of base stations. Currently, they have been mass-applied in 5G base station projects of major domestic communication equipment manufacturers.

Quantity:
Availability:





Inquiry

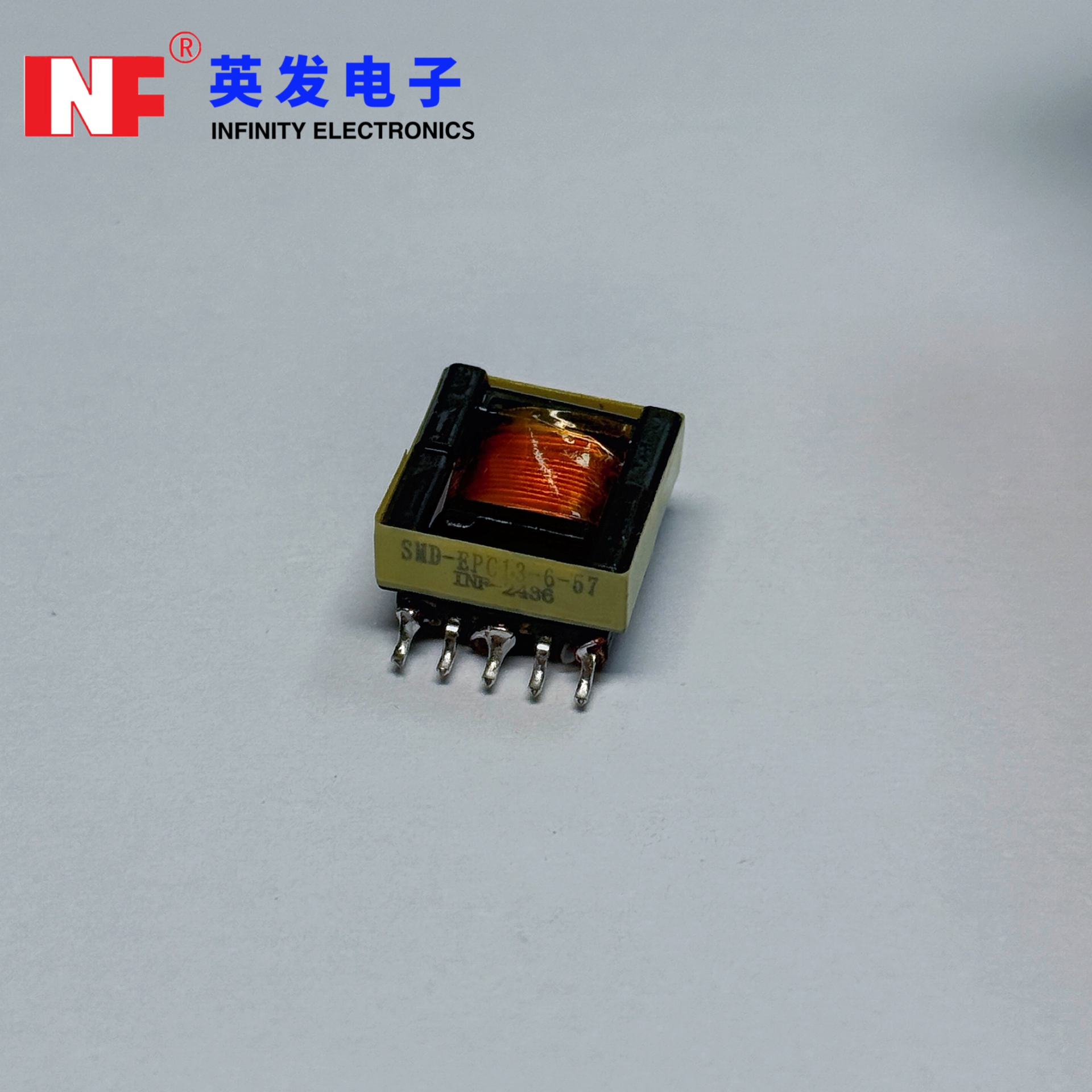

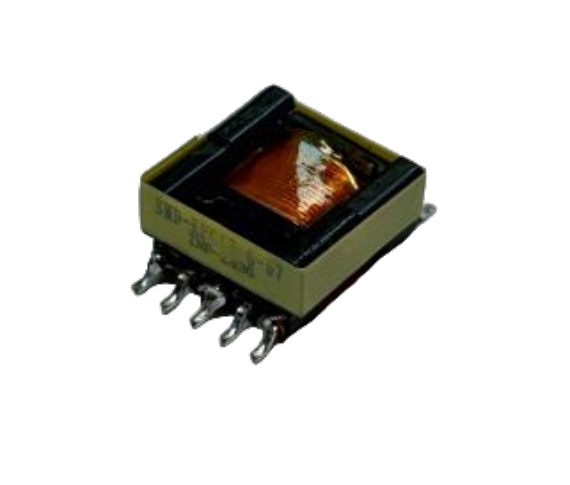

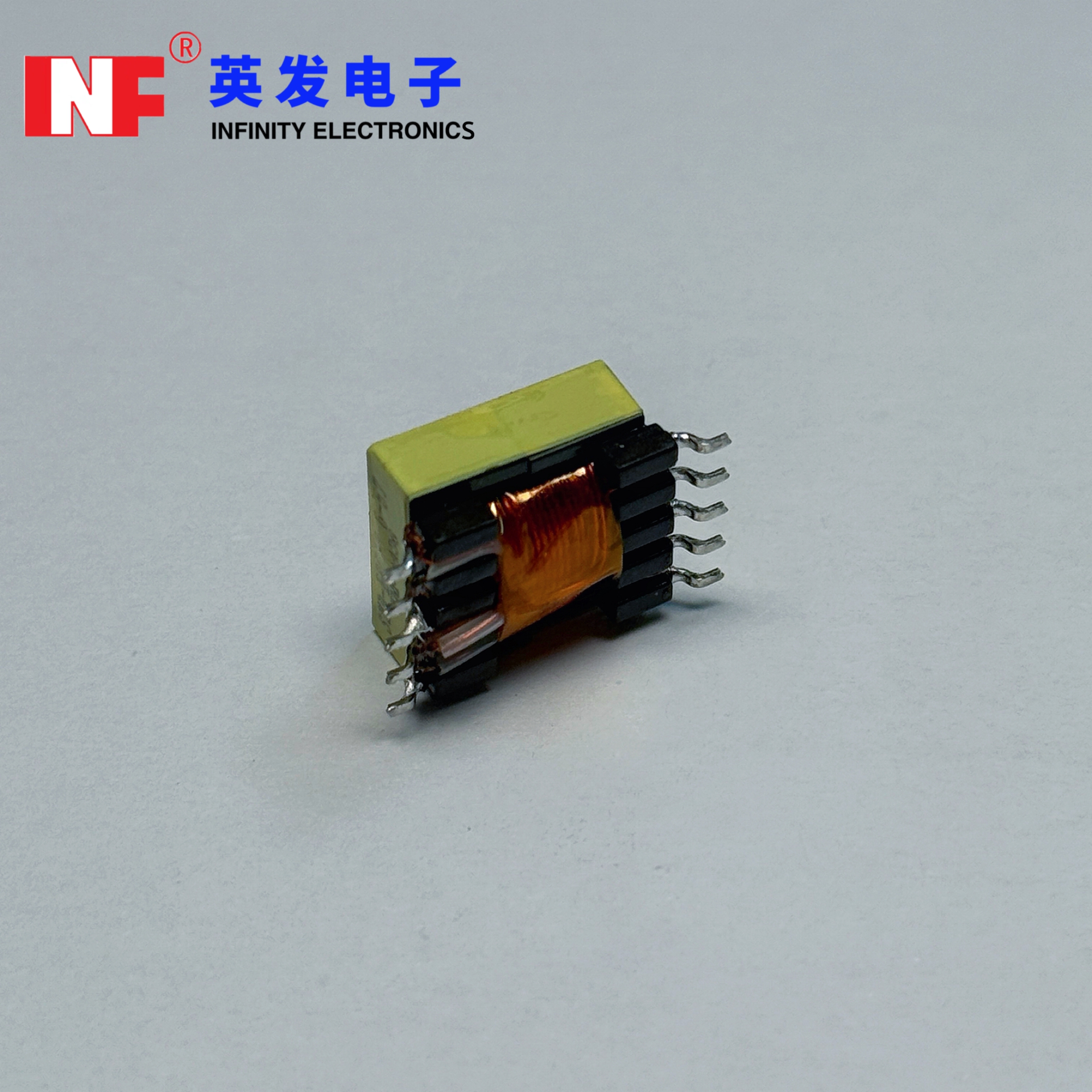

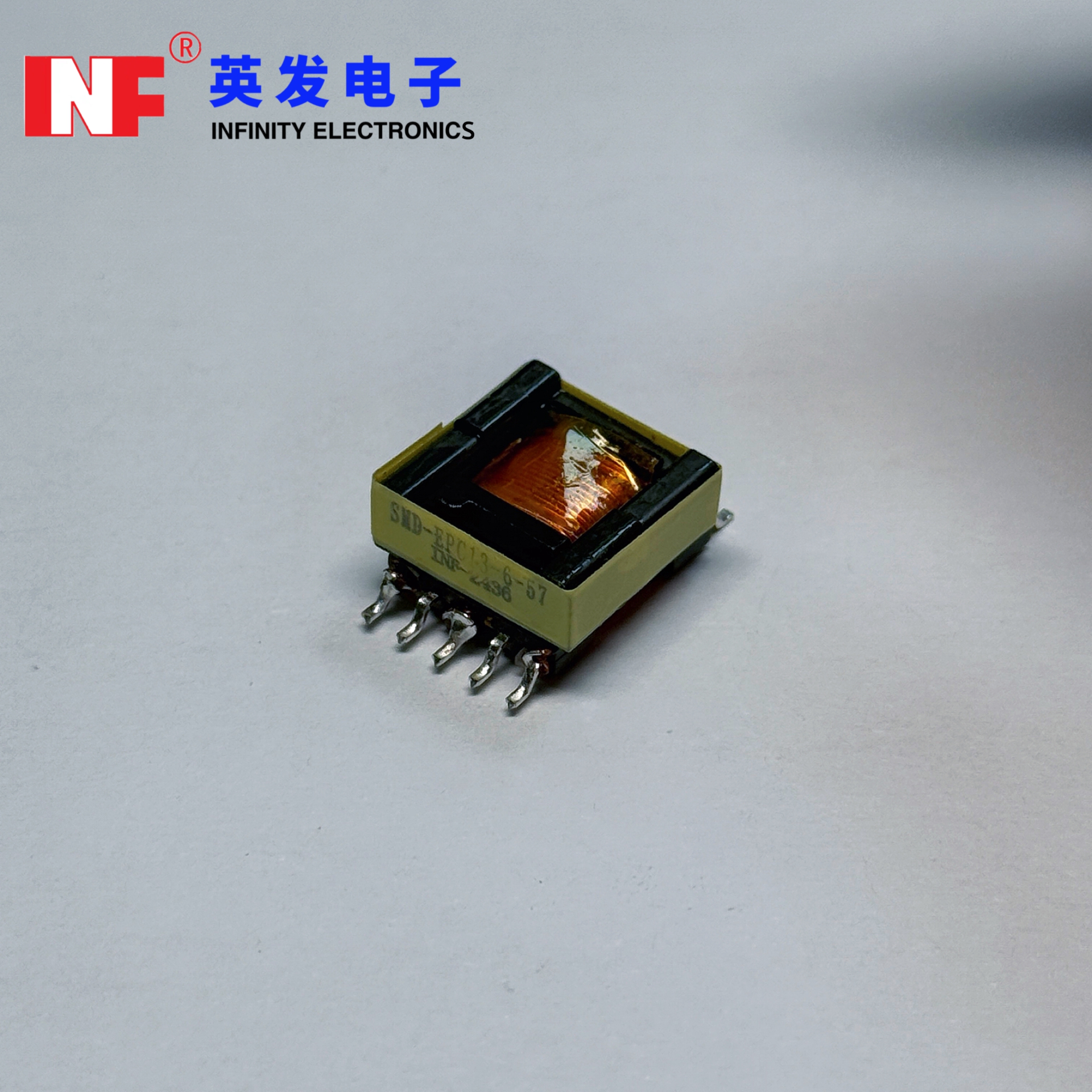

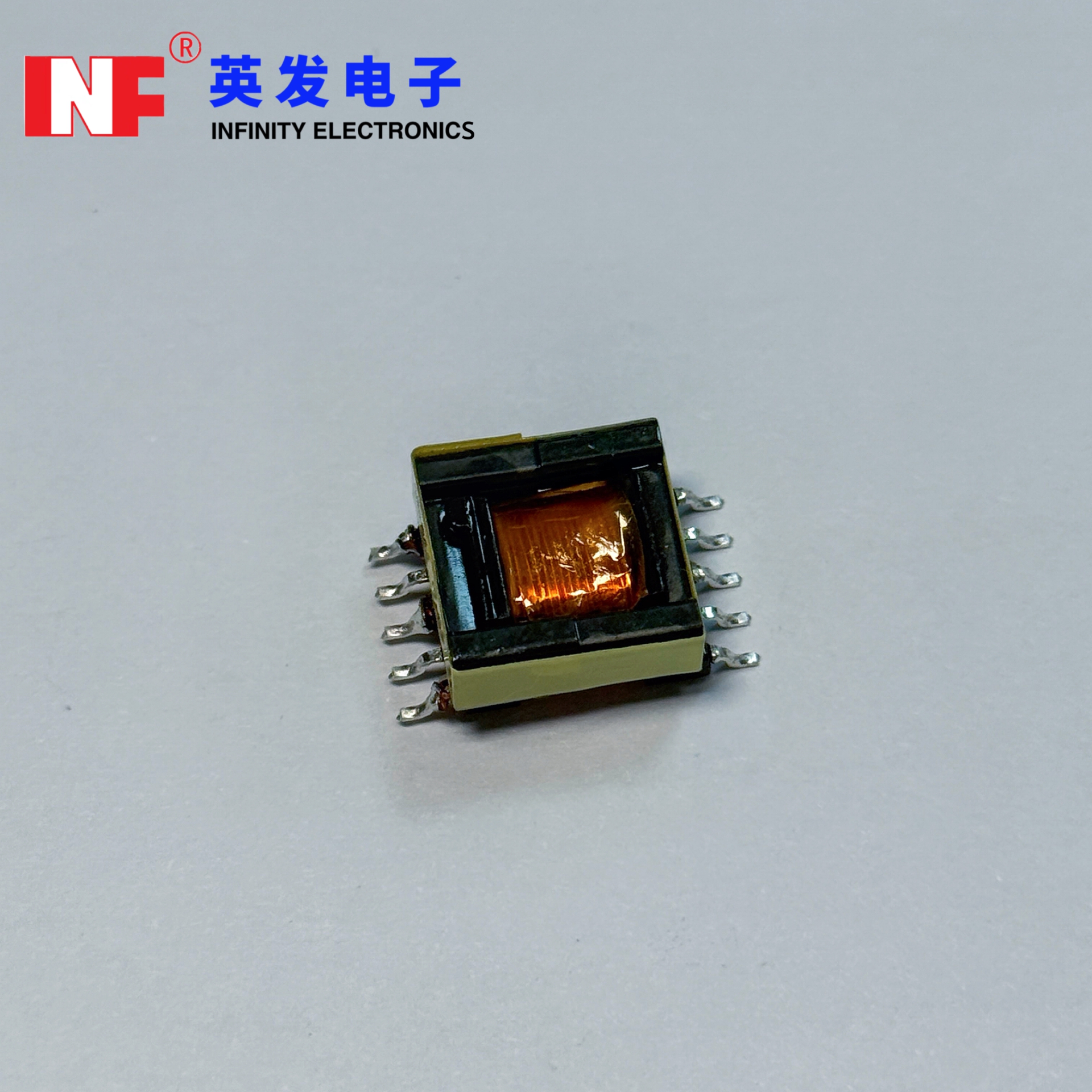

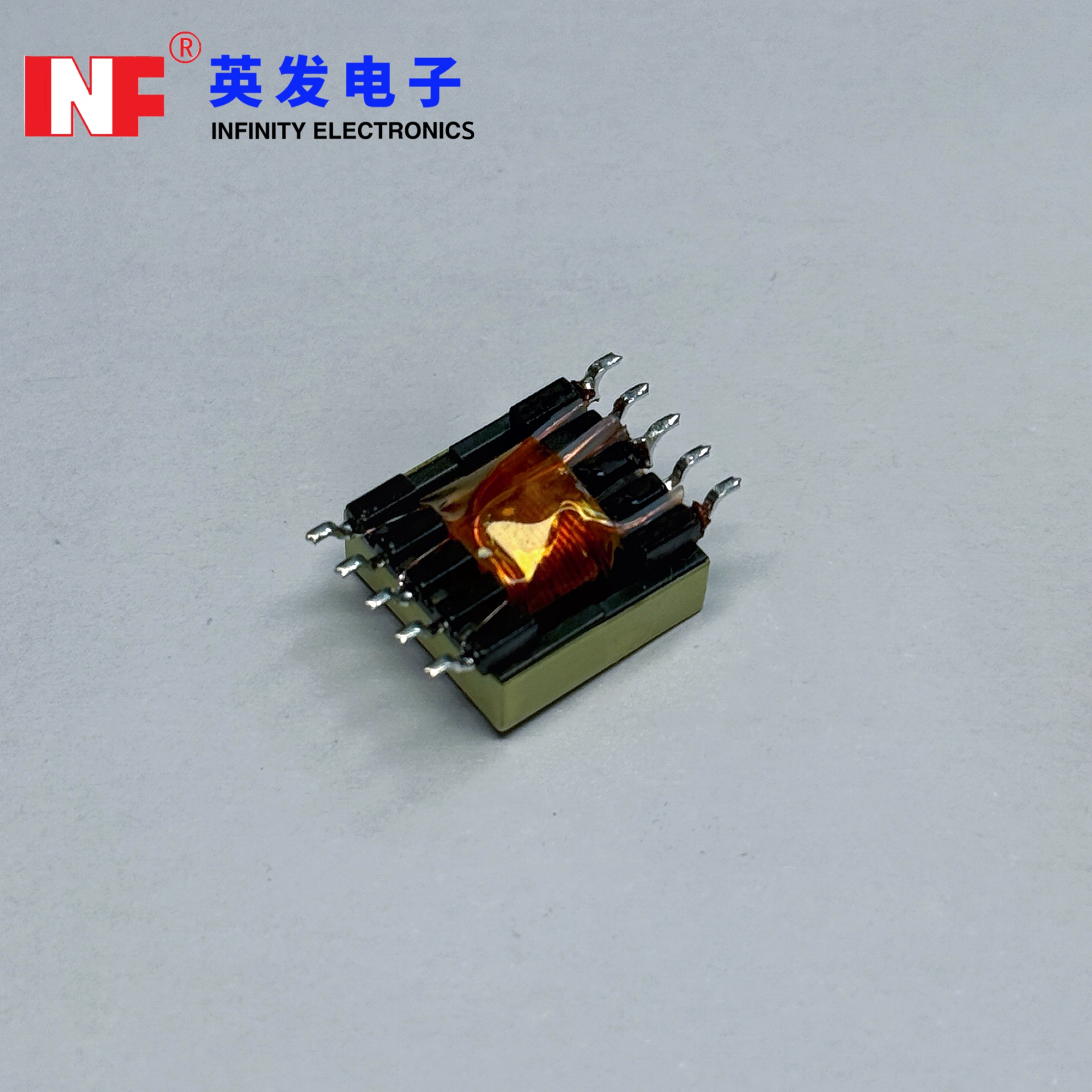

EPC13 High Frequency Transformer

Product Description

Download

Product Overview

The EPC13 High Frequency Transformer is a compact and cost-effective solution designed for low-power switching power supply (SMPS) applications. With its small size and stable performance, it is ideal for space-limited electronic devices.

Built with high-quality ferrite cores and precise winding technology, the EPC13 transformer ensures efficient energy transfer, low loss, and reliable operation at high frequencies. It is widely used in adapters, chargers, and various consumer electronics.

Custom specifications are available to match your exact design requirements.

Typical Applications

AC/DC Power Adapters
Mobile & Device Chargers
LED Drivers (low power)
Smart Home Devices
Consumer Electronics
Small Power Modules

Physical Properties

Order Code	Pattern	Length	Width	Height	1sidePIN (PIN distance)		2sidePIN (PIN distance)		aarray pitch	needle diameter

INF-EPC13-01	Horizontal	15.0	15.0	9.0	5	2.5	5	2.5	17.0	Ø0.6

INF-EPC13-02	Horizontal	15.0	15.0	9.0	5	2.5	5	2.5	17.0	SMD0.6

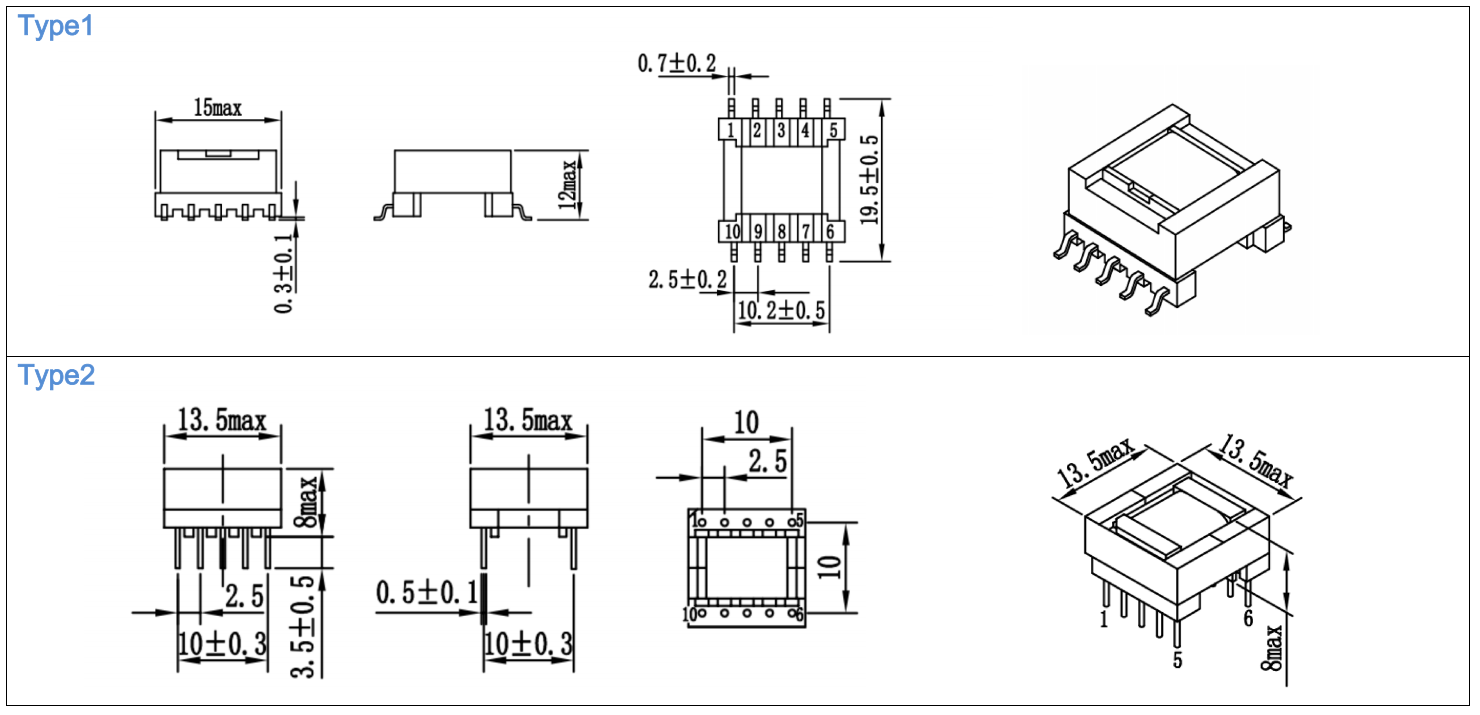

Technical Specifications

屏幕截图 2025-10-31 143402

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
