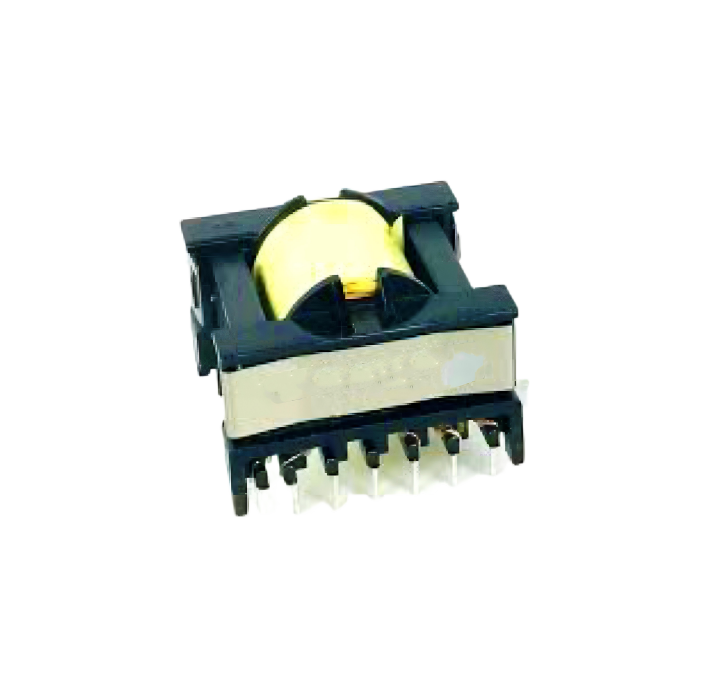

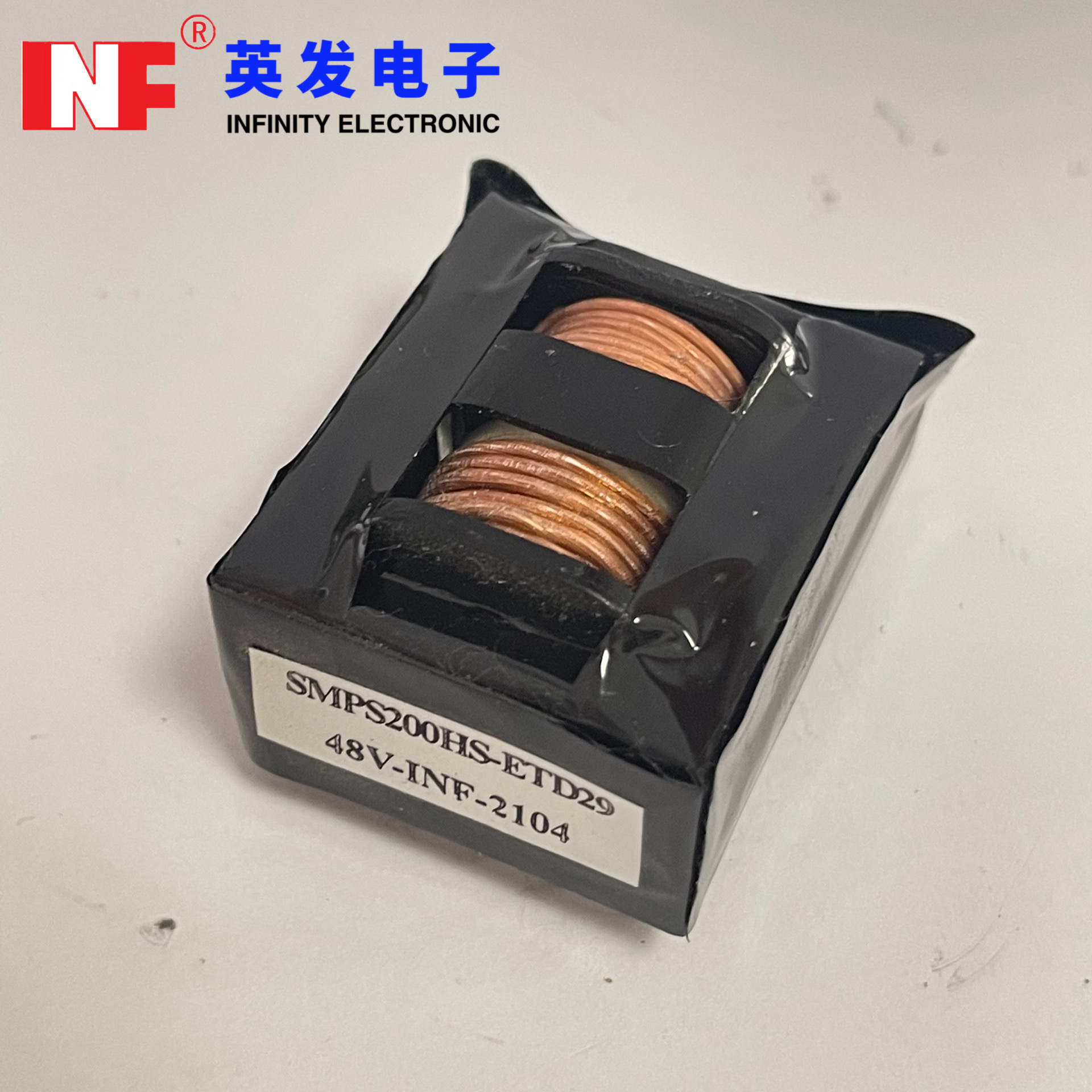

The ETD29 high frequency transformer is a medium-power magnetic component designed for switching mode power supply (SMPS) applications. Featuring a horizontal 7+7 pin configuration, it offers a stable mechanical structure and optimized winding space for efficient power conversion.
With its balanced magnetic design and compact footprint, the ETD29 transformer is widely used in power systems requiring reliable isolation, high efficiency, and consistent performance under continuous operation.
The ETD29 transformer is designed to deliver efficient energy transfer with minimized losses across a wide frequency range. It supports stable operation in switching environments and helps reduce thermal stress on surrounding components.
Compared with smaller core sizes, ETD29 offers improved power handling capability and better heat dissipation, making it suitable for medium-power designs. Typical applications can reach approximately 30W–90W depending on design conditions.
Switching mode power supplies (SMPS)
LED lighting power systems
Industrial control power modules
Inverter and UPS systems
Communication and telecom power supplies
Consumer electronics power units
Each transformer undergoes strict quality control procedures, including electrical testing, insulation verification, and reliability validation. Key parameters such as inductance, turns ratio, and leakage inductance are carefully monitored to ensure consistent performance.

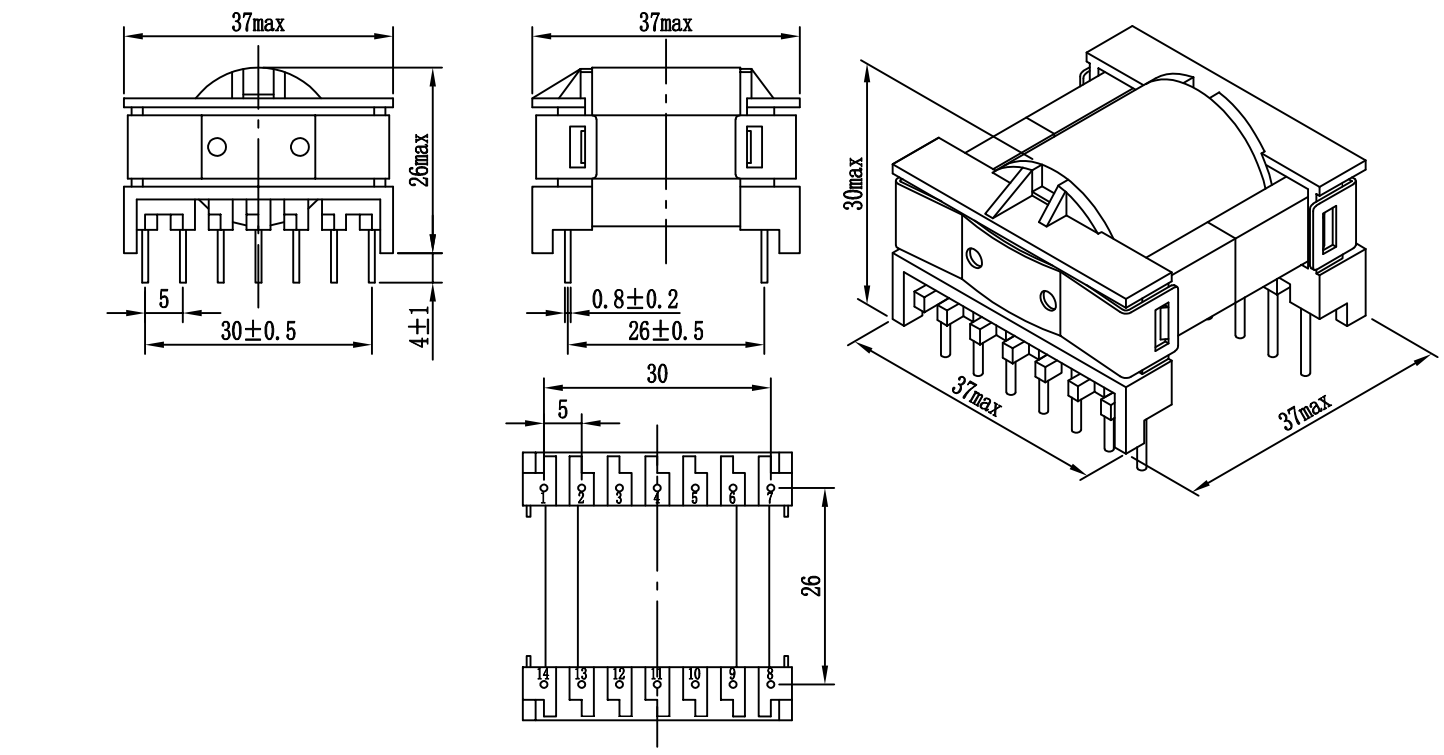

Physical Properties
| Order Code | LBASE(μH) | lR BASE(A) | ISAT BASE(A) | n | VT(V(AC)) | RDC BASE(mΩ) | LS BASE(μH) |
| INF-ETD29-15μH | 15 | 2.2 | 3.1 | 1:1:1:1:1:1 | 500 | 45 | 0.32 |
| INF-ETD29-24μH | 24.3 | 2.2 | 1.83 | 1:1:1:1:1:1 | 500 | 45 | 0.32 |
| INF-ETD29-46μH | 46.3 | 2.2 | 0.83 | 1:1:1:1:1:1 | 500 | 45 | 0.32 |
| INF-ETD29-75μH | 75.1 | 2.2 | 0.4 | 1:1:1:1:1:1 | 500 | 45 | 0.32 |
| INF-ETD29-195μH | 195 | 2.2 | 0.25 | 1:1:1:1:1:1 | 500 | 45 | 0.32 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
