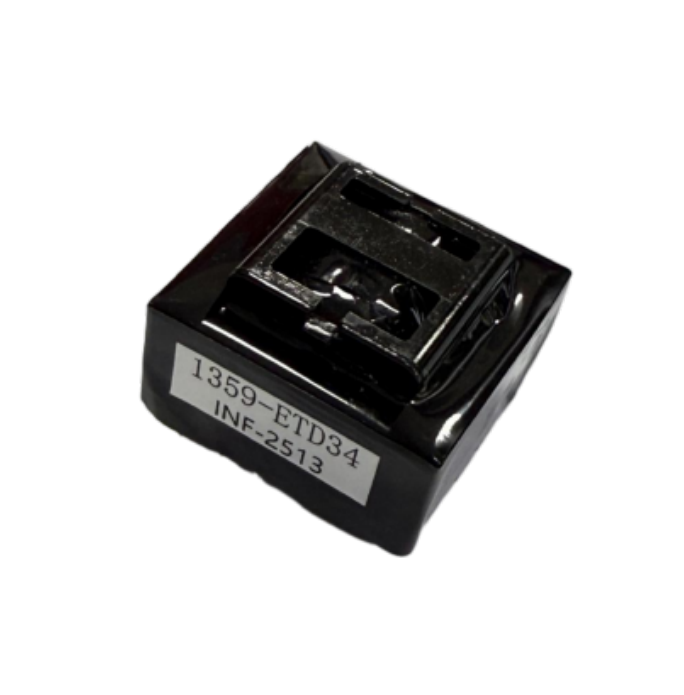

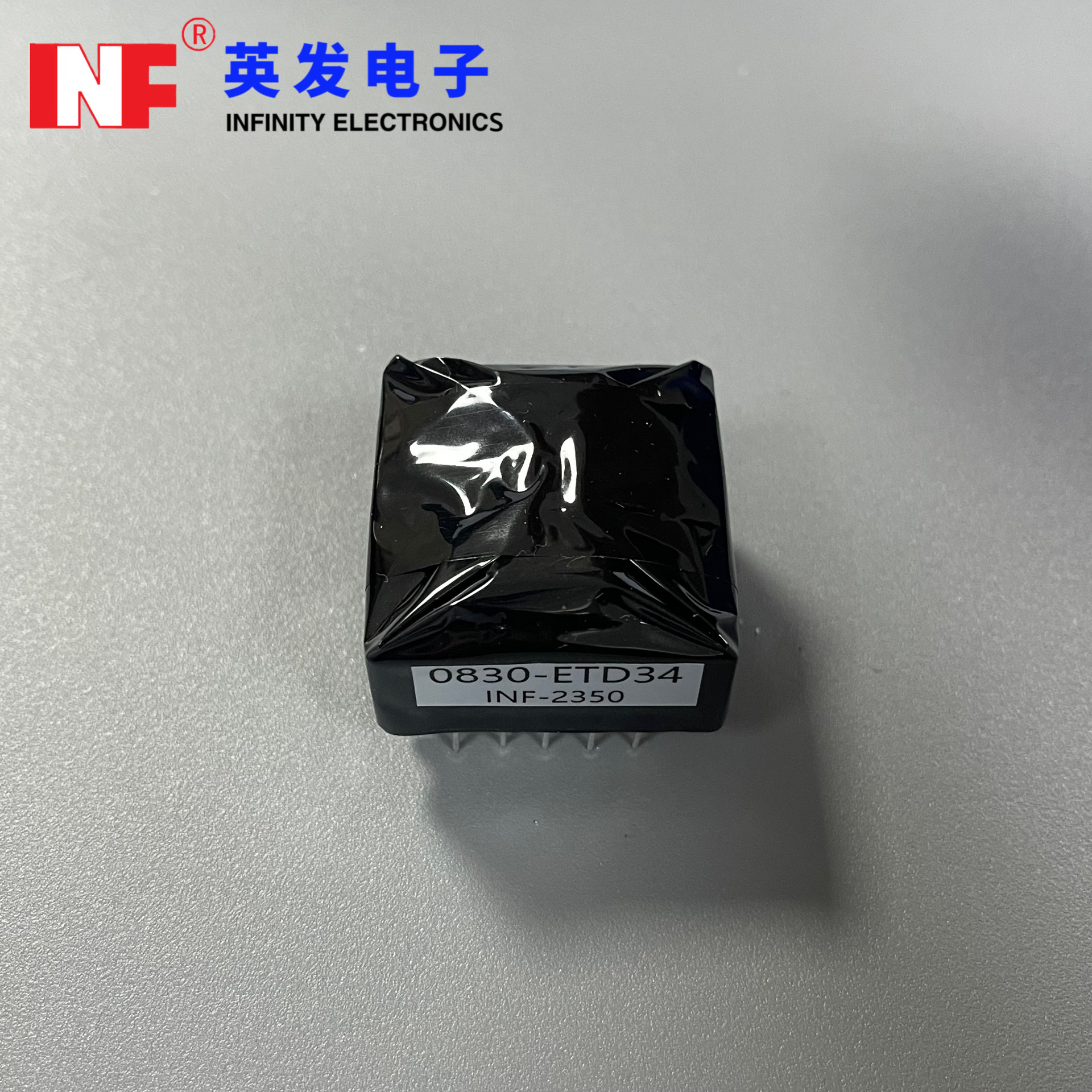

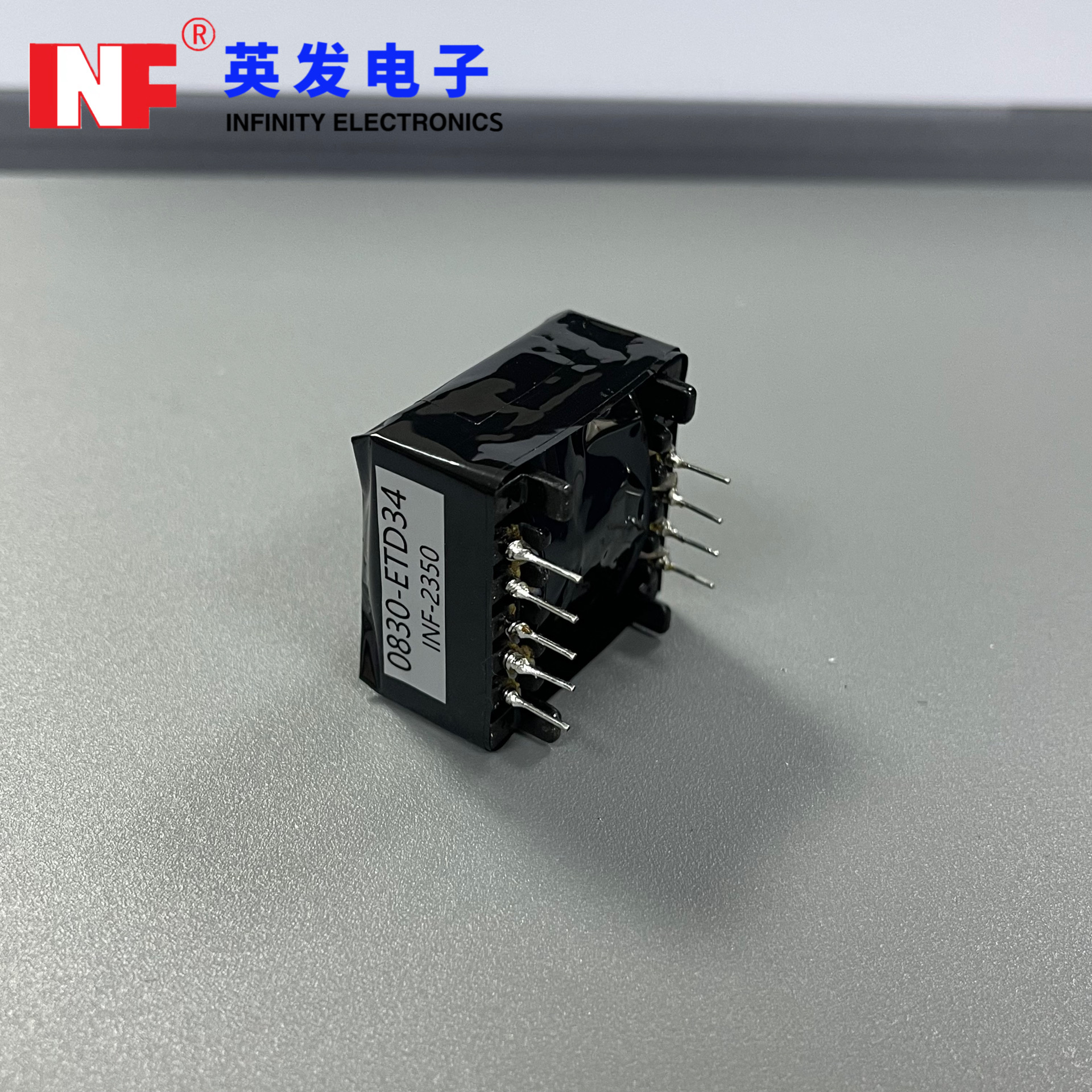

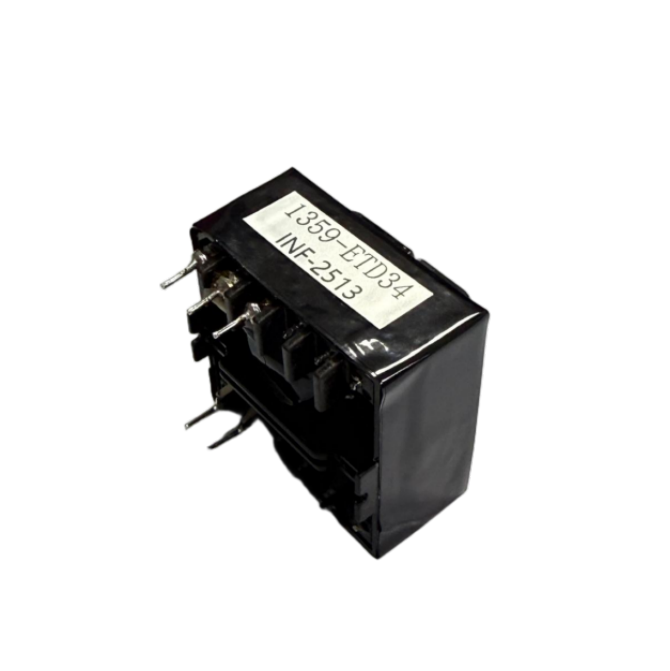

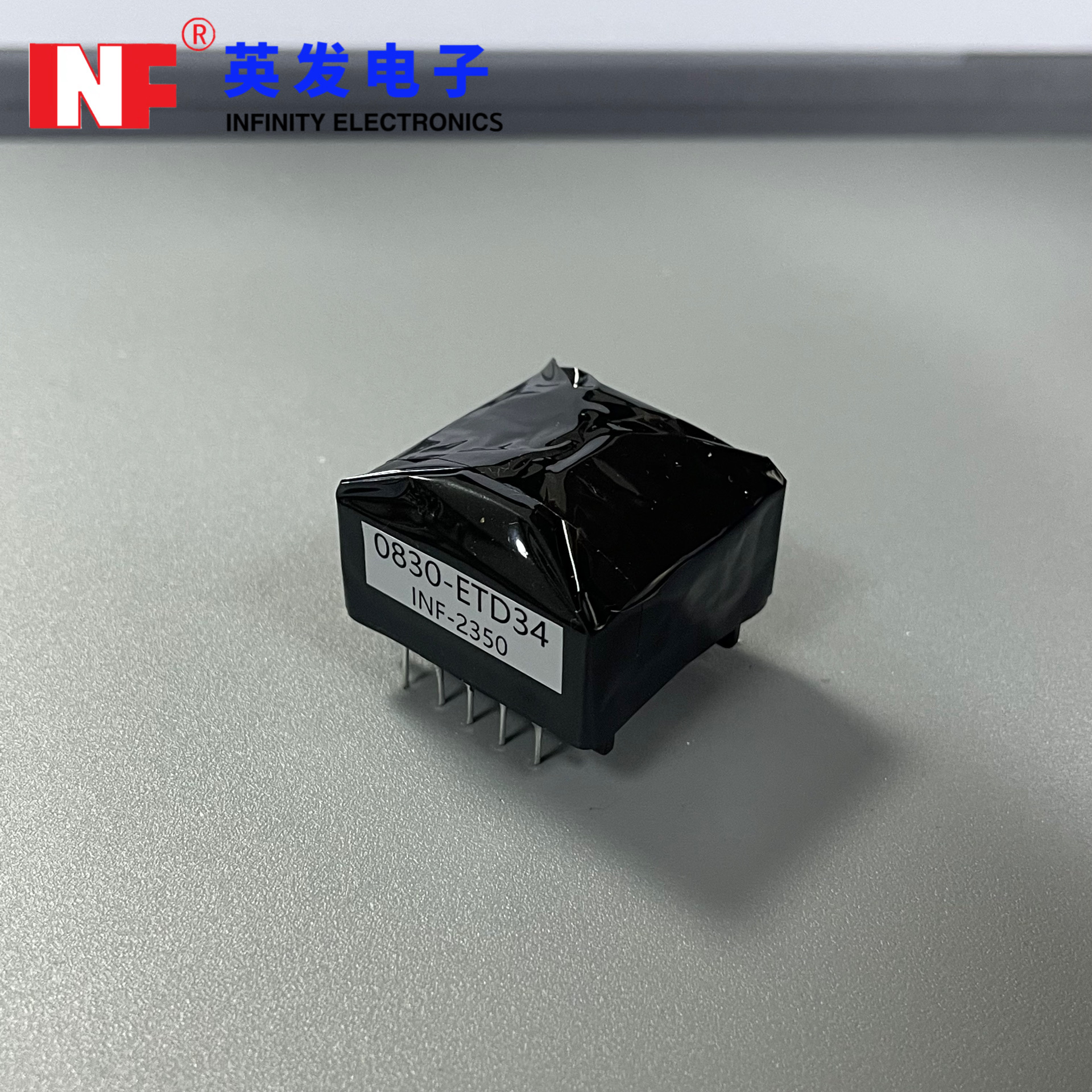

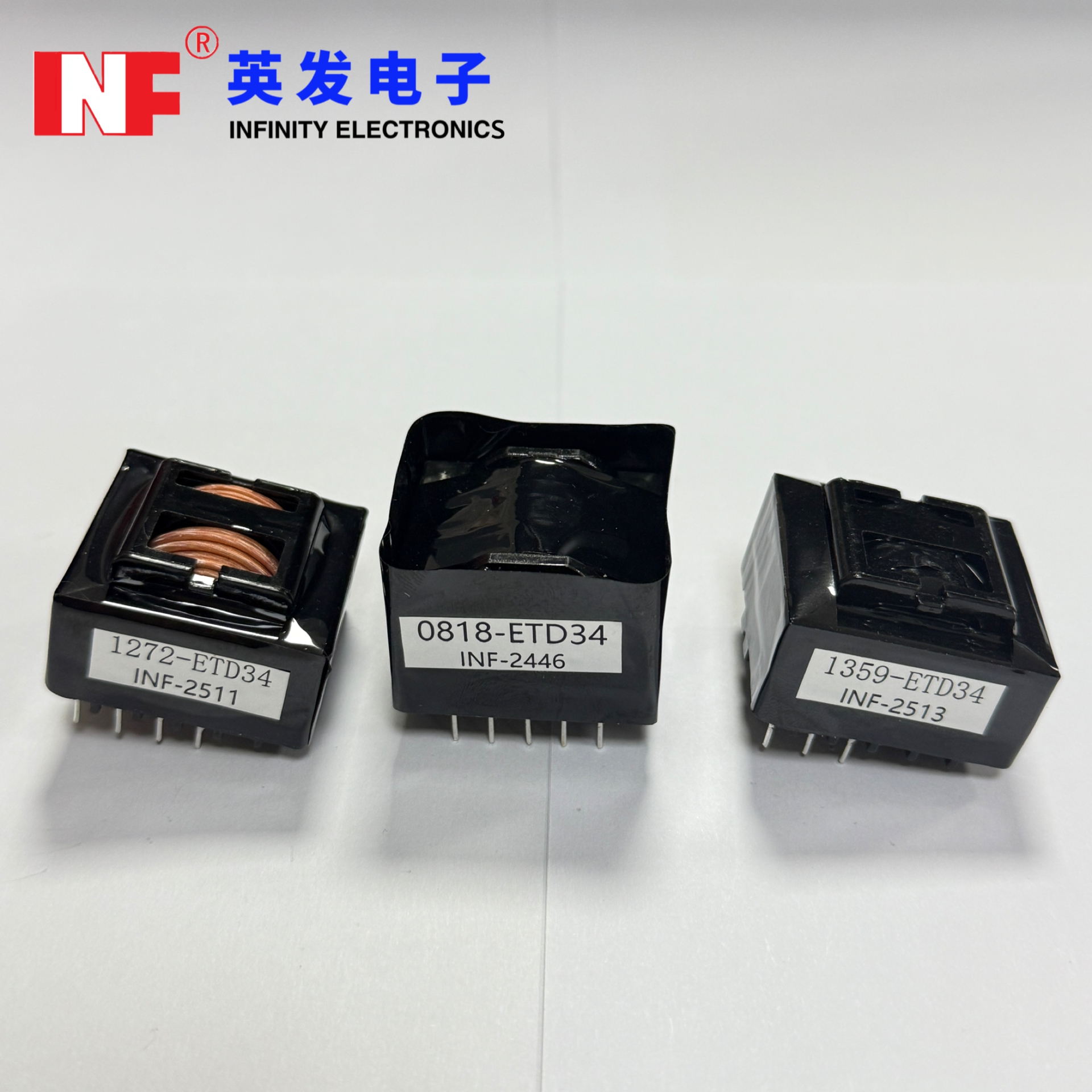

ETD34 LLCR Resonant Converter AC Transformer

ETD34 transformer With high-efficiency conversion, low loss design and high-standard insulation, this transformer provides stable and reliable power conversion support for PC power supplies, LED lighting and high-performance resonant converters.

Quantity:
Availability:





Inquiry Add to Basket

Model:
ETD34
Brand:
INF

ETD34 LLCR Resonant Converter AC Transformer ETD34 LLC resonant transformer ETD34 high frequency transformer for LLC converter ETD34 magnetic core transformer LLC resonant transformer ETD34 core

Product Description

Download

Product Overview

The ETD34 LLC Resonant Converter Transformer is designed for high-efficiency resonant power conversion systems requiring stable high-frequency operation, low switching loss, and reliable electrical isolation.

Built with an ETD34 ferrite core structure, the transformer provides optimized magnetic coupling, improved thermal performance, and high power density for LLC resonant converter topologies.

Its resonant-optimized winding design supports efficient soft-switching operation, helping reduce switching stress and improve overall power conversion efficiency in modern AC-DC SMPS systems.

The ETD34 series is widely used in industrial power supplies, server power systems, communication equipment, and high-efficiency switching power applications.

Customized turns ratios, resonant parameters, insulation systems, and winding structures are available according to application requirements.

Key Features

ETD34 ferrite core structure
Optimized for LLC resonant topology
High-efficiency soft-switching support
Stable high-frequency operation
Reliable electrical isolation
Reduced switching loss
Improved thermal performance
Flexible customization support

Typical Applications

LLC Resonant Converter Systems
High Efficiency AC-DC Power Supplies
Server Power Systems
Communication Equipment
Industrial SMPS Systems
Renewable Energy Electronics
Embedded High-Efficiency Power Modules

Physical Propertie

Order Code	V_IN	V_out1 (V)	l_out1 (A)	V_aux (V)	L (μH)	f_switch (kHz)	n	L_S (μH)	l_SAT (A)	R_{DC 1} (mΩ)	R_{DC 2} (mΩ)	R_{DC 3} (mΩ)	R_{DC 4} (mΩ)
INF-ETD34-600μH	360-400V(DC)	12	12.5	18	600	70-120	35:2:2:3	100	2	260	3.1	3.1	144
INF-ETD34-600μH	360-400V(DC)	24	6.2	18	600	70-120	35:4:4:3	100	2	260	8	8	144
INF-ETD34-600μH	360-400V(DC)	48	3.1	18	600	70-120	35:8:8:3	100	2	260	26.5	26.5	145

Technical Specifications

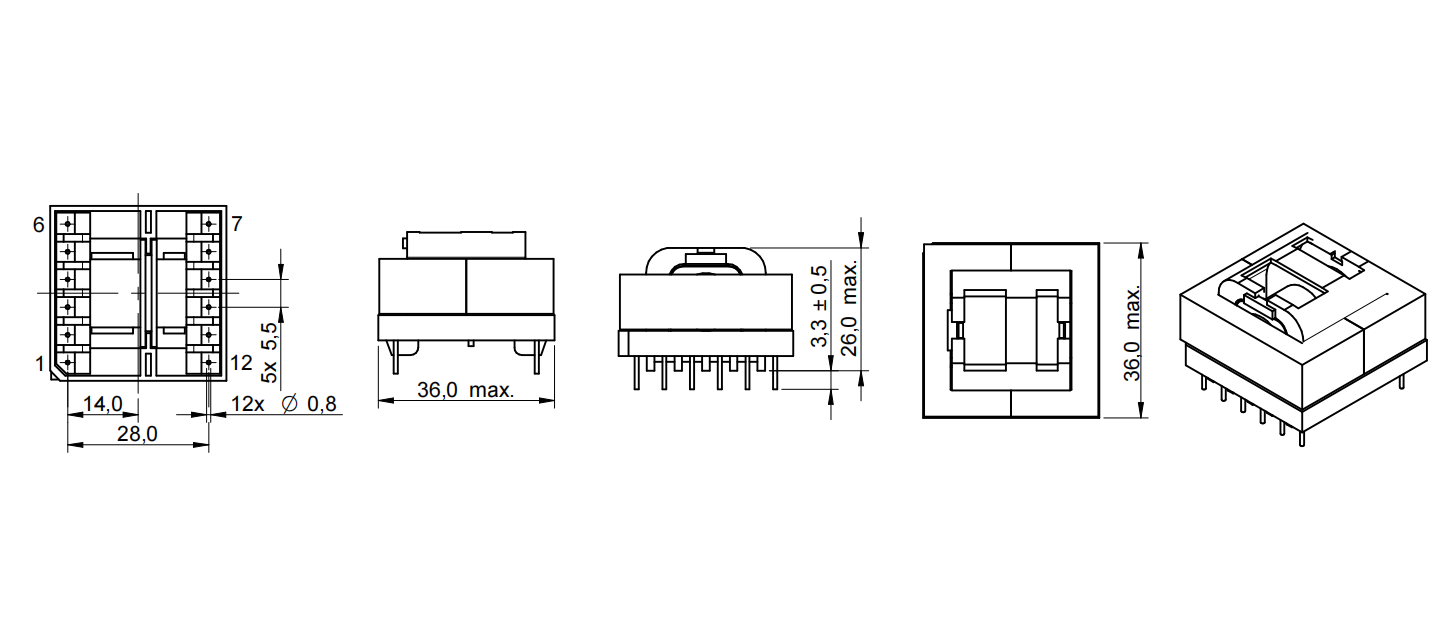

屏幕截图 2025-10-23 105730

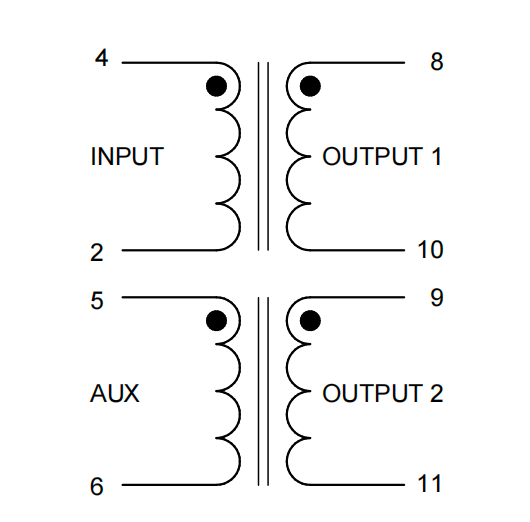

Schemactics

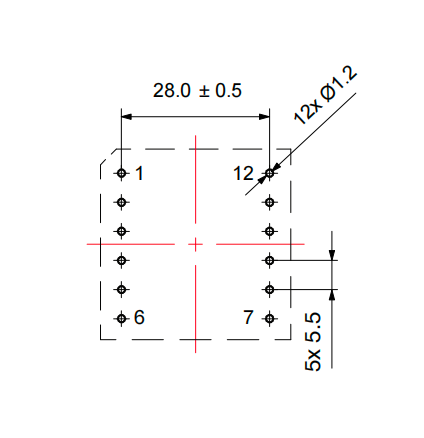

Recommended Land Partern

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
