Isolated Gate Drive Transformer for SMPS Drives

Product Overview

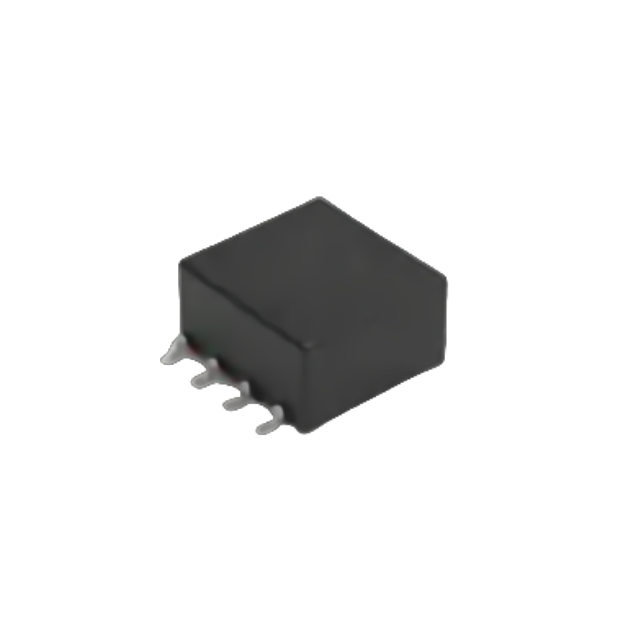

The 1210 Gate Drive Transformer is a high-performance SMT magnetic component engineered for critical signal transmission and electrical isolation between power switching transistors and control circuits in industrial electronic systems. As a flagship 1210 High Frequency Gate Drive Transformer, it is dedicatedly optimized for gate-drive circuits in high-efficiency SMPS (Switched-Mode Power Supplies) and fully supports synchronous rectification—an essential feature for modern energy-saving power systems. What sets the 1210 Isolated Gate Drive Transformer apart is its dual compatibility for both signal and power applications, eliminating the need for separate components and simplifying circuit design. Beyond SMPS, this transformer serves as a core component in motor drive and control systems, as well as power supply modules for telecom base stations, delivering stable performance in high-demand industrial environments. Its compact SMT design also ensures seamless integration into space-constrained PCB layouts, making it a versatile choice for OEM/ODM manufacturers in the power electronics industry.

Core Advantages

Superior Electrical Isolation Performance

The 1210 Gate Drive Transformer offers an industry-leading DC isolation voltage (VT) of 2100V, effectively preventing voltage surges and cross-interference between control and power circuits—critical for protecting sensitive electronic components in high-voltage applications.

Optimized for High-Efficiency SMPS

Tailored for SMPS gate-drive circuits, it supports synchronous rectification, reducing power loss and improving overall system efficiency by up to 15% compared to standard gate drive transformers.

Low Parasitic Parameters

With ultra-low series inductance (Ls) and inter-winding capacitance (Cww1), the transformer minimizes signal distortion and electromagnetic interference (EMI) at high frequencies, ensuring clean and reliable drive signal transmission.

Dual Signal & Power Compatibility

Unlike single-function transformers, it excels in both signal transmission and low-power delivery, simplifying circuit integration and reducing BOM costs for industrial equipment designers.

Technical Specifications

Typical Applications

High-Efficiency SMPS Systems

The SMPS Gate Drive Transformer is ideal for AC-DC and DC-DC power supplies in consumer electronics, industrial inverters, and server power modules, where high efficiency and compact design are paramount.

Motor Drive & Control Systems

It provides stable gate drive signals for variable frequency drives (VFDs) and servo motor controllers, ensuring precise motor speed regulation in industrial automation and robotics.

Telecom Base Station Power Supplies

As a Telecom Base Station Gate Drive Transformer, it delivers reliable performance in outdoor and indoor telecom power modules, withstanding extreme temperature fluctuations and voltage variations.

Industrial Power Converters

Suitable for uninterruptible power supplies (UPS) and solar inverters, supporting the high-frequency operation and isolation requirements of renewable energy systems.

Certifications & Compliance

The 1210 Gate Drive Transformer adheres to global industrial electronics standards, including RoHS and REACH compliance for hazardous substance restriction, ensuring environmental friendliness and market access in the EU, North America, and Asia. It is manufactured with lead-free SMT processes and meets the IEC 61558 standard for power transformers, guaranteeing safety and reliability in industrial applications. All units undergo rigorous aging and performance testing before delivery, with a 100% pass rate for electrical isolation and frequency response tests.

Customization & Procurement

Customization Services

We offer fully customized 1210 Gate Drive Transformer solutions, including tailor-made inductance values, turn ratios, and package sizes to meet specific customer circuit requirements. Our engineering team provides free technical consultation for schematic design and PCB layout optimization.

Procurement Terms
