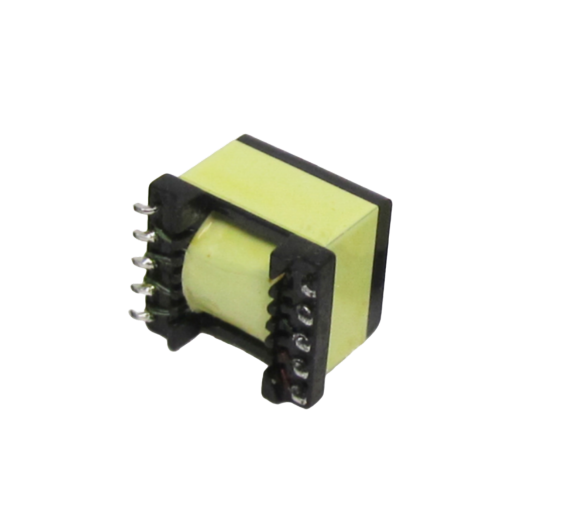

Power over Ethernet Transformer EP13

The EP13 Power over Ethernet (PoE) transformer is an industrial-grade surface-mount (SMT) magnetic component, purpose-built for PoE-powered devices (PDs). Boasting improved power-handling capabilities over the EP7 and EP10 models, it is optimized for high-power applications in modern networked systems.

This flyback transformer delivers robust performance with a 36–57 V input range, 200–500 kHz switching frequency, and reliable operation from -40 °C to +125 °C. It also provides 1.5 kVAC (1-minute) isolation between primary and secondary circuits, with multiple output power and voltage configurations to suit diverse design requirements.

Widely deployed in PoE-enabled equipment, the EP13 is an ideal choice for IP telephones, wireless LAN access points, access control terminals, and surveillance cameras, ensuring stable power delivery in professional networking environments.

Quantity:
Availability:





Inquiry Add to Basket

Power over Ethernet Transformer EP13 P13 PoE Transformer EP13 PoE PD SMT Transformer Industrial-grade EP13 PoE Transformer EP13 High-power PoE Flyback Transformer

Product Description

Download

Product Overview

The EP13 Power over Ethernet Transformer is designed for PoE power delivery and network communication systems requiring stable high-frequency signal transmission, reliable electrical isolation, and efficient power transfer capability.

Built with an EP13 ferrite core structure, the transformer supports compact PCB integration and optimized electrical performance for Ethernet power applications.

Optimized for PoE and network communication environments, the transformer helps maintain signal integrity while enabling simultaneous data and power transmission through Ethernet infrastructure.

The EP13 series is widely used in PoE switches, IP cameras, wireless access points, VoIP systems, and embedded network power devices.

Customized turns ratios, isolation specifications, winding structures, and pin configurations are available according to application requirements.

Key Features

EP13 ferrite core structure
Optimized for PoE applications
Stable high-frequency signal transmission
Reliable electrical isolation
Supports simultaneous power and data transfer
Compact PCB integration capability
Suitable for network communication equipment
Flexible customization support

Typical Applications

PoE Switches
IP Cameras
Wireless Access Points
VoIP Communication Systems
Network Routers & Gateways
Embedded Network Devices
Ethernet Power Distribution Systems

Physical Properties

Order Code	VIN	Vout1 (V)	lout1 (A)	Vout2 (V)	lout2 (A)	Vout3 (V)	lout3 (A)	L (μH)	n	VT (V(AC))
INF-EP13-127μH	36-57V(DC)	3.3	2	3.3	2	-	-	127	6:1:1:3	1500
INF-EP13-127μH	36-57V(DC)	3.3	2	3.3	2	-	-	127	12:1:1:2.5	1500
INF-EP13-127μH	36-57V(DC)	5	1.3	5	1.3	-	-	127	4:1:1:2	1500
INF-EP13-127μH	36-57V(DC)	5	1.3	5	1.3	-	-	127	8:1:1:1.67	1500
INF-EP13-127μH	36-57V(DC)	12	0.55	12	0.55	-	-	127	2:1:1:1	1500
INF-EP13-127μH	36-57V(DC)	12	0.55	12	0.55	-	-	127	4.8:1.4:1.4:1	1500
INF-EP13-127μH	36-57V(DC)	5	2.6	-	-	-	-	127	4:1	1500
INF-EP13-35μH	36-57V(DC)	3.3	2	5	1	5.5	0.05	35	9:1:1.5:2.5:4.5	1500
INF-EP13-40μH	36-57V(DC)	12	1.25	-	-	-	-	40	1:1	1500
INF-EP13-127μH	33-57V(DC)	12	1.125	-	-	-	-	127	3.42:1:0.71	1500
INF-EP13-37μH	13-59V(DC)	5	0.5	3.3	3.2	-	-	37	10.5:1:2:5.5	1500
INF-EP13-127μH	35-57V(DC)	3.3	2.5	12	0.33	-	-	127	6:1:3.4:3.4	1500
INF-EP13-77.4μH	33-57V(DC)	5	2.7	-	-	-	-	77.4	3.67:1:2.5	1500
INF-EP13-37μH	13-59V(DC)	6.6	0.2	3.3	2.5	-	-	37	5.25:1:1:2.75	1500
INF-EP13-127μH	36-57V(DC)	12	1.08	-	-	-	-	127	2:1:1:1	1500
INF-EP13-180μH	36-57V(DC)	5	2	5	-	-	-	180	6:1:1:2.17	1500
INF-EP13-37μH	40-57V(DC)	5	4.6	-	-	-	-	37	4.5:1:2.5	2400
INF-EP13-37μH	40-57V(DC)	24	1	-	-	-	-	37	1:1:0.56	2400

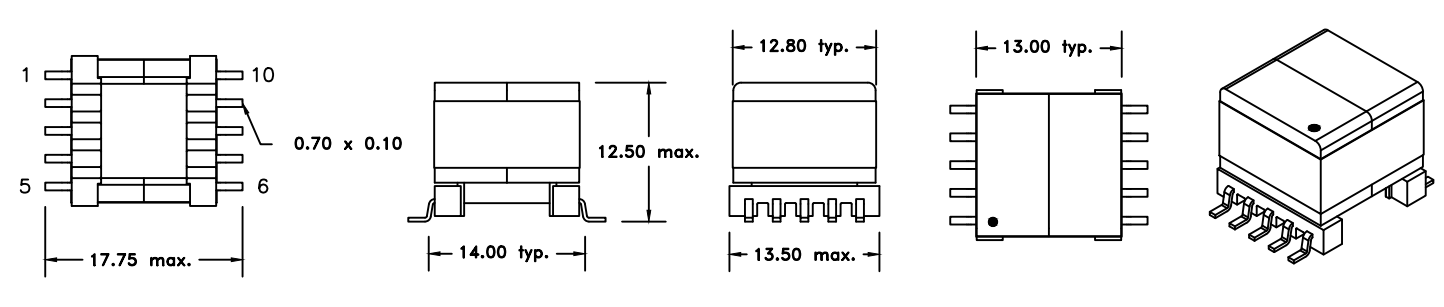

Technical Specifications

屏幕截图 2025-10-31 171124

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
