Improves Power Factor & Reduces Harmonics
Designed for active PFC circuits to align current and voltage waveforms, reduce harmonic currents and help meet regulatory EMC requirements.
High Efficiency with Low Loss
Efficient inductive design minimizes core and copper losses, improving energy efficiency and reducing heat generation.

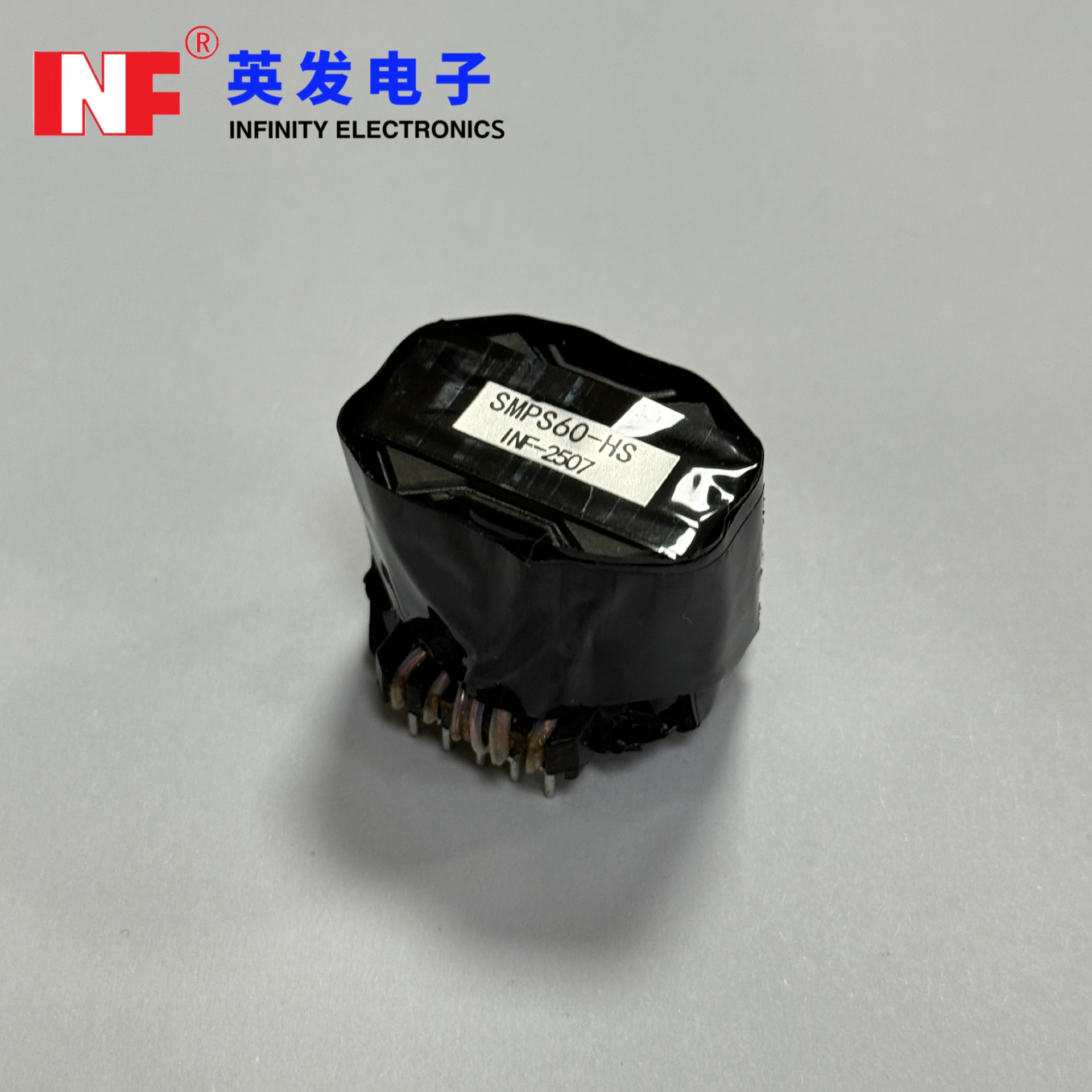

Compact RM10 Design for Space Saving
RM10 footprint delivers high performance in a compact package, ideal for high‑density PCB layouts.
Excellent EMC Performance
Optimized magnetic layout reduces interference in noisy electrical environments.
Wide Voltage Compatibility
Suitable for universal mains voltages and adaptable to a wide range of SMPS PFC designs.
Active Power Factor Correction Circuits (PFC)
Core component in active PFC boost and flyback front ends of SMPS power supplies.
SMPS & Offline Power Supplies
Used in universal input AC‑DC supplies, LED drivers, and adaptors to improve input performance.
LED Lighting Power Modules
Ideal for LED lighting systems requiring compliance with EMC and power quality standards.
Industrial Power Systems
Used in industrial UPS, automation power modules, and motor drive front ends.
Telecom & Networking Equipment
Helps ensure cleaner power draw and reduced harmonics for telecom PSUs.
Consumer Electronics & Appliances
Applied in TVs, computers, and household electronics to reduce energy loss and improve reliability.
Energy Storage & EV Chargers
Used in high‑efficiency chargers and energy storage systems with active PFC stages.
Physical Propertie
| Order Code | VIN | Vout1 (V) | lout1 (A) | Vout2 (V) | lout1(mA) | Vaux (V) | fswitch (kHz) | L(μH) | NPRI:NSEC:NAUX | ISAT(A) | VT (V(AC)) |
| INF-RM10-600μH | 85-265V (AC) | 5 | 4 | - | - | 24 | 100 | 600 | 18:1:4 | 3.75 | 3900 |
| INF-RM10-800μH | 85-265V (AC) | 12 | 1.667 | - | - | 24 | 100 | 600 | 9:1:2 | 3.75 | 3900 |
| INF-RM10-600μH | 85-265V (AC) | 12 | 0.8 | 12 | 800 | 24 | 100 | 600 | 9:1:1:2 | 3.75 | 3900 |
| INF-RM10-600μH | 85-265V (AC) | 24 | 0.4 | 24 | 400 | 24 | 100 | 600 | 4.5:1:1:1 | 3.75 | 3900 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
