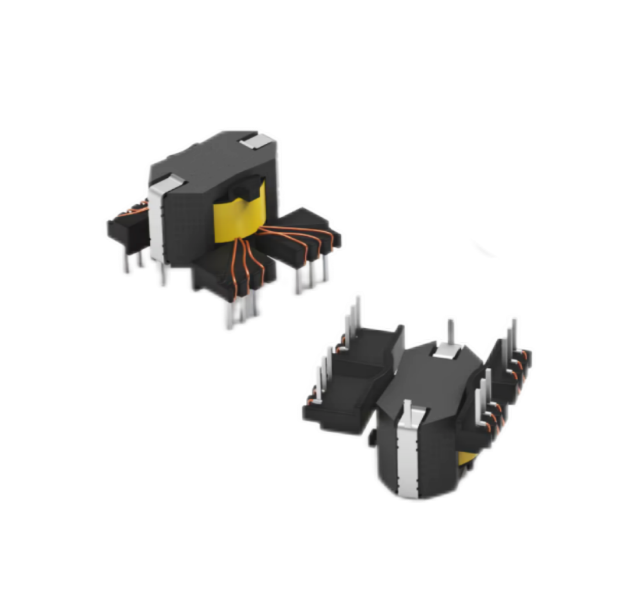

The RM6 Flyback Transformer is designed for compact offline switching power supply systems requiring efficient high-frequency energy transfer, reliable electrical isolation, and optimized PCB space utilization.
Built with an RM6 ferrite core structure, the transformer provides compact installation capability, stable electrical performance, and efficient magnetic characteristics for low-to-medium power SMPS applications.
Optimized for flyback converter topologies, the RM6 platform supports reliable operation under continuous high-frequency switching conditions while helping improve overall AC-DC conversion efficiency.
Its compact structure makes it suitable for embedded electronics, smart control modules, compact adapters, and space-constrained power systems.
Customized turns ratios, insulation systems, winding structures, and output specifications are available according to application requirements.
RM6 series offline flyback transformers feature vertical core and extended pins for compact layout and easy assembly. The grounded core significantly enhances EMI performance to meet strict EMC requirements. With wide 100–265V AC input, stable 40–100kHz operation, and flexible multi‑winding outputs, they are widely used in white goods, LED drivers, smart adapters, industrial controls, and metering systems—ideal for compact, high‑reliability power solutions.
White goods (refrigerators, A/C, washing machines, small appliances)
Offline flyback power modules
Industrial controls & industrial power supplies
LED lighting drivers
Smart adapters & chargers
Smart meters & metering systems

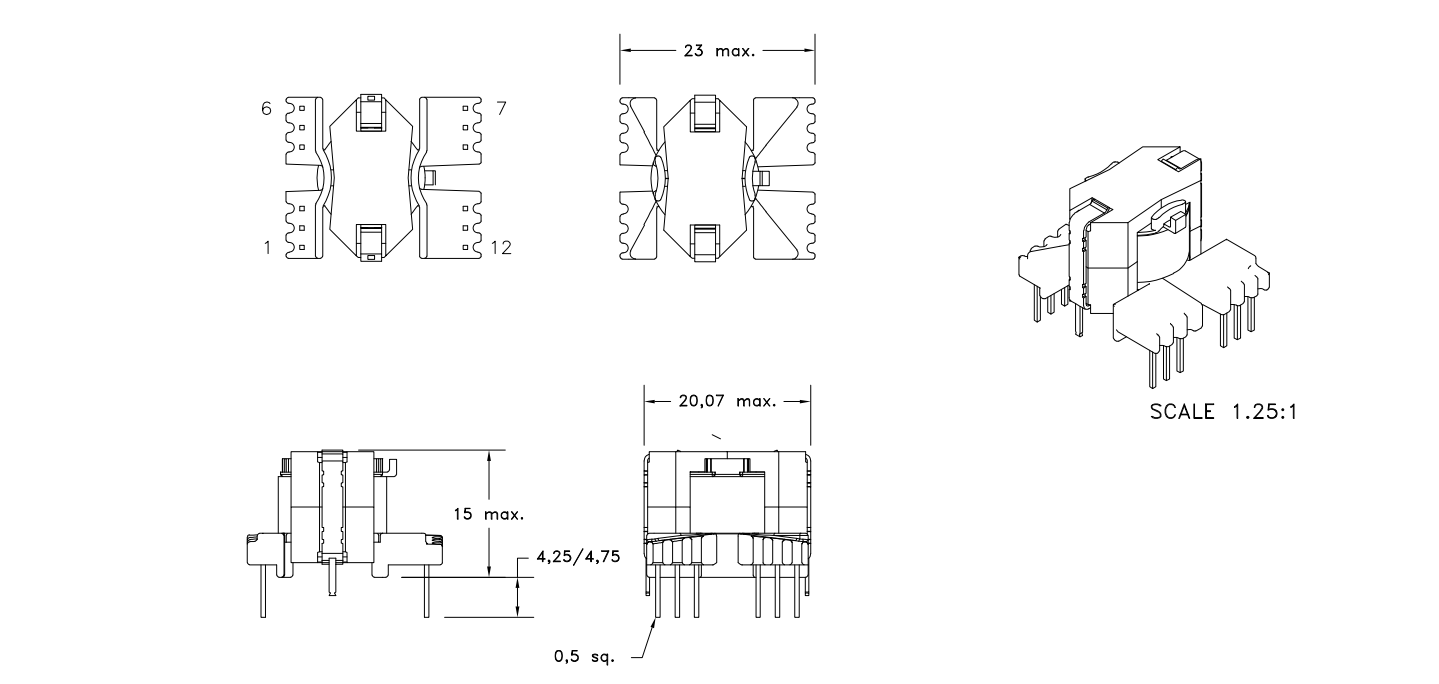

Physical Properties
| Order Code | VIN | Vout1 (V) | lout1(A) | Vout2 (V) | lout1 (mA) | Vaux(V) | fswitch (kHz) | L(μH) | NPRI:NSEC:NAUX | ISAT(A) | VT (V(AC)) |
| INF-RM6-4000μH | 100-265V (AC) | 5 | 1.5 | - | - | 20 | 40-100 | 4000 | 24:1:4 | 0.45 | 3900 |
| INF-RM6-4000μH | 100-265V (AC) | 12 | 0.6 | - | - | 24 | 40-100 | 4000 | 10:1:2 | 0.45 | 3900 |
| INF-RM6-4000μH | 100-265V (AC) | 12 | 0.3 | 12 | 300 | 24 | 40-100 | 4000 | 10:1:1:2 | 0.45 | 3900 |
| INF-RM6-4000μH | 100-265V (AC) | 5 | 0.7 | 12 | 290 | 24 | 40-100 | 4000 | 26:1:2.4:4.8 | 0.45 | 3900 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
