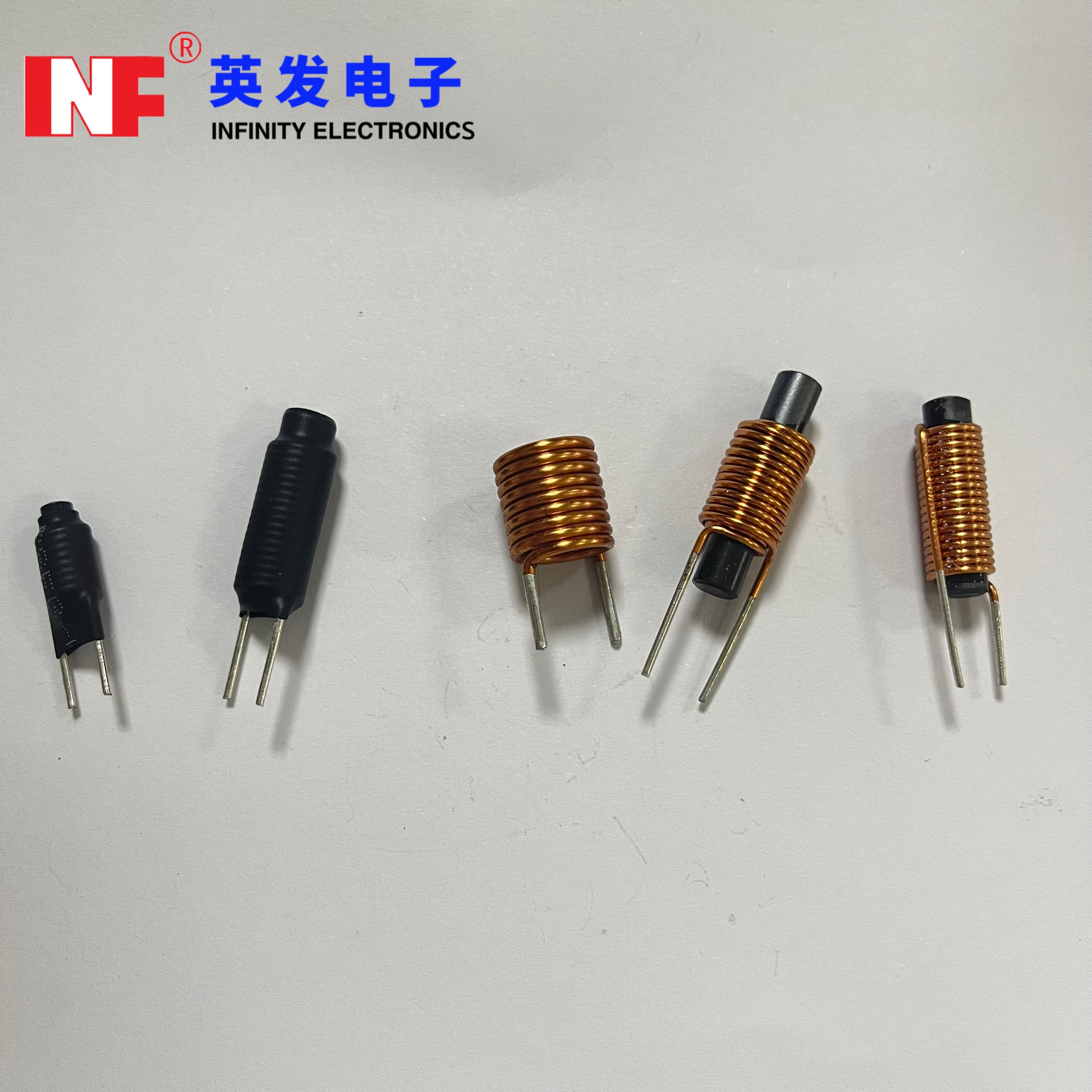

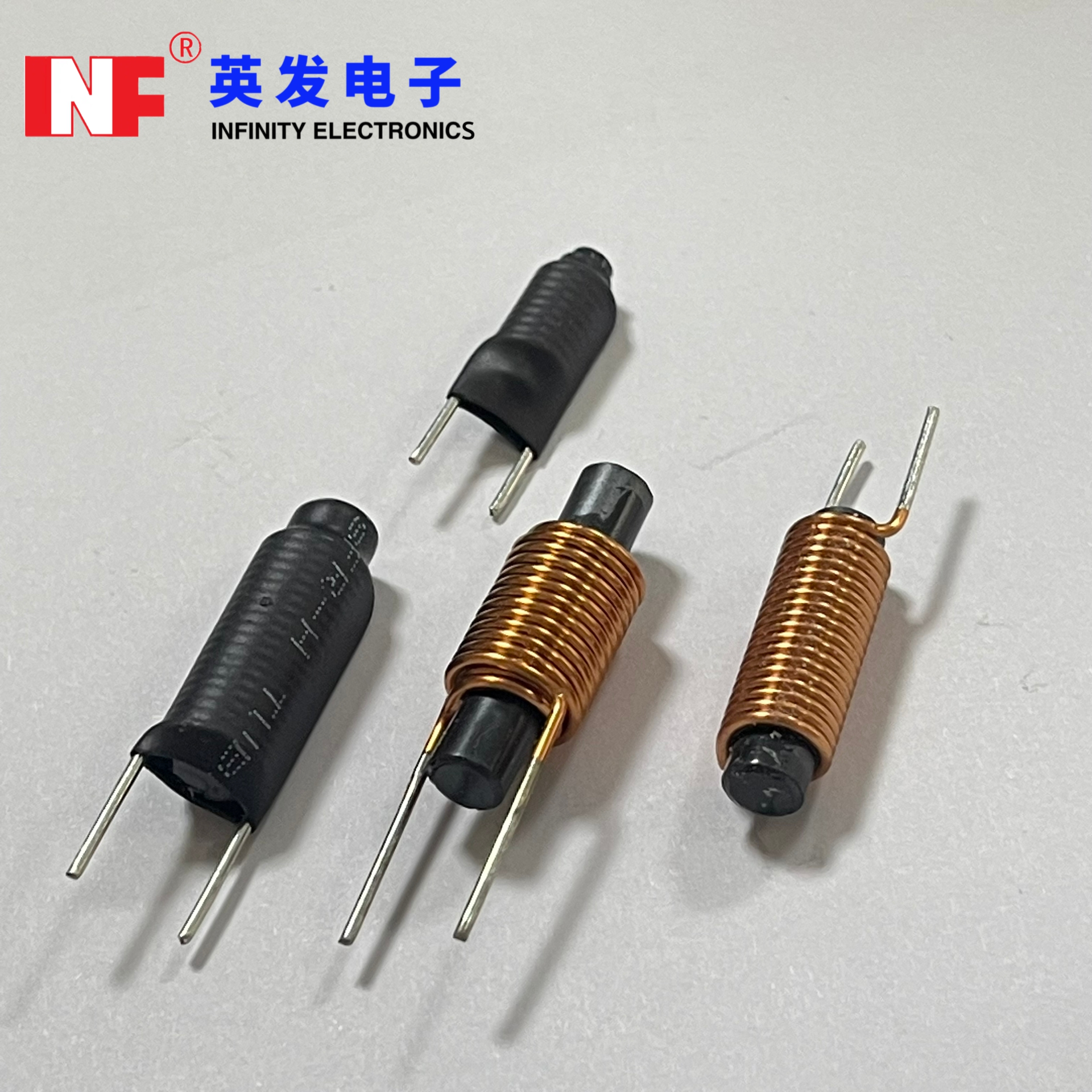

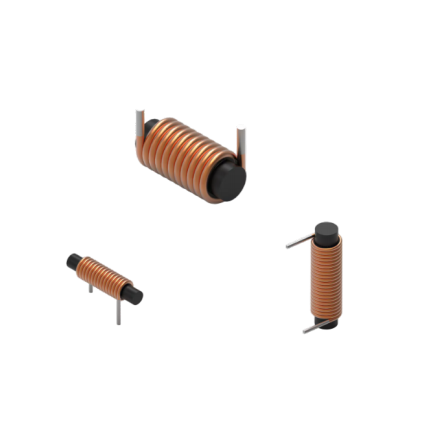

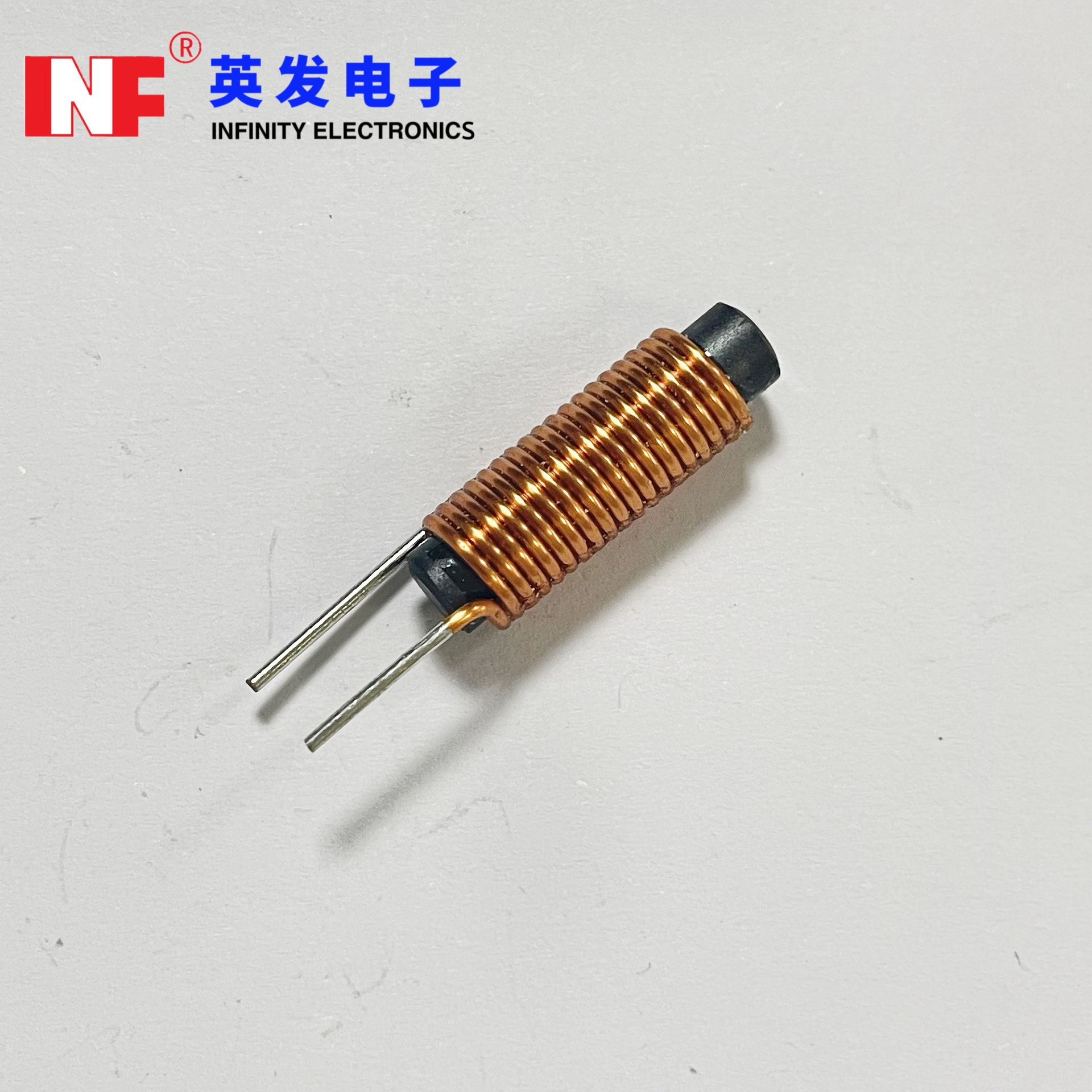

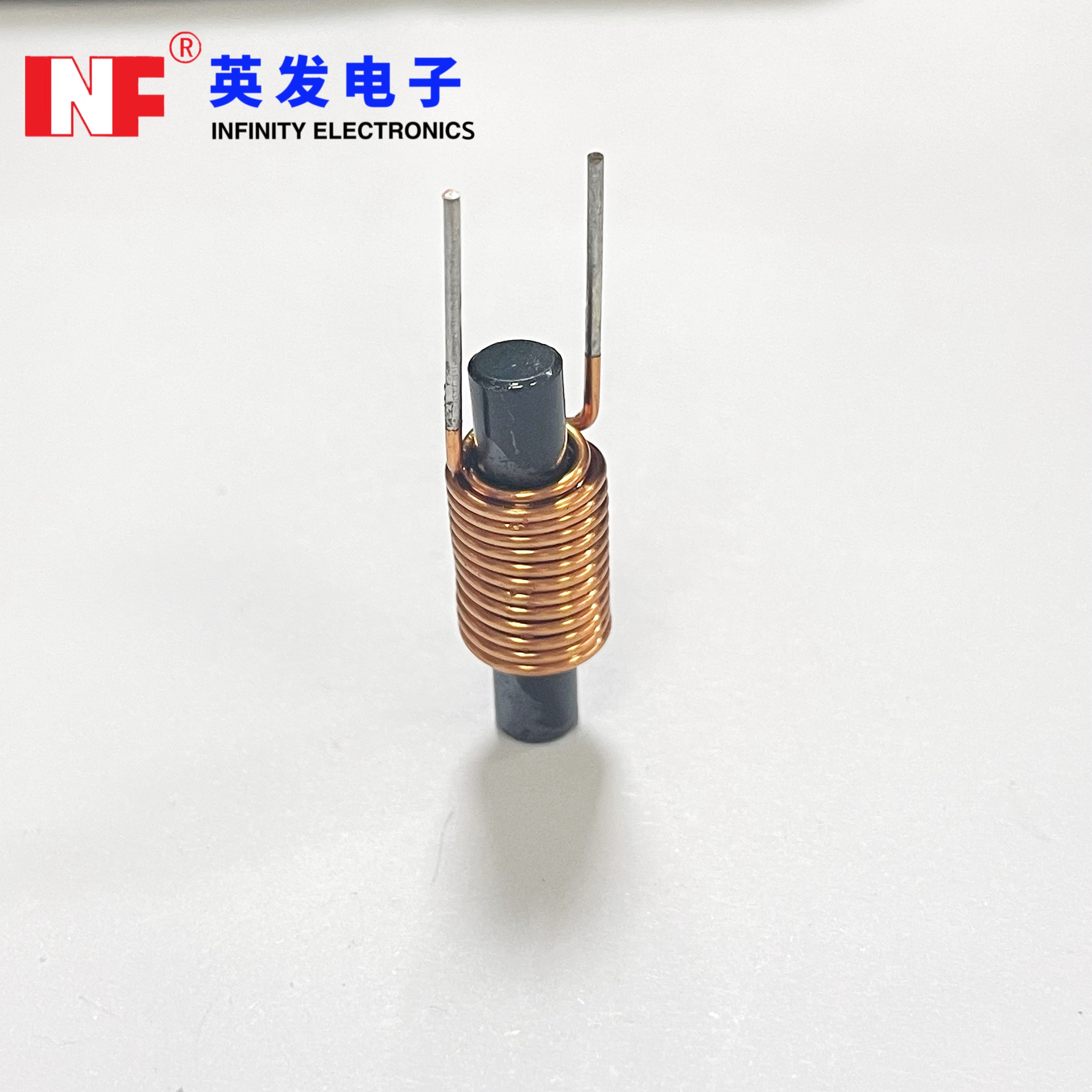

The Rod Core Inductor is a versatile wire-wound magnetic component designed for inductance control, signal coupling, and filtering functions in a wide range of electronic circuits. Utilizing a ferrite rod core structure, it provides balanced electrical performance, stable inductive characteristics, and flexible design adaptability.
Unlike dedicated choke inductors that mainly focus on EMI suppression, this rod core inductor is more suitable for general-purpose inductive applications involving signal processing, oscillation circuits, and energy transfer functions.
Its open-core configuration allows efficient magnetic distribution and supports flexible winding arrangements for different inductance and frequency requirements.
Customized inductance ranges, wire specifications, and mechanical dimensions can be developed for various electronic designs.
Ferrite rod core structure with stable inductive performance
Suitable for both signal and power circuit applications
Flexible winding configuration capability
Good frequency response characteristics
Reliable wire-wound construction
Open magnetic structure for thermal stability
Broad application compatibility
Custom inductance designs available
Signal Coupling Circuits
Oscillator and Resonance Circuits
General Power Filtering Applications
Consumer Electronic Products
Communication Devices
Audio Electronics
Embedded Control Systems

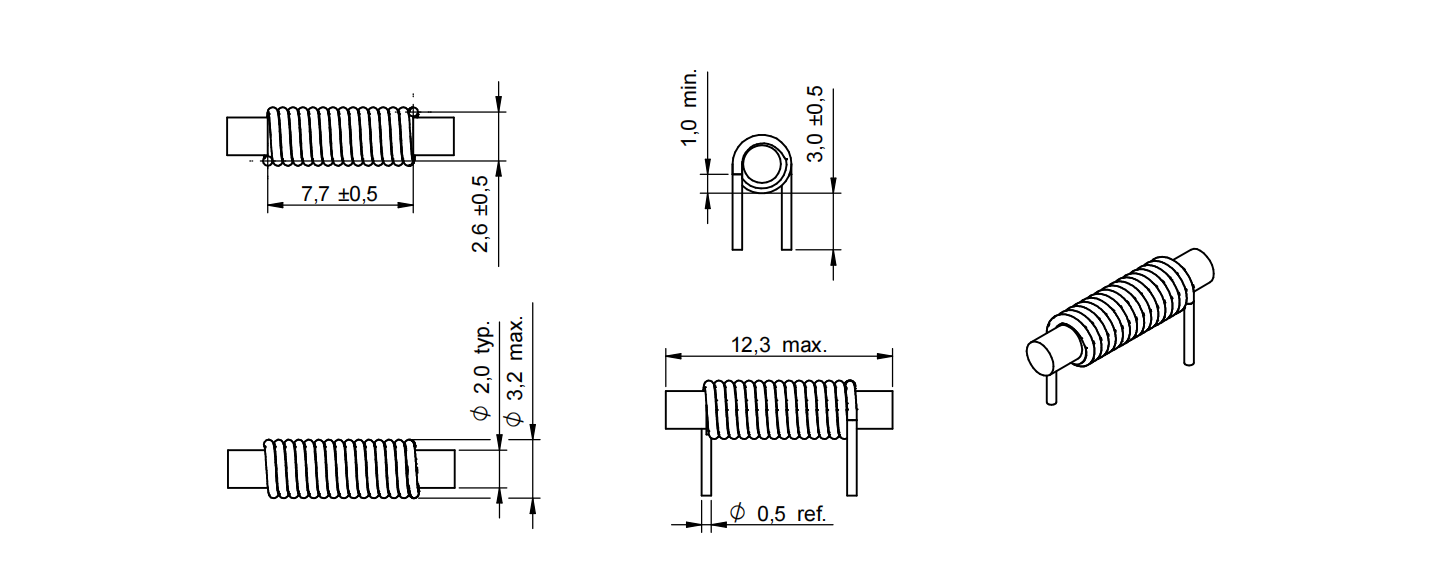

Physical Properties
| Order Code | L (mm) | PI (mm) | φ D (mm) | Pw (mm) | G (mm) | φ F (mm) | L (μH) | lR (A) | RDC (mΩ) | fres (MHz) |
| INF-THT-2μH | 12.3 | 7.7 | 3.2 | 2.6 | 3 | 0.5 | 2 | 4 | 11 | 290 |
| INF-THT-10μH | 18.5 | 13.5 | 5.2 | 4.6 | 3 | 0.5 | 10 | 3 | 33 | 90 |
| INF-THT-6μH | 20.5 | 14.7 | 6.9 | 5.9 | 3 | 0.8 | 6 | 6.4 | 11.7 | 95 |
| INF-THT-10μH | 22.5 | 18.8 | 6.9 | 5.9 | 3 | 0.8 | 10 | 5.5 | 15.1 | 80 |
| INF-THT-2μH | 15.4 | 12.2 | 7.6 | 6.3 | 3 | 1.12 | 2 | 10 | 3.8 | 150 |
| INF-THT-6μH | 25.7 | 18 | 8.6 | 7.3 | 3 | 1.12 | 6 | 10 | 6.5 | 80 |
| INF-THT-10μH | 30.9 | 24.9 | 8.6 | 7.3 | 3 | 1.12 | 10 | 10 | 8.8 | 50 |
| INF-THT-2pH | 25.7 | 17.5 | 10 | 8 | 3 | 1.8 | 2 | 15 | 1.7 | 110 |
| INF-THT-6μH | 30 | 24.9 | 14 | 12 | 3 | 1.8 | 6 | 15 | 3.5 | 55 |
| INF-THT-10μH | 30.8 | 29.2 | 16 | 14 | 3 | 1.7 | 10 | 15 | 5.7 | 40 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
