1012
INF
The 1012 THT Power Inductor is a high-performance through-hole electromagnetic component of INF’s FAMI series, specially designed for B-end power conversion and portable electronic equipment manufacturing applications. As a shielded THT ferrite core power inductor, it adopts an optimized material formulation and a fully shielded structural design, which minimizes stray magnetic fields to the greatest extent and avoids electromagnetic interference with adjacent components on the circuit board. This FAMI THT power inductor for DC-DC converters boasts an industry-leading saturation current rating of up to 19.7 A and an ultra-low DC resistance starting at 3.8 mΩ, ensuring high energy conversion efficiency and stable current output in power supply circuits. With a wide operating temperature range of -40 °C to +125 °C, it maintains consistent and reliable performance in extreme industrial and consumer electronic working environments, making it an ideal choice for DC/DC converters, power supplies, battery chargers and portable electronic devices such as notebooks. Its radial lead design and standard through-hole dimensions are perfectly compatible with traditional manual and automated THT assembly processes, fully meeting the mass production needs of B-end electronic manufacturers.
The full shielded construction of the 1012 THT Power Inductor effectively reduces stray magnetic fields to the minimum, completely eliminating electromagnetic crosstalk with other electronic components on the PCB board. This design is crucial for the high-density circuit design of B-end power modules and portable electronic devices, ensuring the stable operation of the entire equipment system and avoiding signal interference caused by magnetic field leakage.
As a high saturation current radial lead power inductor, it supports a maximum saturation current of 19.7 A and a minimum DC resistance of only 3.8 mΩ. This performance not only meets the high-current power supply requirements of industrial equipment and portable electronic devices but also minimizes the power loss in the circuit, significantly improving the energy conversion efficiency of the power supply system. The product strictly distinguishes between saturation current (ISAT) and temperature rise current (IR), avoiding inductance value drop and overheating failure in actual industrial use.
The 1012 THT Power Inductor has an operating temperature range of -40 °C to +125 °C, which can adapt to various harsh working environments, including low-temperature industrial control equipment in cold storage, high-temperature automotive electronics and portable devices with high heat generation during operation. Its optimized material and structural design ensure no obvious parameter drift within the full temperature range, meeting the long-term stability requirements of B-end electronic products.
The radial lead THT structural design and standard dimensional parameters of this power inductor are compatible with most industrial PCB board layouts, and it can be seamlessly integrated into automated THT assembly lines, improving the production efficiency of B-end manufacturers. At the same time, it is also suitable for traditional manual assembly, with strong flexibility for small-batch prototype production.
This section lists the core structural and electrical performance indicators of the INF 1012 THT Power Inductor, covering the core material, structural type and key performance parameters for B-end users’ selection.
Item | Detailed Specification |
Brand | INF |
Product Series | FAMI THT |
Core Material | Ferrite core |

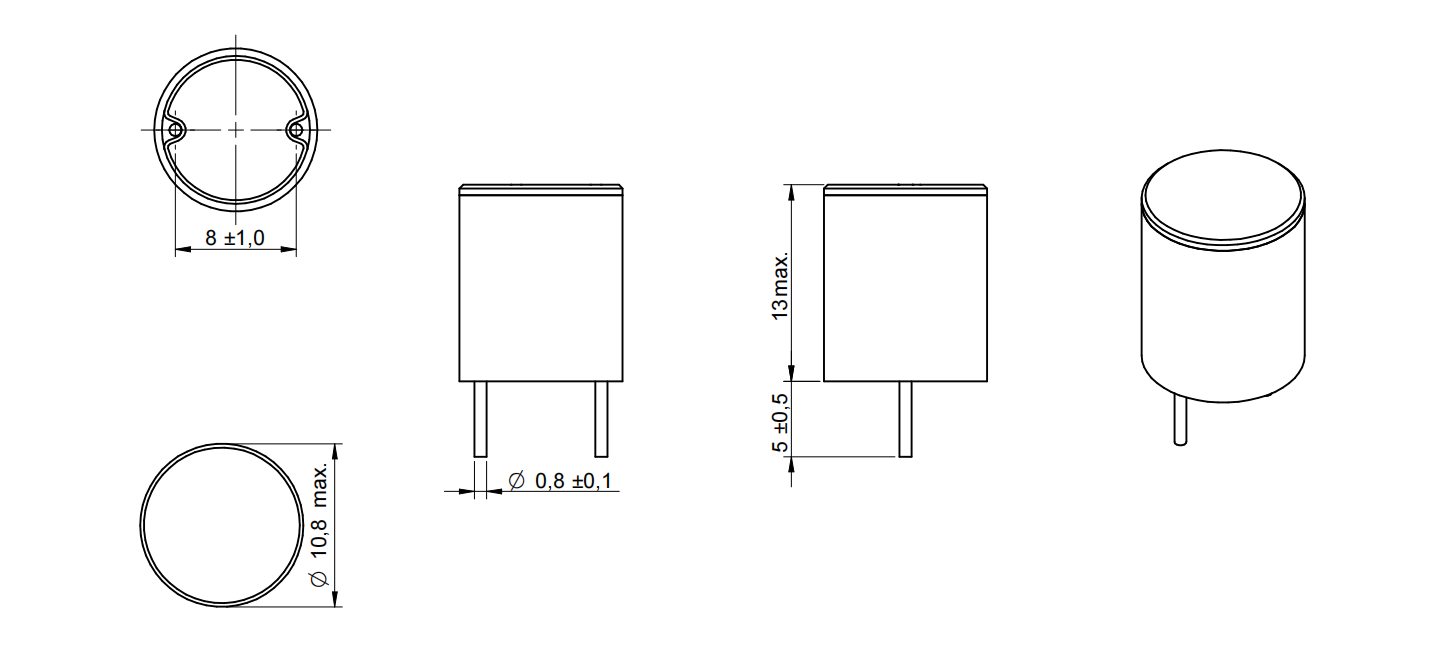

Structural Design | Shielded, Radial Lead Through-Hole |
Max Saturation Current (ISAT) | 19.7 A |
Min DC Resistance (RDC) | 3.8 mΩ |
Operating Temperature Range | -40℃ ~ +125℃ |
Assembly Compatibility | Automated/Manual THT Assembly Process |
The 1012 series has two core models with different inductance values, matching different current and resistance requirements for power conversion and portable electronic equipment applications.
Order Code | L(μH) | IR(A) (Temperature Rise Current) | ISAT(A) (Saturation Current) | RDC max(mΩ) |
INF-1012-4.7μH | 4.7 | 9 | 14.4 | 8.5 |
INF-1012-15μH | 15 | 5.6 | 8.5 | 20 |
The 1012 THT Power Inductor is a core component of DC/DC converters for industrial control equipment, and is widely applied in power supplies and battery chargers for new energy electric vehicles, industrial energy storage systems and consumer electronic charging products, providing stable high-current power conversion and output.
It is the key power component for home entertainment systems, including Blu-ray players, professional audio power amplifiers, smart TVs and game consoles. Its low power loss and high stability characteristics ensure the smooth operation of entertainment equipment and improve the user experience of end products.
For portable electronic devices, it is used in the power supply modules of notebook computers, tablet PCs and handheld industrial PADs, meeting the high-efficiency and miniaturization requirements of portable device power circuits. It is also applied in industrial handheld terminals such as barcode scanners and industrial detectors, adapting to the complex working environment of industrial sites.
The production and manufacturing of the INF 1012 THT Power Inductor strictly follow the ISO9001 quality management system, with strict inspection and testing for each production link from raw material incoming to finished product delivery, ensuring the consistency and reliability of product quality for B-end users.
All core materials of the 1012 series meet RoHS environmental protection requirements, adopting a lead-free and halogen-free design, complying with the environmental regulations of the European Union, North America, Asia and other global major markets. Its shielded structural design and excellent electrical parameters fully meet the EMC requirements of power electronic equipment, and its thermal performance and mechanical strength comply with the international industrial reliability standards of through-hole electronic components.
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 pieces minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
INF provides professional specification customization services for the 1012 THT Power Inductor for B-end users, supporting personalized customization of inductance value, current rating and DC resistance parameters according to the unique power supply requirements of different equipment, and can also adjust the structural design for special application scenarios.
