The T75 Toroidal PFC Choke is designed for power factor correction (PFC) circuits in high-efficiency AC-DC switching power supplies and industrial power systems. Built with a high-permeability toroidal core and precision winding technology, it provides excellent energy storage capability, low core loss, and stable inductance performance under high current operation.
The toroidal (ring-shaped) structure forms a closed magnetic path, significantly reducing electromagnetic interference (EMI) and improving overall system efficiency. This makes it ideal for high-power, low-noise, and compact power supply designs.
Customized inductance values, wire gauges, and mechanical configurations are available according to different application requirements.
Optimized for Power Factor Correction (PFC) applications
Toroidal core design for low EMI and high efficiency
High current handling capability
Low core loss and excellent energy storage performance
Stable inductance under continuous operation
Compact structure for high power density designs
Excellent thermal stability for long-term reliability
Customizable electrical and mechanical parameters
PoE+ Switches and Injectors
IP Surveillance Cameras (HD / PTZ)
Wireless Access Points (Wi-Fi 5 / Wi-Fi 6)
VoIP Communication Devices
Industrial Ethernet Systems
Smart Building and IoT Networks
Network Power Distribution Modules

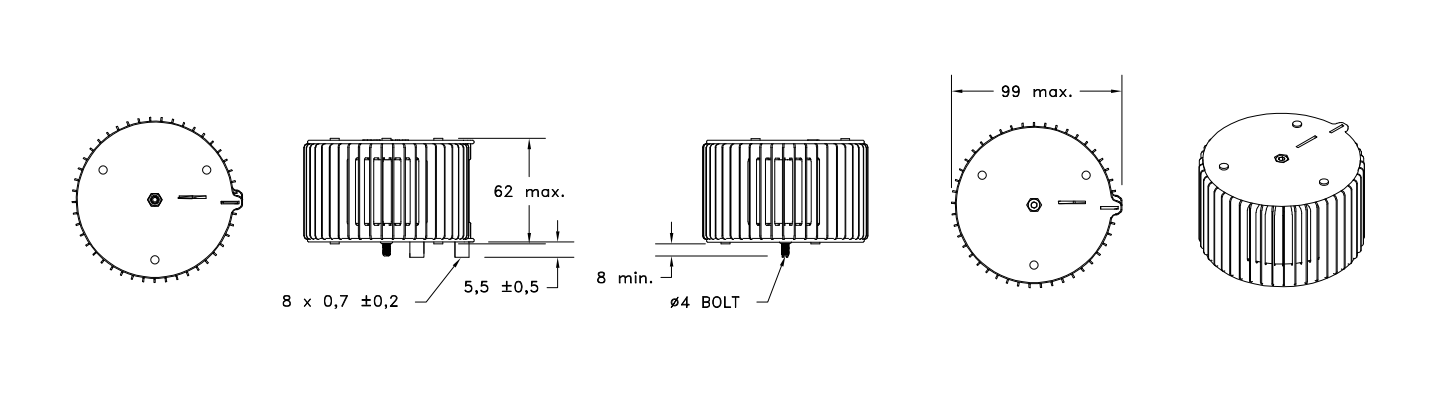

Physical Properties
| Order Code | L(μH) | lR(A) | lSAT(A) | RDC max.(mΩ) |
| INF-T75-180μH | 180 | 24.5 | 43 | 20 |
| INF-T75-180μH | 180 | 24.5 | 105 | 20 |
| INF-T75-720μH | 720 | 17.2 | 38 | 42 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
