Product Overview

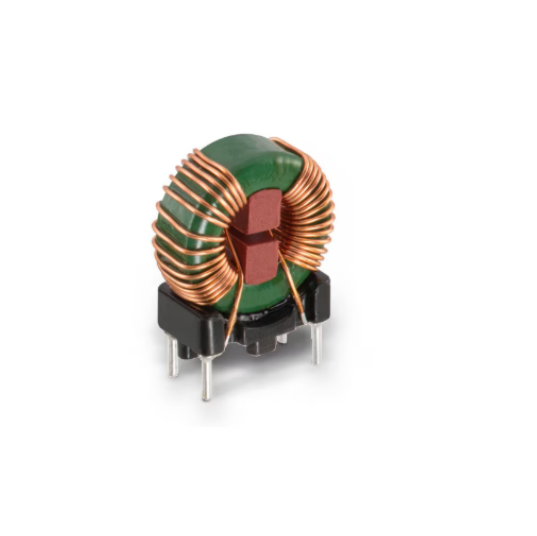

The Type XS Common Mode Power Line Choke with NiZn ferrite core is designed for high-frequency EMI suppression in modern power electronic systems. Compared with standard MnZn-based chokes, the NiZn material offers better performance at higher frequencies, making it ideal for switching power supplies with fast switching speeds.

This component effectively suppresses common-mode noise on AC power lines while maintaining minimal impact on differential signals. It is widely used in compact power systems where both EMI compliance and space efficiency are critical.

Its compact XS-type structure allows easy integration into densely populated PCB layouts, while ensuring stable filtering performance and long-term reliability.

Custom inductance values, current ratings, and winding configurations are available for different EMI filtering requirements.

Key Features

• NiZn ferrite core optimized for high-frequency EMI suppression

• Effective reduction of common-mode noise on power lines

• Low insertion loss for differential signals

• Compact XS-type structure for space-saving designs

• Suitable for high switching frequency power supplies

• Stable performance under continuous operation

• High reliability for industrial applications

• Customizable electrical parameters available

Typical Applications

• Switching Power Supplies (High Frequency SMPS)

• Industrial Power Systems

• AC-DC Converters

• LED Drivers

• Consumer Electronics Power Units

• Communication Equipment

• EMI Filtering Circuits

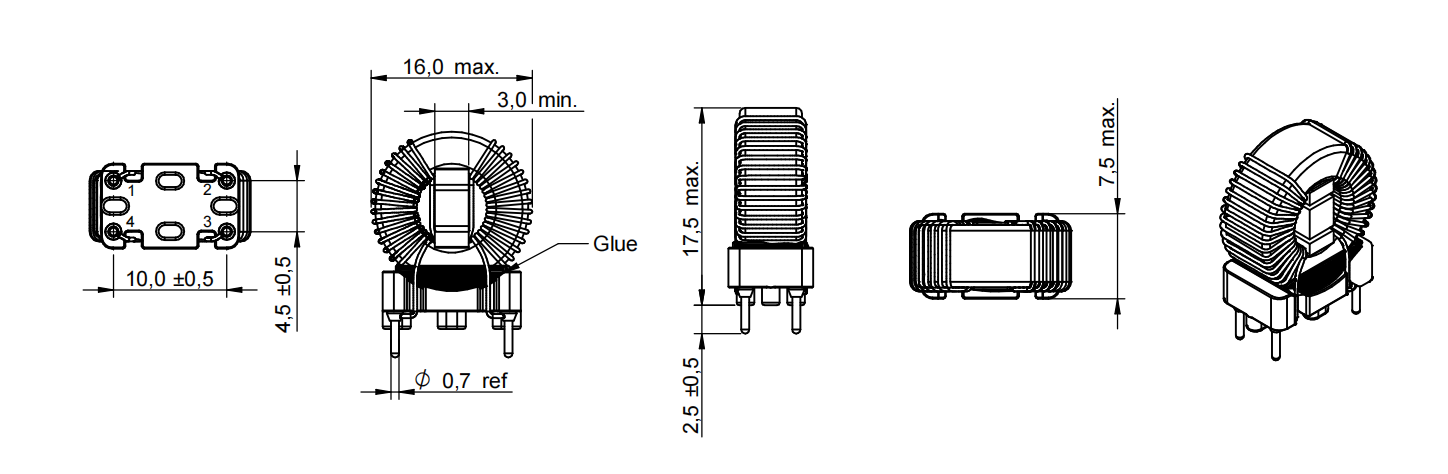

Physical Properties

Technical Specifications

Customization & Procurement
