The 8010 THT Power Inductor is a specialized through-hole power inductor designed for high-frequency power applications, featuring a precision-engineered ferrite core with a nominal dimension of 8mm (diameter) × 10mm (length). As a 8010 ferrite core THT power inductor, it is optimized for secure PCB installation via lead insertion through pre-drilled holes, a key design feature for B2B customers requiring compact, stable components for switching power supplies and DC-DC converter circuits. The 8010 vertical THT power inductor for switching power supply leverages high-grade ferrite core material to enhance high-frequency performance and boost power handling capabilities, making it a go-to component for compact electronic systems where space efficiency and high-frequency operation are critical. Unlike larger THT inductors, it balances small form factor with reliable high-current performance, filling a niche for mid-power applications in consumer and industrial electronics.
The 8010 ferrite core THT power inductor uses premium manganese-zinc (MnZn) ferrite core material compliant with ASTM A1009 standards for high-frequency (10kHz-1MHz) filter inductor applications. This material minimizes core loss at high frequencies, ensuring stable inductance performance and efficient power transfer—an unrivaled advantage for high-frequency power supply filtering and DC-DC conversion.

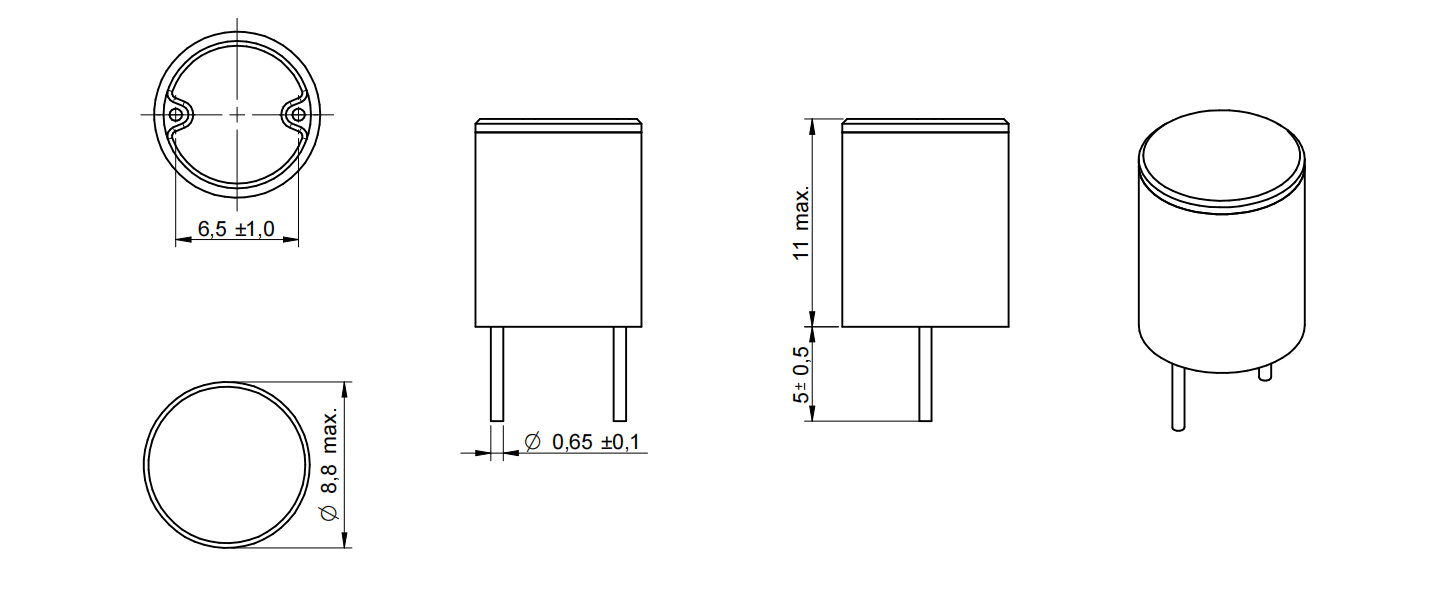

With a fixed 8mm×10mm magnetic core, the 8mm×10mm THT inductor for PCB installation offers precise mechanical compatibility with standard PCB designs, eliminating fitment issues during mass production for B2B manufacturers. Its vertical lead design ensures secure insertion and soldering, reducing assembly errors and improving production yield rates—critical for high-volume electronic manufacturing.
Engineered specifically for electromagnetic interference (EMI) mitigation, the 8010 THT Power Inductor suppresses unwanted electrical noise in power supply circuits without compromising power performance. Its ferrite core design absorbs high-frequency noise, making it a cost-effective solution for B2B customers looking to meet EMI compliance without adding extra filtering components.
All electrical parameters of the 8010 THT Power Inductor are measured at 25°C ambient temperature, with consistent performance across -40°C to +125°C operating range.
Order Code | L (μH) | IR (A) | ISAT (A) | RDC max (mΩ) |
INF-8010-3μH | 3 | 7.6 | 11.7 | 8.5 |
INF-8010-4.7μH | 4.7 | 6.5 | 9.6 | 12.5 |
INF-8010-6.8μH | 6.8 | 5.7 | 8.1 | 16 |
INF-8010-10μH | 10 | 4.6 | 6.8 | 23 |
INF-8010-15μH | 15 | 3.7 | 5.7 | 35 |
IR = Rated Current; ISAT = Saturation Current; RDC max = Maximum DC Resistance
The 8010 THT Power Inductor is tailored for compact, high-frequency power applications, serving B2B customers in consumer electronics, industrial small power modules, and portable devices:
Switch-Mode Power Supplies: Compact SMPS for laptops, desktop computers, and industrial small power adapters, where high-frequency efficiency is essential.
DC-DC Converter Circuits: Step-up/step-down converters for portable electronic devices, automotive USB chargers, and IoT sensor power modules.
Compact Electronic System Filtering: EMI mitigation for home appliances (e.g., smart speakers, small kitchen appliances) and wearable electronic charging docks.
Industrial Low-Power Equipment: Signal conditioning and power filtering for industrial sensors, remote monitoring devices, and small-scale automation modules.
The 8010 THT Power Inductor meets global environmental and industry standards, ensuring compliance for B2B customers selling products in international markets:
RoHS 2.0 (2011/65/EU & 2015/863): Fully lead-free and compliant with 10 restricted hazardous substances, including phthalates.
REACH (EC 1907/2006): No SVHC substances detected in material composition, with regular testing to align with semi-annual SVHC list updates.
Ferrite Core Standard: Compliant with ASTM A1009-05 (2010) for high-frequency soft magnetic MnZn ferrite core materials, guaranteeing core performance.
MSL Rating: Moisture Sensitivity Level (MSL) 1, allowing unlimited storage time in ambient conditions without vacuum packaging.
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 pieces minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
For B2B customers with specialized circuit design needs, we offer customized 8010 ferrite core THT power inductor solutions, including tailored inductance values (1μH-20μH) and modified lead lengths for unique PCB layouts. Custom ferrite core formulations for extreme temperature operating environments are also available.
