With a maximum saturation current up to 19.7A, it provides strong anti-saturation capability to resist current shock and load fluctuation, ensuring continuous and reliable operation under dynamic working conditions. The ultra-low DC resistance (as low as 3.8mΩ) greatly reduces conduction loss and heat generation, which helps improve the energy conversion efficiency of the entire power module.
Equipped with a professional shielded structure, this inductor effectively suppresses stray magnetic fields, reduces electromagnetic interference to surrounding components, and improves the anti-interference ability of the whole circuit. It can work stably in a wide temperature range from -40℃ to 125℃, maintaining consistent electrical performance in harsh application environments, making it an ideal through-hole filtering and energy storage device for various consumer electronics and power supply equipment.
| Parameter | Specification & Performance |
| Model | 1415 THT Power Inductor |
| Mounting Type | Through-Hole (THT) |
| Saturation Current | Max. 19.7 A |
| DC Resistance (RDC) | As low as 3.8 mΩ |
| Structure | Shielded design, low stray field |
| Operating Temperature | -40℃ ~ +125℃ |
| Core Material | Optimized high-performance magnetic material |
| Typical Application | DC/DC converters, power supplies, chargers, consumer electronics |
Physical Properties
| Order Code | L(μH) | lR(A) | ISAT(A) | RDC max(mΩ) |
| INF-1415-4.7μH | 4.7 | 14.5 | 19.7 | 3.8 |
| INF-1415-10μH | 10 | 11.4 | 13.4 | 6.8 |
| INF-1415-22μH | 22 | 7.7 | 8.9 | 14.5 |

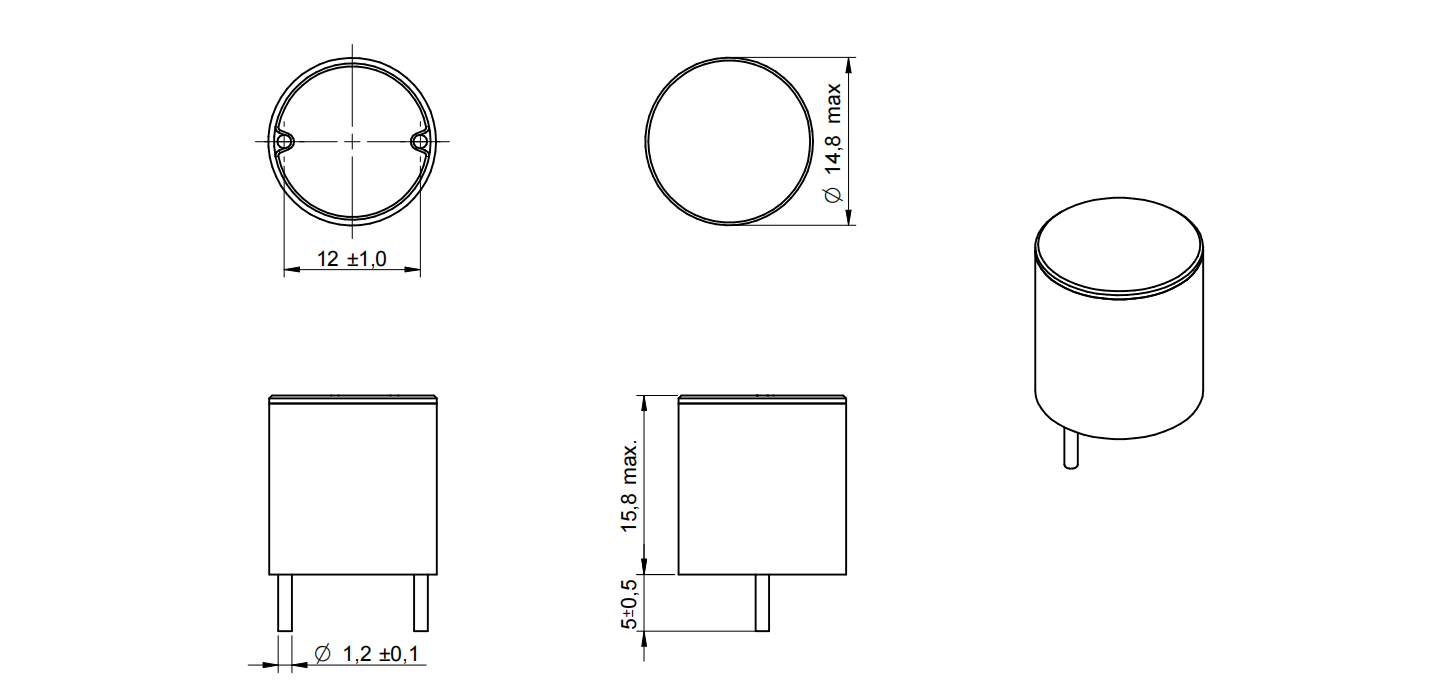

Technical Specifications
