Core Considerations for Transformer Core Material Selection: From Performance Adaptation to Scene Implementation

As the core carrier of magnetic circuit transmission, the selection of transformer core materials directly determines the energy efficiency, stability, and service life of the equipment. Driven by the demands of diverse scenarios such as new energy, industrial control, and medical equipment, the selection of core materials has evolved from a single - parameter comparison to a multi - dimensional system decision. It requires a comprehensive evaluation based on the intrinsic properties of materials, equipment operating conditions, and the whole - life - cycle cost. Combining industry practices and technical standards, the following are the key considerations and implementation logic for transformer core material selection.

1. Core Magnetic Properties: Laying the Foundation for Transformer Energy Efficiency

Magnetic properties are the core value indicators of core materials, directly affecting the efficiency of magnetic field conversion and energy loss. Among them, three parameters are the most critical. The magnetic permeability (μ) is the core measurement standard for magnetic permeability. The higher the magnetic permeability, the stronger the magnetic induction intensity generated under the same magnetic field strength, which can significantly reduce the volume of the iron core. For example, the magnetic permeability of silicon steel sheets can reach 1000 - 10000μ, and the iron core formed by punching and laminating process can effectively reduce the fluctuation of magnetic flux density, making it the basic choice for most transformers. The loss characteristics include hysteresis loss and eddy current loss. The former originates from the repeated flipping of magnetic domains, and the latter is induced by the alternating magnetic field. The silicon content of 2% - 4.5% in silicon steel sheets can narrow the hysteresis loop. Combined with the design of thin sheet lamination and insulating coating, both types of losses can be reduced simultaneously. The loss value of its 0.35mm thin - gauge product can be as low as 1.3W/kg. Iron - silicon - aluminum sheets further suppress eddy current loss by virtue of higher resistivity, and the iron loss of amorphous alloys is only 1/5 of that of traditional silicon steel, making them the preferred choice for energy - saving scenarios. The saturation magnetic induction intensity (Bs) determines the anti - saturation ability of the material. The Bs value of silicon steel sheets can reach 1.5 - 2.0T, which is suitable for high - power equipment; while the Bs of ferrite is only 0.3 - 0.5T, which is more suitable for small and medium - power scenarios.

2. Operating Condition Adaptability: A Hard Indicator for Matching Scenarios

The operating conditions of different application scenarios vary significantly, and it is necessary to select iron core materials with matching characteristics for specific scenarios. Frequency adaptation is the core threshold: power frequency (50/60Hz) distribution transformers prefer oriented silicon steel, whose grain orientation arrangement can minimize losses; medium - frequency (1 - 10kHz) equipment can use non - oriented silicon steel or iron - silicon - aluminum sheets; high - frequency (kHz - MHz) scenarios require iron - silicon - aluminum sheets or amorphous alloys, using their high resistivity characteristics to suppress the surge of eddy current loss. Environmental tolerance directly affects the service life of the equipment: high - temperature environments (such as vehicle - mounted, industrial kilns) require iron - silicon - aluminum sheets or high - temperature - resistant amorphous alloys, which can maintain stable magnetic properties in the range of - 55℃ ~ 150℃; humid or outdoor scenarios need to combine the corrosion resistance of materials with insulation protection design to avoid the deterioration of iron core performance. Capacity requirements determine material specifications: large - capacity transformers (≥1000kVA) require silicon steel sheets or iron - silicon - aluminum sheets to support low - loss operation; small low - voltage transformers can use pure iron with lower cost. Although the loss is higher, it can meet the basic magnetic conductivity requirements.

3. Process and Economy: Balancing Performance and Implementation Feasibility

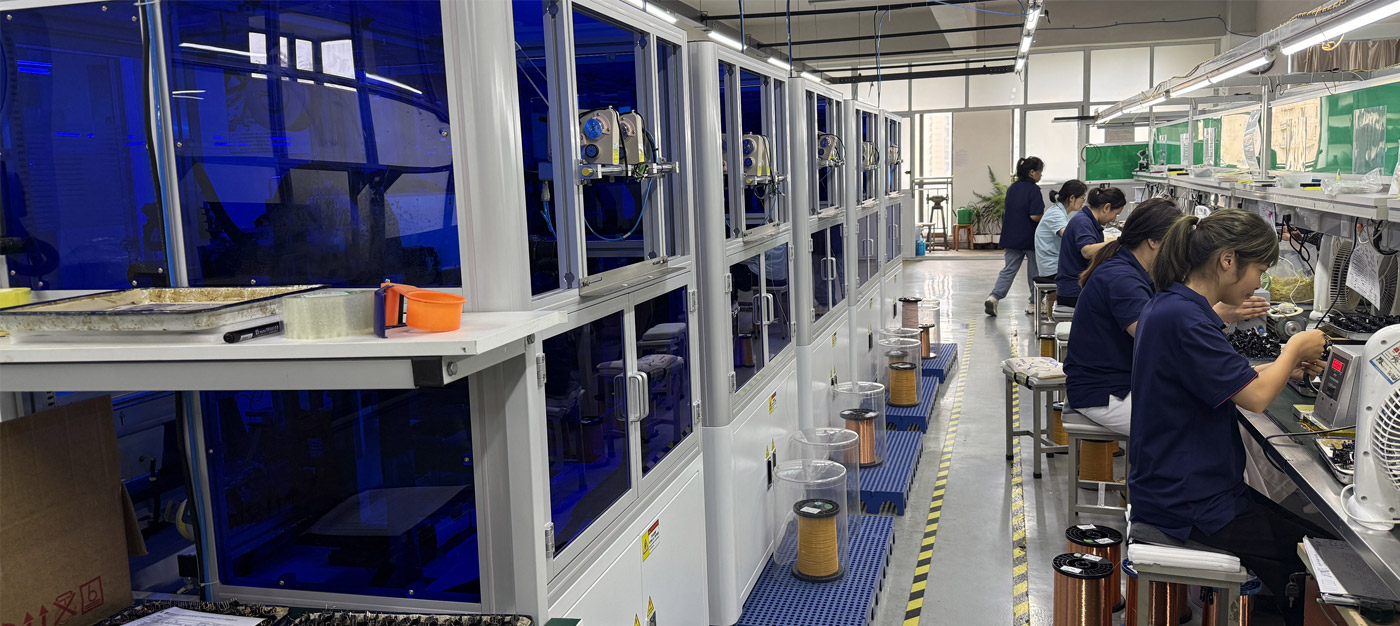

Material selection needs to take into account production feasibility and whole - life - cycle cost to avoid "excessive performance" or "cost out of control". In terms of processing technology adaptability, silicon steel sheets have good mechanical strength and stamping performance, which are convenient for cutting and laminating into various iron core structures and are suitable for batch manufacturing in automated production lines. Although amorphous alloys have excellent performance, they require annealing treatment at 200℃ - 280℃ to eliminate internal stress, and are sensitive to processing stress, requiring professional process support. Relying on a fully automated workshop and a 15 - person R & D team, Yingfa can optimize the processing process for different material characteristics such as silicon steel, iron - silicon - aluminum, and amorphous alloys, and achieve full - chain adaptation from thin - sheet stamping to finished product inspection. Cost control needs to integrate initial procurement and long - term energy consumption: pure iron has the lowest cost but high loss, suitable for small equipment used in the short term; silicon steel sheets have a balanced cost - performance ratio and are the mainstream choice in the industrial field; the initial procurement cost of amorphous alloys is 30% higher than that of silicon steel, but the annual loss is reduced by 75%. The annual power saving of 800kVA - specification products can reach tens of thousands of degrees, and the long - term benefits are significant. Through the integration of its own supply chain resources, Yingfa can provide stepped material solutions according to customer budgets, and the basic cost is 5% - 8% lower than that of peers.

4. Compliance and Up grad ability: Adapting to Industry Development Trends

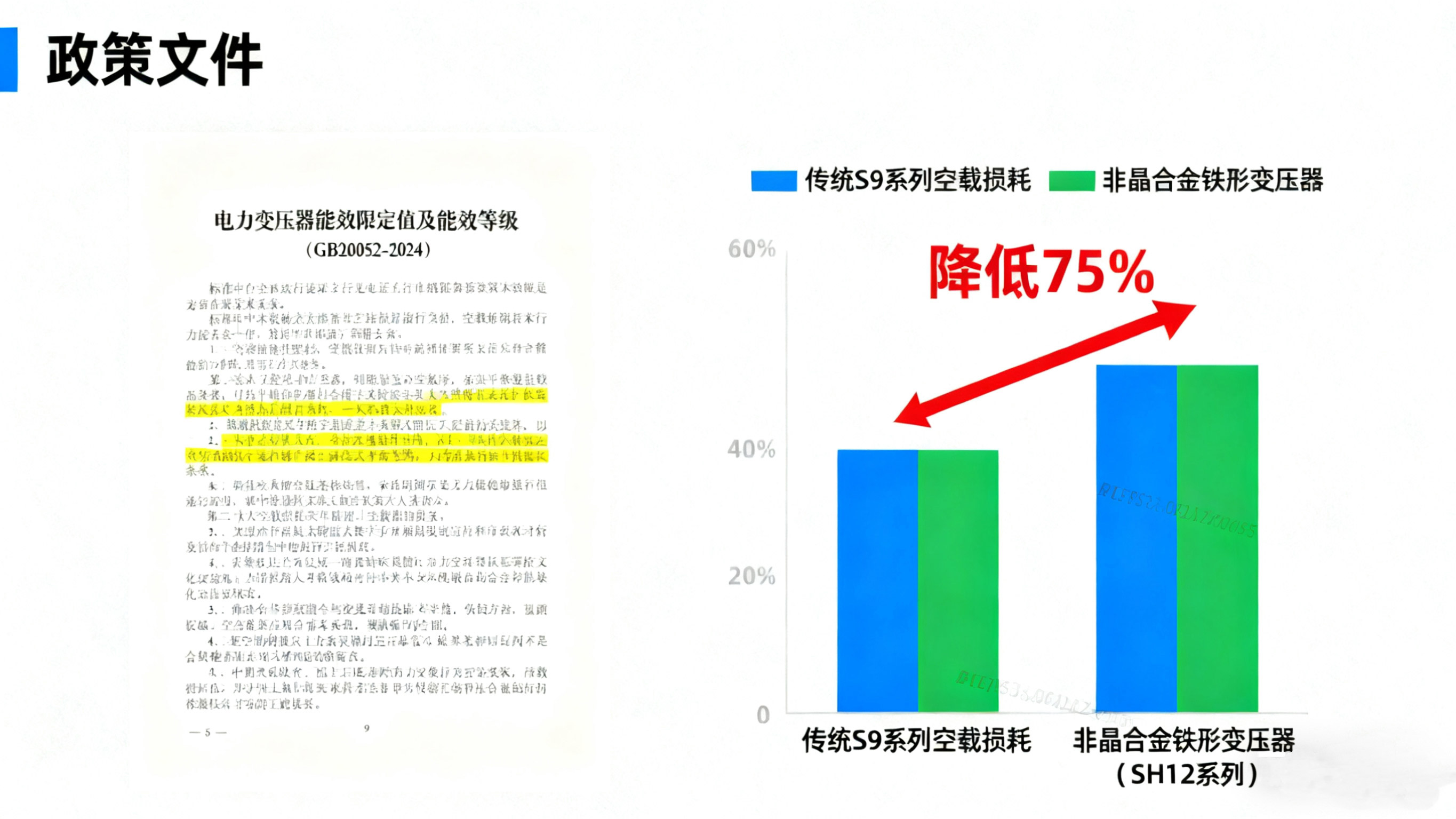

With the upgrading of energy efficiency standards and technological innovation, material selection needs to take into account policy requirements and future expandability. In terms of energy efficiency compliance, the "Limits and Energy Efficiency Grades of Energy Efficiency for Power Transformers" (GB20052 - 2024) clearly requires the reduction of no - load loss. Amorphous alloy core transformers have become a rigid demand in power grid transformation and new energy fields because they meet the standards. The amorphous alloy core solution provided by Infinity can meet the SH12 series standards, and the no - load loss is reduced by 75% compared with the traditional S9 series, which is fully compatible with the energy efficiency improvement policy.

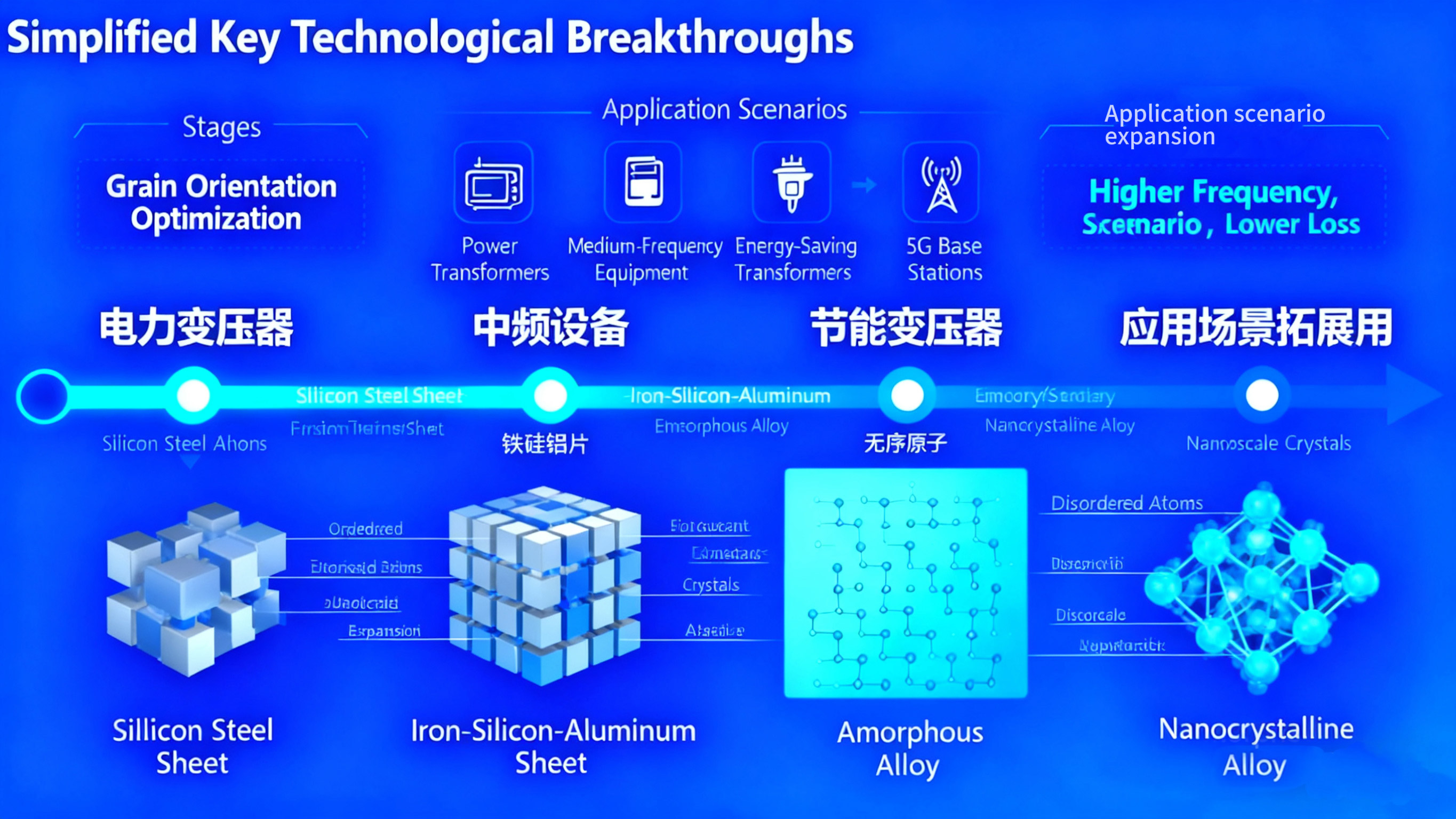

The technical upgrade space is also important. The research and development and application of new materials such as nanocrystalline alloys are promoting the development of iron cores towards "higher frequency and lower loss".

Through industry - university - research cooperation with universities, Infinity has established a material database covering silicon steel, iron - silicon - aluminum, and amorphous alloys. It can quickly provide iterative solutions according to customers' equipment upgrade needs. For example, upgrading the iron - silicon - aluminum core for 5G base station transformers to adapt to high - frequency operating conditions.

To sum up, the selection of transformer core materials requires the establishment of a three-dimensional evaluation system of "performance - scenario - cost". Relying on its in-depth understanding of the characteristics of various materials and full-process technical capabilities, Infinity can provide customized solutions from material selection, process optimization to compliance testing for the needs of different fields such as new energy, industrial control, and medical equipment. Through a 24-hour response mechanism and lifelong technical tracking, it ensures that each core product achieves accurate matching of performance, cost, and scenario.
