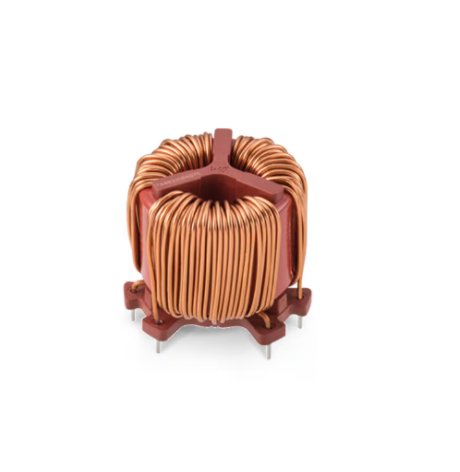

The 3XL Three-Phase Common Mode Power Line Choke is designed for high-power industrial EMI suppression applications in three-phase AC power systems. It provides strong common-mode noise attenuation, high current handling capability, and stable long-term electrical performance under demanding operating conditions.
Built with a robust multi-phase magnetic structure, the choke effectively suppresses electromagnetic interference generated by industrial drives, power converters, and heavy-duty electrical equipment.
The 3XL series is optimized for industrial-grade environments where three-phase power systems require reliable EMC performance, high thermal endurance, and stable filtering capability.
Customized inductance values, current ratings, insulation systems, and mounting configurations are available based on application requirements.
Integrated three-phase design for balanced noise attenuation and space saving
Outstanding common mode EMI suppression for industrial power systems
Toroidal core with low loss, low heat generation and high efficiency
High current carrying capacity and strong anti-vibration performance
Stable performance under harsh working conditions
Safe, reliable and environmentally friendly
Variable Frequency Drives (VFD)
Servo drives and servo systems
Three-phase switching power supplies
Motor inverters and control units
Industrial automation equipment
EV chargers and power modules
Equipment requiring EMC compliance

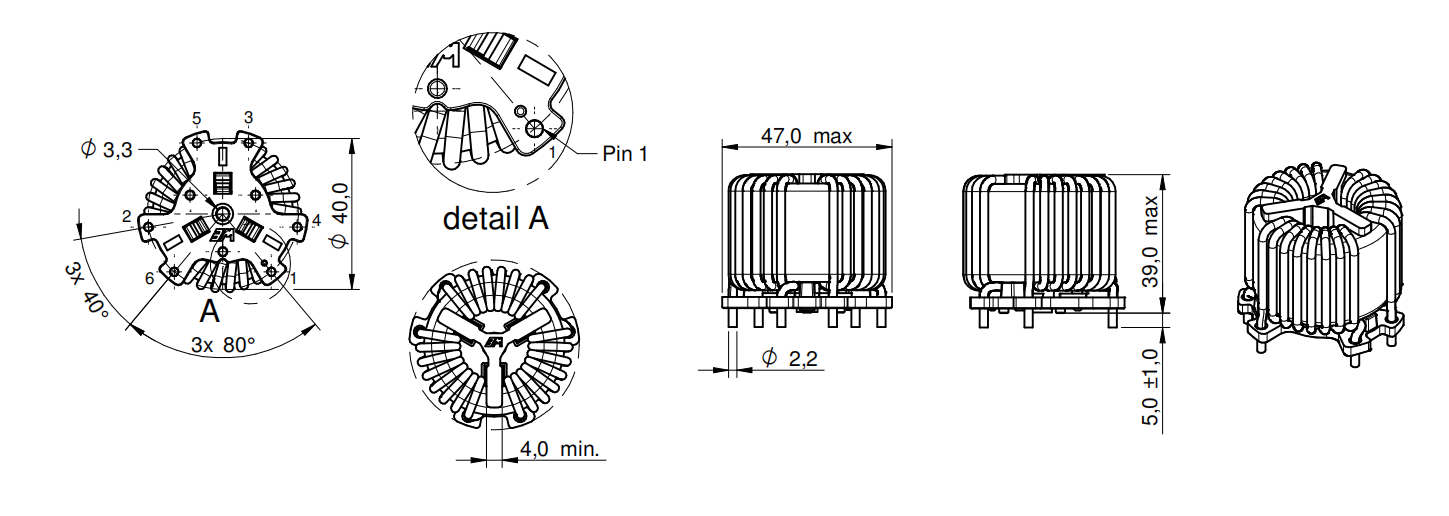

Physical Properties
| Order Code | IR (A) | L (mH) | VR V(AC)) | VT (V(AC)) |
| INF-3XL-0.52mH | 24 | 0.52 | 500 | 2500 |
| INF-3XL-1.1mH | 18 | 1.1 | 500 | 2500 |
| INF-3XL-2.7mH | 11 | 2.7 | 500 | 2500 |
| INF-3XL-5.2mH | 10 | 5.2 | 500 | 2500 |
| INF-3XL-8.4mH | 7.5 | 8.4 | 500 | 2500 |
| INF-3XL-12mH | 6 | 12 | 500 | 2500 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
