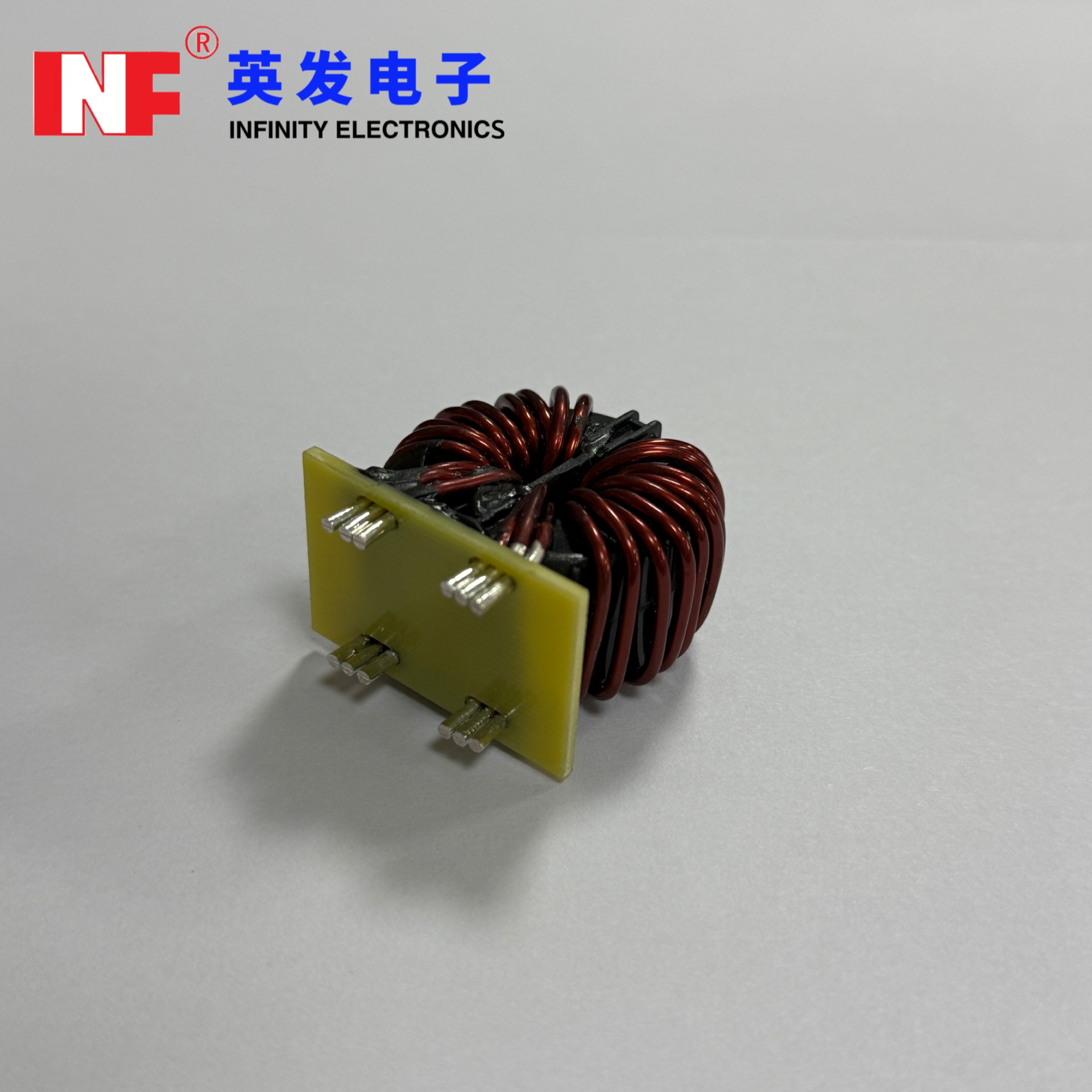

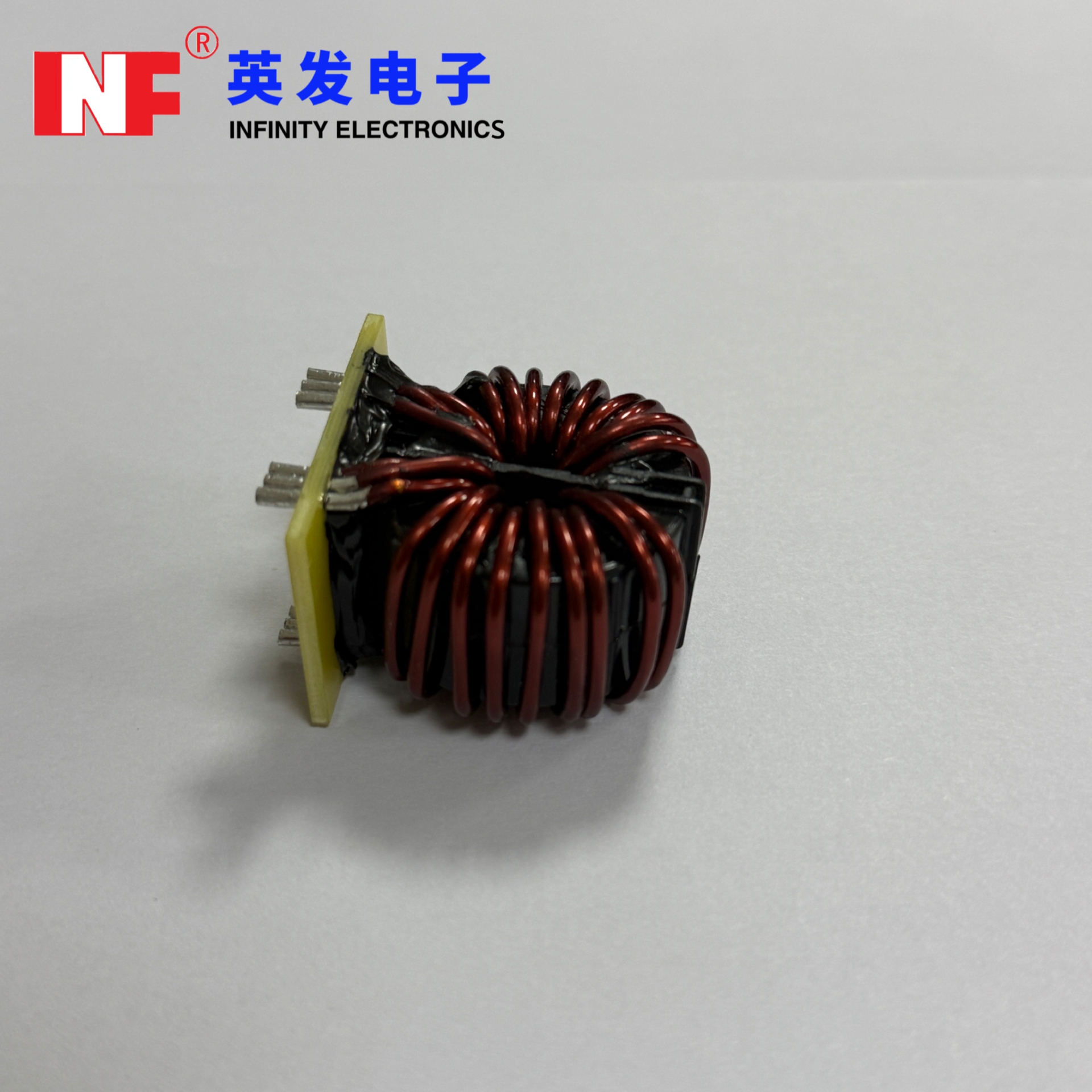

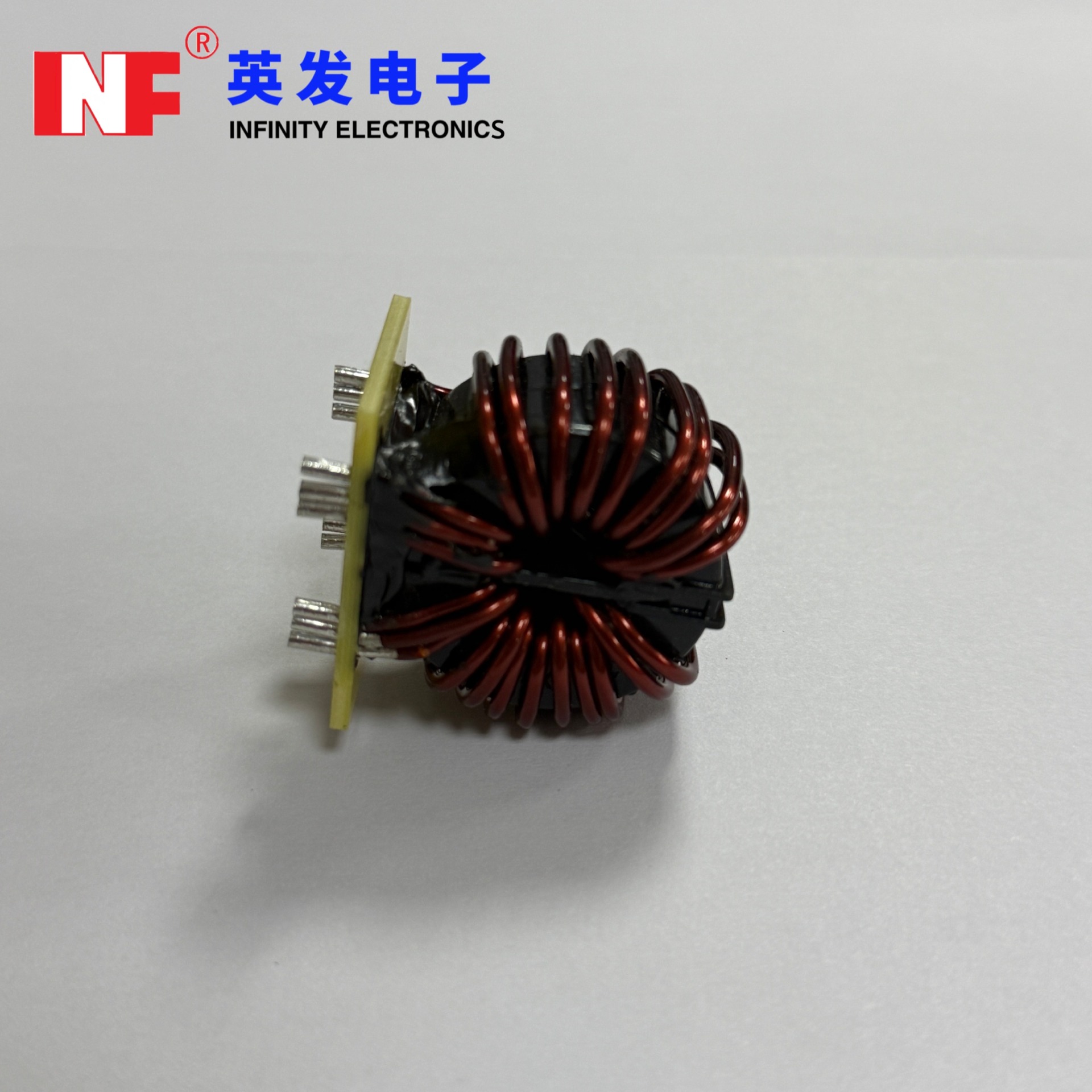

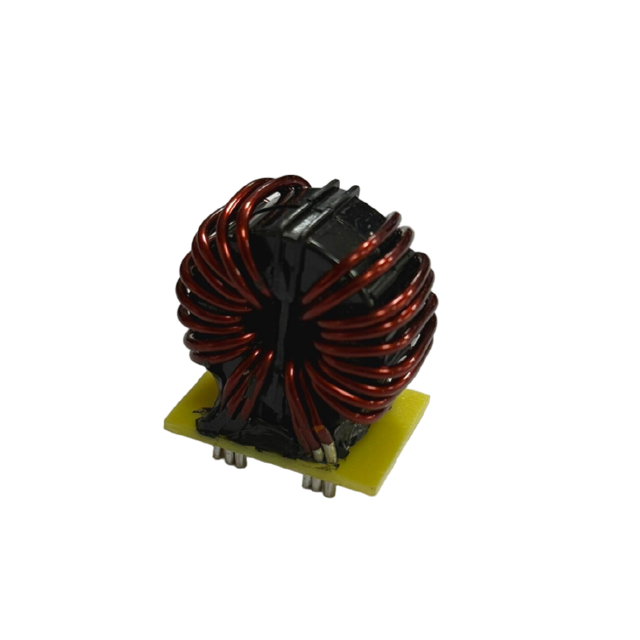

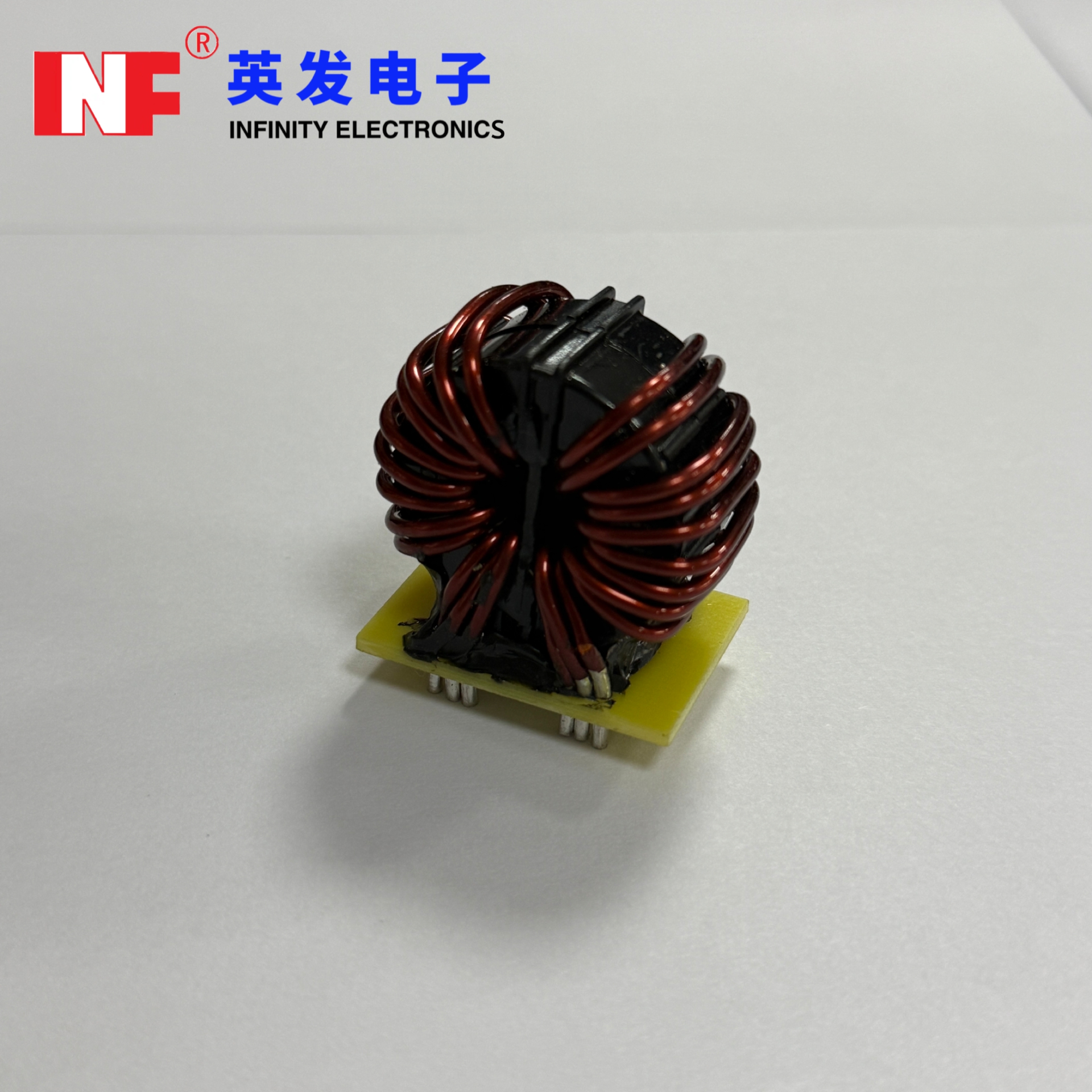

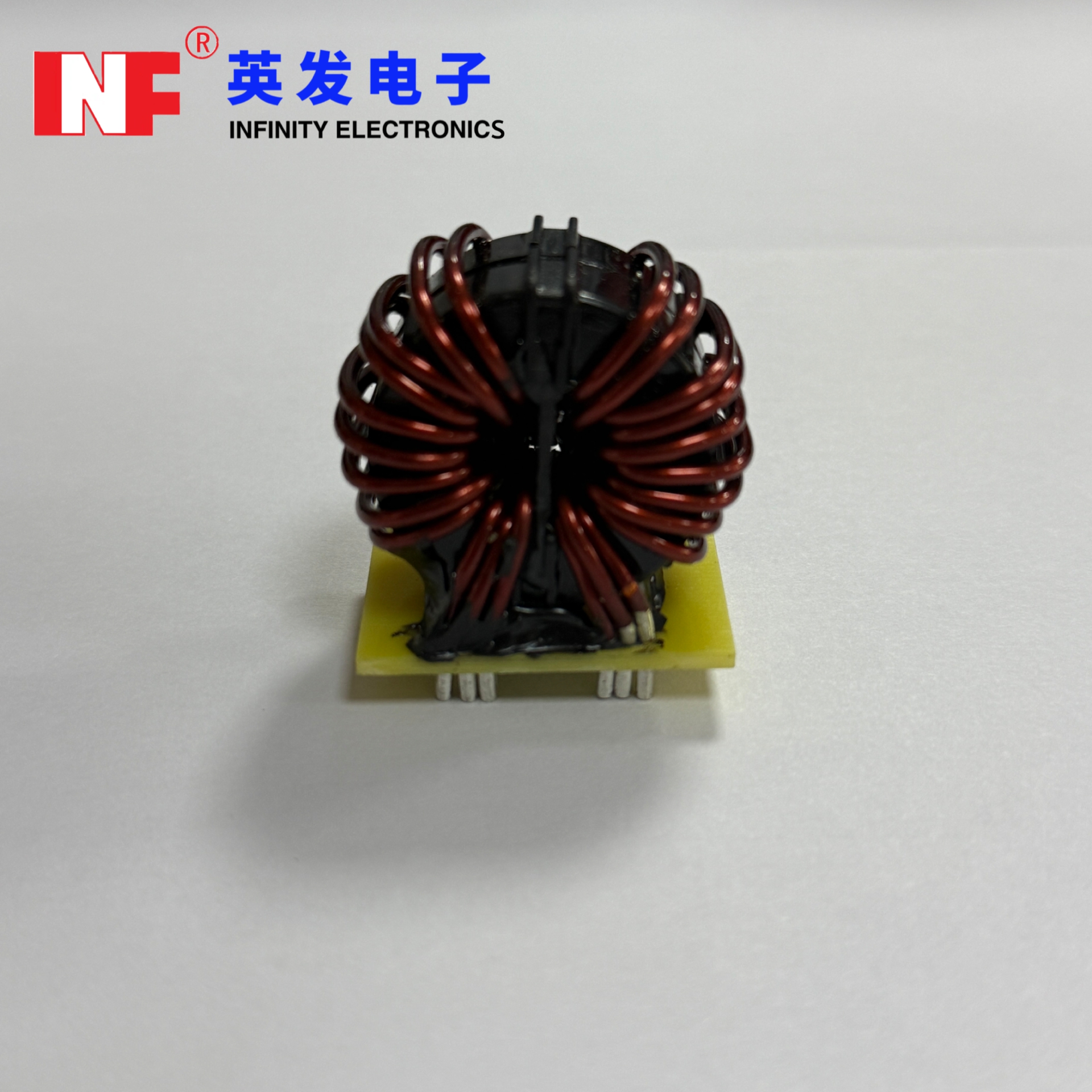

The Type M Nanocrystalline Common Mode Choke is designed for advanced EMI suppression applications requiring high permeability, superior conducted-noise attenuation, and stable high-frequency filtering performance.
Utilizing nanocrystalline magnetic core technology, the choke delivers significantly improved common-mode noise suppression capability compared with conventional ferrite-based solutions, especially in high-frequency and broadband EMI environments.
Its optimized magnetic structure supports efficient AC line filtering, reduced electromagnetic interference, and enhanced EMC compliance performance in industrial and high-efficiency power systems.
The Type M series is particularly suitable for applications requiring compact size, high current capability, and enhanced filtering efficiency.
Customized inductance values, current ratings, insulation structures, and installation configurations are available according to customer requirements.
Nanocrystalline magnetic core technology
High permeability characteristics
Superior common-mode EMI suppression
Broadband conducted-noise attenuation
Stable high-frequency filtering capability
Suitable for industrial power systems
Enhanced EMC compliance performance
Flexible customization support
Nanocrystalline high-permeability core
Stable high inductance up to 150 °C
High current capability with wideband EMI suppression (1 kHz–300 MHz)
Reinforced insulation plastic housing
Operating temperature: –55 °C to +125 °C, UL 94 V-0 rated
Climatic category 55/125/21
Power electronic systems and switching power supplies
Power line input/output EMI filtering
Common-mode noise suppression in AC and DC power lines
RF interference suppression in motor drives and industrial equipment
EMI filtering for inverters, converters, and control systems

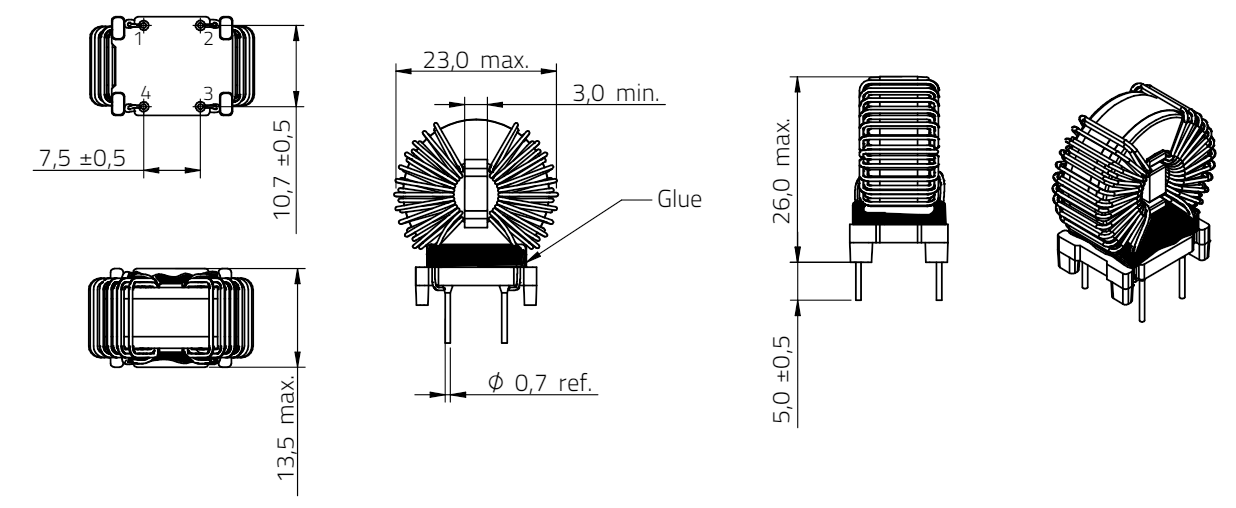

Physical Propertie
Order Code | lR (A) | L (mH) | RDC max. (mΩ) | VR (V(AC)) | VT (V(AC)) |
INF-Type M-33mH | 2.5 | 33 | 94 | 300 | 2100 |
INF-Type M-17mH | 4 | 17 | 52 | 300 | 2100 |
INF-Type M-9mH | 5 | 9 | 32 | 300 | 2100 |
INF-Type M-2mH | 10 | 2 | 6.3 | 300 | 2100 |
INF-Type M-1mH | 15 | 1 | 3.2 | 300 | 2100 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
