DR 0807 Radial Leaded Wire Wound Inductor Filter Choke for Compact Power Supply and EMI Filtering Applications

Product Overview

The DR 0807 Radial Leaded Wire Wound Inductor is designed for compact electronic circuits requiring stable inductance and effective noise suppression in low-to-medium power applications. As a smaller variant in the DR series, the 0807 model focuses on space efficiency and fast integration into high-density PCB designs.

It features a precision wound structure combined with a high-quality ferrite core, providing reliable filtering performance for switching noise and ripple current in DC-DC converters and power supply circuits.

The radial leaded through-hole design ensures secure mechanical mounting and stable soldering performance, making it suitable for compact consumer electronics, communication devices, and auxiliary power circuits.

Custom specifications such as inductance range, wire gauge, and saturation current can be tailored for different circuit designs.

Key Features

• Compact design for high-density PCB layouts

• Stable inductance in low-to-medium power circuits

• Effective suppression of switching noise and ripple current

• Precision wire-wound construction

• Reliable through-hole radial lead mounting

• Low core loss for improved efficiency

• Suitable for consumer and communication electronics

• Flexible customization options available

Typical Applications

• Compact DC-DC Converters

• Switching Power Supplies (Low Power SMPS)

• Consumer Electronics Devices

• Communication Modules

• LED Driver Circuits (Low Power)

• IoT and Smart Devices

• Auxiliary Power Circuits

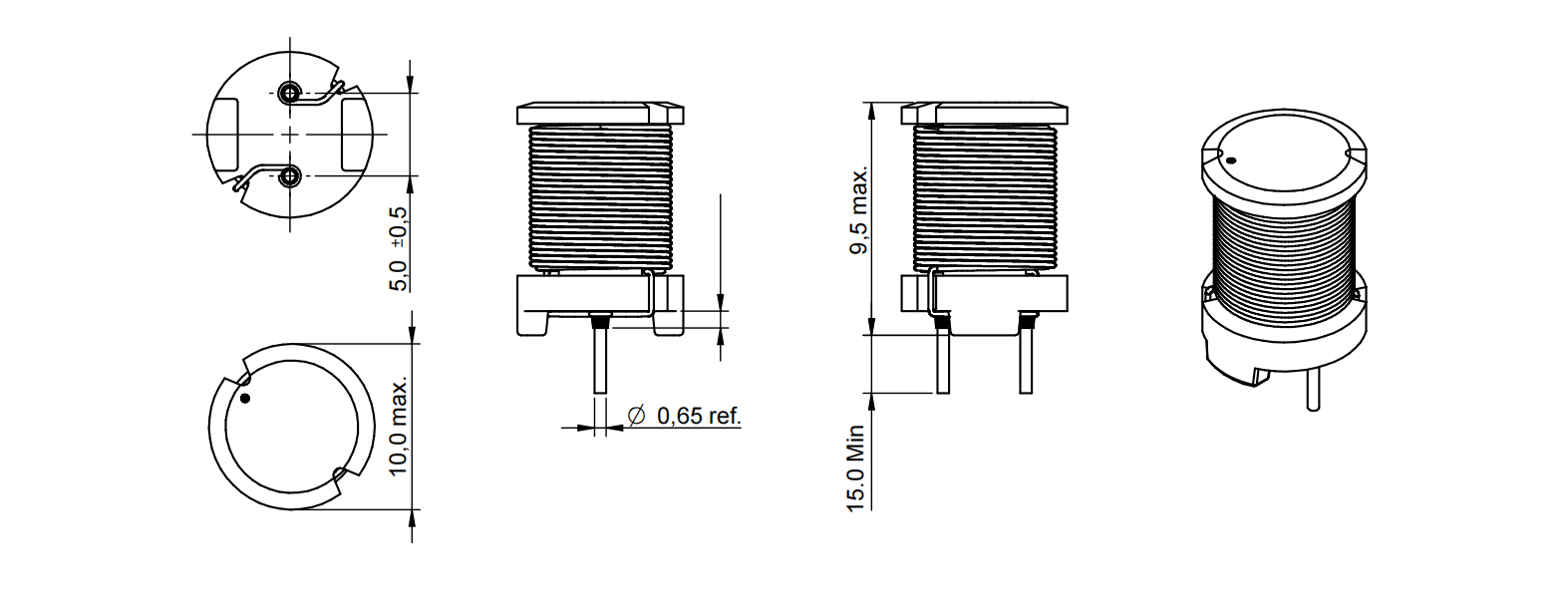

Physical Properties

Technical Specifications

Customization & Procurement
