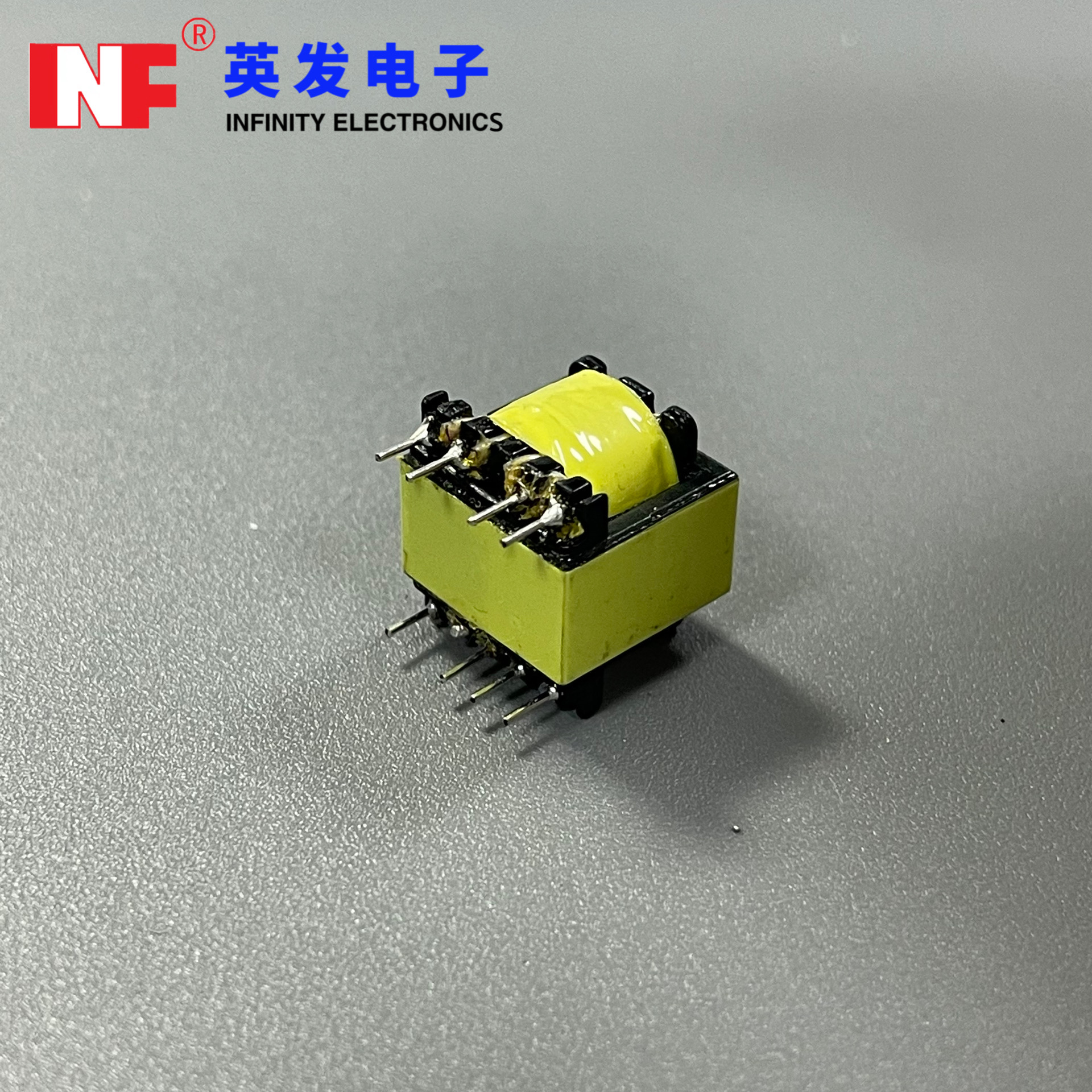

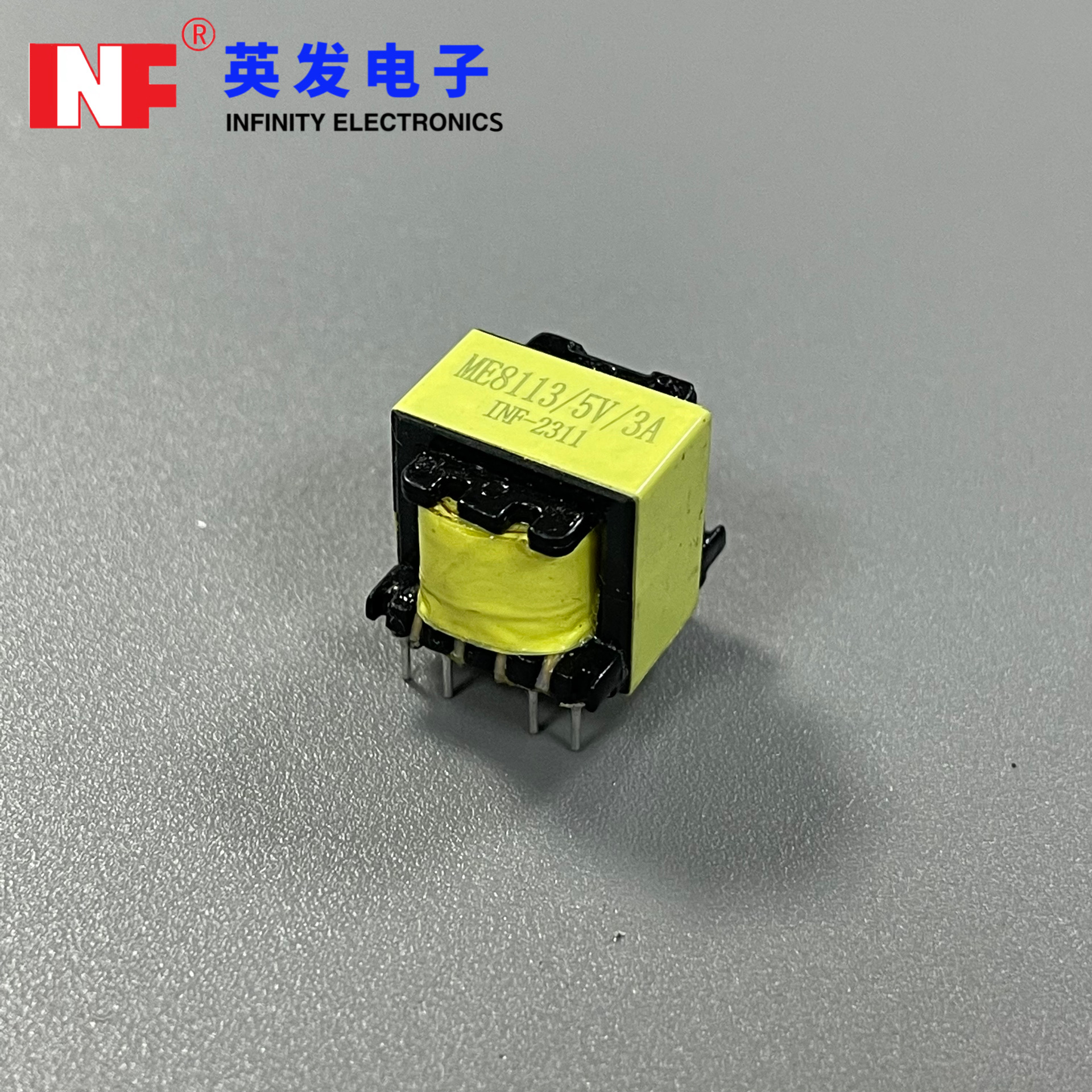

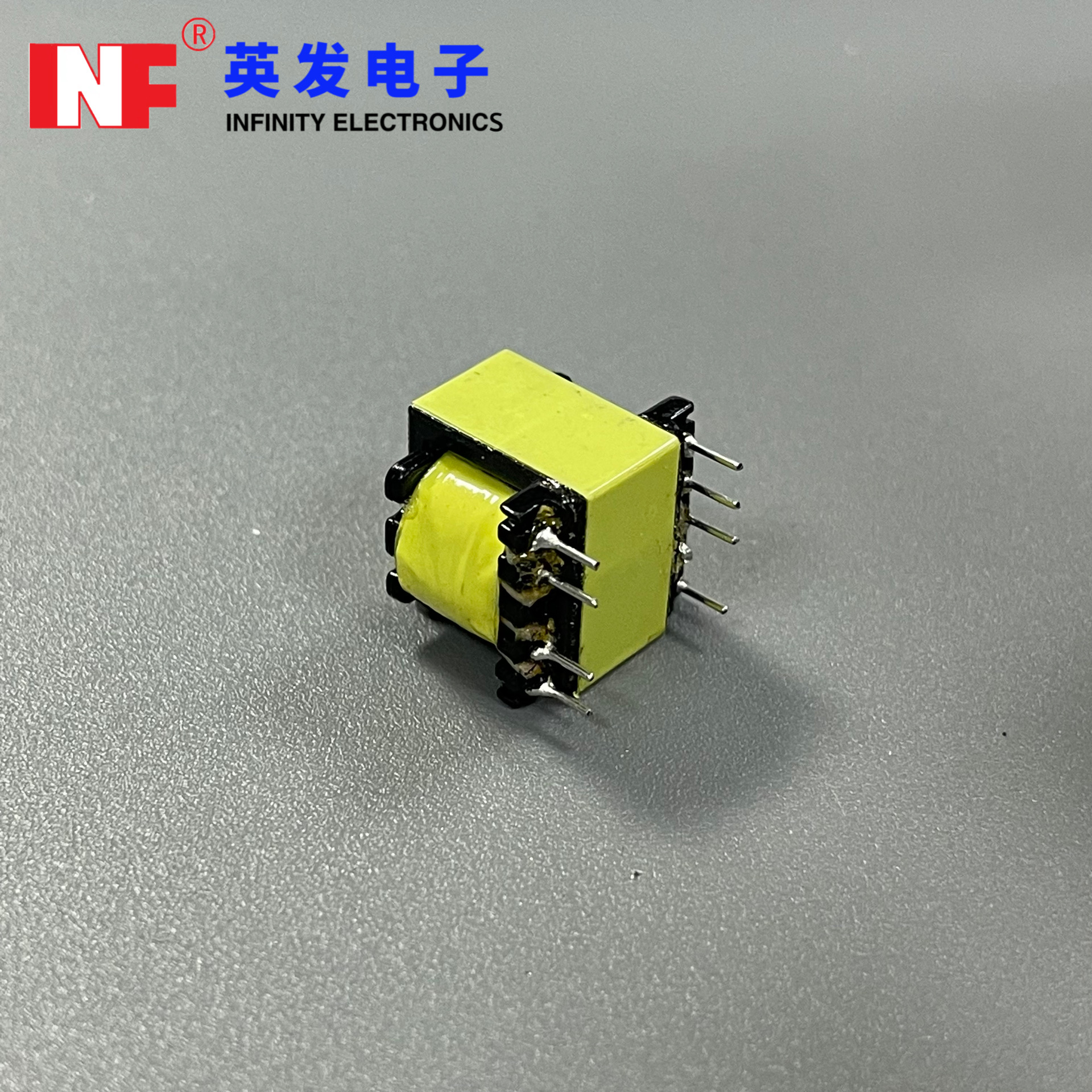

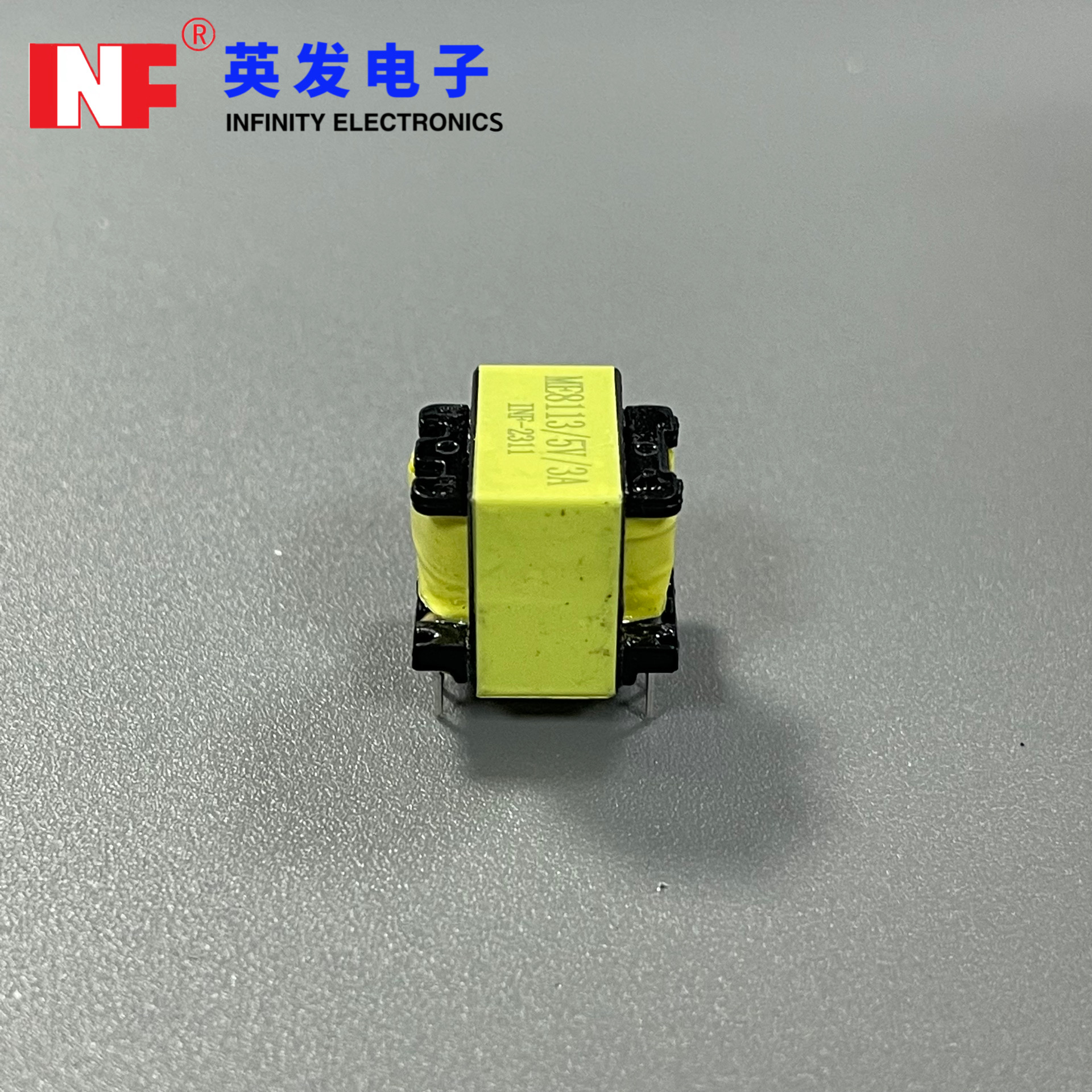

EE13/7/4 OfflineTransformers

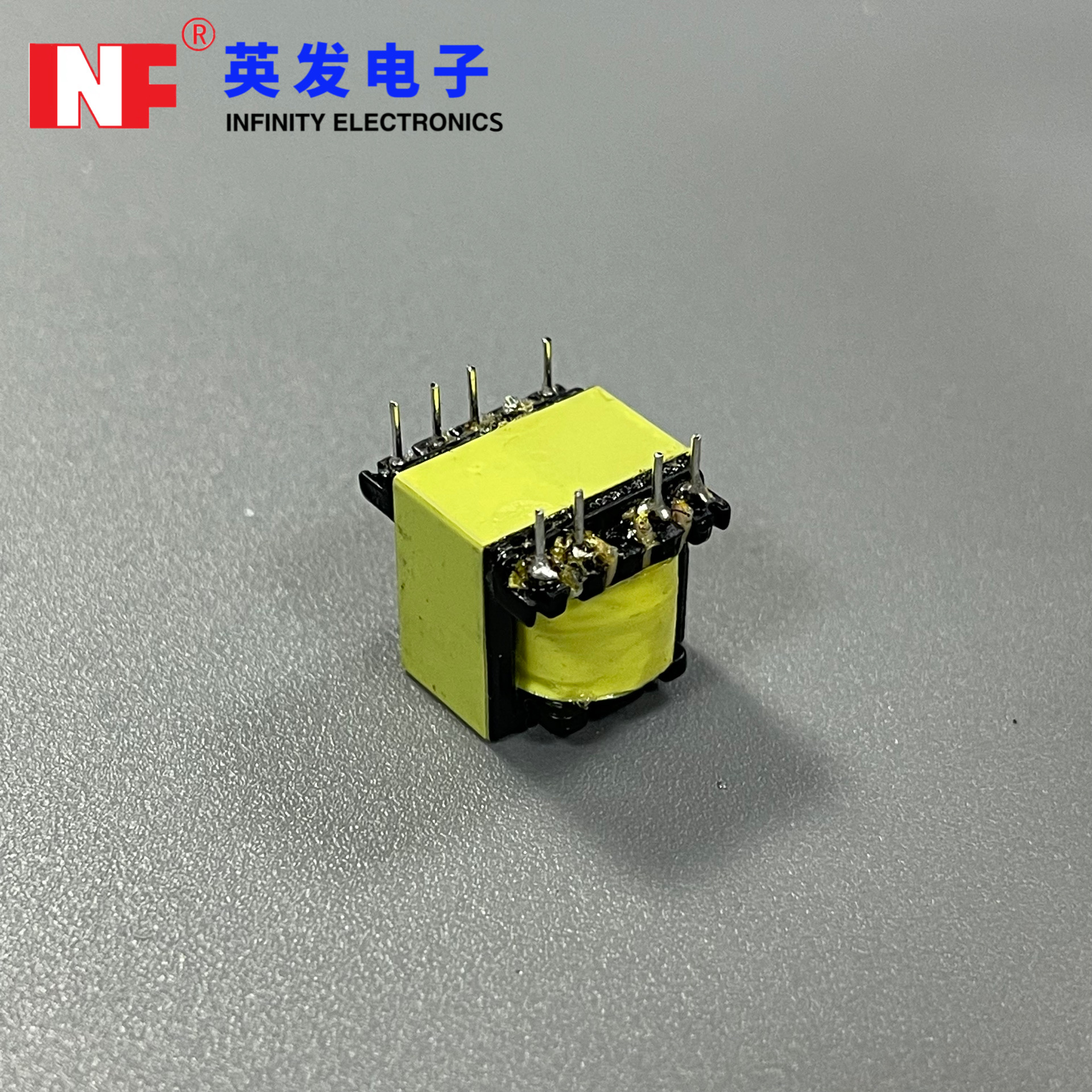

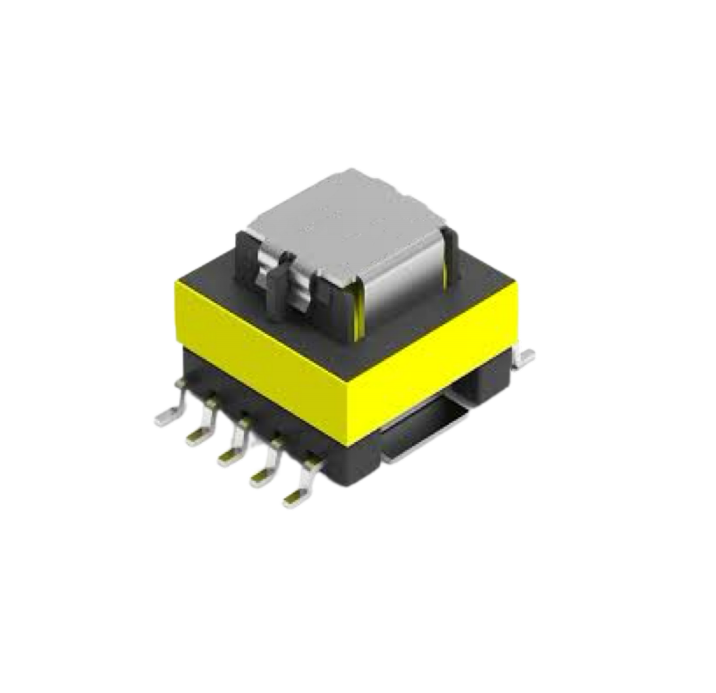

The EE 13/7/4 Offline Transformer series is engineered with a compact and low-profile footprint, making it perfectly suited for automated Surface Mount Device (SMD) assembly. It operates at frequencies up to 1 MHz, handles primary currents up to 40 A, and performs reliably across a broad temperature range from -40°C to +130°C.

These transformers are supplied in bulk packaging as standard, with a 25% tolerance. Their exceptional characteristics make them ideal for a wide array of applications. Common uses include AC current detection, overload sensing, and load measurement in switch-mode power supplies, as well as metering and load drop/shutdown detection. They are also widely employed in industrial control systems, USB chargers, smart adapters, and household appliances requiring compact, isolated power modules.

Quantity:
Availability:





Inquiry

Product Description

Download

Physical Properties

Order Code	L(μH)	n	lR(A)	∫Udt(μVs)	VT(V(AC))	RDC1(mΩ)	RDC2(Ω)
INF-EE13/714-224μH	224	1:20	40	49	1500	0.28	0.033
INF-EE13/714-504μH	504	1:30	40	74	1500	0.28	0.093
INF-EE13/714-896μH	896	1:40	40	99	1500	0.28	0.13
INF-EE13/714-1400μH	1400	1:50	40	124	1500	0.28	0.202
INF-EE13/714-2000μH	2000	1:60	40	148	1500	0.28	0.305
INF-EE13/714-2740μH	2740	1:70	40	173	1500	0.28	0.367
INF-EE13/714-5600μH	5600	1:100	40	248	1500	0.28	0.805
INF-EE13/714-12600μH	12600	1:150	40	372	1500	0.28	1.9
INF-EE13/714-22400μH	22400	1:200	40	496	1500	0.28	2.63
INF-EE13/714-135000μH	135000	1:500	40	1240	1500	0.28	21.2
INF-EE13/714-300000μH	300000	1:750	40	1860	1500	0.28	50.1
INF-EE13/714-540000μH	540000	1:1000	40	2480	1500	0.28	87.64

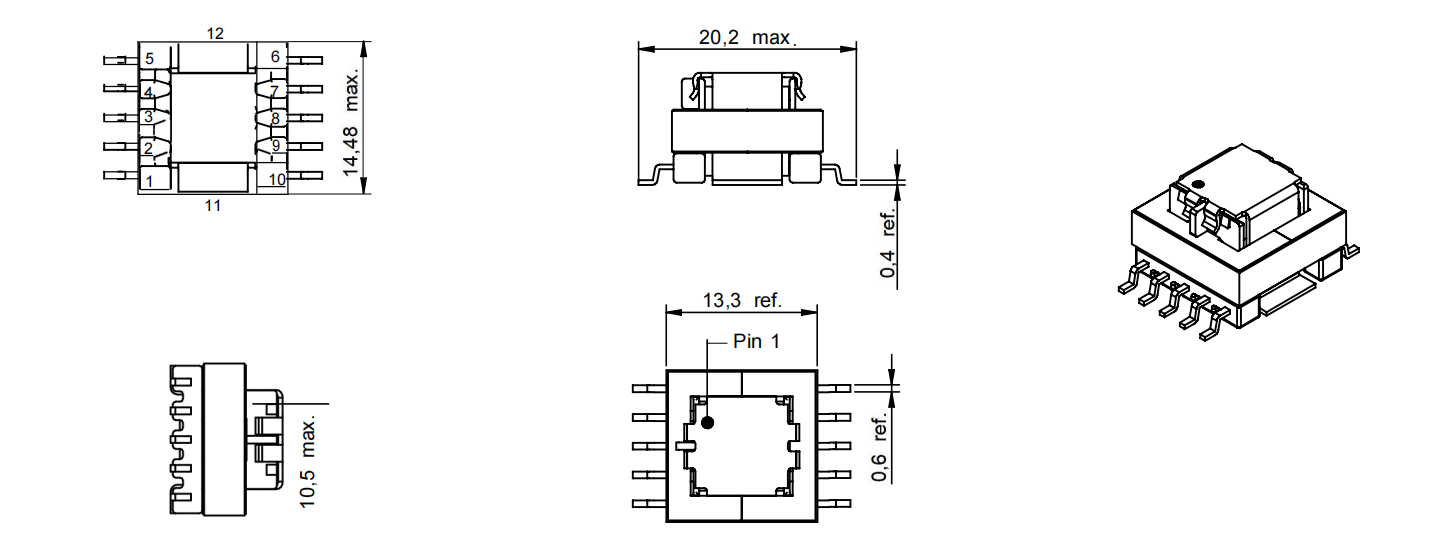

Technical Specifications
