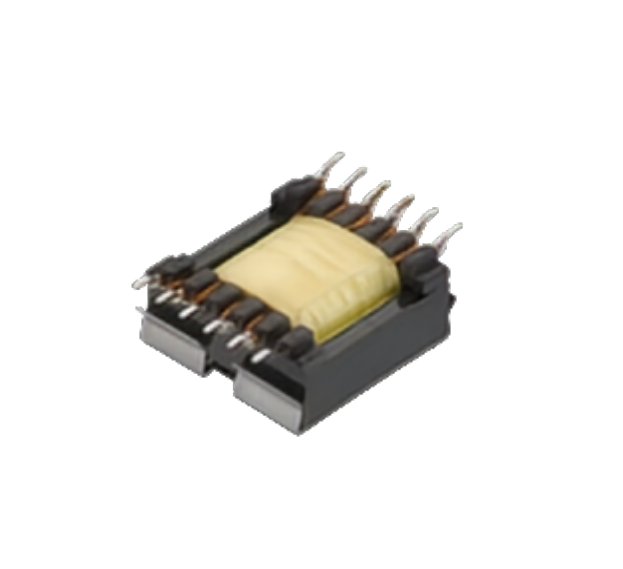

The EE20-10-6 Offline Flyback Transformer is designed for low to medium-power AC-DC switching power supplies. Its EE20 ferrite core and precision winding design deliver efficient energy transfer, reliable isolation, and low electromagnetic interference.
This transformer is ideal for flyback converter topologies in adapters, LED drivers, and industrial power systems. Compact yet robust, it ensures stable output and excellent thermal performance for continuous operation.
Custom designs are available to meet specific voltage, current, or footprint requirements.
EE20 ferrite core for compact and efficient design
Optimized for flyback converter topology
Reliable isolation between primary and secondary
Low electromagnetic interference (EMI)
Stable performance under continuous operation
Excellent thermal stability
Customizable winding and pin configuration
AC-DC Switching Power Supplies
Flyback Converters
Power Adapters and Chargers
LED Drivers
Industrial Control Power Modules
Consumer Electronics

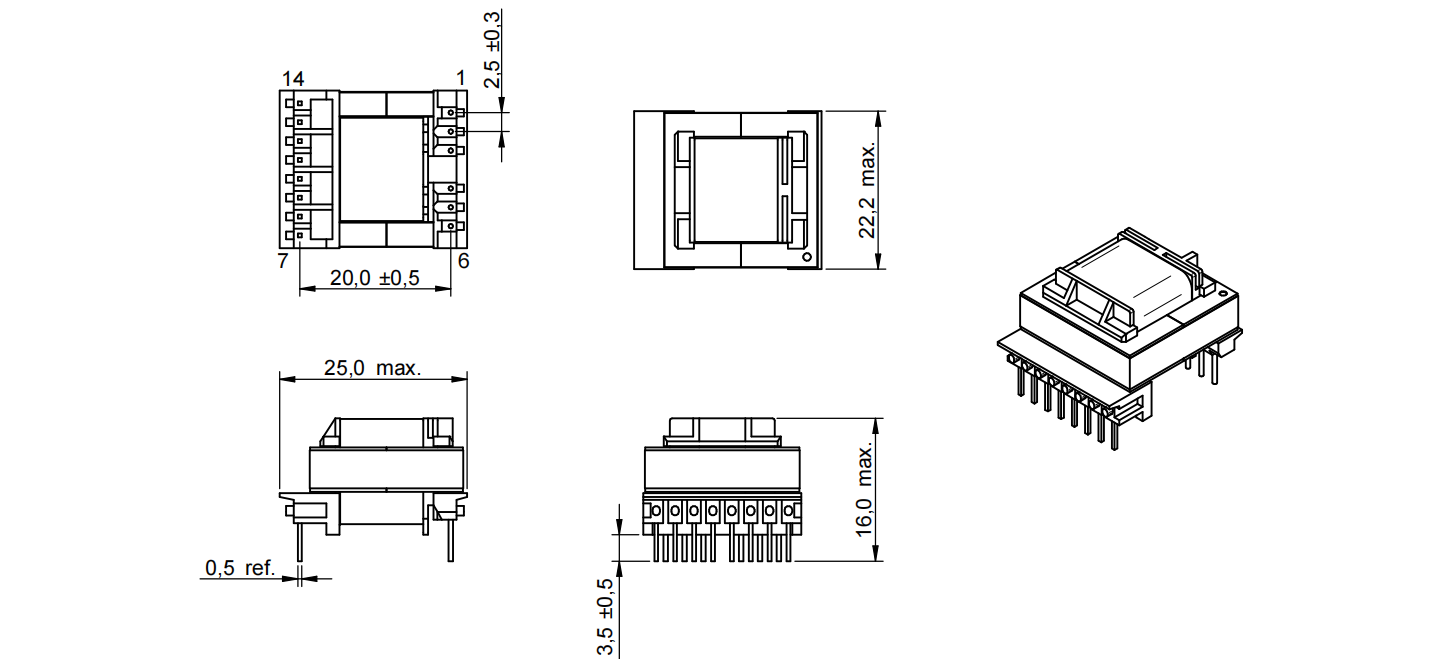

Physical Properties
| Order Code | VIN | Vout1 (V) | lout1 (A) | Vout2 (V) | lout2 (A) | Vout3 (V) | lout3 (A) | Vout4 (V) | lout4 (A) | Vaux (V) | L (μH) | n | lSAT (A) | Ls (μH) | VT (V(AC)) |
| INF-EE20/10/6-6.78μH | 8-24V(DC) | 15 | 0.2 | 15 | 0.2 | 15 | 0.2 | 15 | 0.2 | 5 | 6.78 | 1:3:3:3:3:1 | 13 | 0.2 | 1500 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
