EE20/10/6
INF

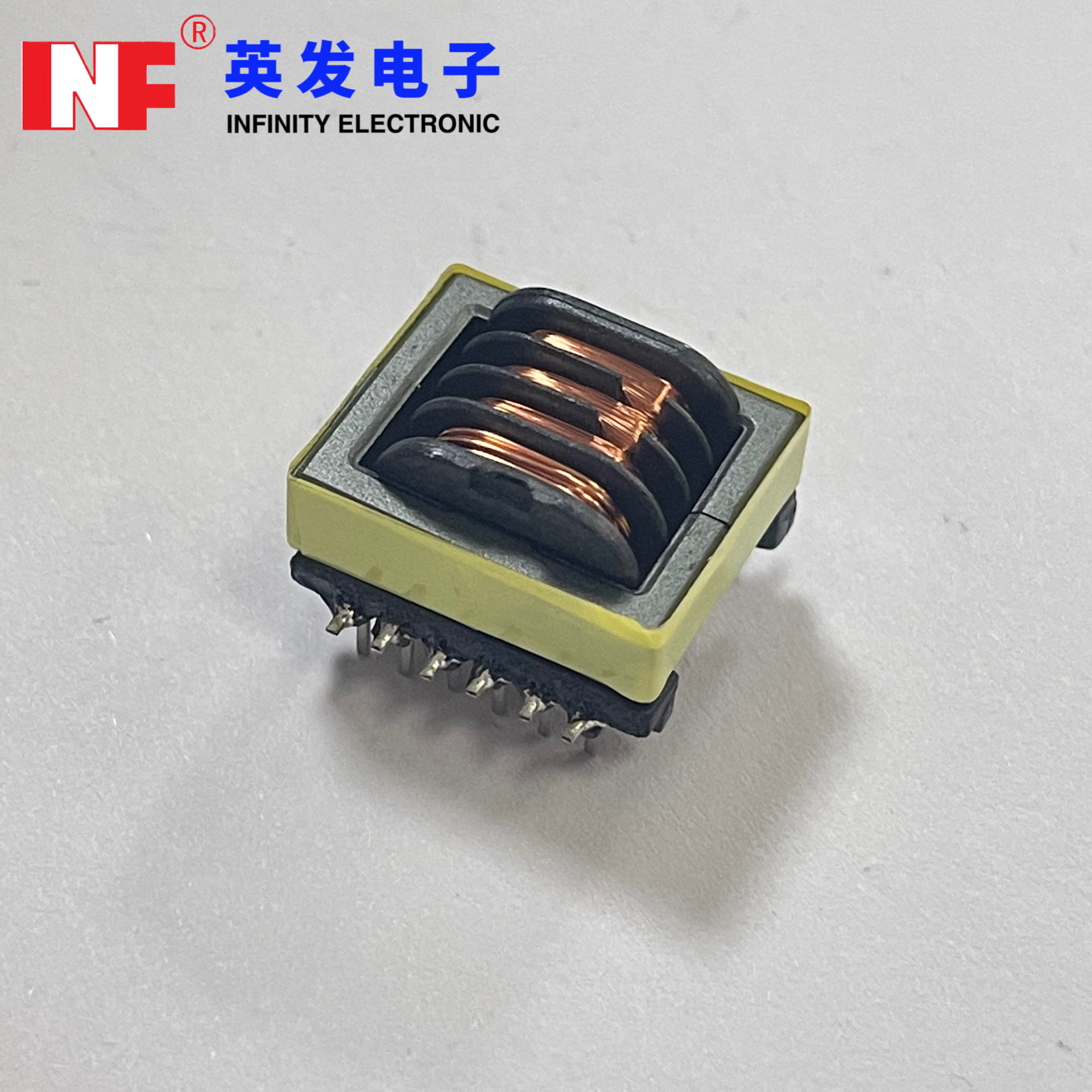

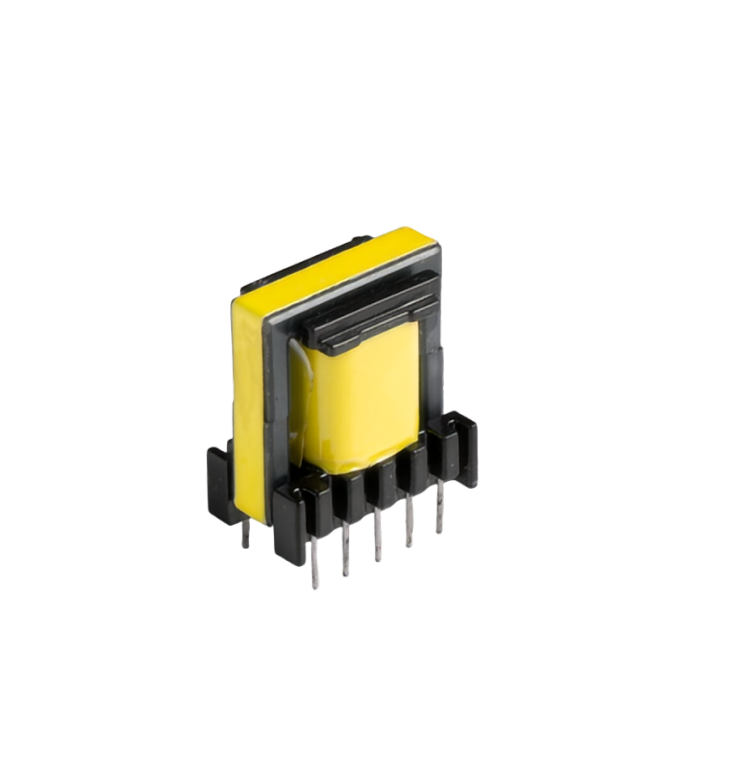

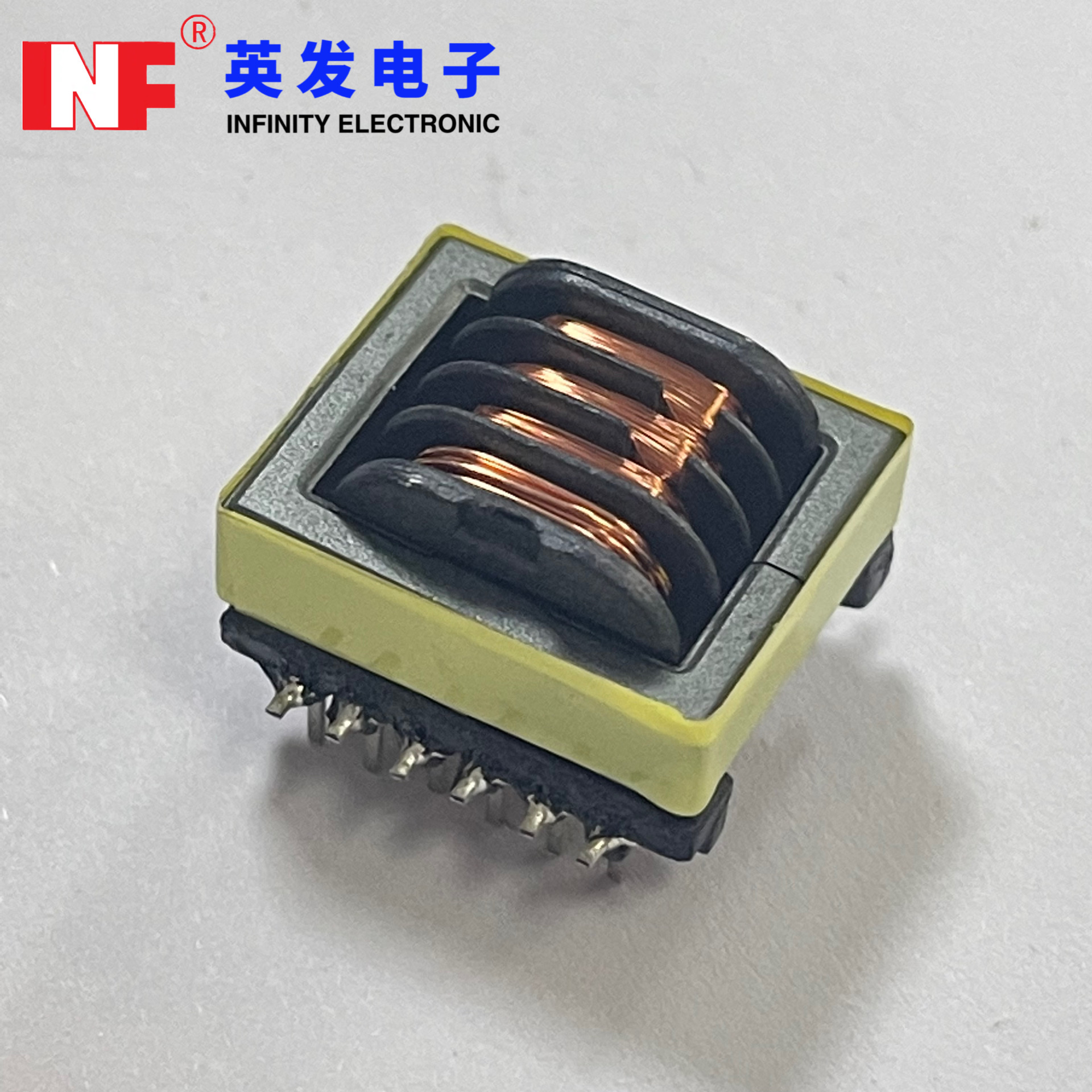

EE20/10/6 Offline Transformers Offline Flyback Transformers
This product features a user-friendly design for straightforward implementation, requires a minimal number of external components, and has a small PCB footprint to save board space, offering an economical solution with low overall cost. It adopts an optocoupler-free design, delivers reliable long-term voltage regulation performance with no performance drift or aging over time, and uses identical external parts for different output voltages. Custom power supply design is easy thanks to the standard circuit, requiring only a transformer change and two feedback loop components. It is commonly used in isolated power design, sensor interfaces, isolated telecom converters, and Power over Ethernet (PoE) applications.
Physical Properties
| Order Code | VIN | Vout1 (V) | lout1 (A) | Vout2 (V) | lout2 (A) | Vout3 (V) | lout3 (A) | Vout4 (V) | lout4 (A) | Vaux (V) | L (μH) | n | lSAT (A) | Ls (μH) | VT (V(AC)) |
| INF-EE20/10/6-6.78μH | 8-24V(DC) | 15 | 0.2 | 15 | 0.2 | 15 | 0.2 | 15 | 0.2 | 5 | 6.78 | 1:3:3:3:3:1 | 13 | 0.2 | 1500 |
Technical Specifications

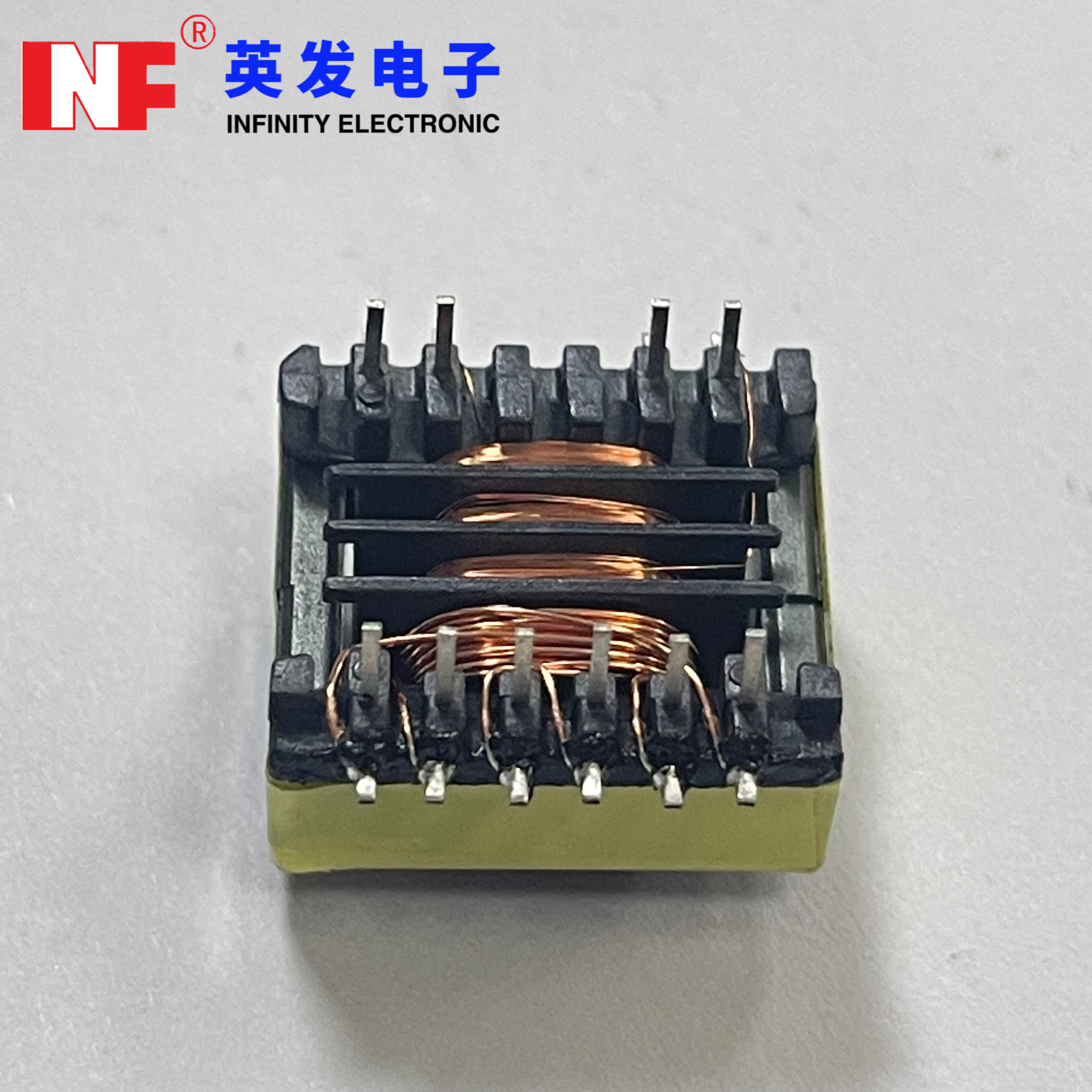

EE20/10/6 Offline Transformers Isolated Buck Transformer
Engineered with Flyback™ topology and superior electrical characteristics (low leakage inductance, optimized interwinding capacitance), this component maintains stable performance from -40°C to +125°C. It serves as a robust power solution for industrial PLCs, building/process control systems, isolated communication interfaces, motor drives, inverters, industrial automation, smart meters, and bias power for gate drivers and operational amplifiers.

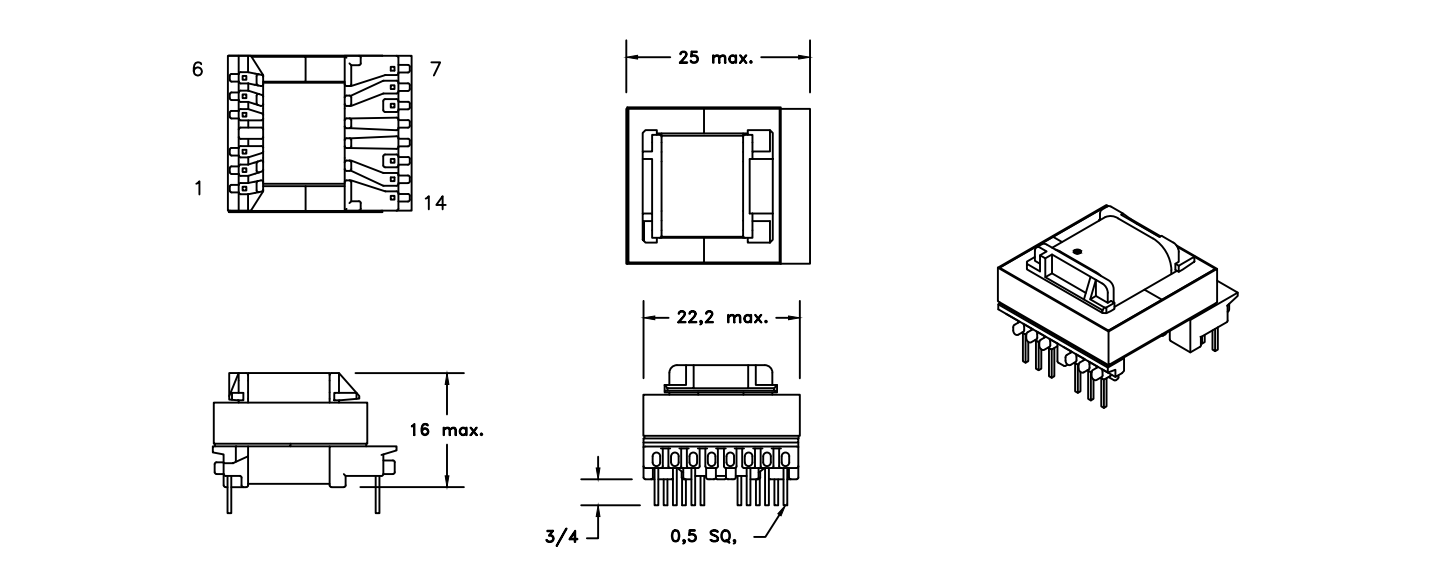

Physical Properties

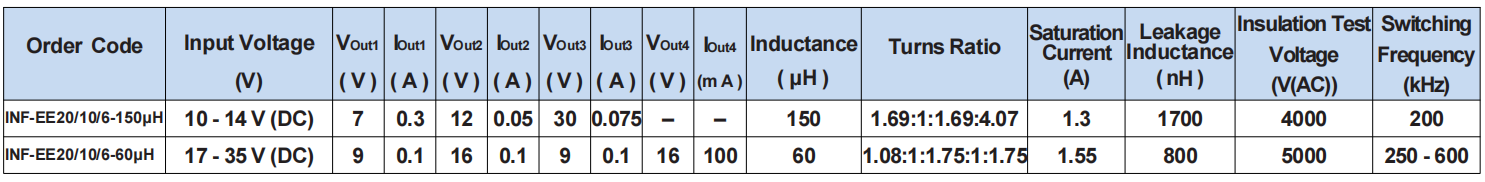

Technical Specifications
EE20/10/6 Offline Transformers
45kHz–200kHz switching | Compact size | Extended rails | Reinforced insulation | -40°C to +125°C operation. Applications: SMPS up to 15.5W, auxiliary power supplies, universal-input SMPS (50VAC–265VAC).

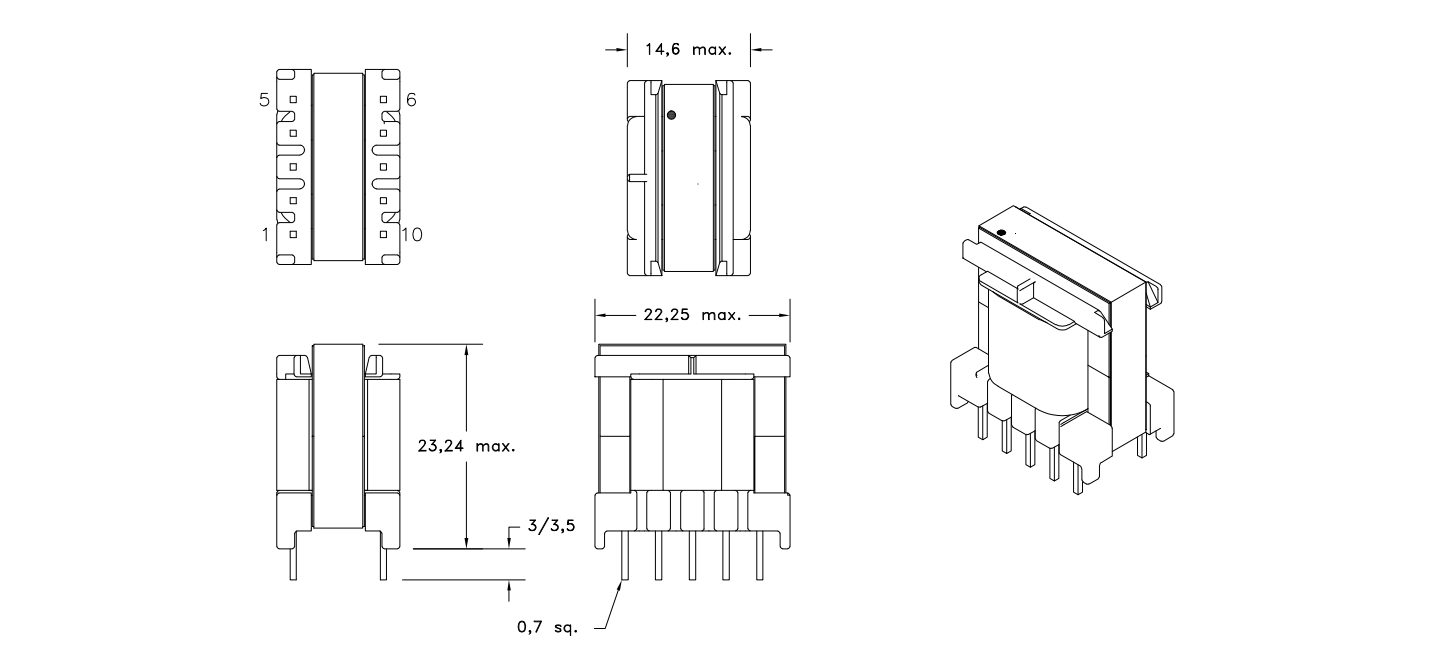

Physical Properties

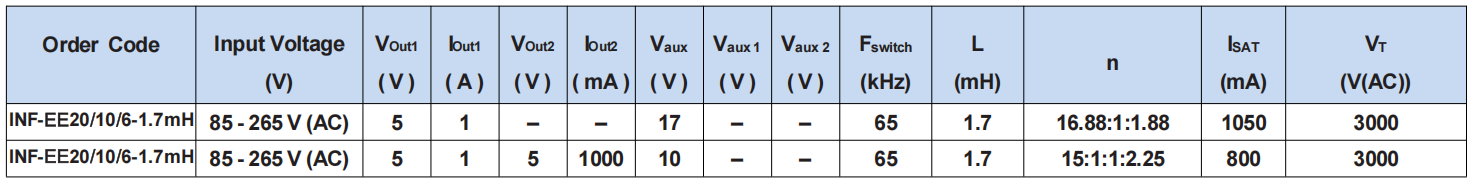

Technical Specifications
EE20/10/6 Offline Transformers Offline Flyback Transformers
Flyback topology | Low leakage inductance | Up to 4500VAC isolation | -40°C to +125°C operation | Reinforced insulation (most models). Applications: offline systems, high DC VIN isolated designs, 12V/24V/48V bus converters, industrial/medical power, auxiliary power, home appliances, consumer electronics.

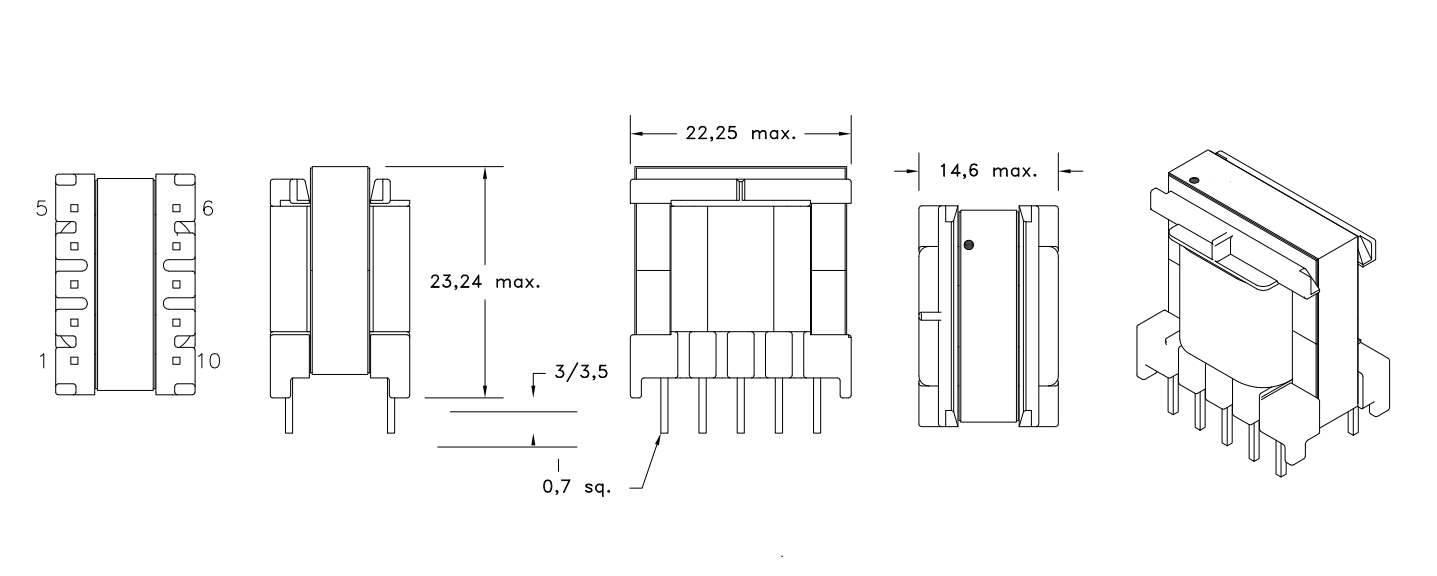

Physical Properties

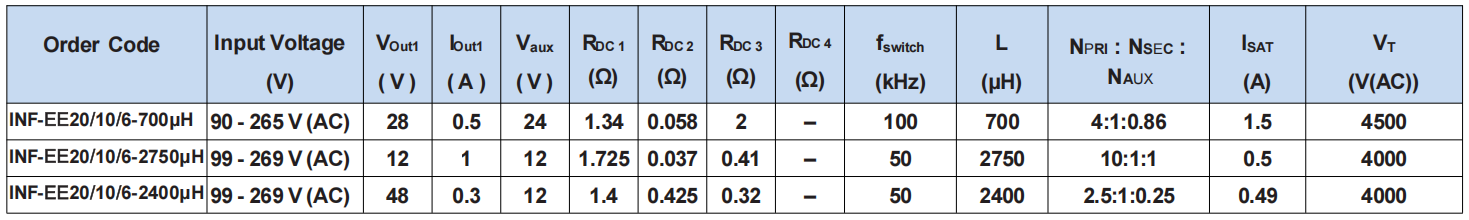

Technical Specifications
