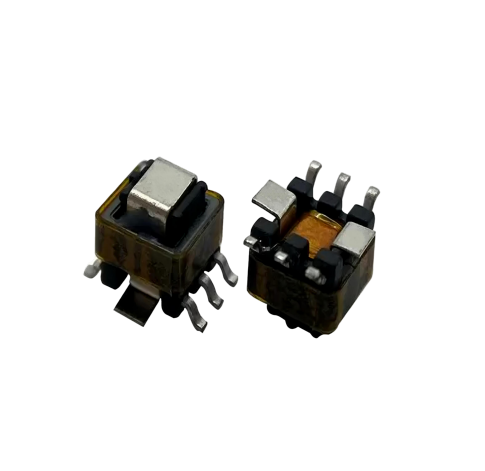

EE5 Push-Pull Transformers are compact, high-performance magnetic components designed for high-frequency power conversion applications. Engineered for reliability and efficiency, these transformers are widely used in power supply circuits, DC-DC converters, and other industrial electronics where precision and stability are crucial.
High efficiency with low core losses and minimal heat generation
Compact EE5 core design suitable for space-constrained applications
Customizable turns ratio and winding configurations to match specific circuit requirements
Excellent thermal stability ensures long-term performance in industrial environments
RoHS compliant, environmentally friendly materials
DC-DC converters for industrial and automotive electronics
Power supply circuits in LED drivers, battery chargers, and inverters
Renewable energy systems and solar inverters
Telecommunications and networking equipment requiring high-frequency switching

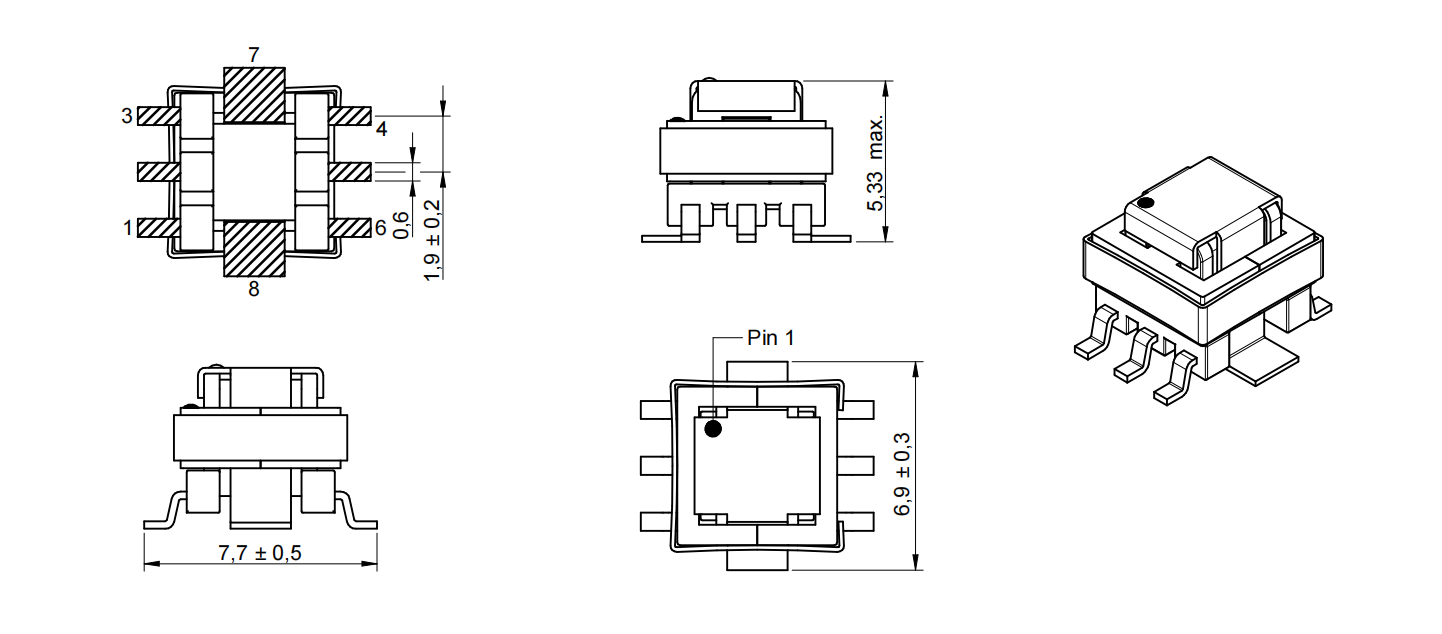

Physical Propertie
| Order Code | VIN | Vout1 (V(DC)) | lout1 (mA) | Type of Insulation | fswitch (kHz) | ∫Udt (μVs) | NPRI:NSEC | L(μH) | VT (V(AC)) |
| INF-EE5-500μH | 5V(DC) | 12 | 350 | Functional | 100-500 | 9 | 1:2.7 | 500 | 1000 |
