EER35 (7+7) High Frequency Transformer for Balanced Winding SMPS & Isolated Power Conversion Systems

The EER35(7+7) is a high-frequency transformer designed for medium-to-high power applications of 50W to 150W. It features a round center-post core structure for better winding performance and heat dissipation, and achieves flexible circuit connection and reliable high-voltage isolation through the 7+7 pin configuration on both sides.

Quantity:
Availability:





Inquiry

EER35(7+7) High Frequency Transformers

Product Description

Download

Product Overview

The EER35 (7+7) high frequency transformer is a ferrite-core magnetic component designed for switching power conversion systems requiring symmetrical winding distribution and stable electrical characteristics. It enables energy transfer, voltage conversion, and galvanic isolation in SMPS and DC-DC converter applications.

Typical Applications

The EER35 (7+7) transformer is suitable for applications requiring balanced electrical performance:

Switching mode power supplies (SMPS)
Dual-output and center-tapped DC-DC converters
Industrial control power systems
Communication and networking equipment
Auxiliary power modules

Custom Design Considerations

Customization plays a critical role in transformer performance. Adjustable parameters include:

Turns ratio and inductance
Winding symmetry and layer arrangement
Output voltage configurations
Insulation structure and safety requirements

Design optimization should align with system topology and performance targets.

Technical Specifications

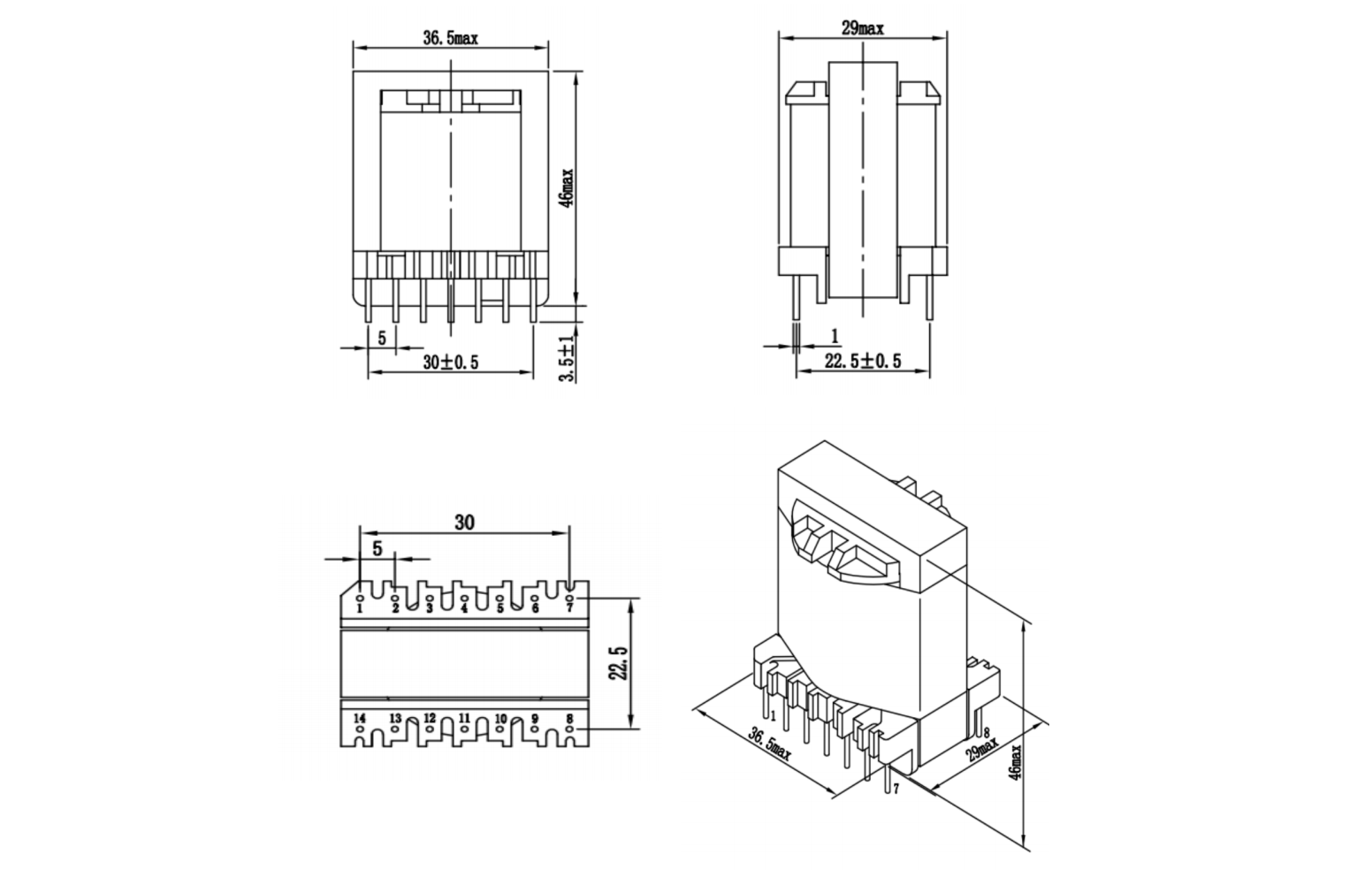

屏幕截图 2025-10-23 170513
