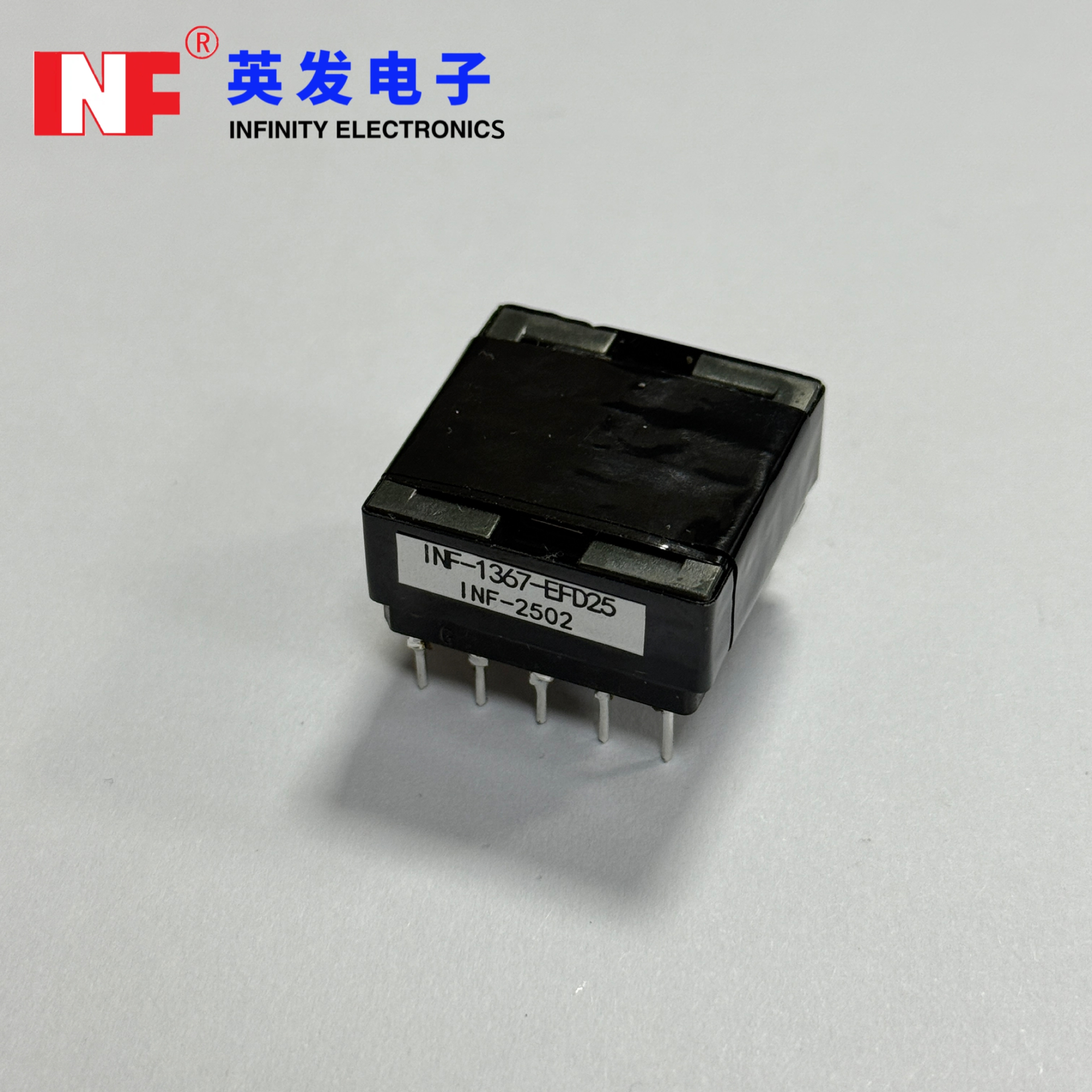

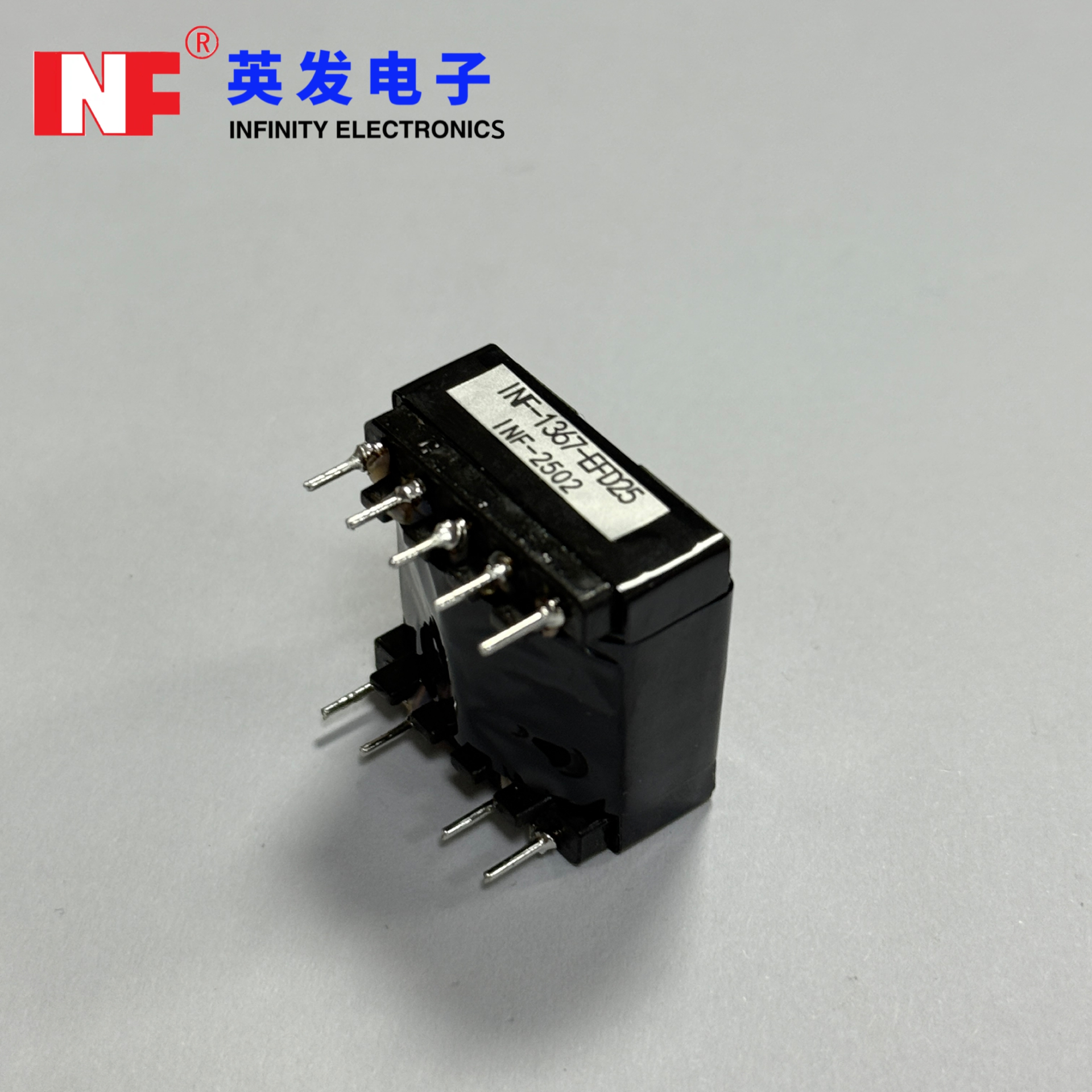

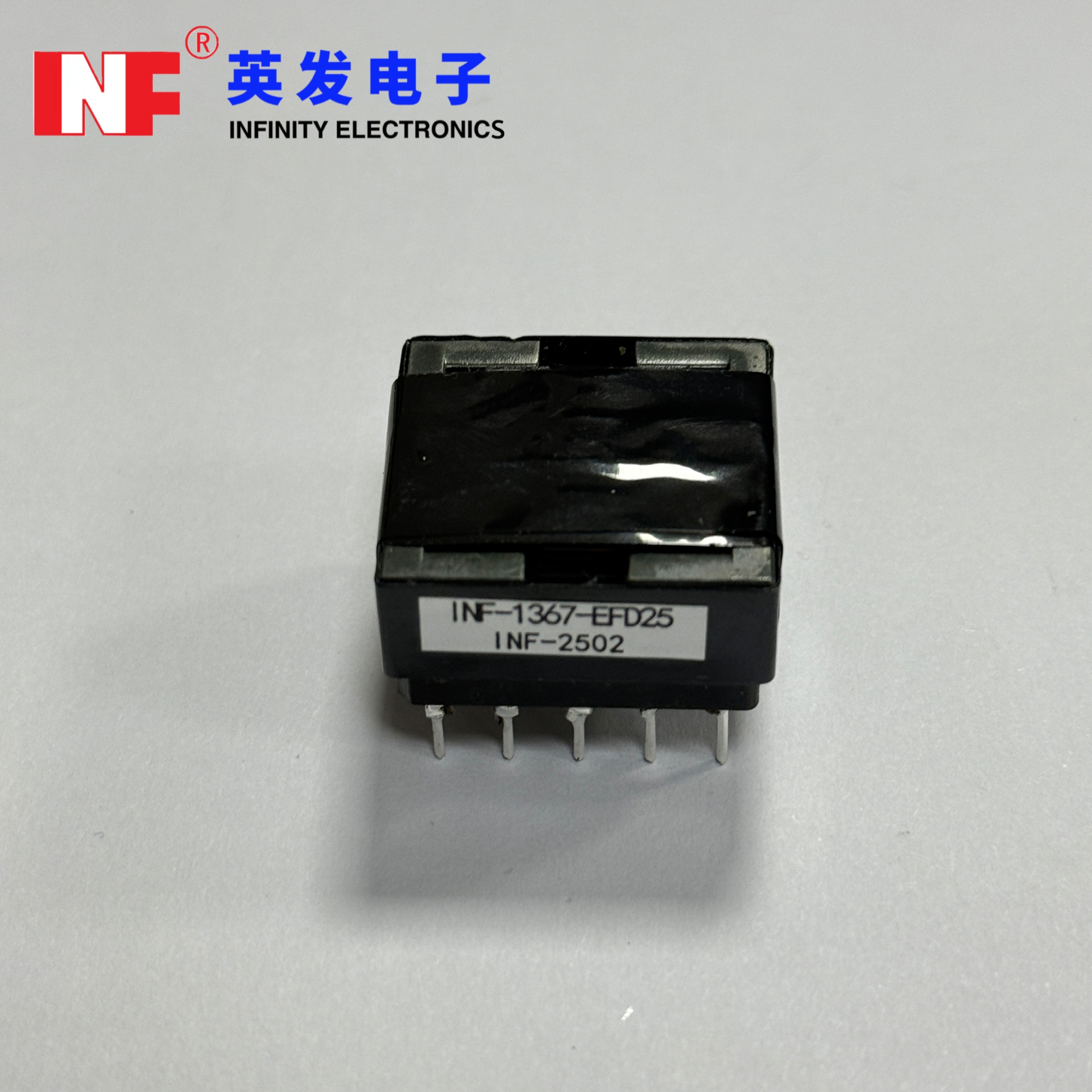

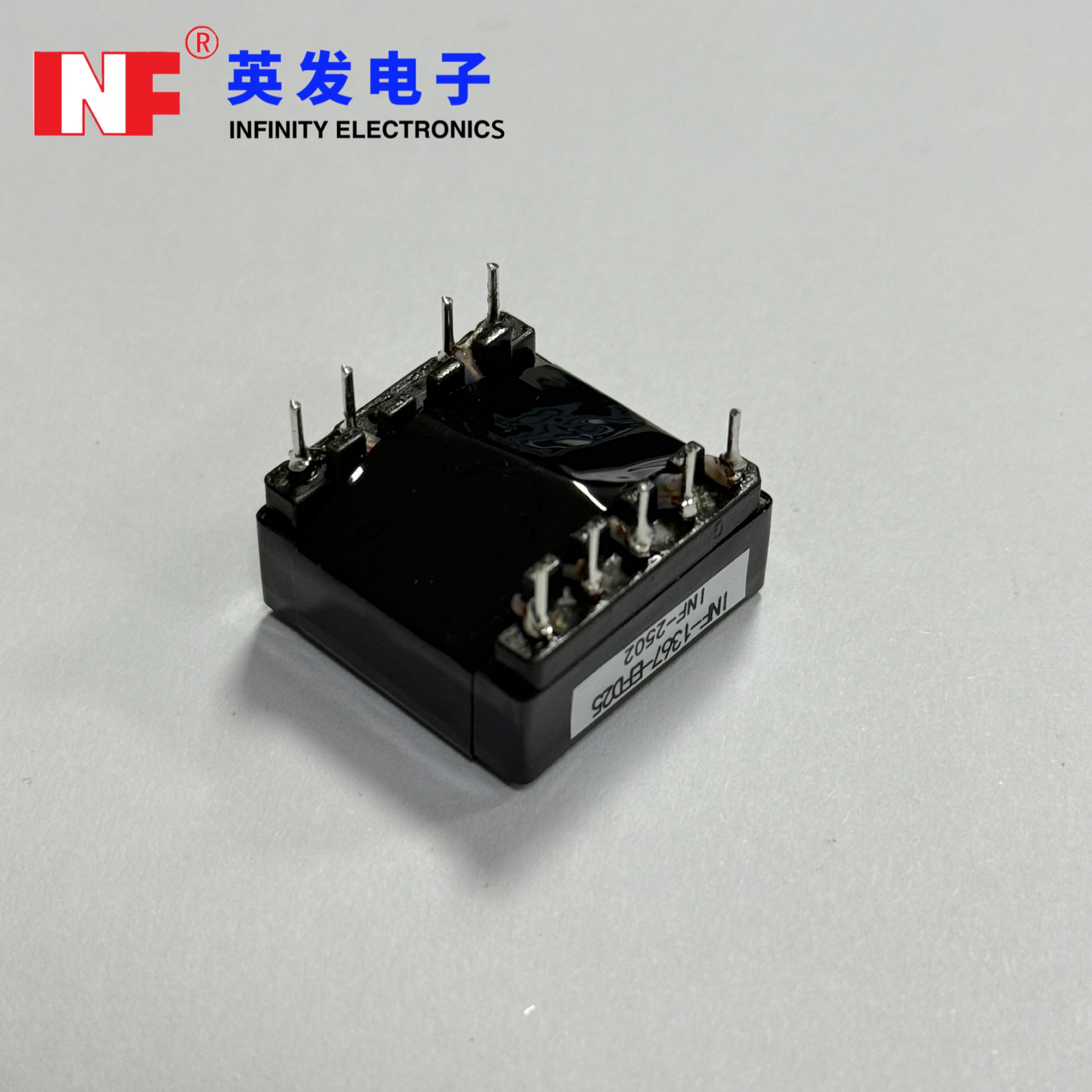

EFD25 5+5 Pin THT AC Transformer for SMPS, 20–50W High Efficiency Low Profile Power Transformer

Relative to the EFD20, the EFD25 comes with a bigger magnetic core for higher power handling capacity. Unlike the SMT version, the THT model is assembled via pin insertion and soldering onto PCB mounting holes, with vertical installation as the standard option. This configuration ensures stronger mechanical steadiness and better heat dissipation capabilities.

Quantity:
Availability:





Inquiry

EFD25 THT AC Transformer EFD25 transformer EFD25 High Frequency Transformer EFD25 ferrite transformer EFD25 switching transformer EFD25 SMPS transformer EFD25 Flyback Transformer EFD25 offline transformer EFD25 power transformer Custom EFD25 high frequency transformer

Product Description

Download

Product Overview

The EFD25 THT AC transformer is a medium-power magnetic component designed for high-frequency switching power supplies. It offers enhanced power handling capability compared to smaller EFD models, making it suitable for applications requiring stable output under higher load conditions.

Characteristics

Universal input voltage from 85VAC up to 265VAC
Switching frequency: 68kHz to 250kHz
Low Profile
Insulation test voltage: 4500VAC
Operating temp: -40°C to +125°C

Common Applications

SMPS with power up to 34W
Auxiliary power supplies
Power electronics
White goods
LED lighting

Physical Properties

Order Code	VIN	Vout1 (V)	lout1 (A)	Vout2 (V)	lout2 (A)	Vout3 (V)	lout3 (A)	Vaux (V)	Vaux2 (V)	Vaux 1 (V)	fswich (kHz)	L (μH)	NPRI:NSEC:NAUX	lSAT (A)	VT (V(AC))
INF-EFD25-770μH	85-265V(AC)	5	1.575	5	1.575	-	-	20	14	6	68-120	770	20:1:1:2.75:1.25	2	4500
INF-EFD25-450μH	85-265V(AC)	12	1.3	12	1.3	-	-	20	14	6	68-100	450	16.66:2:2.33:1	2.1	4500
INF-EFD25-470μH	85-265V(AC)	24	0.71	24	0.71	-	-	20	14	6	68-100	470	16.66:4:4:2.33:1	2	4500
INF-EFD25-414μH	85-265V(AC)	16	1.64	-	-	-	-	20	14	6	68-110	414	16:2.33:2:1	2.2	4500
INF-EFD25-460μH	85-265V(AC)	32	1	-	-	-	-	20	14	6	68-110	460	16:4.66:2:1	1.9	4500
INF-EFD25-500μH	85-265V(AC)	40	0.8	-	-	-	-	20	14	6	68-105	500	16.66:6.33:2.33:1	1.9	4500
INF-EFD25-468μH	85-265V(AC)	5	1.7	12	2	-	-	20	14	6	68-250	468	20:1:2.33:2.66:1.33	2.5	4500
INF-EFD25-793μH	85-265V(AC)	5	1.1	24	0.6	-	-	20	14	6	68-170	793	20:4.5:1:2.75:1.25	2	4500

Technical Specifications

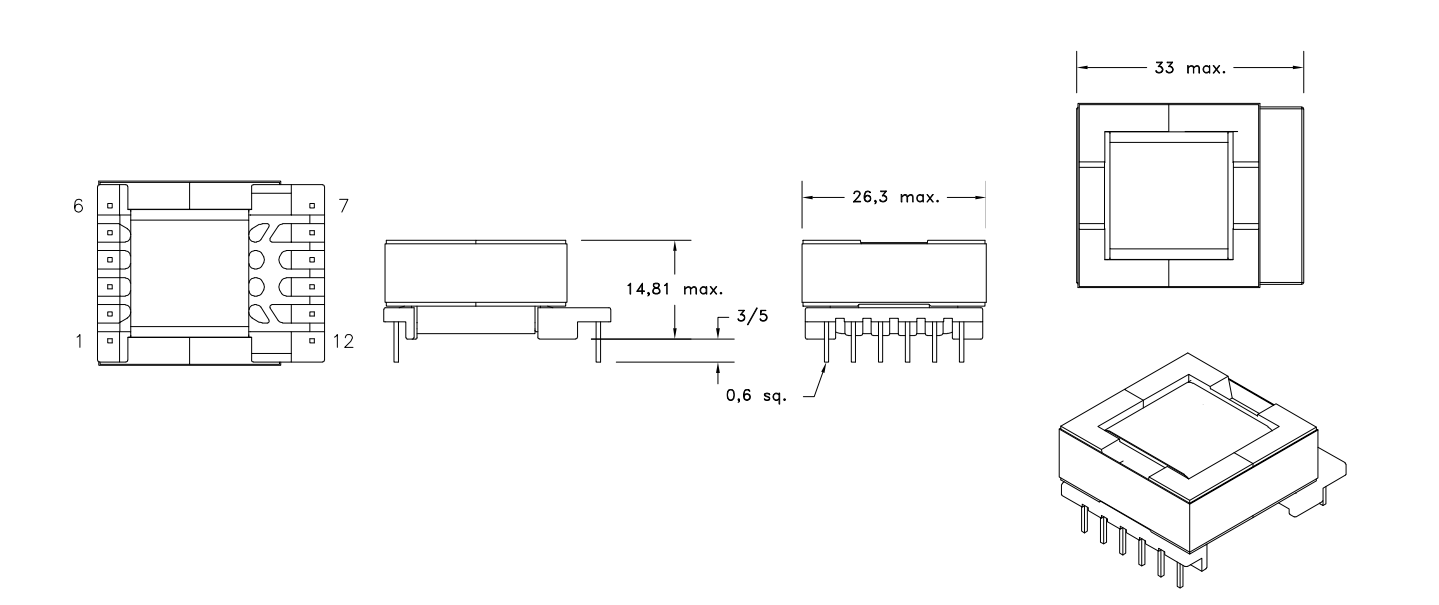

屏幕截图 2025-10-30 162338
