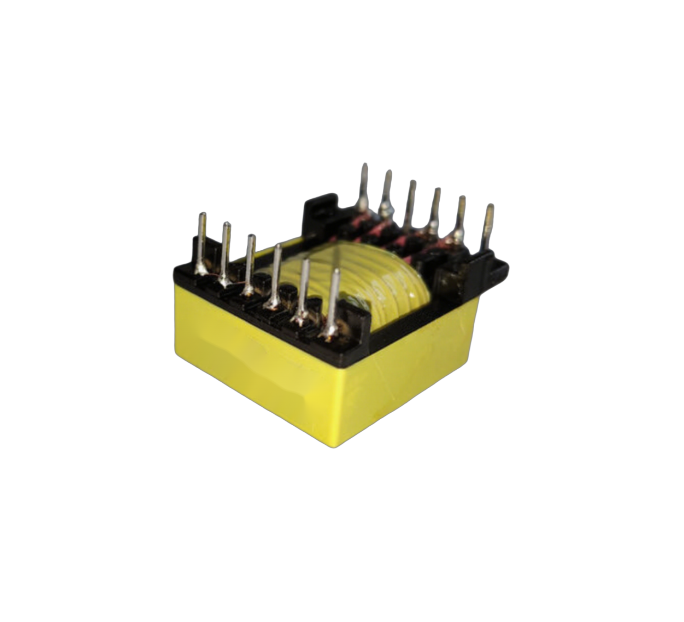

EFD25(6+6) AC Transformer

Characteristics:

· 85–265 VAC / 120–375 VDC input
· Compact size, low leakage inductance
· Multiple output options
· –40 °C to +125 °C operation
· Fixed-frequency or quasi-resonant modes
Options:
· Universal 85-265VAC input, 68-250kHz switching frequency
· Low-profile design, 4500VAC insulation test voltage, -40°C to +125°C operating temp
· For 34W-max SMPS, auxiliary power supplies, power electronics
· Ideal for white goods and LED lighting systems

Quantity:
Availability:





Inquiry Add to Basket

EFD25(6+6) AC Transformer EFD25 transformer EFD25 High Frequency Transformer EFD25 ferrite transformer EFD25 switching transformer EFD25 SMPS transformer EFD25 Flyback Transformer EFD25 offline transformer EFD25 power transformer Custom EFD25 high frequency transformer

Product Description

Download

Core Advantages

1. Compact EFD25 Core Structure
The EFD25 core features an optimized footprint that balances power density and board space, ideal for medium‑power applications requiring compact design and efficient layout.

2. High Insulation & Safety Performance
Designed with reinforced insulation and creepage/clearance distances that meet international safety standards, providing reliable primary–secondary isolation.

3. Excellent Voltage Regulation
Precisely engineered winding design delivers stable output voltage with minimal fluctuation under varying load conditions, improving end‑product reliability.

4. High Efficiency with Low Heat Generation
Optimized core and winding materials reduce core and copper loss, enhancing efficiency and reducing system thermal stress.

5. Wide Operating Temperature Range
Reliable performance across a broad temperature range, making it suitable for both industrial and consumer environments.

6. Low Noise Operation & Vibration Resistance
Optimized magnetic design contributes to reduced audible noise and enhanced reliability in sensitive electronics.

Common Applications:

· Industrial control systems
· USB charging devices
· Utility metering equipment
· Process control systems
· Factory automation applications
· Security systems
· Auxiliary power supplies for garage door openers
· Home appliances
· Specifically designed for multiple

· Texas Instruments ICs

Physical Properties

Order Code	VIN	Vout1 (V)	lout1 (mA)	Vout2 (V)	lout2 (mA)	Vout3 (V)	lout3 (mA)	Vaux (V)	Vaux2 (V)	L (μH)	fswich (kHz)	NPRI:NSEC:NAUX	lSAT (A)	VT (V(AC))
INF-EFD25-380μH	85-265V(AC)	12	3000	-	-	-	-	12	-	380	60-120	7:1:1	3.3	4500

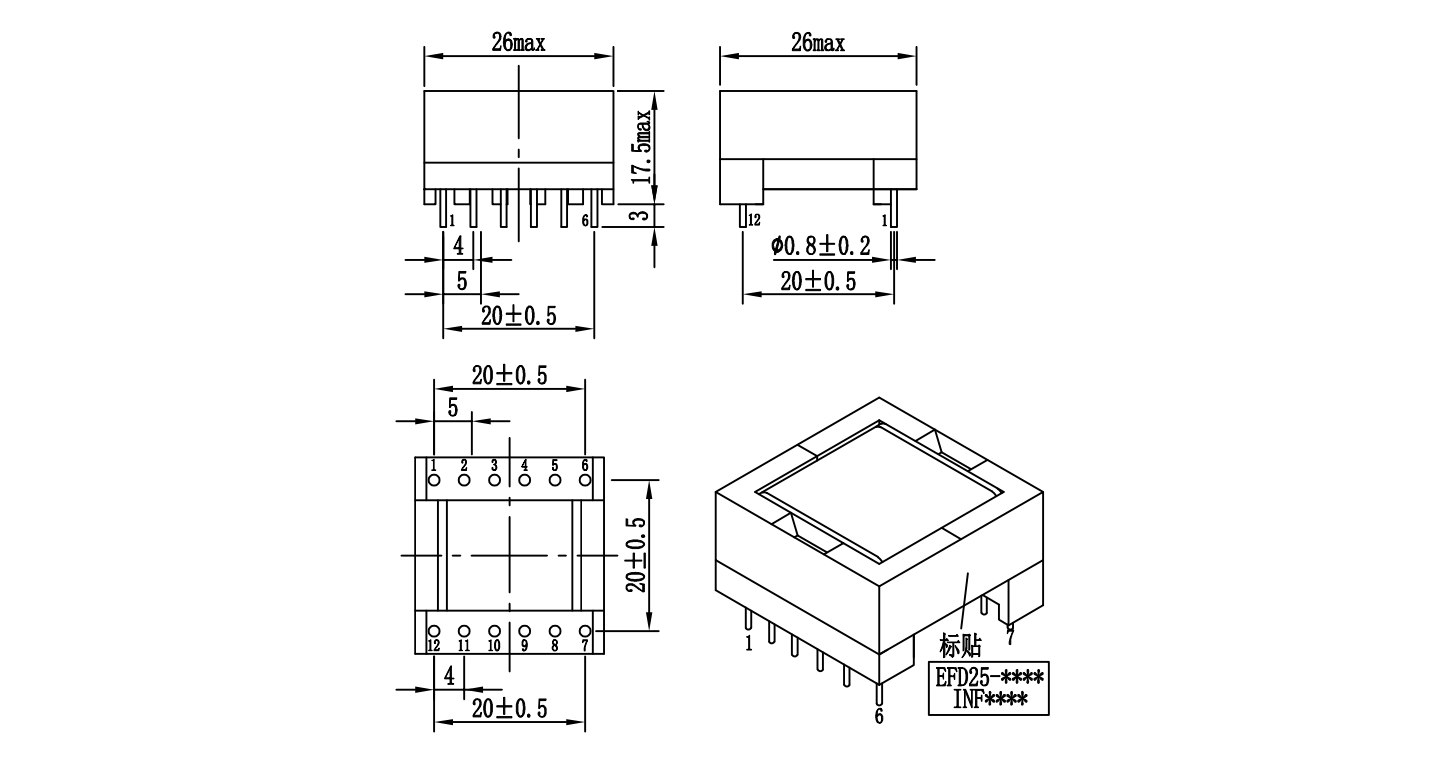

Technical Specifications
