Optocoupler-free feedback design removes aging hidden dangers and improves long-term operation reliability
Simplified peripheral circuit scheme reduces external components and cuts overall system design and production costs
Universal external component configuration supports multiple output voltages with flexible replacement and adjustment

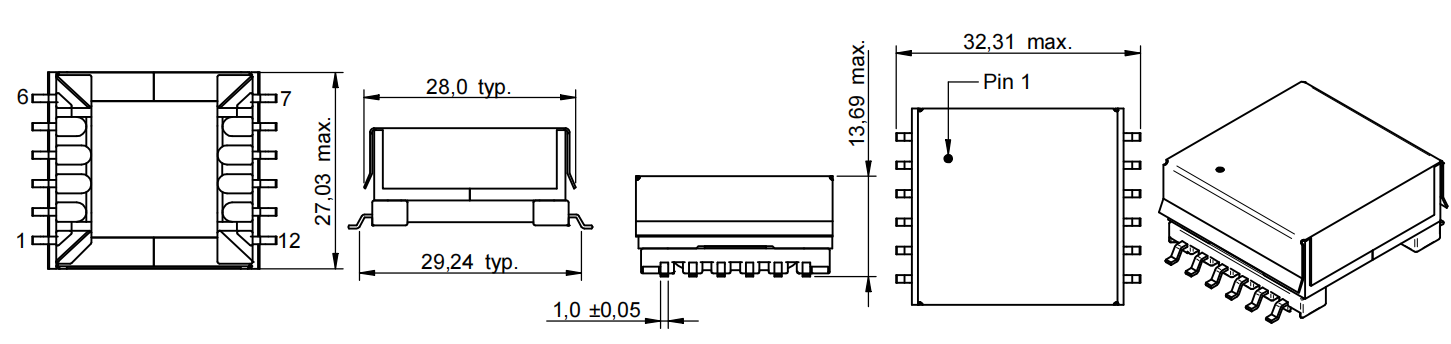

Physical Properties
| Order Code | VIN | Vout1 (V) | lout1 (A) | Vout2 (V) | lout2 (A) | Vout3 (V) | lout3 (A) | Vout4 (V) | lout4 (A) | Vaux (V) | L (μH) | n | lSAT (A) | Ls (μH) | VT (V(AC)) |
| INF-EFD25-14μH | 12V(DC) | 48 | 0.85 | - | - | - | - | - | - | - | 14 | 1:4.42 | 15 | 0.2 | 1500 |
| INF-EFD25-20μH | 19-70V(DC) | 24 | 2.5 | - | - | - | - | - | - | 12 | 20 | 1.5:1:0.5 | 16 | 0.225 | 1500 |
| INF-EFD25-6μH | 20-48V(DC) | 5 | 9 | - | - | - | - | - | - | 10 | 6 | 3:1:2 | 18 | 0.4 | 1500 |
| INF-EFD25-8μH | 20-48V(DC) | 15 | 3 | - | - | - | - | - | - | 10 | 8 | 1.5:1:0.67 | 20 | 0.4 | 1500 |
| INF-EFD25-8μH | 20-48V(DC) | 12 | 3.8 | - | - | - | - | - | - | 10 | 8 | 2:1:1 | 18 | 0.4 | 1500 |
| INF-EFD25-8μH | 20-48V(DC) | 24 | 1.9 | - | - | - | - | - | - | 10 | 8 | 1:1:0.44 | 18 | 0.4 | 1500 |
| INF-EFD25-37μH | 28V(DC) | 250 | 0.1 | - | - | - | - | - | - | - | 37 | 1:2.5:2.5 | 2.95 | 0.16 | 500 |
| INF-EFD25-15μH | 30-75V(DC) | 5 | 9 | - | - | - | - | - | - | 10 | 15 | 3.5:1:2 | 18 | 0.4 | 1500 |
| INF-EFD25-12μH | 30-75V(DC) | 15 | 3 | - | - | - | - | - | - | 10 | 12 | 2:1:0.8 | 16 | 0.4 | 1500 |
| INF-EFD25-15μH | 30-75V(DC) | 12 | 3.8 | - | - | - | - | - | - | 10 | 15 | 2.33:1:0.83 | 18 | 0.55 | 1500 |
| INF-EFD25-12μH | 30-75V(DC) | 24 | 1.9 | - | - | - | - | - | - | 10 | 12 | 1.5:1:0.5 | 18 | 0.4 | 1500 |
| INF-EFD25-500μH | 100-400 V(DC) | 15 | 3 | - | - | - | - | - | - | 15 | 500 | 3:3:1:1 | 2.5 | 10 | 2000 |
Technical Specifications
