EP10
INF

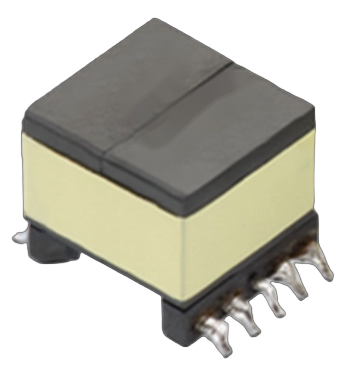

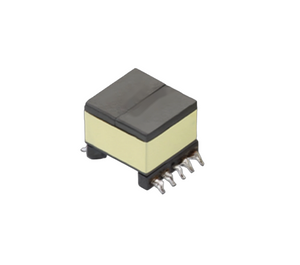

The EP10 Flyback Transformer is designed for DC-DC isolated switching power supply systems requiring higher power handling capability and stable high-frequency performance. Built on an optimized EP10 ferrite core structure, it enables efficient energy storage and transfer in flyback converter topologies.
Compared with smaller EP series models, the EP10 provides improved power capacity and enhanced thermal performance, making it suitable for medium-power switching applications where efficiency and reliability are critical.
Its compact yet robust design allows integration into industrial power systems, consumer electronics, and embedded power modules while maintaining stable output characteristics under continuous operation.
Customized turns ratios, winding structures, insulation levels, and output configurations are available for application-specific requirements.
Optimized EP10 ferrite core structure
Designed for flyback DC-DC conversion
Higher power handling capability vs EP5/EP7
Stable high-frequency energy transfer
Improved thermal performance design
Suitable for medium-power SMPS applications
Reliable isolation performance
Flexible customization support
Medium-Power Switching Power Supplies
Industrial DC-DC Converters
LED Driver Systems
Power Adapters
Smart Home Electronics
Communication Power Modules
Embedded Power Systems
A：There is no need to go through the entire reapplication process. You only need to inform us of the specific parameters that need adjustment after testing. Our engineers will quickly optimize based on the original plan (e.g., replacing the core material or adjusting the coil wire diameter). The delivery cycle of the adjusted samples can be shortened to 5-7 working days, and we also provide free samples and supporting performance test reports.

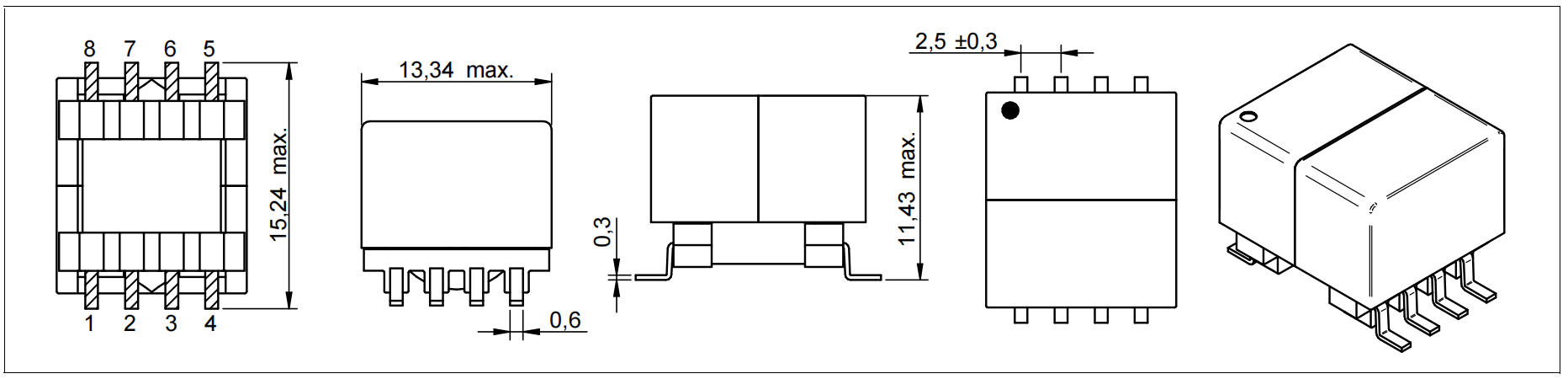

Physical Properties

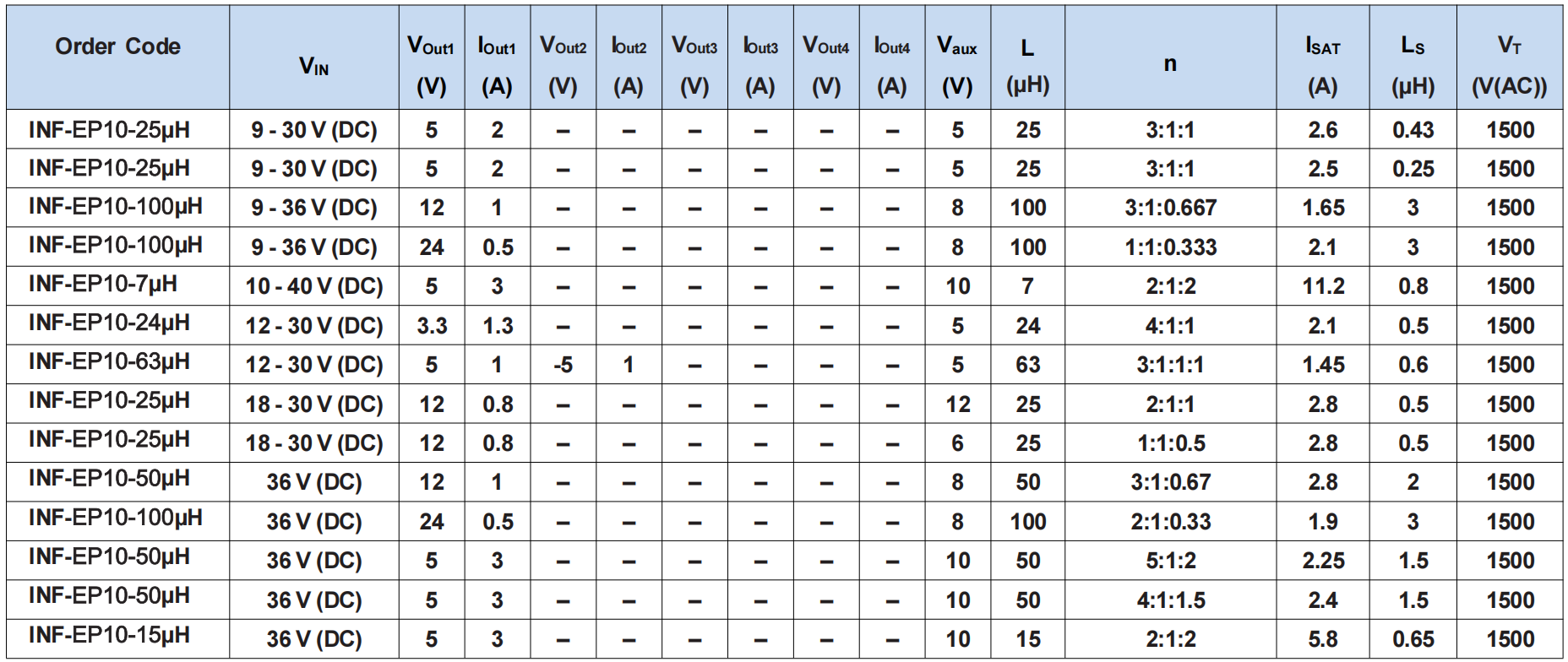

Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
