EP5 Flyback Transformer DC Transformer

Characteristics:

·Simple design integration
·Fewer external components required
·Compact board size
·Cost-effective
·No need for an optocoupler
·Long-term voltage regulation reliability
·No degradation over time
·Consistent external components for different output voltages
·Easy customization of power supply by adjusting transformers and two feedback loop components

Options:
·PoE PD flyback transformer,36-57V input,200-500kHz switching frequency
·-40℃ to+125℃ operating temp,1.5KVAC/1min isolation voltage
·Various output powers/voltages available
·For PoE devices:IP phones,WLAN access points,access controlterminals &security cameras

Common Applications:
·solated power design
·Sensor interfaces
·solated telecom converters
·Power over Ethernet

FAQ：

Q：Do you support global ODM/OEM cooperation?
A：Yes. We have full-process global ODM/OEM service capabilities. According to the needs of customers in different countries/regions (such as adapting to local voltage standards and meeting regional certification requirements), we provide integrated services from product design (relying on R&D cooperation resources with 211 universities and Nanjing Agricultural University), prototyping, mass production to logistics and distribution. Currently, we have provided ODM/OEM cooperation for customers in more than 20 countries, including North America, Europe, and Southeast Asia. We can achieve nearby delivery through our overseas distribution network to shorten the supply chain cycle.

Quantity:
Availability:





Inquiry

Model:
EP5
Brand:
INF

EP5 Flyback Transformer DC Transformer

Product Description

Download

Product Overview

The EP5 flyback transformer is a compact high-frequency magnetic component designed for low-power DC/DC conversion and isolated power supply applications. With its ultra-small footprint and optimized magnetic structure, it is ideal for space-constrained designs such as portable electronics and embedded systems.

Operating in high-frequency switching environments, the transformer enables efficient energy transfer while significantly reducing the overall size compared to traditional low-frequency transformers.

Design Flexibility & Customization

The EP5 transformer supports full customization for different circuit requirements:

Custom turns ratio and output voltage design
Multi-output winding configurations
SMD or through-hole mounting options
Optimization for specific controller ICs

Its flexible design makes it suitable for both standard and application-specific power solutions.

Application Scenarios

The EP5 transformer is widely used in compact and low-power electronic systems:

DC/DC converter modules
IoT devices and smart sensors
Portable and wearable electronics
Auxiliary power supplies in industrial control systems
Communication interface modules

Physical Properties

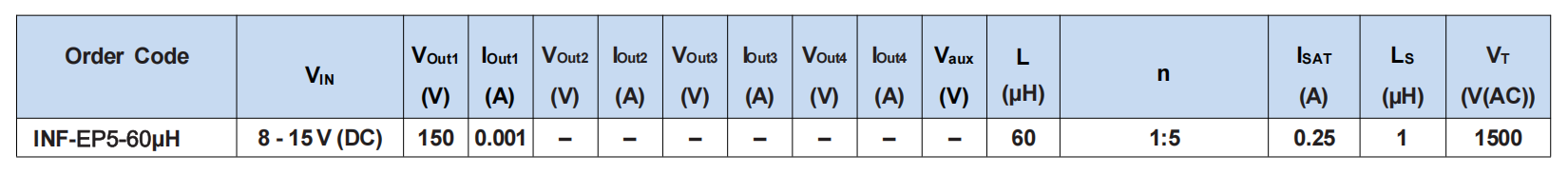

Technical Specifications

0e6c786c44dada19a84fb3ebff166c31

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
