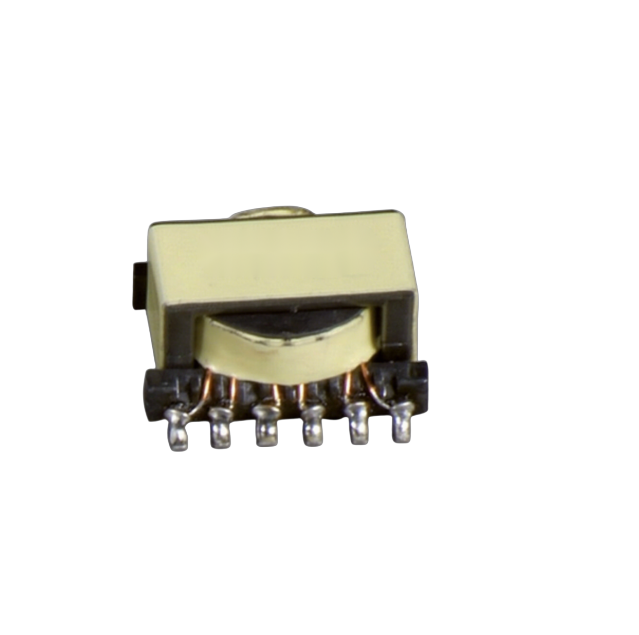

The ER14.5/6 flexible transformer is a compact, high-frequency magnetic component designed for DC/DC converter applications. It is particularly suitable for modular power designs where flexibility in winding configuration and circuit topology is required.
A defining feature of the ER14.5/6 transformer is its six identical windings, which can be freely configured in series or parallel combinations to meet various voltage and current requirements.
Symmetrical winding design ensures balanced electrical performance
Supports multiple turns ratio configurations through external connections
Enables versatile circuit implementation without redesigning magnetics
This flexible architecture allows a single transformer model to cover a wide range of applications and power levels.
The ER14.5/6 transformer is engineered for reliable operation across a wide temperature range:
Operating temperature range typically from –40°C to +125°C
High-quality insulation system ensures electrical safety
Robust structure supports long-term reliability in continuous operation
Its thermal resilience makes it suitable for industrial and harsh environment applications.
DC/DC converter modules
Distributed power systems
Telecom and networking equipment
Industrial control power supplies
Automotive and EV auxiliary power systems

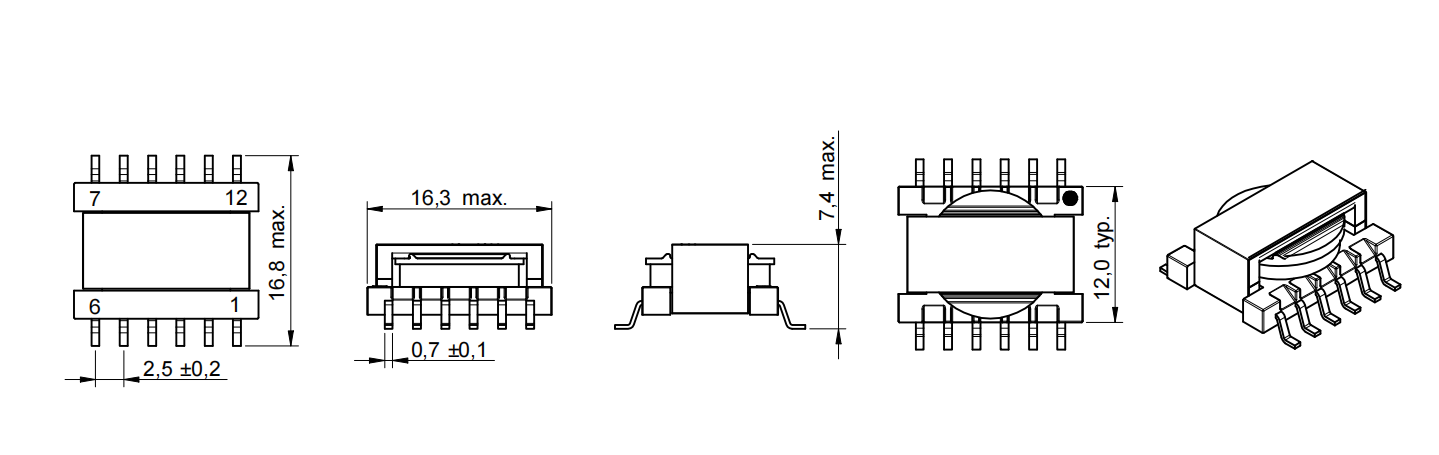

Physical Properties
| Order Code | LBASE (μH) | lR BASE (A) | ISAT BASE (A) | n | VT (V(AC)) | ∫Udt BASE (μVs) | RDC BASE (mΩ) |
| INF-ER14.5/6-6.6μH | 6.6 | 0.95 | 1.55 | 1:1:1:1:1:1 | 500 | 48.3 | 159 |
| INF-ER14.5/6-8.3μH | 8.3 | 0.95 | 1.2 | 1:1:1:1:1:1 | 500 | 48.3 | 159 |
| INF-ER14.5/6-11.6μH | 11.6 | 0.95 | 0.84 | 1:1:1:1:1:1 | 500 | 48.3 | 159 |
| INF-ER14.5/6-21.6μH | 21.6 | 0.95 | 0.36 | 1:1:1:1:1:1 | 500 | 48.3 | 159 |
| INF-ER14.5/6-140μH | 140 | 0.95 | 0.02 | 1:1:1:1:1:1 | 500 | 48.3 | 159 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
