ET2825
INF

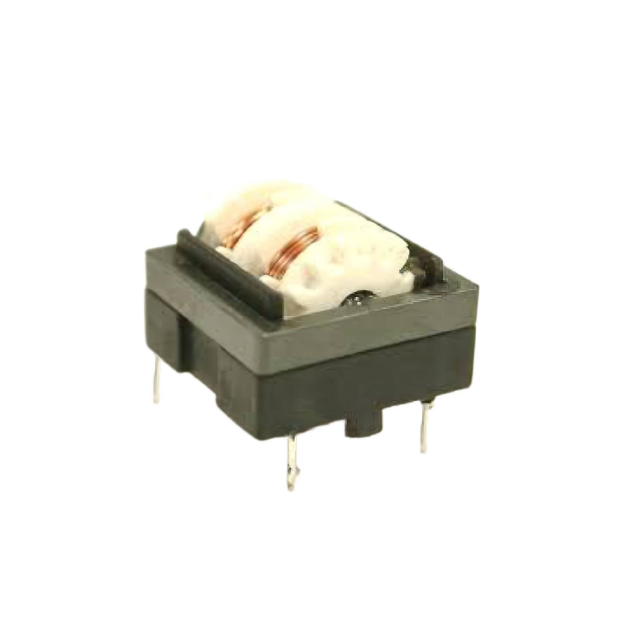

The ET2825 uses a high-permeability Mn-Zn ferrite core and precision section winding technology, maintaining low power loss and high impedance even at high frequencies. It efficiently blocks EMI and RFI signals in power lines, preventing operational abnormalities in electronic equipment due to interference.
In terms of electrical performance, the device has a rated voltage of 250VAC, a dielectric withstanding voltage of 2000VAC, and insulation resistance ≥100MΩ, providing reliable electrical isolation. The operating temperature range is -20°C to 105°C, with a maximum temperature rise ≤45°C under normal conditions, enabling long-term stable operation in complex temperature and humidity environments.
It can be used as a general-purpose high-frequency magnetic component to meet the electromagnetic compatibility requirements of LED drivers, audio power amplifiers, and communication equipment.
Professional horizontal structure design, easy for PCB mounting and space layout in compact power supplies
Efficient common-mode EMI/RFI suppression, effectively purifying power signals and reducing equipment interference
Low leakage flux and optimized sectional winding, delivering high self-resonant frequency and low stray capacitance
UL certified design, complying with international safety and EMC requirements for global market applications
Electrical Specifications (@20°C)
| Order Code | Max.DC(Ω) Resistance | Min. Inductance*(mH) | Maximum DC Current | Inductance Difference (μH) Max | Amps RMS | Rated Current (VAC) |
| INF-ET2825-025 | 2.60 | 120 | 500 mA | 2500 | 0.50 | 0.50 |
| INF-ET2825-026 | 2.00 | 92 | 600 mA | 2000 | 0.60 | 0.60 |
| INF-ET2825-027 | 1.50 | 66 | 700 mA | 1500 | 0.70 | 0.70 |
| INF-ET2825-028 | 0.80 | 36 | 900 mA | 1000 | 0.90 | 0.90 |
| INF-ET2825-029 | 0.60 | 25 | 1A | 500 | 1.00 | 1.00 |
| INF-ET2825-030 | 0.32 | 15.5 | 1.5 A | 350 | 1.50 | 1.50 |
| INF-ET2825-031 | 0.25 | 10 | 2A | 200 | 2.00 | 2.00 |
| INF-ET2825-032 | 0.19 | 8 | 2.5 A | 150 | 2.50 | 2.50 |
| INF-ET2825-032 | 0.10 | 5 | 3A | 100 | 3.00 | 3.00 |
Technical Specifications
| Item | Details |
| Brand | INF |
| Core Certifications | UL |
| Customization Services | ODM/OEM supported,Logo customization available;single/double/four-slot bobbins optional |
| Lead Time | 15-30 days |
| Packaging Method | Carton box,customization supported |
| Minimum Order Quantity(MOQ) | No minimum order |
| Product Name | ET2825 High-Frequency Ferrite Common-Mode Choke |
| Product Range | High-frequency transformers,common-mode chokes,EMI/EMC filtering components |
| Key Specifications | Rated Voltage:250VAC; Dielectric Withstanding Voltage:2000VAC; Insulation Resistance:≥100MΩ; Operating Temp.:-20℃~105℃;Max.Temp.Rise:≤45℃; Operating Frequency:≥10kHz; Rated Power:Up to 100W; Inductance Range:1.8mH~35.0mH |

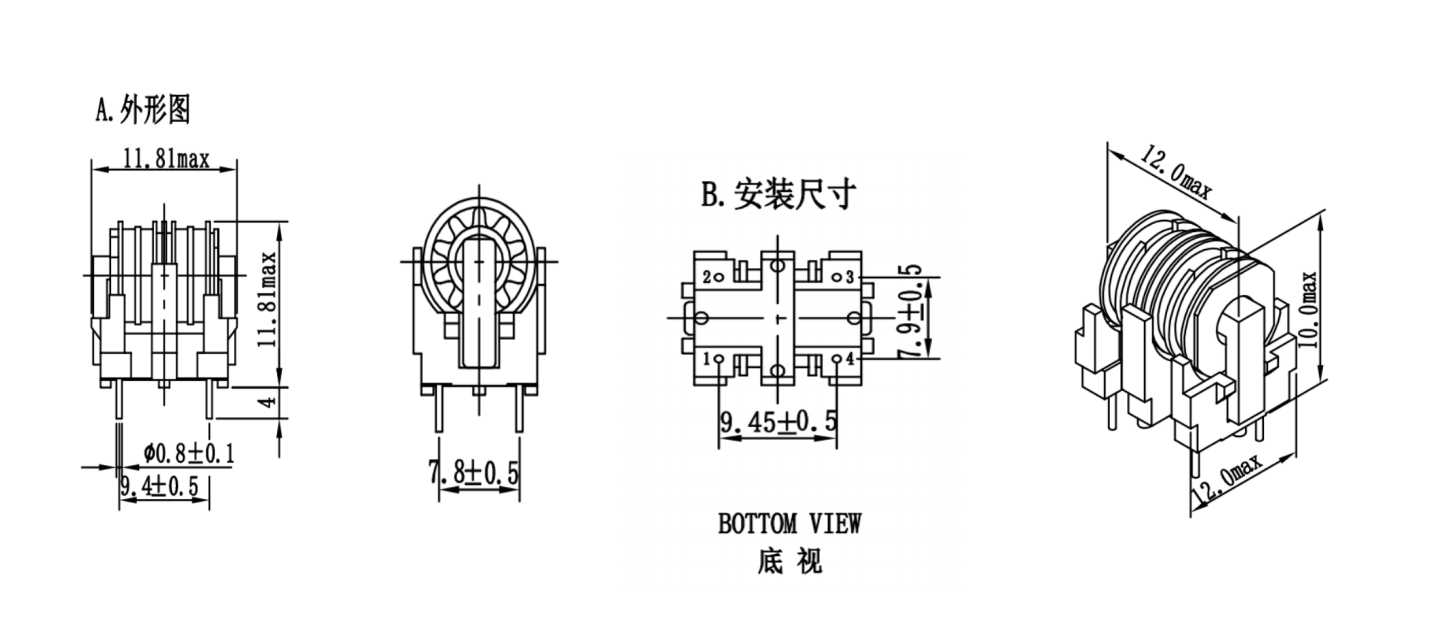

| Core Structure | Mn-Zn ferrite core,section winding,4+4 pin vertical THT mounting |
| Core Advantages | Low leakage flux,high self-resonant frequency,low stray capacitance;excellent EMI/RFI suppression;UL compliant,lead-free materials |
| Application Scenarios | Switching power supplies,LED drivers,EMI/EMC filtering circuits,power amplifiers |
| Sample Policy | 5 customized samples provided free of charge;7-10 days for customized items,3-5 days for standard items |
| Shipping Methods | Air freight,sea freight,etc. |
