ET2835
INF

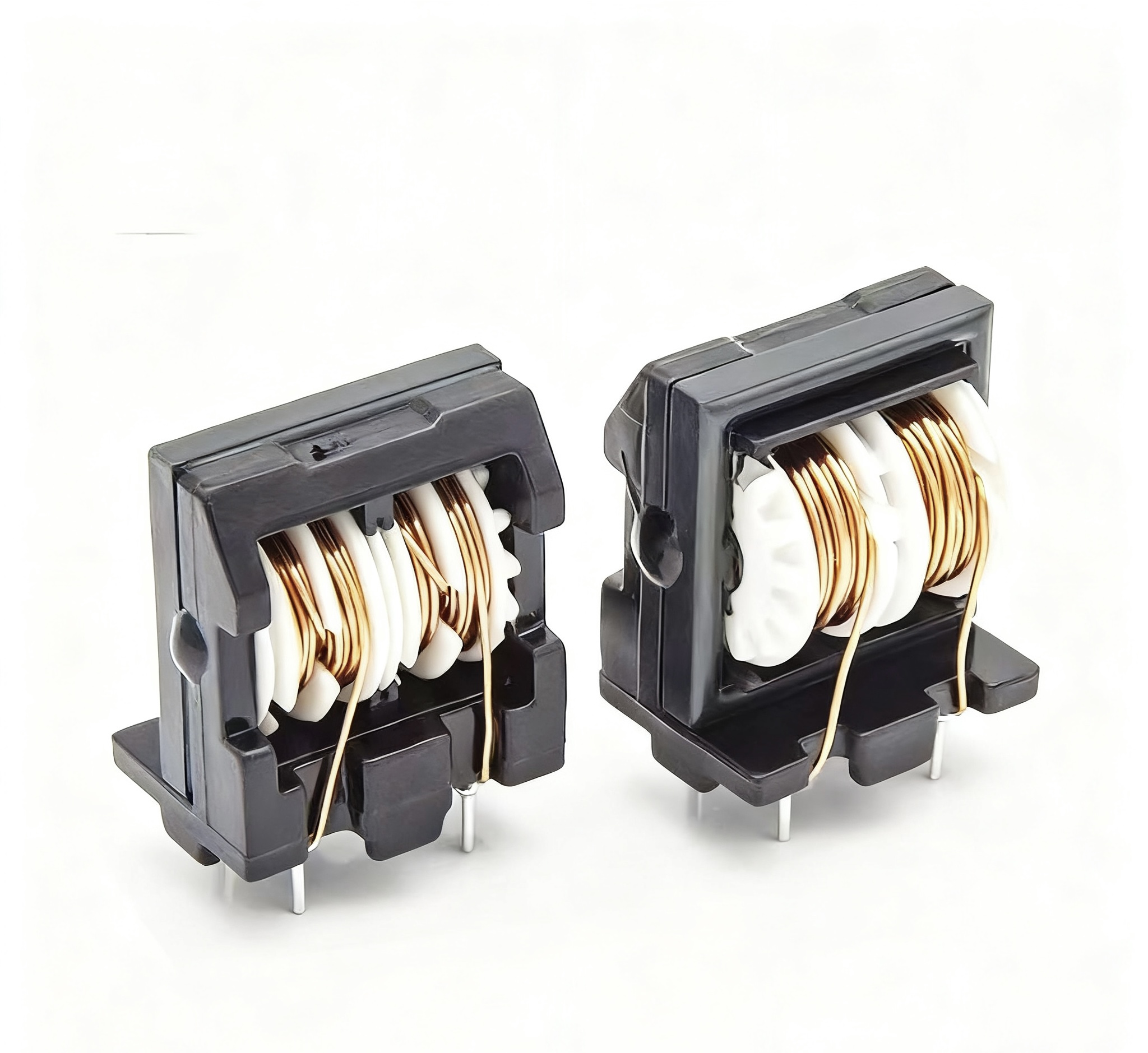

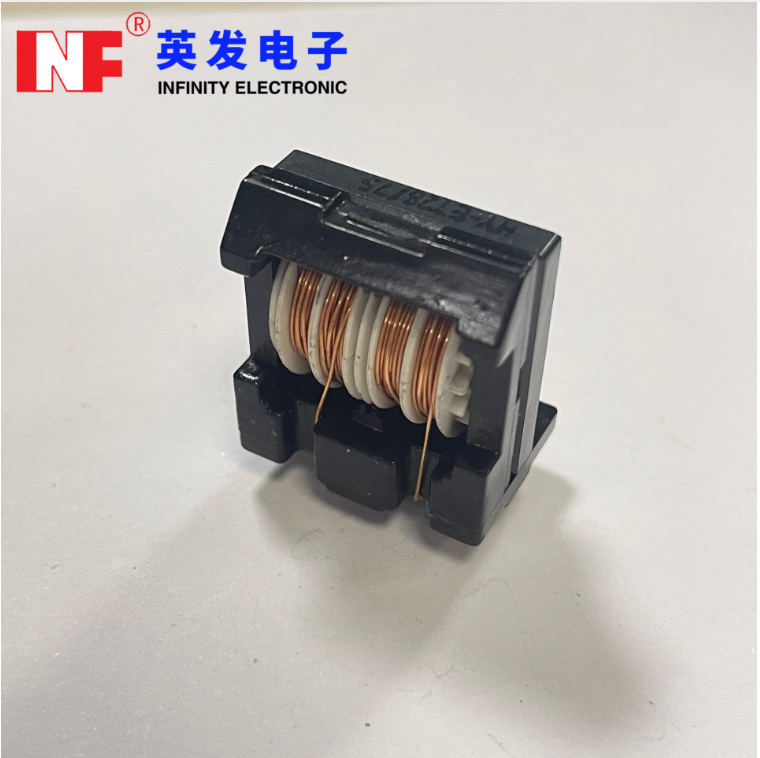

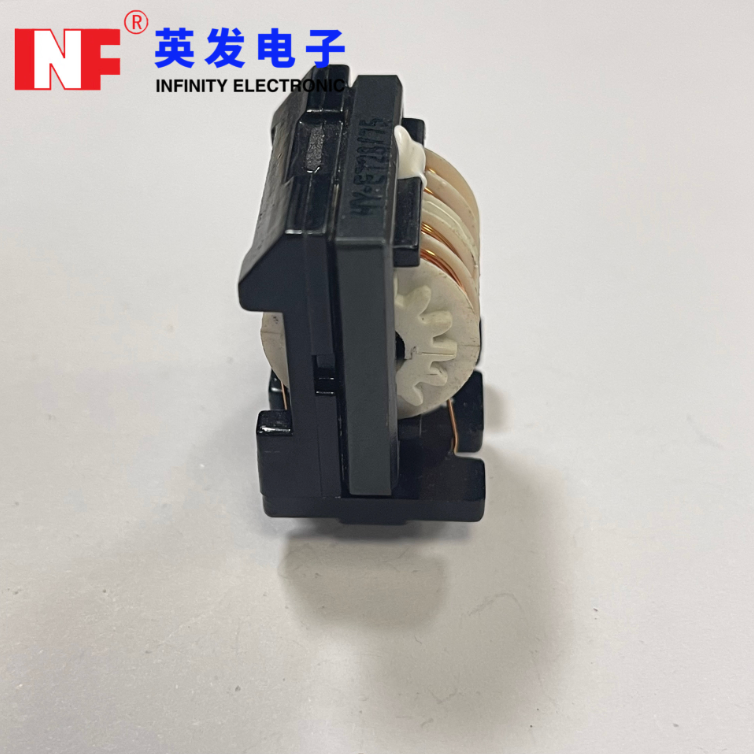

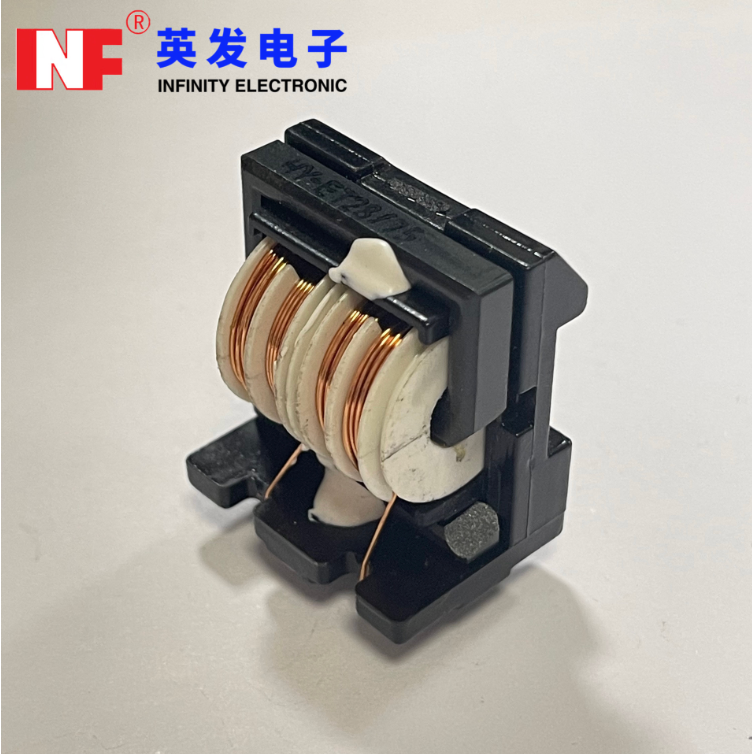

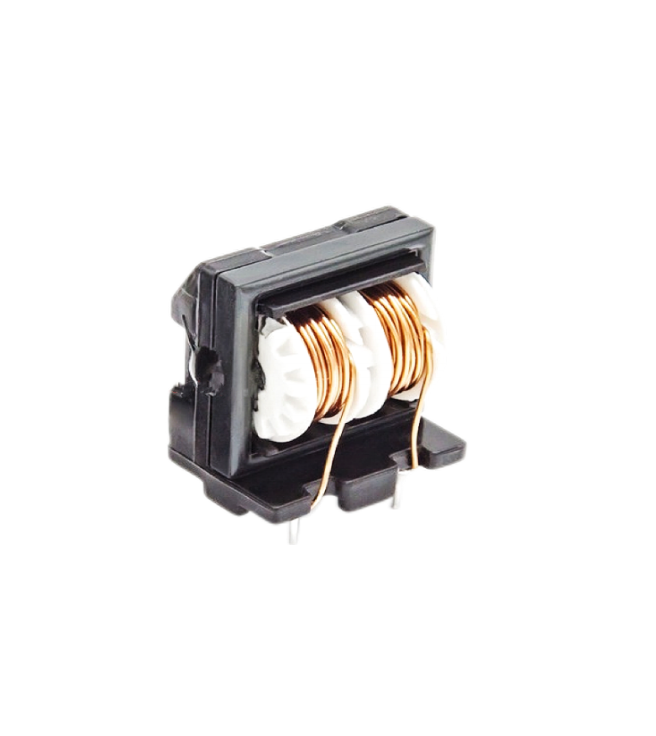

The ET2835 employs a high-permeability Mn-Zn ferrite core and precision section winding technology, maintaining low power consumption and high impedance even at high frequencies. It effectively cuts off the conduction path of EMI and RFI signals, preventing operational abnormalities in electronic equipment due to interference.
In terms of electrical performance, the device has a rated voltage of 250VAC, a dielectric withstanding voltage of 2000VAC, and insulation resistance ≥100MΩ, providing excellent electrical isolation. The operating temperature range is -20°C to 105°C, with a maximum temperature rise ≤45°C under normal conditions, enabling long-term continuous operation in complex temperature and humidity environments.
It can be used as a general-purpose high-frequency magnetic component to meet the electromagnetic compatibility requirements of LED drivers, audio power amplifiers, and communication equipment.
Outstanding high-frequency impedance characteristics, providing stable filtering performance in broadband interference scenarios
High dielectric withstand voltage up to 2000VAC and ultra-high insulation resistance for enhanced safety
Wide operating temperature range and low temperature rise, ensuring long-term stable operation under continuous load
Electrical Specifications (@20°C)
| Order Code | Min. Inductance* (mH) | Inductance Difference (μH) Max | Maximum DC Current | Max.DC(Ω) Resistance | Amps RMS | Rated Current (VAC) |
| INF-ET2835-034 | 120 | 2500 | 500 mA | 2.60 | 0.50 | 0.50 |
| INF-ET2835-035 | 92 | 2000 | 600 mA | 2.00 | 0.60 | 0.60 |
| INF-ET2835-036 | 66 | 1500 | 700 mA | 1.50 | 0.70 | 0.70 |
| INF-ET2835-037 | 36 | 1000 | 900 mA | 0.80 | 0.90 | 0.90 |
| INF-ET2432-038 | 25 | 500 | 1A | 0.60 | 1.00 | 1.00 |
| INF-ET2835-039 | 15.5 | 350 | 1.5 A | 0.32 | 1.50 | 1.50 |
| INF-ET2835-040 | 10 | 200 | 2A | 0.25 | 2.00 | 2.00 |
| INF-ET2835-041 | 8 | 150 | 2.5 A | 0.19 | 2.50 | 2.50 |
| INF-ET2835-042 | 5 | 100 | 3A | 0.10 | 3.00 | 3.00 |
Technical Specifications
| Item | Details |
| Brand | INF |
| Core Certifications | ISO9001,RoHS,UL |
| Customization Services | ODM/OEM supported, Logo customization available; single/double/four-slot bobbins optional |
| Lead Time | 15-30 days |
| Packaging Method | Carton box,customization supported |
| Minimum Order Quantity(MOQ) | No minimum order |
| Product Name | ET2835 High-Frequency Ferrite Common-Mode Choke |
| Product Range | High-frequency transformers, common-mode chokes, EMI/EMC filtering components |
| Key Specifications | Rated Voltage: 250VAC; Dielectric Withstanding Voltage: 2000VAC; Insulation Resistance: ≥100MΩ; Operating Temp.: -20℃~105℃; Max. Temp. Rise: ≤45℃; Operating Frequency: ≥10kHz; Rated Power: Up to 120W; Inductance Range: 2.2mH~40.0mH |
| Shipping Methods | Air freight,sea freight,etc. |
| Core Advantages | Low leakage flux, high self-resonant frequency, low stray capacitance; excellent EMI/RFI suppression; UL compliant, lead-free materials |
| Application Scenarios | Switching power supplies, LED drivers, EMI/EMC filtering circuits, power amplifiers, communication equipment |
| Sample Policy | 5 customized samples provided free of charge; 7-10 days for customized items, 3-5 days for standard items |
