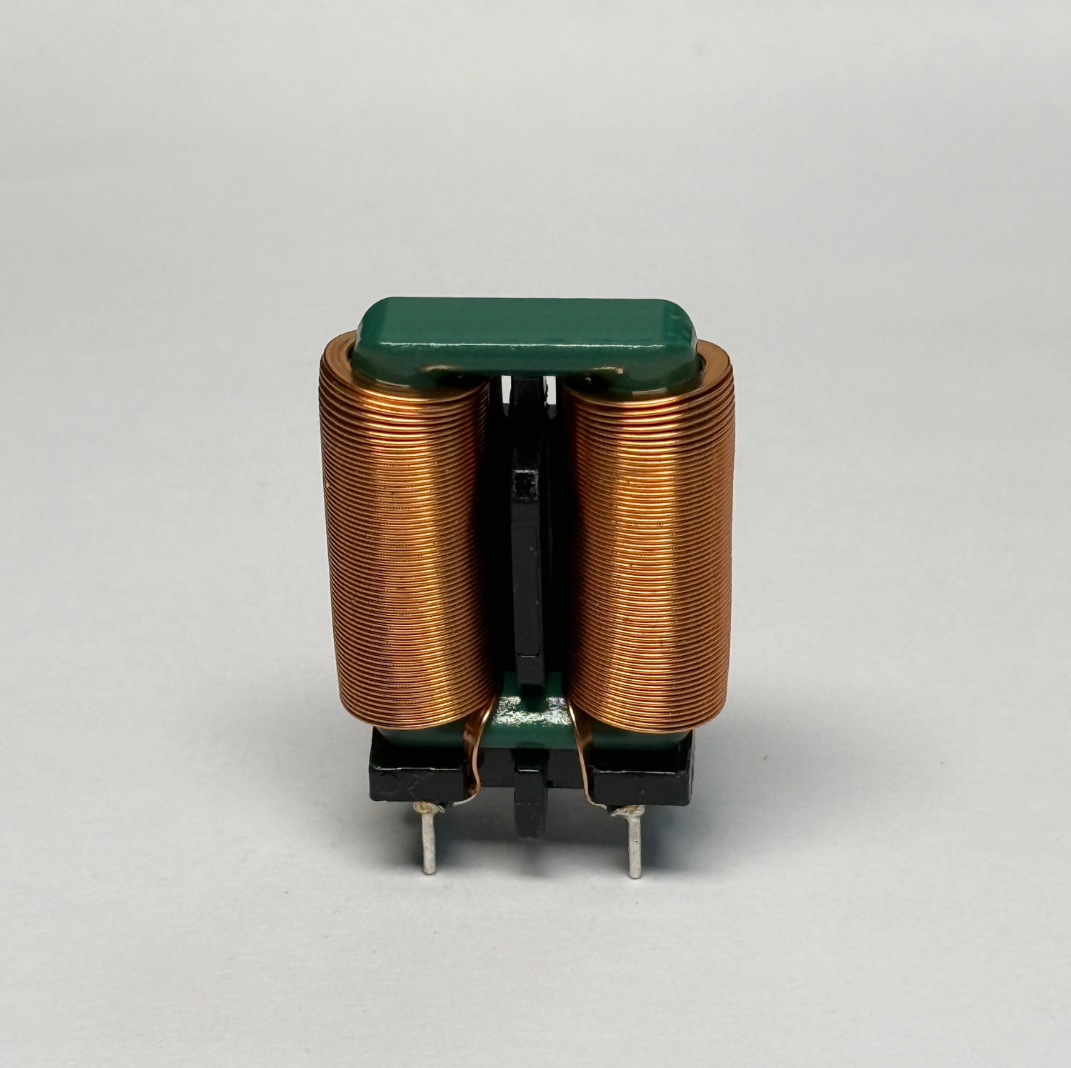

SQ0808/1616/3120/3224/3324 Vertical
INF
0808V
1616V
3120V
3224V
3324V
| INF Code | Download | Inductance | Wire Diameter | Turns | DC Resistance | Applicable Enameled Wire Diameter | Operating Current | Applicable Power |

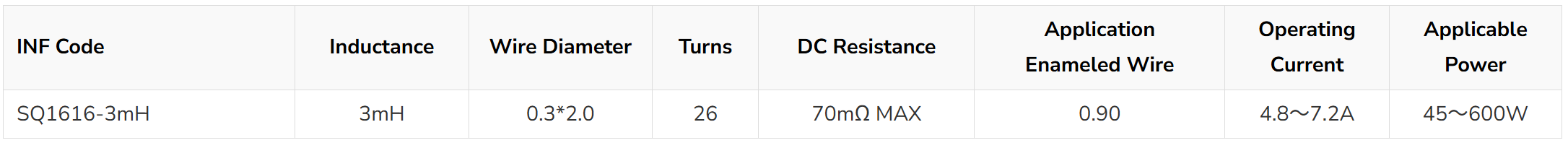

| SQ1616-3mH | 3mH | 0.3*2.0 | 26 | 70mΩ MAX | 0.9 | 4.8~7.2A | 45~600W |
| INF Code | Download | Inductance | Wire Diameter | Turns | DC Resistance | Applicable Enameled Wire Diameter | Operating Current | Applicable Power |

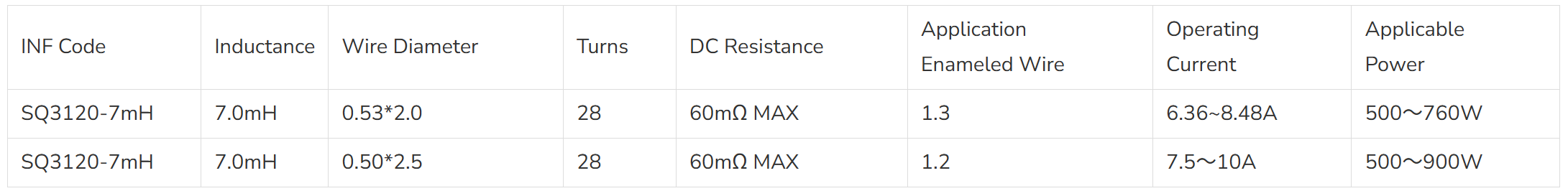

| SQ3120-7mH | 7.0mH | 0.53*2.0 | 28 | 60mΩ MAX | 1.3 | 6.36~8.48A | 500~760W | |
| SQ3120-7mH | 7.0mH | 0.50*2.5 | 28 | 60mΩ MAX | 1.2 | 7.5~10A | 500~900W |
| INF Code | Download | Inductance | Wire Diameter | Turns | DC Resistance | Applicable Enameled Wire Diameter | Operating Current | Applicable Power |

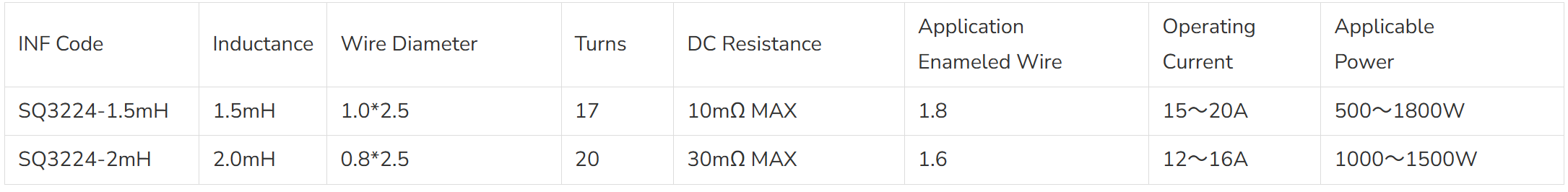

| SQ3224-1.5mH | 1.5mH | 1.0*2.5 | 17 | 10mΩ MAX | 1.8 | 15~20A | 500~1800W | |
| SQ3224-2mH | 2.0mH | 0.8*2.5 | 20 | 30mΩ MAX | 1.6 | 12~16A | 1000~1500W |
| INF Code | Download | Inductance | Wire Diameter | Turns | DC Resistance | Applicable Enameled Wire Diameter | Operating Current | Applicable Power |
| SQ3324-1.5mH | 1.5mH | 1.0*2.5 | 17 | 10mΩ MAX | 1.8 | 15~20A | 500~1800W | |
| SQ3324-2mH | 2.0mH | 0.8*2.5 | 20 | 30mΩ MAX | 1.6 | 12~16A | 1000~1500W |
| INF Code | Download | Inductance | Wire Diameter | Turns | DC Resistance | Applicable Enameled Wire Diameter | Operating Current | Applicable Power |

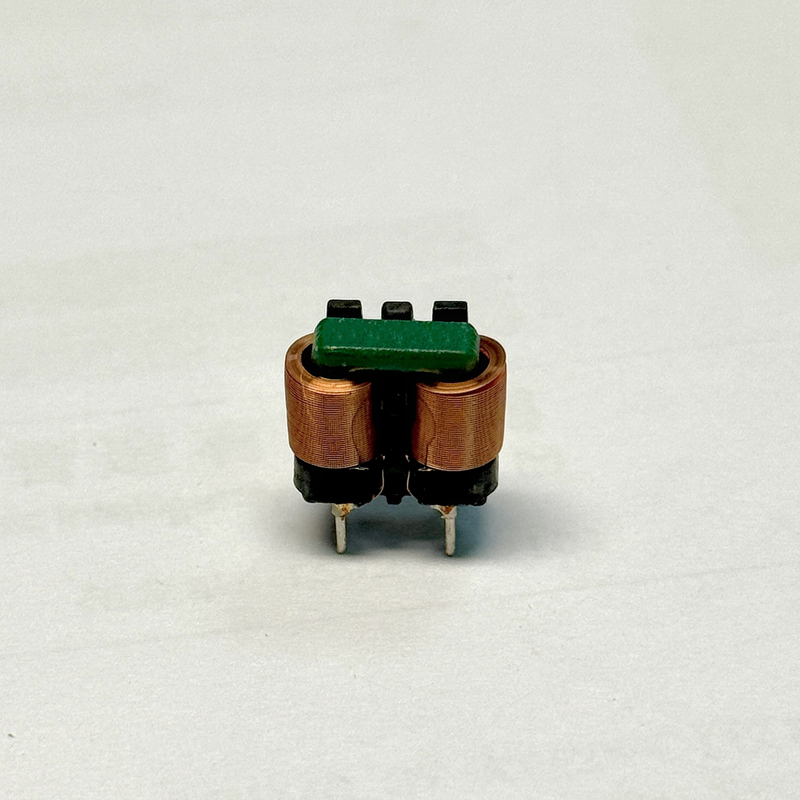

| SQ0808-120uH | 120uH | 0.25*1.0 | 6 | 15mΩ MAX | 0.6 | 2.5~3.0A | 18~270W |
| Series Model | Approx. Dimensions | Inductance Range | Operating Current | Power Range | Key Features / Functions | Typical Applications |
| SQ0808 V | 8×8 mm Compact | From 120μH | 2.5~3.0A | 18~270W | Ultra-small footprint, low profile, low DCR; ideal for high-density PCBs with limited space; small-current energy storage & filtering | Compact power adapters, fast chargers, smart home modules, portable electronics, low-power DC-DC circuits |
| SQ1616 V | 16×16 mm Mid-size | ~3mH class | 4.8~7.2A | 45~600W | Balanced size, current and inductance; cost-effective and highly versatile; well-rounded medium-power energy storage & filtering | Set-top boxes, routers, desktop power supplies, industrial control power, audio equipment, LED drivers |
| SQ3120 V | 31×20 mm Large | ~7mH class | 6.36~10A | 500~900W | Large core cross-section, high inductance, low loss; suitable for medium-to-high power high-frequency energy storage & EMI filtering | Industrial SMPS, server power supplies, telecom power, high-power adapters, PV inverter auxiliary power |
| SQ3224 V | 32×24 mm High-Current | 1.5~2.0mH | 12~20A | 500~1800W | Flat-wire large cross-section, extremely low DCR, high current handling; low temperature rise, high efficiency | High-power SMPS, server power, industrial power, charging modules, energy storage systems, high-power DC-DC |
| SQ3324 V | 33×24 mm High-Current | 1.5~2.0mH | 12~20A | 500~1800W | Larger core window for better heat dissipation at equal current; robust structure for industrial-grade reliability | Industrial high-power supplies, telecom base-station power, new energy auxiliary power, EV chargers, medical power equipment |

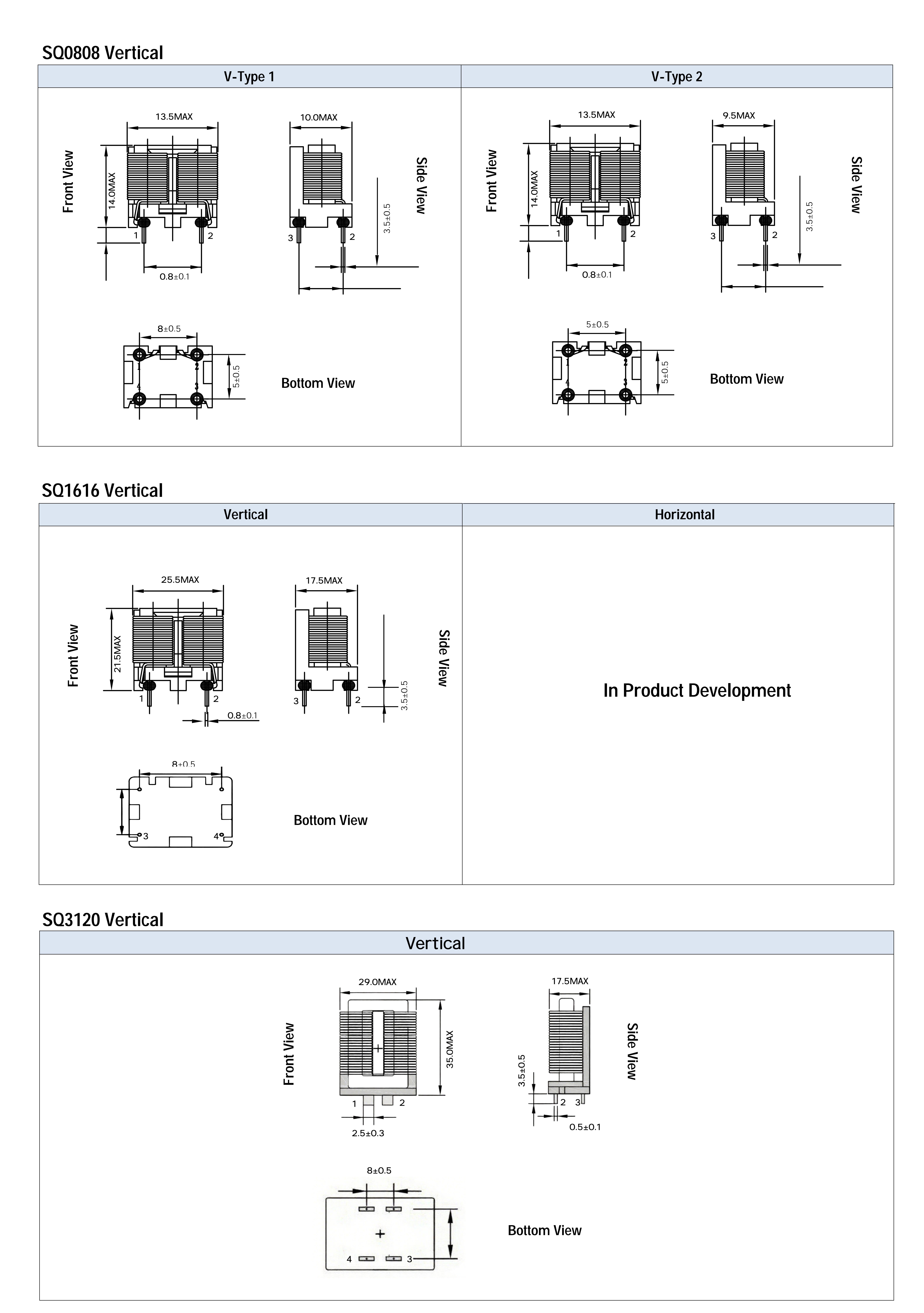

SQ1616 Vertical
The SQ1616 Vertical series has approximate dimensions of 16 × 16 mm and is designed for medium-power applications. Typical inductance values are around the 3 mH class, with operating currents of approximately 4.8–7.2 A and reference power levels from 45 W to 600 W.
This series provides a balanced combination of size, inductance and current capability. It is a cost-effective and versatile solution for medium-power energy storage and filtering.
Typical applications include set-top boxes, routers, desktop power supplies, industrial control power supplies, audio equipment and LED drivers.
SQ3120 Vertical
The SQ3120 Vertical series measures approximately 31 × 20 mm and is intended for medium- to high-power applications. It offers inductance values around the 7 mH class, operating currents of approximately 6.36–10 A, and reference power levels from 500 W to 900 W.
Its large core cross-section provides high inductance and low power loss, making it suitable for high-frequency energy storage and EMI filtering.
Typical applications include industrial SMPS units, server power supplies, telecom power systems, high-power adapters and auxiliary power circuits for photovoltaic inverters.

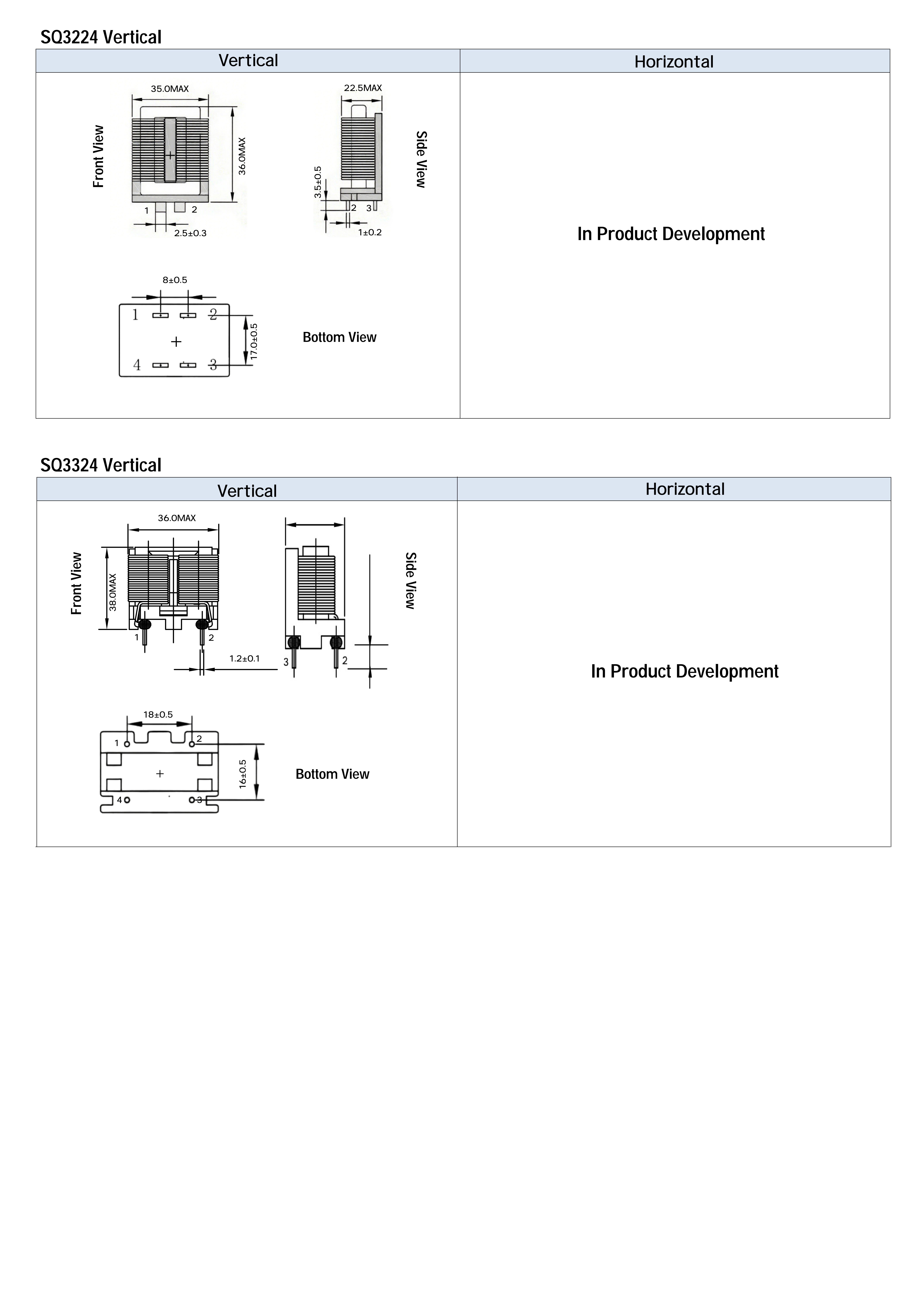

SQ3224 Vertical
The SQ3224 Vertical series has approximate dimensions of 32 × 24 mm and is designed for high-current applications. Typical inductance values range from 1.5 mH to 2.0 mH, with operating currents of approximately 12–20 A and reference power levels from 500 W to 1,800 W.
Its wide and flat core structure provides a large cross-sectional area, extremely low DCR and strong current-handling capability. The design helps reduce temperature rise and improve operating efficiency.
Typical applications include high-power SMPS units, server power supplies, industrial power systems, charging modules, energy storage systems and high-power DC-DC converters.
SQ3324 Vertical
The SQ3324 Vertical series measures approximately 33 × 24 mm and is designed for high-current, industrial-grade applications. It supports inductance values from approximately 1.5 mH to 2.0 mH, operating currents of approximately 12–20 A, and reference power levels from 500 W to 1,800 W.
Compared with smaller structures, its larger core window improves heat dissipation under equivalent current conditions. The robust mechanical structure also supports stable operation and long-term reliability in demanding industrial environments.
Typical applications include industrial high-power supplies, telecom base-station power systems, new-energy auxiliary power supplies, EV chargers and medical power equipment.
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer's cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging, Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
