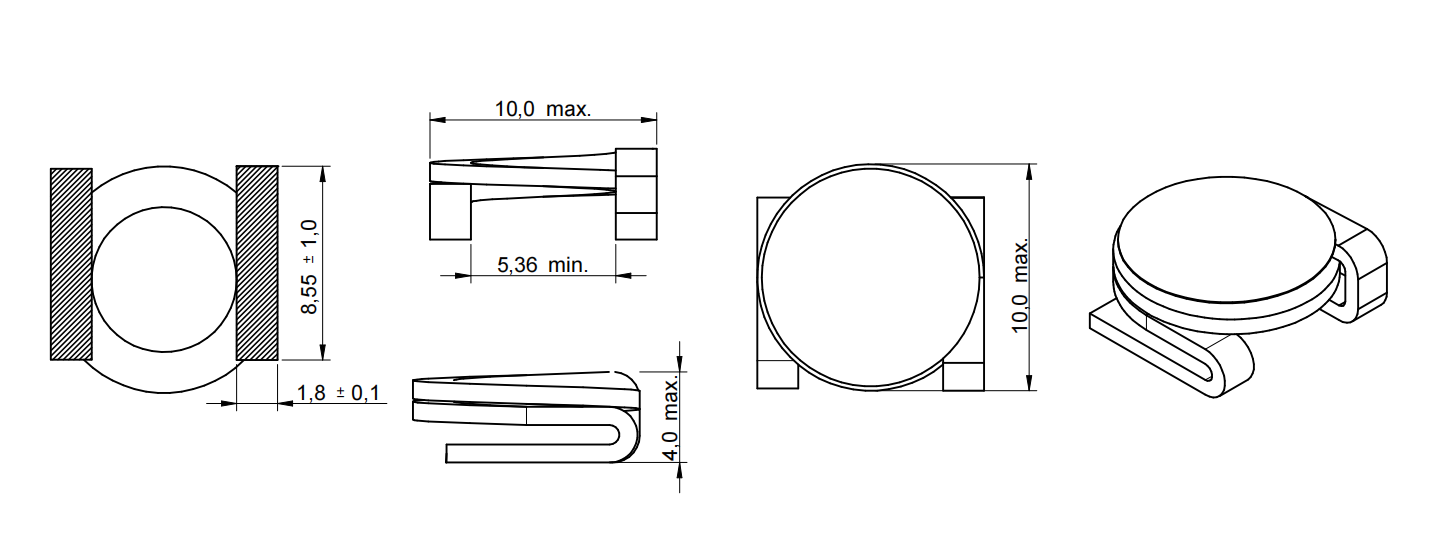

The 1010 High Current Air Coil is a high-performance High Current Air Core Inductor engineered by Infinity Electronics, designed for high-frequency, high-current electronic applications where magnetic stability and low power loss are critical. As a coreless inductive component, this 1010 Series RF Air Coil eliminates magnetic saturation and core loss issues that plague traditional cored inductors, delivering reliable performance across extreme operating conditions. With an inductance range of 22 nH to 146 nH, ultra-low DC resistance (RDC), and an extremely high Q-factor, it is optimized for high-speed electronic systems with clock frequencies exceeding 4 MHz. The 1010 High Frequency High Current Air Coil operates stably from -40 °C to +125 °C, making it a staple component for industrial, automotive, and RF power electronics. Its compact design and high current handling capability further solidify its position as a top choice for ToB customers in power conversion and signal processing industries.
As an air-core inductor, the 1010 High Current Air Coil has no magnetic core material, eliminating saturation even under maximum rated current and ensuring consistent inductance performance over time. This coreless design also results in zero core losses, significantly improving energy efficiency in high-current circuits.
Boasting a minimum Q-factor of 163–223 at 100 MHz and ultra-low maximum RDC (1.2 mΩ–3.33 mΩ), this air coil minimizes signal attenuation and power dissipation, ideal for high-frequency RF and power conversion applications that demand low loss and high signal integrity.
With an operating temperature range of -40 °C to +125 °C, it adapts to harsh industrial and automotive environments. The 1010 High Current Air Coil supports rated currents from 19 A to 30 A, meeting the high-current demands of DC-DC converters and RF power amplifiers.
Featuring a resonant frequency (fres) of 332 MHz to 867 MHz, it maintains stable performance in high-frequency circuits above 4 MHz, outperforming standard inductors in high-speed electronic systems.
Order Code | L (nH) | Tol.L | Test Condition L | Qmin (%) | Test Condition Q | RDC max. (mΩ) | IR (A) | fres (MHz) |
INF-1010-23nH | 23 | ±20% | 1 MHz | 191 | 100 MHz | 1.2 | 30 | 867 |
INF-1010-46.5nH | 46.5 | ±20% | 1 MHz | 223 | 100 MHz | 1.62 | 28 | 581 |
INF-1010-79nH | 79 | ±20% | 1 MHz | 184 | 100 MHz | 2.11 | 23 | 422 |
INF-1010-111nH | 111 | ±20% | 1 MHz | 186 | 100 MHz | 2.11 | 22 | 374 |
INF-1010-146nH | 146 | ±20% | 1 MHz | 163 | 100 MHz | 3.33 | 19 | 332 |
Ideal for DC-DC converters with clock frequencies >4 MHz in telecommunications, automotive, and industrial power supplies, where high current and low loss are essential.
Used in RF power amplifiers and RF voltage regulators for wireless communication devices, base stations, and radar systems, leveraging its high Q-factor and low RDC for optimal signal amplification.
Serves as a high-performance choke/filter in RF circuits to suppress noise and interference, ensuring clean signal transmission in high-current systems.
A top choice for magnetically-sensitive equipment that requires coreless inductive components, as well as general industrial and commercial power supplies demanding high reliability and efficiency.
The 1010 High Current Air Coil is fully RoHS compliant and halogen-free, meeting international environmental and safety standards for electronic components. It adheres to IEC and ANSI industry specifications for high-frequency inductors, ensuring compatibility with global ToB customer requirements for product certification and market access. All units undergo strict performance testing before shipment to guarantee compliance with stated technical parameters.
Tolerance Customization: Standard tolerance is 25%, with custom ±10%/±15%/±20% tolerance available (per the above specifications) for high-precision applications.
Packaging Customization: Standard bulk packaging, with reel-to-reel SMD packaging options for automated assembly lines.
Performance Tuning: Custom inductance values within the 22–146 nH range for application-specific requirements.
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
