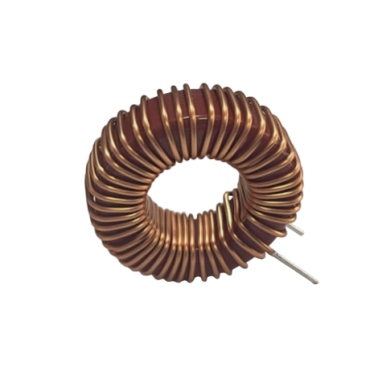

Leaded Toroidal Line Choke

Characteristics

This series features a maximum current rating of 9 A, utilizing low-loss iron powder cores for high efficiency. It provides ultra-low magnetic leakage and operates reliably over a wide temperature range from –25 °C to +125 °C. Custom designs are also available to meet specific application requirements.

Quantity:
Availability:





Inquiry Download

Leaded Toroidal Line Choke Toroidal Line Choke Leaded Toroidal Inductor Toroidal Choke Coil Leaded Toroidal Power Choke Ferrite Leaded Toroidal Choke Leaded Toroidal Line Choke Manufacturer Leaded Toroidal Line Choke Supplier

Product Description

Download

Customization Service

Our R&D team can customize inductance value, impedance characteristics and package dimensions according to customers’ EMC requirements and PCB layout constraints.

Sample Delivery:

Samples can be provided within 5–7 working days.
Sample orders are confirmed within 5–7 working days, and mass orders are shipped within 15–30 working days.

Common Applications (Enhanced)

Suitable for voltage transformers and general power supply systems
Effective for interference frequencies up to 10 MHz and switching frequencies up to 100 kHz
Ideal for filtering symmetrical interference and improving signal stability

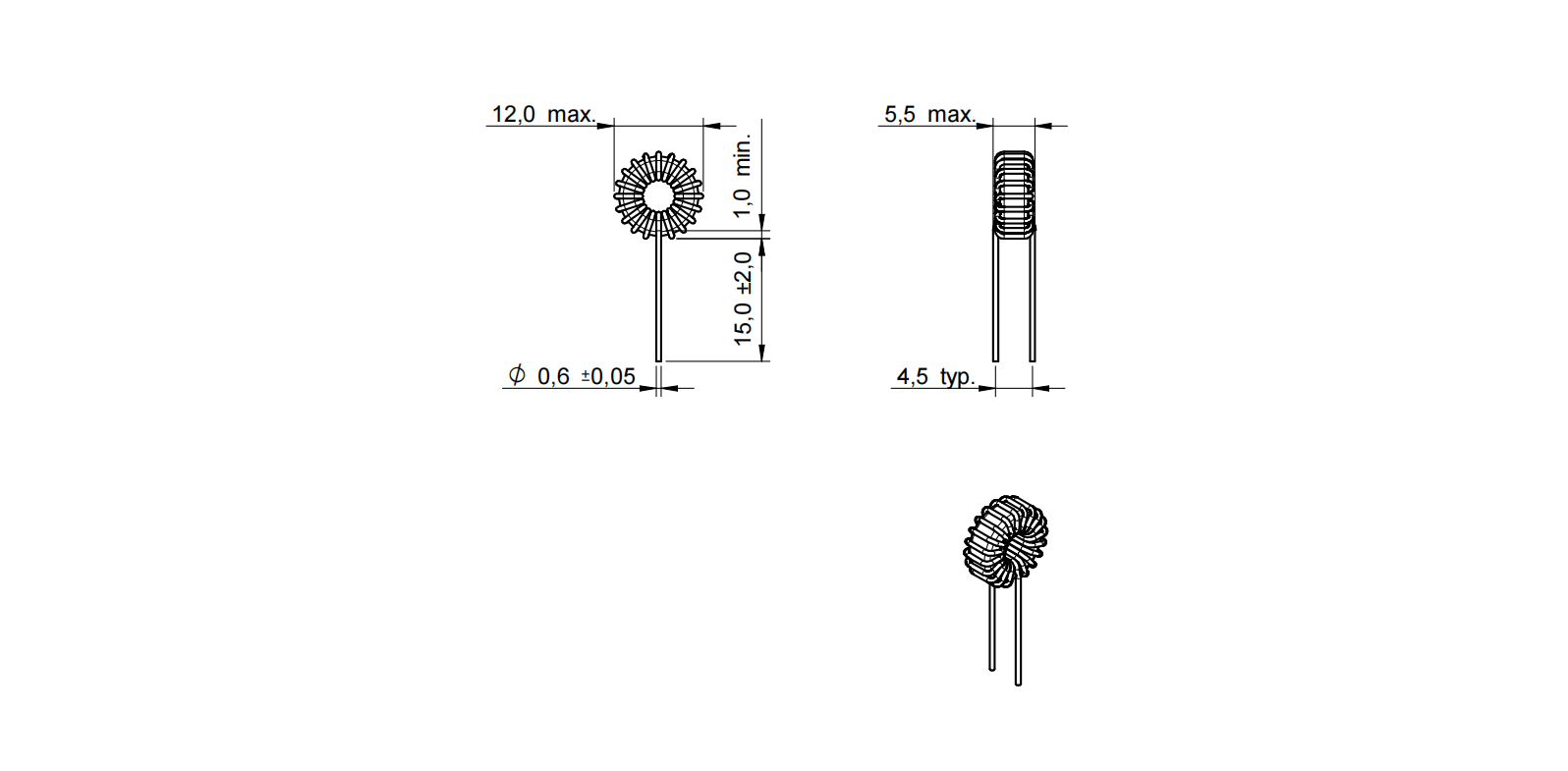

Physical Properties

Order Code	L (μH)	l_R (A)	R_{DC max.} (Ω)
INF-8.2μH	8.2	5	0.02
INF-10μH	10	8	0.01
INF-10μH	10	5	0.02
INF-12μH	12	1	0.03
INF-15μH	15	4.5	0.025
INF-20μH	20	7	0.015
INF-20μH	20	5.7	0.02
INF-22μH	22	3.5	0.03
INF-22μH	22	9	0.015
INF-24μH	24	3	0.045
INF-29μH	29	8	0.015
INF-30μH	30	3.7	0.04
INF-32μH	32	2.6	0.045
INF-35μH	35	5.7	0.025
INF-36μH	36	1.6	0.4
INF-37μH	37	1.3	0.12
INF-43μH	43	2.6	0.06
INF-56μH	56	1.4	0.18
INF-58μH	58	3.2	0.055
INF-60μH	60	4.1	0.04
INF-68μH	68	2.5	0.08
INF-68μH	68	1.5	0.1
INF-68μH	68	2.8	0.055
INF-90μH	90	4.6	0.04
INF-100μH	100	2.5	0.08
INF-100μH	100	6	0.035
INF-110μH	110	1.3	0.23
INF-110μH	110	2.9	0.07
INF-130μH	130	2.6	0.085
INF-130μH	130	3	0.09
INF-140μH	140	2	0.11
INF-140μH	140	1.1	0.26
INF-150μH	150	1.9	0.13
INF-150μH	150	2.5	0.1
INF-150μH	150	5.4	0.042
INF-150μH	150	6.1	0.045
INF-220μH	220	1.8	0.15
INF-220μH	220	2	0.16
INF-220μH	220	1.4	0.22
INF-240μH	240	1	0.38
INF-300μH	300	2.5	0.15
INF-330μH	330	3.1	0.085
INF-360μH	360	0.9	0.45
INF-470μH	470	1.6	0.225
INF-470μH	470	3	0.11
INF-700μH	700	5.1	0.12
INF-860μH	860	3	0.15
