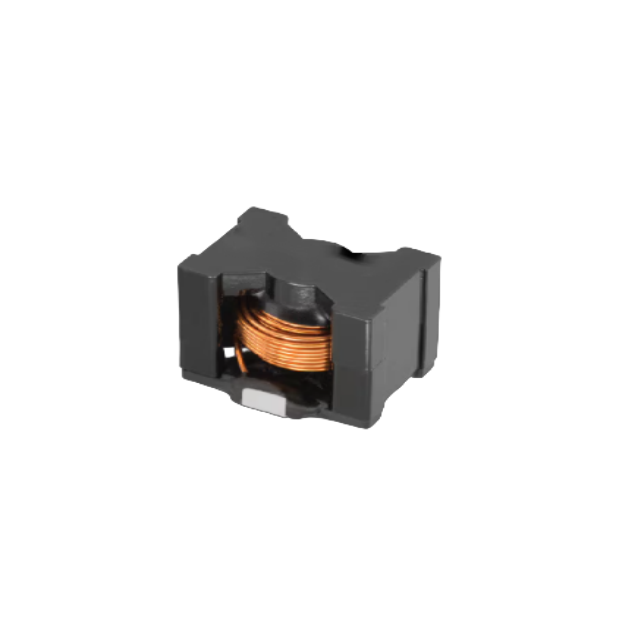

The 2010 SMT High Current Shielded Power Inductor is a high-performance surface-mount power component developed for high-efficiency DC/DC conversion and high-current energy storage applications. It breaks through traditional SMT inductor current limits with saturation current reaching up to 125A. Adopting low-loss MnZn ferrite core material and supporting multiple winding structures, it minimizes DC and AC losses with an inductance range from 0.7 µH to 680 µH. Its fully shielded structure reduces electromagnetic radiation and prevents interference to sensitive surrounding components. Optimized SMT pin design ensures excellent coplanarity, seamlessly integrating into automated production lines to improve manufacturing efficiency. With an operating temperature range of –40 °C to +125 °C, it maintains stable performance in harsh industrial environments, serving as a key component in high-efficiency DC/DC converters, resonant SMPS and professional audio filters.
With saturation current up to 125A, the 2010 SMT High Current Shielded Power Inductor far exceeds standard SMT inductors, supporting long-term high-current loading for high-ripple DC/DC converters and effectively avoiding inductance attenuation caused by magnetic saturation.
High-grade MnZn ferrite material delivers extremely low core loss under high-frequency and high-current conditions, maximizing energy conversion efficiency, reducing component heat generation and ensuring stable full-load system operation.
Full magnetic shielding effectively suppresses electromagnetic radiation and field interference, maintaining stable performance even in high-frequency environments, making it ideal for precision electronic devices with strict EMC requirements.
Multiple winding options support flexible selection based on loss control requirements. Optimized SMT structure ensures reliable automated assembly performance, reducing manual intervention and improving production yield for enterprise manufacturing.
The extended temperature range enables stable performance in challenging environments, supporting industrial automation, automotive electronics and outdoor equipment with strong environmental adaptability.
Order Code | L (μH) | IRP,40K (A) | ISAT,10% (A) | ISAT,30% (A) | RDC max (mΩ) | fres (MHz) |
INF-2010-1μH | 1 | 50.3 | 49 | 56 | 0.92 | 44 |
INF-2010-1.2μH | 1.2 | 50.3 | 42.5 | 47 | 0.92 | 42 |
INF-2010-2μH | 2 | 50.3 | 25.5 | 30 | 0.92 | 30 |
The 2010 SMT High Current Shielded Power Inductor is a critical component for high-current high-efficiency power conversion and signal processing across professional sectors. It serves as a core energy storage inductor for high-power DC/DC converters used in industrial power supplies, server modules and automotive power systems. It enables resonant SMPS designs for industrial automation and new energy storage equipment. It supports high-precision filtering in professional audio and broadcast signal processing systems with low interference and high fidelity. It also provides stable high-current performance for industrial control devices, automotive electronics and marine electronic systems operating in demanding environments.
The 2010 SMT High Current Shielded Power Inductor meets international industry standards and SMT manufacturing specifications for global market access. It complies with EN 60205 and EU CE certification, passing strict electrical, temperature and voltage tests for safety and reliability. It conforms to RoHS 2011/65/EU, free of restricted substances and aligned with green procurement policies. It meets global IPC-A-610 SMT mounting standards for automated assembly compatibility. The MnZn ferrite core achieves UL 94 V-0 flame retardant rating, preventing overheating-related safety risks.
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
Flexible customization and procurement services are provided for the 2010 SMT High Current Shielded Power Inductor to meet global enterprise customer requirements. Inductance value, winding type and pin configuration can be customized, with specialized shielding solutions available for unique application scenarios. Free technical documentation and sample support are offered for performance validation, with professional circuit matching guidance from the engineering team. Low MOQ trial orders are supported with competitive bulk pricing, alongside global air and sea transportation for timely delivery. Comprehensive after-sales service includes free replacement for non-human quality issues and a rapid-response technical support system to resolve application challenges efficiently.
