SMT High Current Inductor solutions from INF help engineers build compact, efficient, low‑noise power rails. As a high‑tech manufacturer and supplier, we deliver standard and custom parts that combine low losses, high current capability, and controlled EMI across industrial, automotive, telecom, medical, and new‑energy systems.

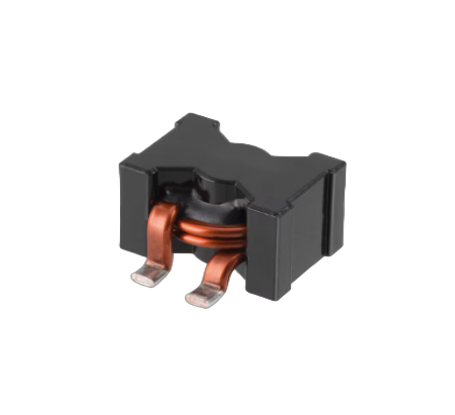

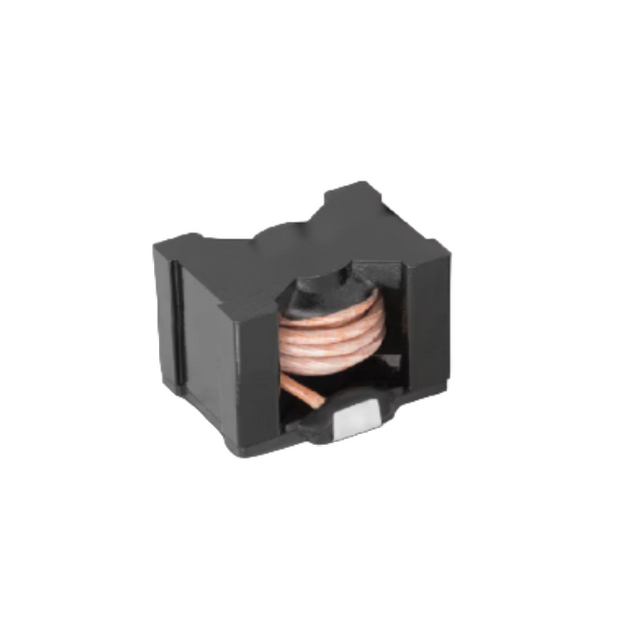

An SMT High Current Inductor is a surface‑mount power inductor optimized for high ripple and tight thermal budgets in DC/DC stages. Typical uses include synchronous buck converters, VRM and POL rails, and high‑density power modules. Standard and custom footprints fit dense layouts and height‑limited enclosures.
Our designs focus on efficiency, stability, and automated assembly.
To balance current rating, DCR, profile, and EMI, we offer several constructions. Standard sizes are available, and we frequently customize footprints and pad layouts.
| Type | Strengths | Typical uses |
|---|---|---|
| Molded shielded | Integral shielding, robust body, good thermals | Noise‑sensitive DC/DC, compact stages |
| Flat‑wire shielded | Ultra‑low DCR, very high current, improved heat spreading | VRM, POL, efficiency‑critical rails |
| Shielded wire‑wound | Balanced cost and ratings, broad inductance range | Telecom, industrial, mainstream buck/boost |
Encapsulated windings lower leakage flux and smooth thermal paths, supporting low noise and compact layouts.
Rectangular conductors maximize cross‑section and cut AC resistance, enabling high current in low‑profile packages.
Computing platforms use our VRM and POL inductors for low ripple and fast transients. Telecom and server power stages benefit from high efficiency and predictable thermals. We support automotive ECUs, industrial automation and drives, medical devices, instrumentation, and new‑energy systems such as BMS and storage interfaces.
Start with electrical targets, then confirm mechanical and thermal limits.
| Parameter | Impacts | Tip |
|---|---|---|
| L & tolerance | Ripple, loop stability | Match control targets; verify over temperature |
| Isat | Transients, regulation | Exceed worst‑case spikes; review L–I curves at temp |
| Irms | Temperature rise, life | Derate for ambient, airflow, copper area |
| DCR | Efficiency, self‑heating | Minimize within profile and footprint limits |
INF runs an ISO9001‑based quality system with strict lifecycle control and technical support. We support compliance with UL, CE, and RoHS where applicable and provide reliability testing aligned to your environment.
As a Custom Magnetic Component Solutions Expert, we offer OEM/ODM co‑design, rapid samples, and production‑ready builds. Options include core material, winding style, shielding, inductance, Isat/Irms, footprint, and height for harsh or space‑constrained designs.
Access datasheets with L–I and temperature‑rise curves, land patterns, and reflow profiles. Request samples or submit a specification for a fast quotation. Partner with INF as your SMT High Current Inductor manufacturer to accelerate your next power design.
