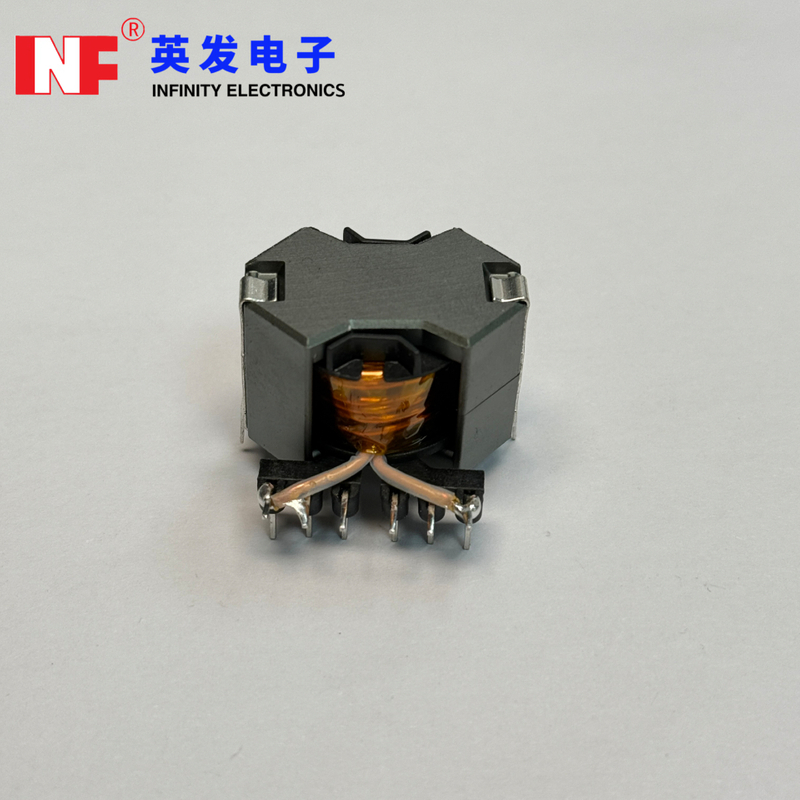

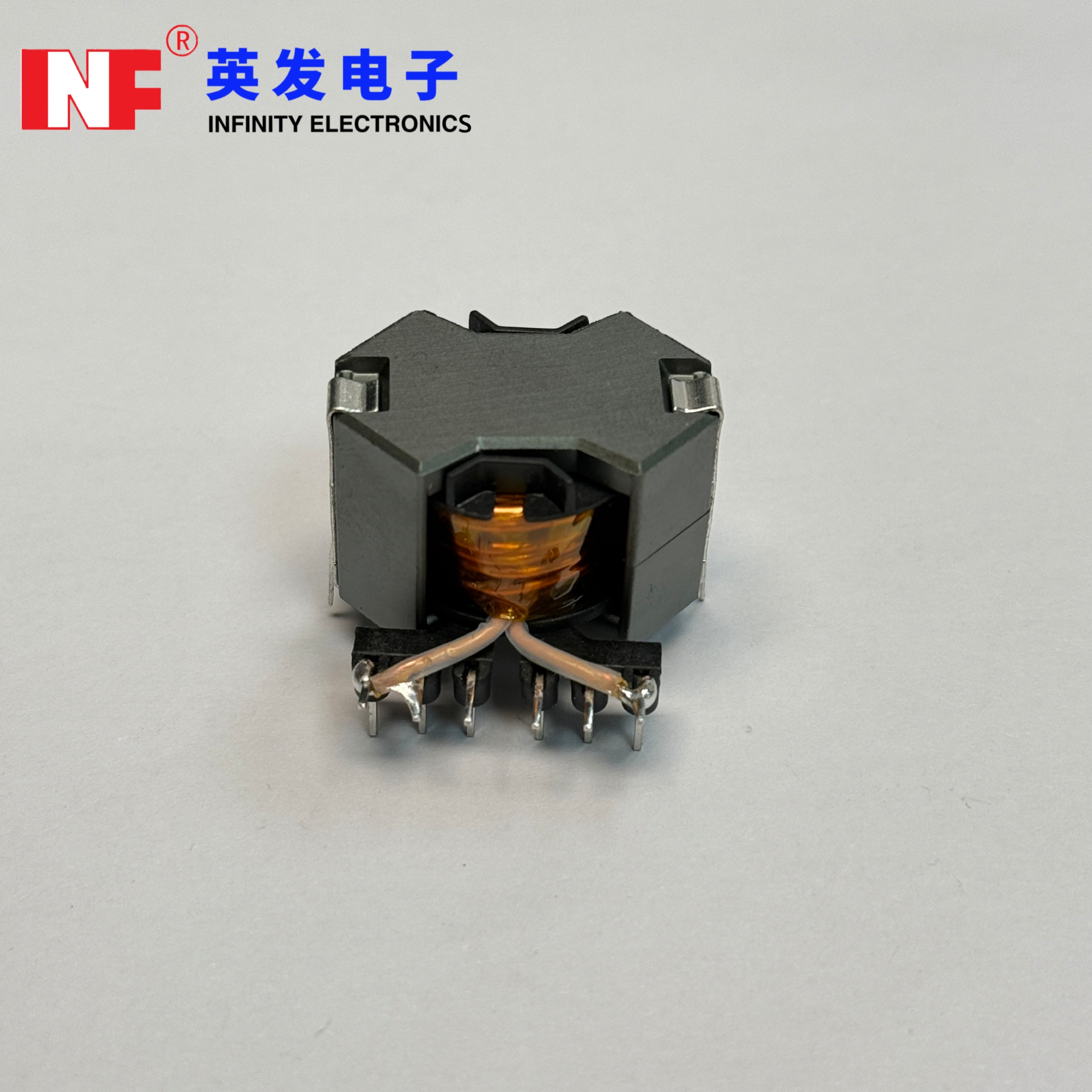

The RM8 Offline Flyback Transformer is engineered for AC-DC power conversion systems, delivering reliable energy transfer in offline switch-mode power supplies (SMPS). Utilizing an optimized RM core structure, it offers an ideal balance between efficiency, thermal performance, and compact footprint.
AC-DC adapters and chargers
Industrial control power supplies
Home appliance power modules
LED drivers
Auxiliary power circuits
Designed to meet international safety and quality standards, the RM8 flyback transformer is suitable for long-term use in demanding power environments.

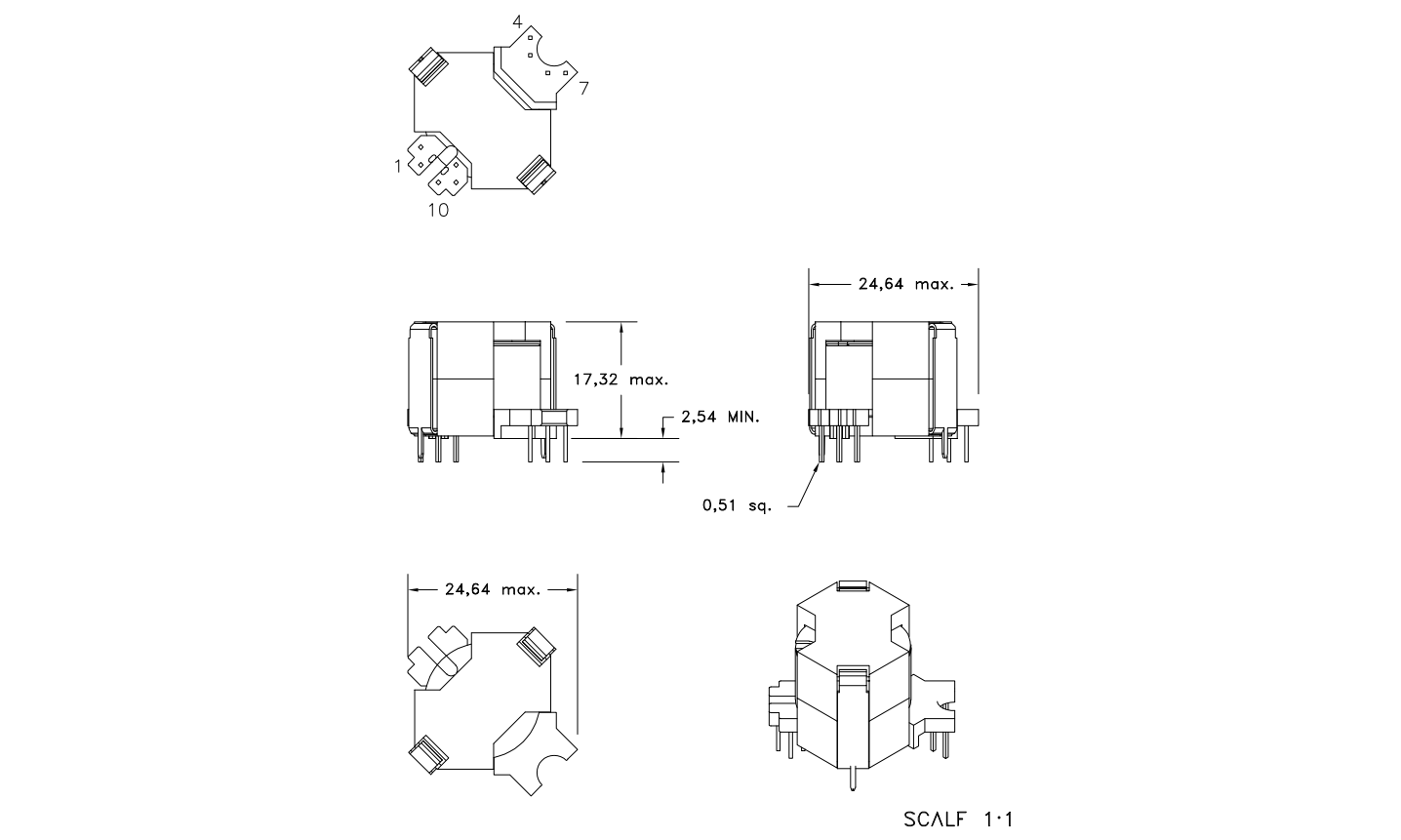

Physical Properties
| Order Code | VIN | Vout1 (V) | lout1(A) | Vout2 (V) | lout1(mA) | Vaux (V) | fswitch (kHz) | L(mH) | NPRI:NSEC:NAUX | ISAT(A) | VT (V(AC) |
| INF-RM8-0.15mH | 85-265V ( AC) | 12 | 2.25 | - | - | 12 | 56-138 | 0.15 | 5:1:3.5 | 4.8 | 4000 |
| INF-RM8-0.4mH | 90-265V ( AC) | 20 | 2.25 | - | - | 12 | 60-150 | 0.4 | 7.5:1:2.33 | 2 | 4000 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
