Type XXL Common Mode Power Line Choke-CMB

Characteristics:

Utilizing low-capacitance winding technology, this device enables efficient attenuation of broadband noise while maintaining excellent suppression of low-frequency asymmetric disturbances. Its space-optimized design accommodates high current-carrying capacity within a minimal volume, with optimized magnetic circuit layout ensuring controlled heating during high-current operation. The product demonstrates strong environmental adaptability, supporting stable operation across -40°C to 125°C, with enclosure materials meeting UL 94 V-0 flame-retardant standards and climatic protection rating reaching 40/125/21.

Quantity:
Availability:





Inquiry Add to Basket

Type XXL Common Mode Power Line Choke power line common mode choke Common Mode Power Line Choke EMI power line filter choke common mode choke for mains power high current common mode choke

Product Description

Download

Common Application:

Typical applications encompass front-end and rear-end filtering in power electronics, providing reliable noise isolation for ungrounded equipment, suppressing radio-frequency interference generated during motor operation, and achieving highly effective common-mode noise filtration in AC/DC converters.

Flexible ODM/OEM Services

We offer comprehensive ODM and OEM support for Type XXL Common Mode Power Line Choke, providing fully customizable solutions to meet your specific requirements. This includes custom inductance values, pin configurations, package dimensions, and branding options.

Our experienced technical team works closely with clients to deliver tailored solutions for specialized industrial, commercial, and high-reliability applications. From prototype development to mass production, we ensure your products meet exact performance, layout, and compliance needs.

Physical Properties

Order Code	I_R (A)	L (mH)	R_DC _max. (mΩ)	V_R (V(AC))	V_T (V(AC))
INF-Type XXL-1.8mH	14	1.8	9.5	250	1500
INF-Type XXL-1.3mH	20	1.3	6.2	250	1500
INF-Type XXL-1mH	25	1	4.5	250	1500
INF-Type XXL-0.5mH	35	0.5	2.3	250	1500

Technical Specifications

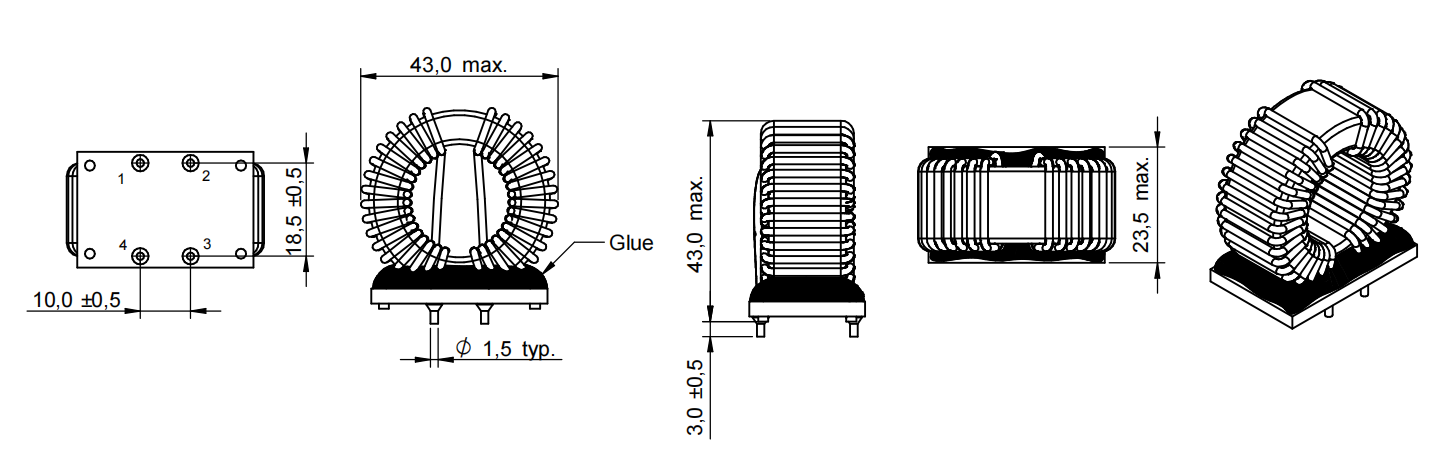

屏幕截图 2025-10-29 144740
