Ultra-high Q value (>100) and excellent self-resonant frequency to minimize signal attenuation
4.0A high current carrying capacity for stable operation in high-load RF circuits
Tin-plated pin structure enhances welding stability and service reliability
| Electrical & Mechanical Specification | Parameter Range |
| Product Model | Air Coil 3136 |
| Inductance Value | 1.65nH – 538nH |
| Tolerance Class | 2% / 5% / 10% |
| Q Factor | > 100 |
| Maximum Current | 4.0A |
| Assembly Compatibility | Automatic pick-and-place supported |
| Pin Treatment | Tin-plated for enhanced solderability |
| Typical Application | RF systems, broadband filters, RF decoupling, high-current circuits |

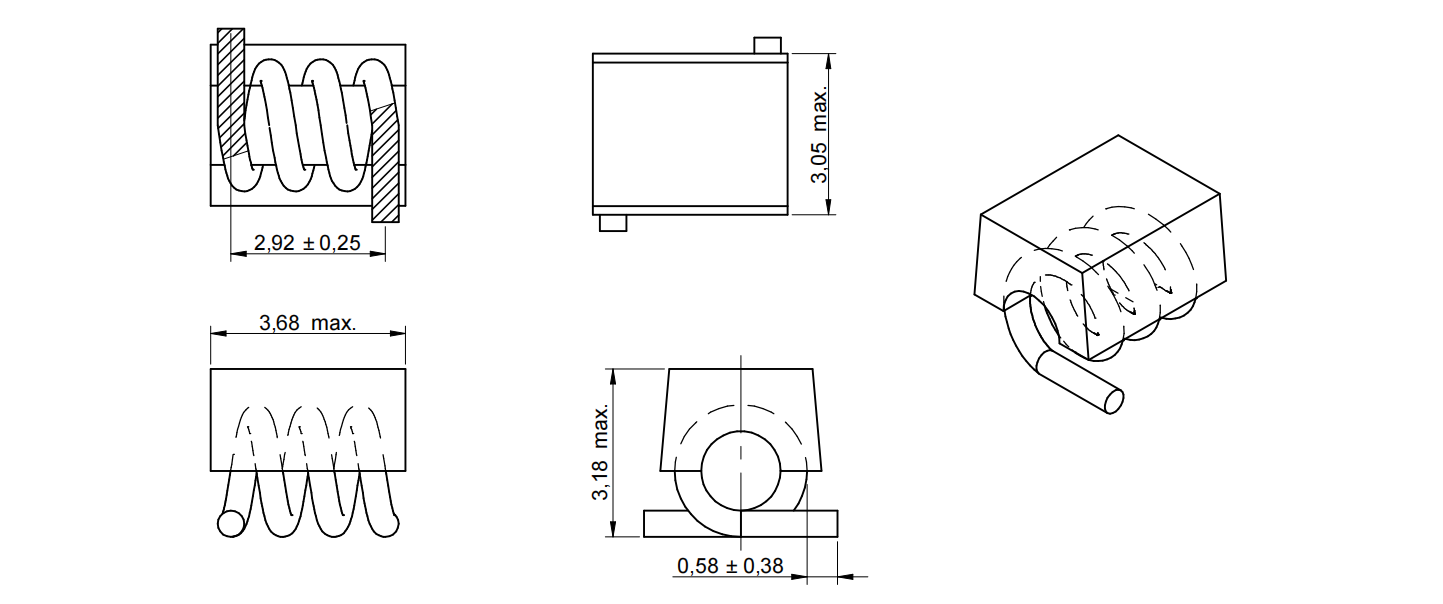

Physical Propertie
| Order Code | L (nH) | Tol.L | Test Condition L | Qmin (%) | Test Condition Q | RDc max. (mΩ) | lR (A) | fres (GHz) |
| INF-3136-2.5nH | 2.5 | ±5% | 150 MH | 140 | 150 MH | 1.1 | 4 | 12.5 |
| INF-3136-5nH | 5 | ±5% | 150 MH | 140 | 150 MH | 1.8 | 4 | 6.5 |
| INF-3136-5nH | 5 | ±2% | 150 MH | 140 | 150 MH | 1.8 | 4 | 6.5 |
| INF-3136-8nH | 8 | ±5% | 150 MH | 140 | 150 MH | 2.6 | 4 | 5 |
| INF-3136-8nH | 8 | ±2% | 150 MH | 140 | 150 MH | 2.6 | 4 | 5 |
| INF-3136-12.5nH | 12.5 | ±5% | 150 MH | 137 | 150 MHL | 3.4 | 4 | 3.3 |
| INF-3136-12.5nH | 12.5 | ±2% | 150 MH | 137 | 150 MH | 3.4 | 4 | 3.3 |
| INF-3136-18.5nH | 18.5 | ±5% | 150 MH | 132 | 150 MH | 3.9 | 4 | 2.5 |
| INF-3136-18.5nH | 18.5 | ±2% | 150 MH | 132 | 150 MH | 3.9 | 4 | 2.5 |
